Remote Brake Servo 3 to 1 Boost
HomeStore

Remote Brake Servo 3 to 1 Boost

Remote Brake Servo 3 to 1 Boost

$85.30

Original: $243.72

-65%
Remote Brake Servo 3 to 1 Boost—

$243.72

$85.30

The Story

3 to 1 boost ratio - A big brother to our popular #REMSERV.

Add servo assistance to your car - even if you have twin master cylinders with a balance bar (2 units will be required).

This unit can be mounted anywhere and plumbed between the cylinder outlet and the brakes.

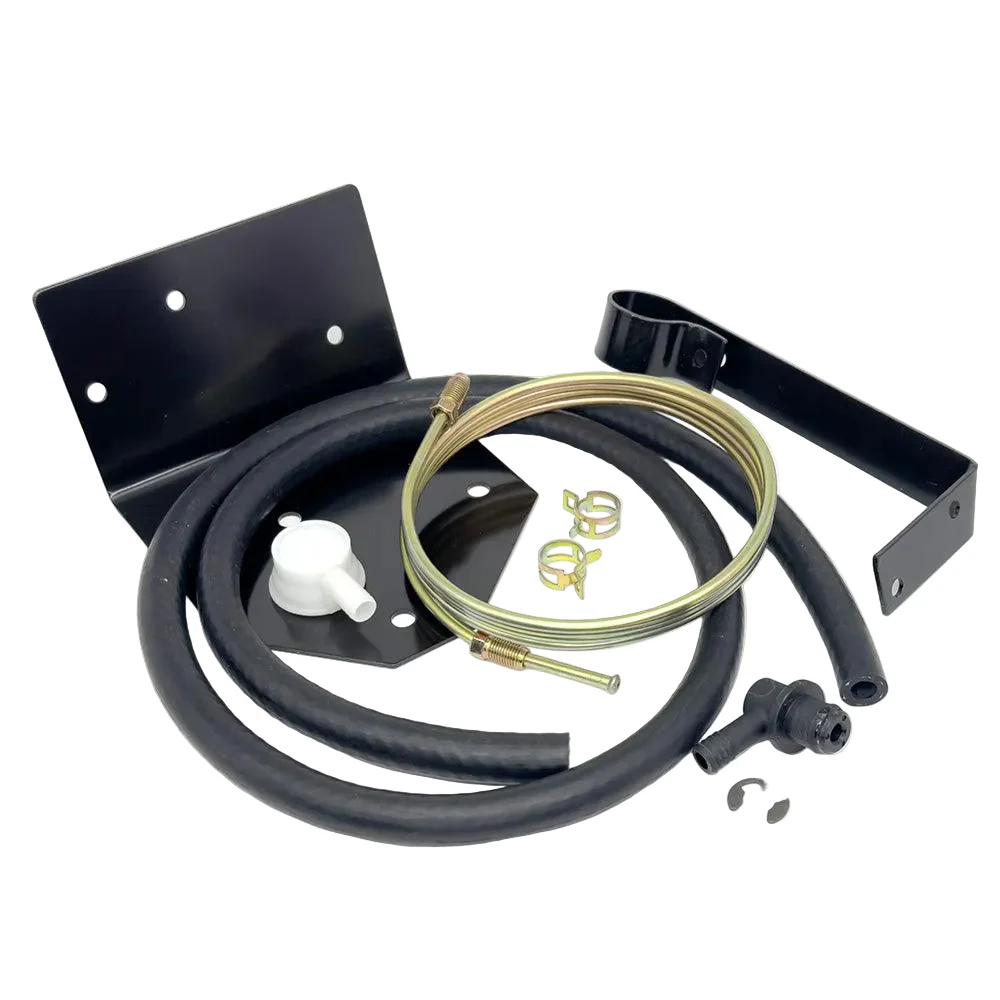

Supplied with two mounting bracket options, a metre of servo hose and even a length of pre-formed steel brake pipe and unions. Brackets may require drilling for your installation.

3/8" UNF inlet & outlet and 10mm hose tail.

Main unit diameter - 210mm.

Main unit thickness - 110mm.

Cylinder Length - 130mm.

2 x 20mm 5/16" UNF mounting studs on 80mm Centres.

Overall length including studs - 160mm.

The unit can be mounted at any angle but please bear in mind that there is no bleed facility on the cylinder so it makes sense to keep the outlet higher than the inlet.

PLEASE READ CAREFULLY WARRANTY INFORMATION

REMOTE SERVO 3 TO 1 BOOST #REMSERV8

Remote Brake Servo 3 to 1 Boost - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Remote Brake Servo 3 to 1 Boost - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Remote Brake Servo 3 to 1 Boost - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

3 to 1 boost ratio - A big brother to our popular #REMSERV.

Add servo assistance to your car - even if you have twin master cylinders with a balance bar (2 units will be required).

This unit can be mounted anywhere and plumbed between the cylinder outlet and the brakes.

Supplied with two mounting bracket options, a metre of servo hose and even a length of pre-formed steel brake pipe and unions. Brackets may require drilling for your installation.

3/8" UNF inlet & outlet and 10mm hose tail.

Main unit diameter - 210mm.

Main unit thickness - 110mm.

Cylinder Length - 130mm.

2 x 20mm 5/16" UNF mounting studs on 80mm Centres.

Overall length including studs - 160mm.

The unit can be mounted at any angle but please bear in mind that there is no bleed facility on the cylinder so it makes sense to keep the outlet higher than the inlet.

PLEASE READ CAREFULLY WARRANTY INFORMATION

REMOTE SERVO 3 TO 1 BOOST #REMSERV8
