Remote Brake Servo 2 to 1 Boost
HomeStore

Remote Brake Servo 2 to 1 Boost

Remote Brake Servo 2 to 1 Boost

$75.82

Original: $216.64

-65%
Remote Brake Servo 2 to 1 Boost—

$216.64

$75.82

The Story

2 to 1 boost ratio

Add servo assistance to your car - even if you have twin master cylinders with a balance bar (2 units will be required).

This unit can be mounted anywhere and plumbed between the cylinder outlet and the brakes.

Supplied with two mounting bracket options, a metre of servo hose and even a length of pre-formed steel brake pipe and unions.

3/8" UNF inlet & outlet and 10mm hose tail.

Main unit diameter - 190mm.

Main unit thickness - 110mm.

Cylinder Length - 130mm.

2 x 20mm 5/16" UNF mounting studs on 80mm Centres.

Overall length including studs - 160mm.

Addition to diameter at vacuum hose 40mm.

The unit can be mounted at any angle but please bear in mind that there is no bleed facility on the cylinder so it makes sense to keep the outlet higher than the inlet.


REMOTE SERVO 2 TO 1 BOOST #REMSERV

Remote Brake Servo 2 to 1 Boost - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Remote Brake Servo 2 to 1 Boost - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

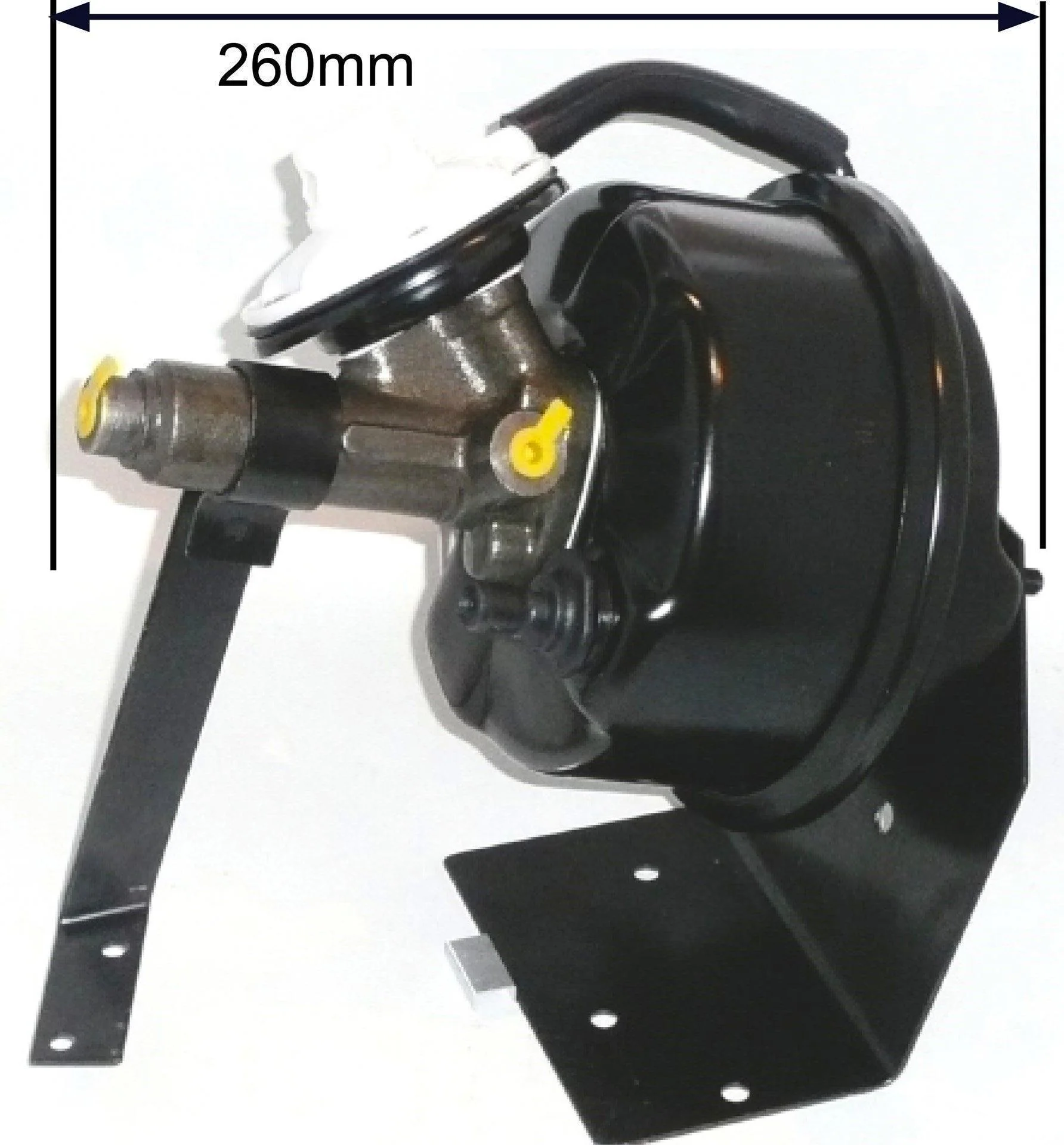

Remote Brake Servo 2 to 1 Boost - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

2 to 1 boost ratio

Add servo assistance to your car - even if you have twin master cylinders with a balance bar (2 units will be required).

This unit can be mounted anywhere and plumbed between the cylinder outlet and the brakes.

Supplied with two mounting bracket options, a metre of servo hose and even a length of pre-formed steel brake pipe and unions.

3/8" UNF inlet & outlet and 10mm hose tail.

Main unit diameter - 190mm.

Main unit thickness - 110mm.

Cylinder Length - 130mm.

2 x 20mm 5/16" UNF mounting studs on 80mm Centres.

Overall length including studs - 160mm.

Addition to diameter at vacuum hose 40mm.

The unit can be mounted at any angle but please bear in mind that there is no bleed facility on the cylinder so it makes sense to keep the outlet higher than the inlet.


REMOTE SERVO 2 TO 1 BOOST #REMSERV
