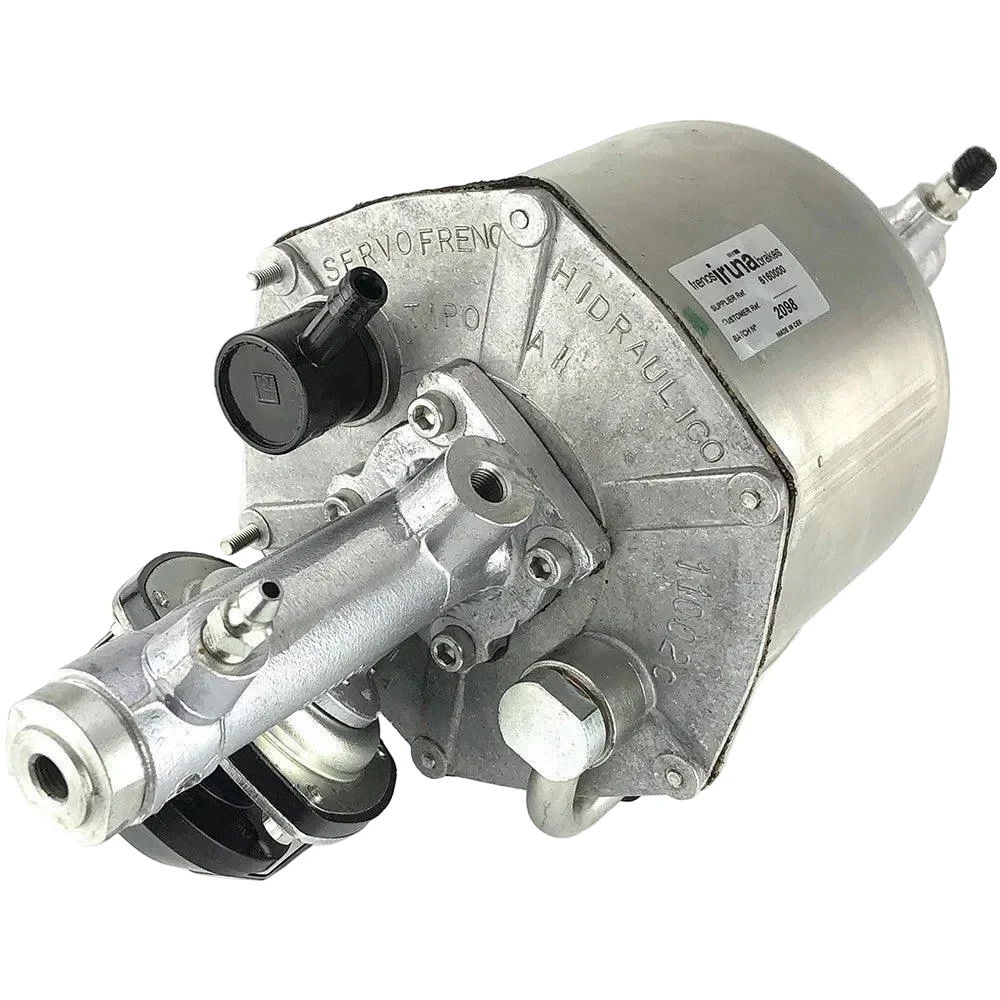

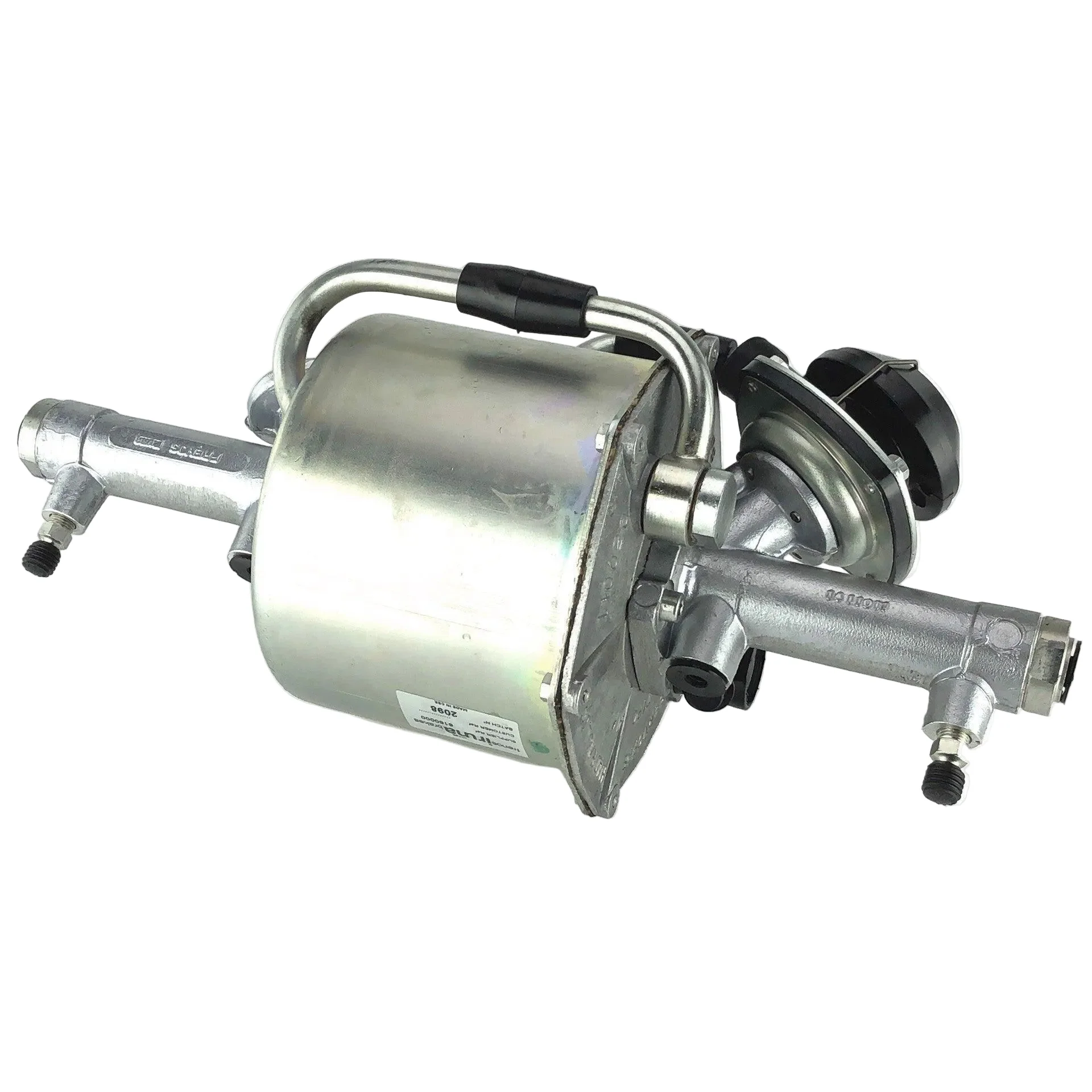

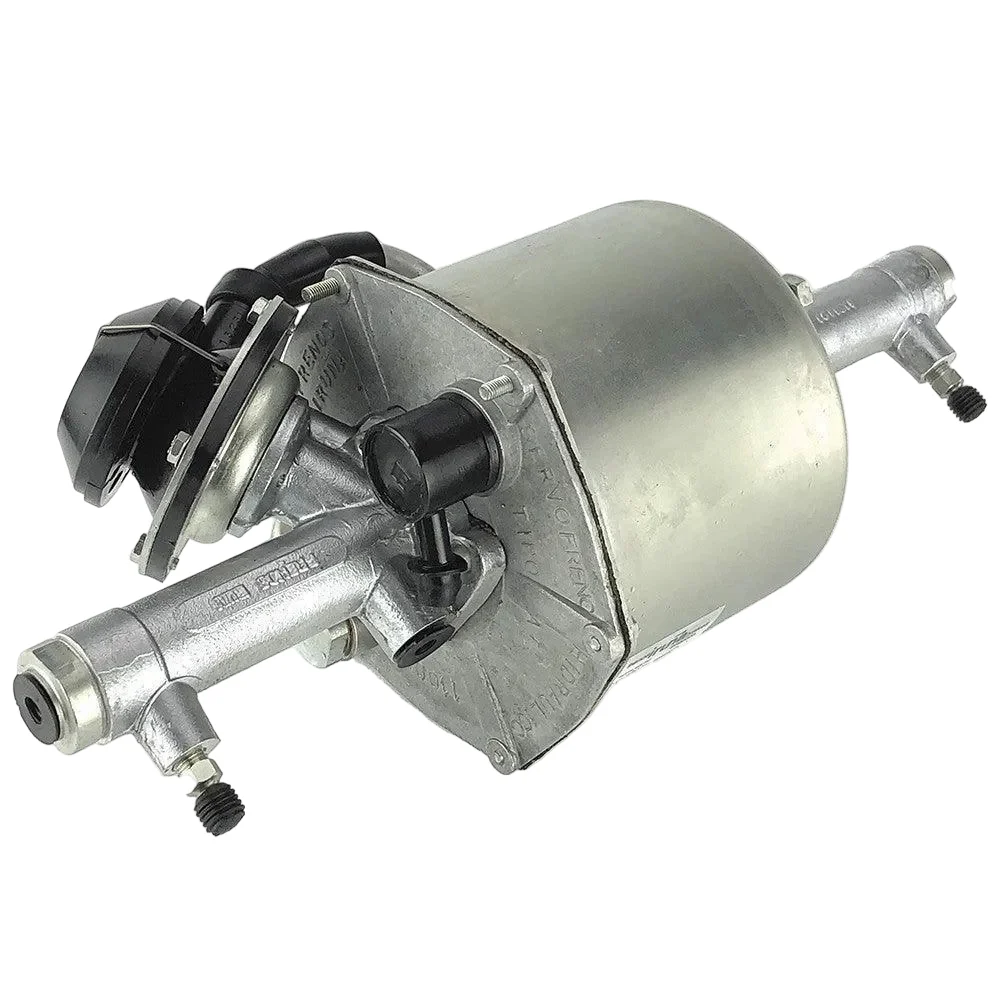

Compact Dual Circuit Remote Brake Servo

Upgrade your vehicle's braking performance with this powerful and compact dual circuit remote brake servo.

This servo provides a 2:1 power boost ratio at 600mm Hg vacuum, significantly improving your stopping power. Its dual circuit design allows for separate front and rear brake circuits, ensuring balanced and reliable braking in all conditions.

Features:

• Compact Design: Canister diameter of 138mm and overall length of 380mm for easy installation in various locations.
• Dual Circuit Operation: Provides independent braking for front and rear circuits for enhanced safety.
• High-Performance Boost: 2:1 power boost ratio for significantly improved stopping power.
• Easy Installation: Includes two M5 mounting studs on the cylinder flange and one M8 stud on the rear of the canister.

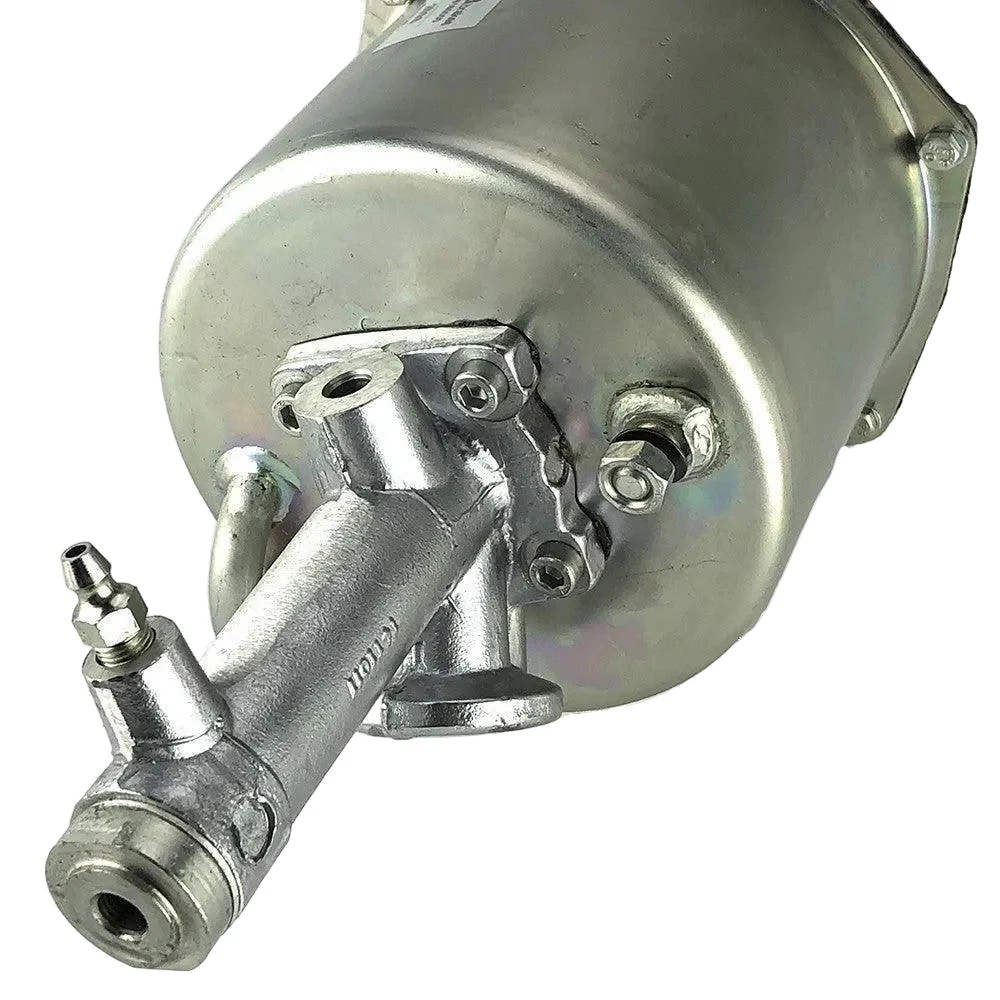

• Bleed Screws: Features bleed screws on each cylinder for easy maintenance (Important: Each bleed screw has a ball bearing seal, so take care not to lose it during removal).

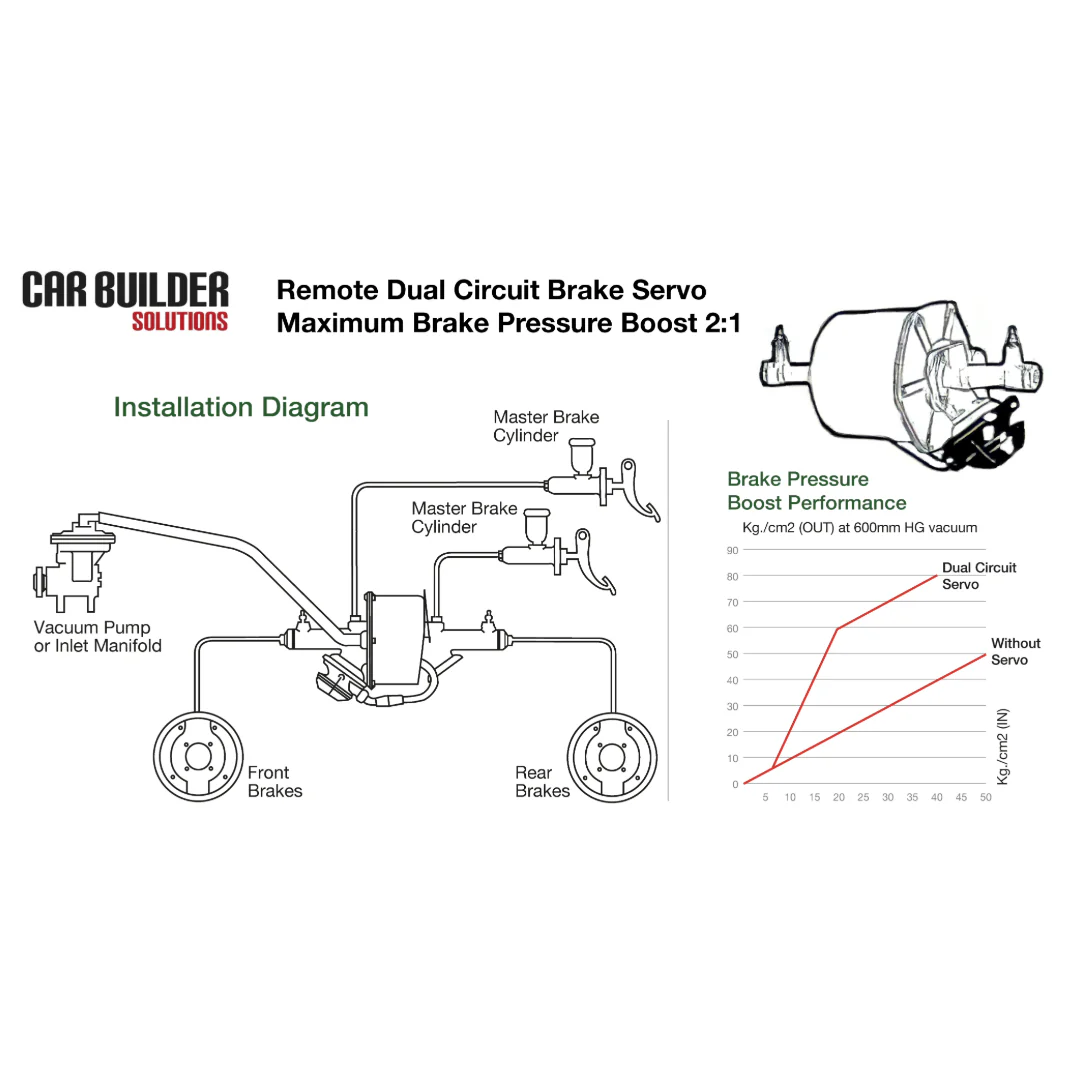

• Recommended Configuration: For optimal performance, connect the front brakes to the cylinder adjacent to the air valve.

Specifications:

• Vacuum Inlet: 3/8" (10mm) push-on hose tail (order our #VACHO10 for compatible hose)
• Fluid Inlet/Outlet: 3/8"-24 UNF female threads
• Weight: 3.74kg

NOTE: THE BLEED SCREWS HAVE AN ACCOMPANYING BALL BEARING SEAL BE CAREFUL NOT TO LOSE IF SCREW IS REMOVED. (see picture). WE RECOMMEND THAT THE FRONT BRAKES BE CONNECTED TO THE CYLINDER ADJACENT TO THE AIR VALVE.

Hanging or Bottom mount brackets are available for this servo #BKTDUAL and #BKTDUAL2

COMPACT DUAL CIRCUIT REMOTE SERVO #REMSERVDUAL
