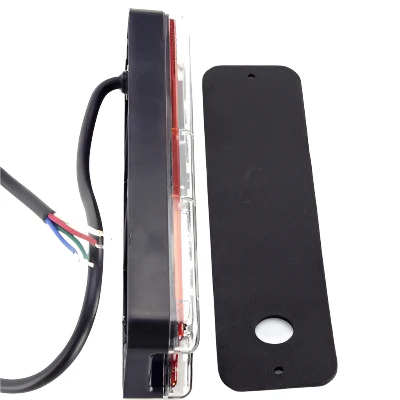

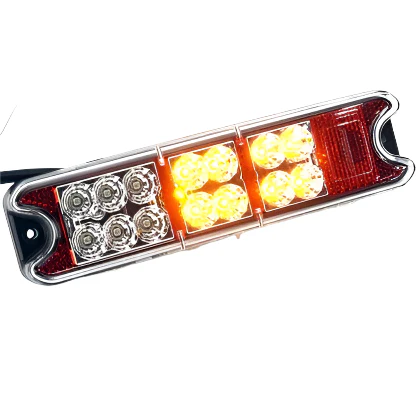

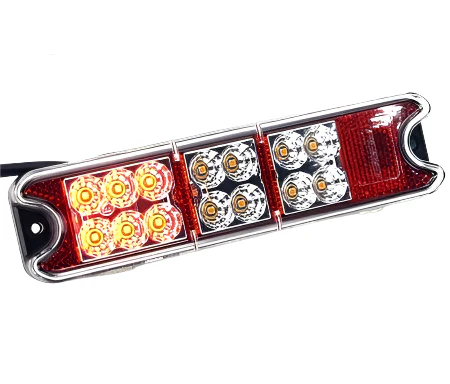

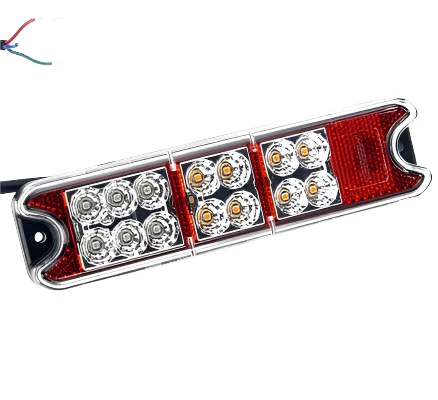

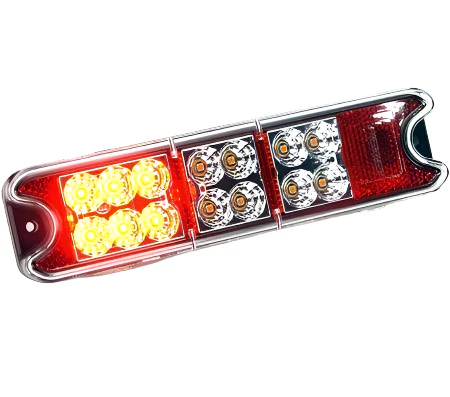

RECTANGULAR LED ALL IN ONE REAR LAMP IVA OK
'E'9 marked.
Stop, Tail Indicator and Reflector.
Size 190mm x 50mm x 28mm thick.
Two x 4mm mounting holes @ 173mm centres.
500mm long flylead.
Foam rubber mounting gasket.
Will operate from 9 volts to 33 volts.
Weight 400gms pair.

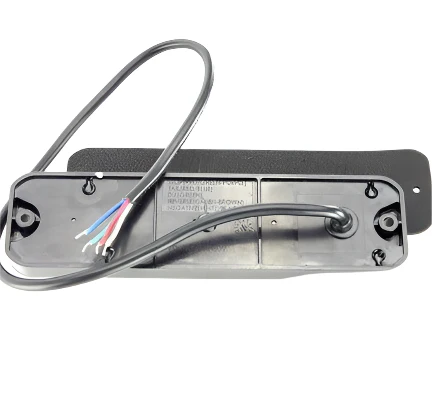

WIRING:
12v Neg - White
INDICATOR - Green
TAIL - Blue
STOP - Red
LED RECTANGULAR ALL-IN-ONE REAR LAMP WITH BUILT-IN REFLECTOR #RL88

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
RECTANGULAR LED ALL IN ONE REAR LAMP IVA OK
'E'9 marked.
Stop, Tail Indicator and Reflector.
Size 190mm x 50mm x 28mm thick.
Two x 4mm mounting holes @ 173mm centres.
500mm long flylead.
Foam rubber mounting gasket.
Will operate from 9 volts to 33 volts.
Weight 400gms pair.
WIRING:
12v Neg - White
INDICATOR - Green
TAIL - Blue
STOP - Red
