125mm Round Lamp Housing Black

HOUSING FOR 125mm DIAMETER LAMPS

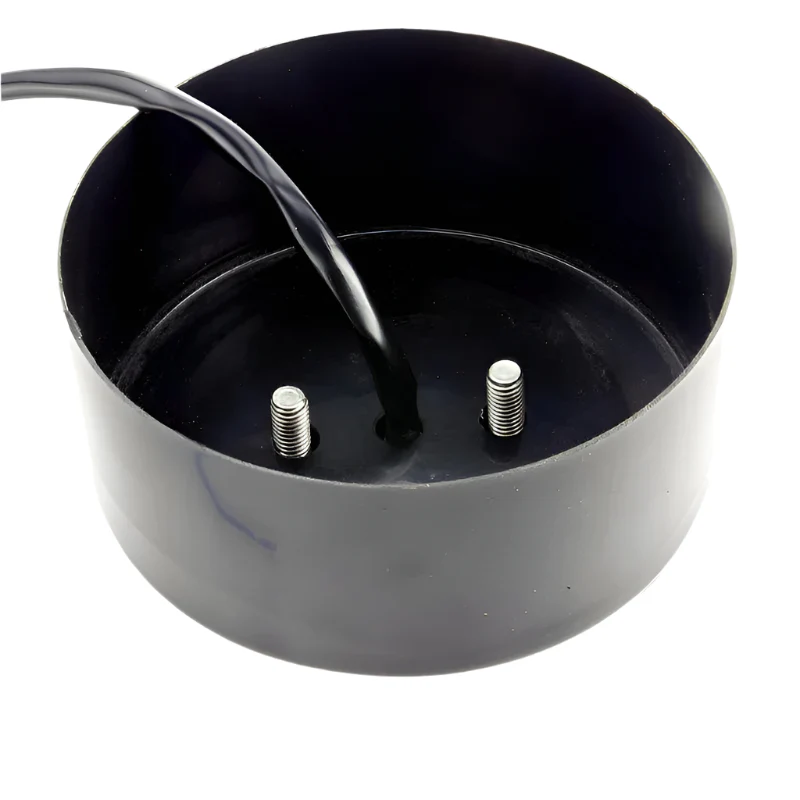

Gloss Black moulded ABS housing for 125mm diameter rear lamps.

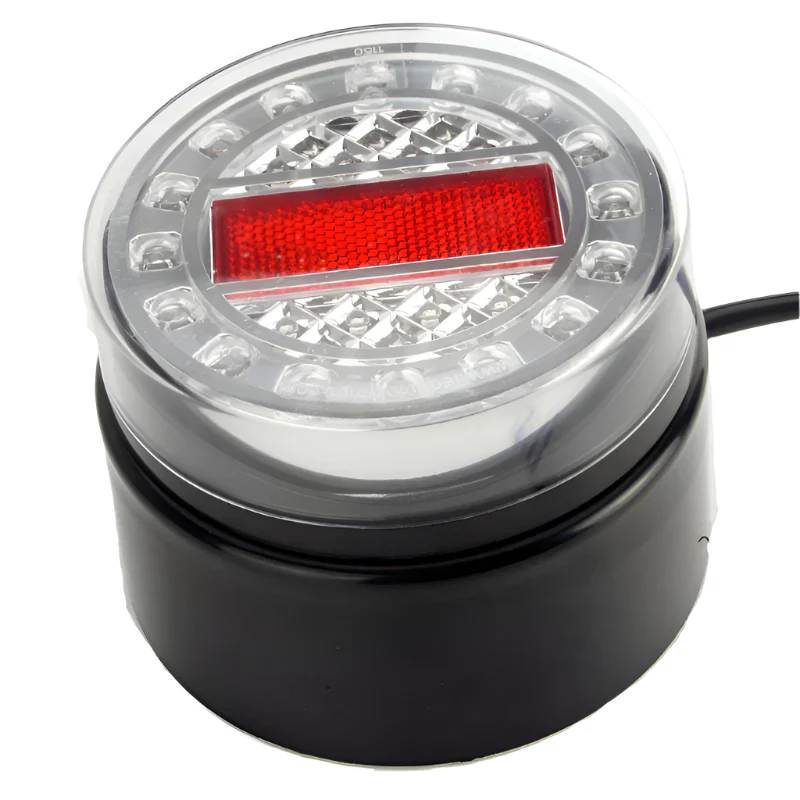

Shown with a #RL53.

Moulded from 2mm thick ABS sheet it's mounting face diameter is 130mm.

This means that a 125mm diameter lamp will sit nicely on the edge of the moulding radius.

The height of the housing is 60mm so you can trim it to mount on an angled rear panel up to 20º off vertical.

Housing is shown drilled for a #RL53 but will be supplied undrilled.

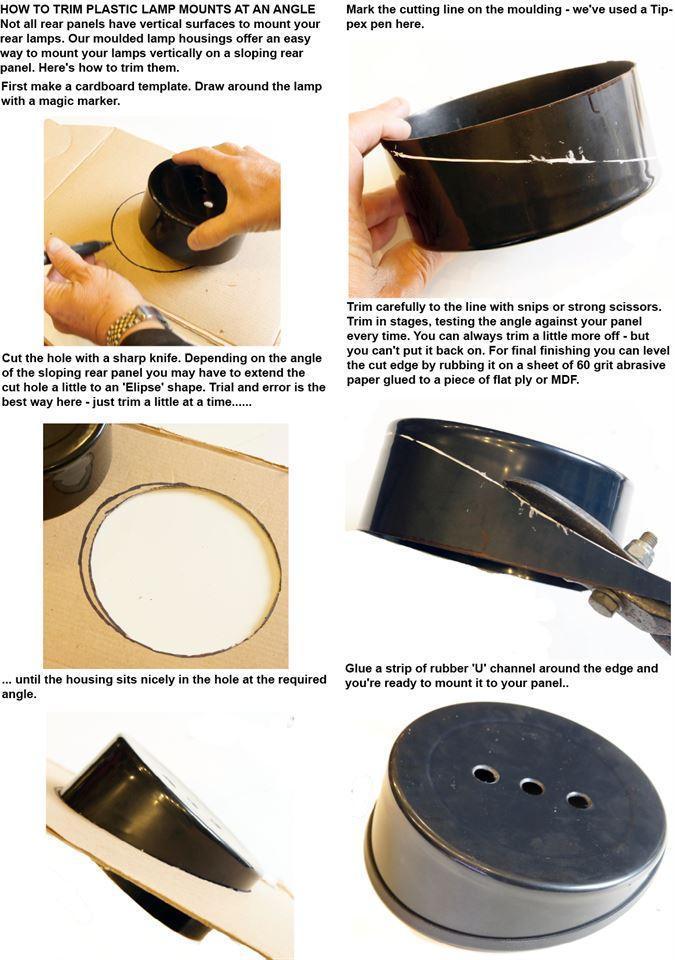

MOUNTING TIPS: The trimmed edge can be fitted with our #TRMU2 rubber edging trim giving a good contact point with your panel. The housing can be mounted with long studs and / or spacing tubes through the panel.

GLOSS BLACK LAMP HOUSINGS SINGLE #HOU125
