140mm LED Round Stop Tail and Sequencing Indicator Lamps Pair

‘E20’ Marked.

This unusual lamp has a three segment, Neon-like glowing red outer ring tail lamp, a two-bar red LED ‘stop’ lamp and a sequencing amber LED strip across the centre.

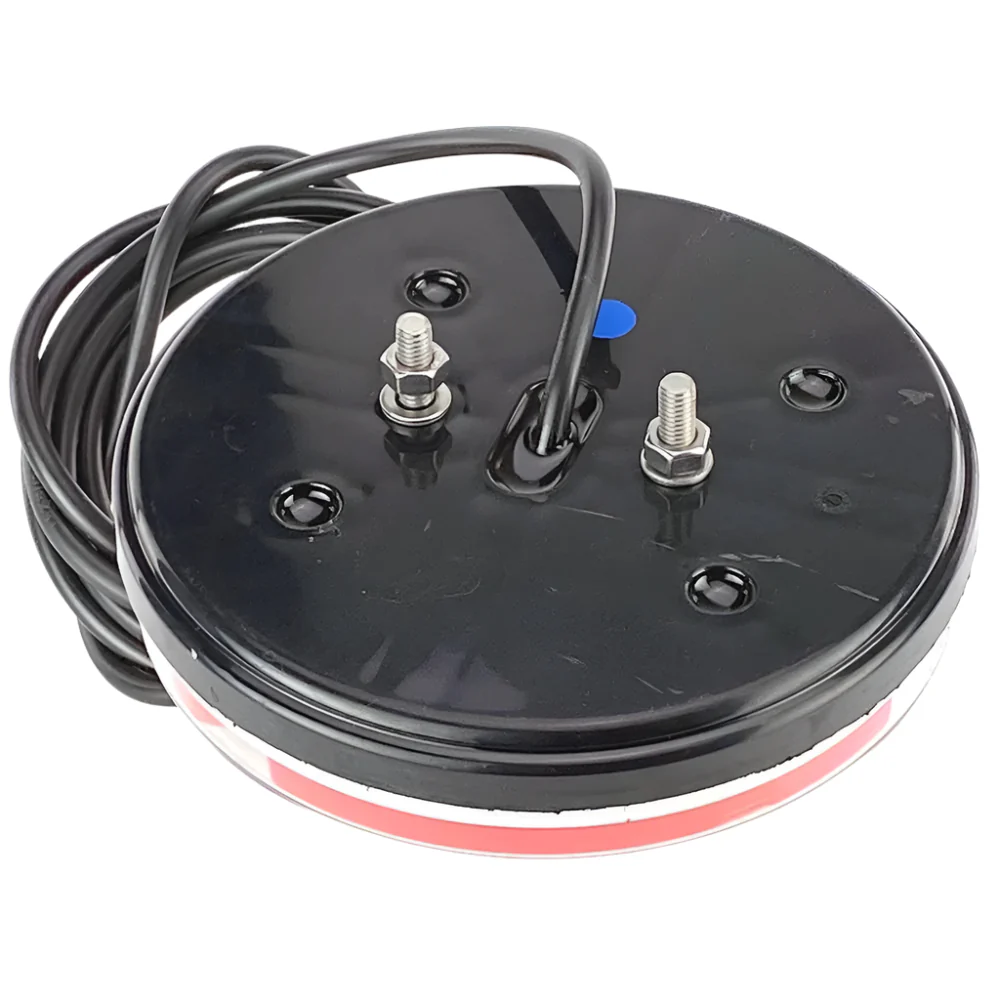

It mounts on a flat surface with two M6 studs at 45mm centres.

Maximum 142mm maximum diameter x 32mm deep.

WIRING:

WHITE: neg.12 volt.

RED - Stop.

BLACK - Tail.

YELLOW - Indicator.

POWER CONSUMPTION:

INDICATOR - 2.6W

TAIL - 2.4W

STOP - 4W

12 volt / 24 volt.

Weight 475gms each.

For handed installation just invert one lamp.

NOTE: The internal sequencing electronics of the indicator in this lamp needs no additional relay.

Your existing indicator relay is all you need.

SEE OUR ONLINE VIDEO OF THE INDICATOR SEQUENCING.

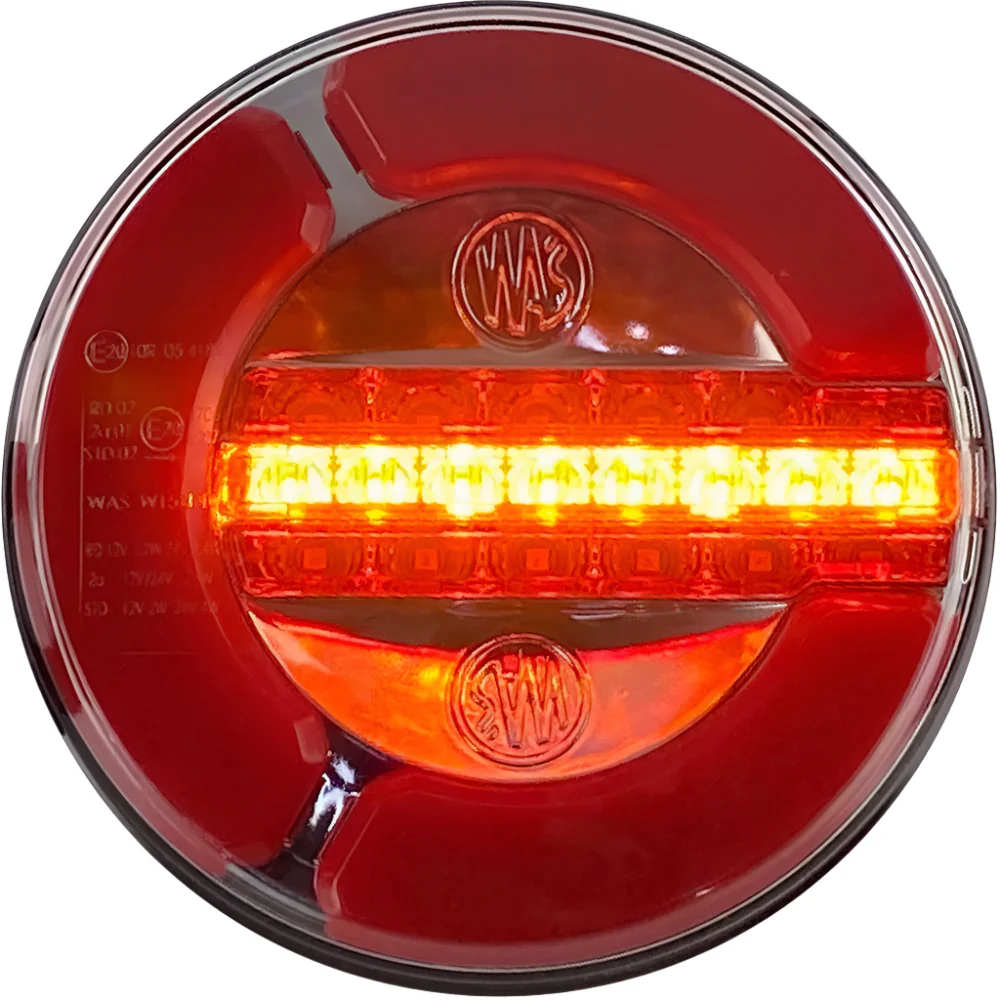

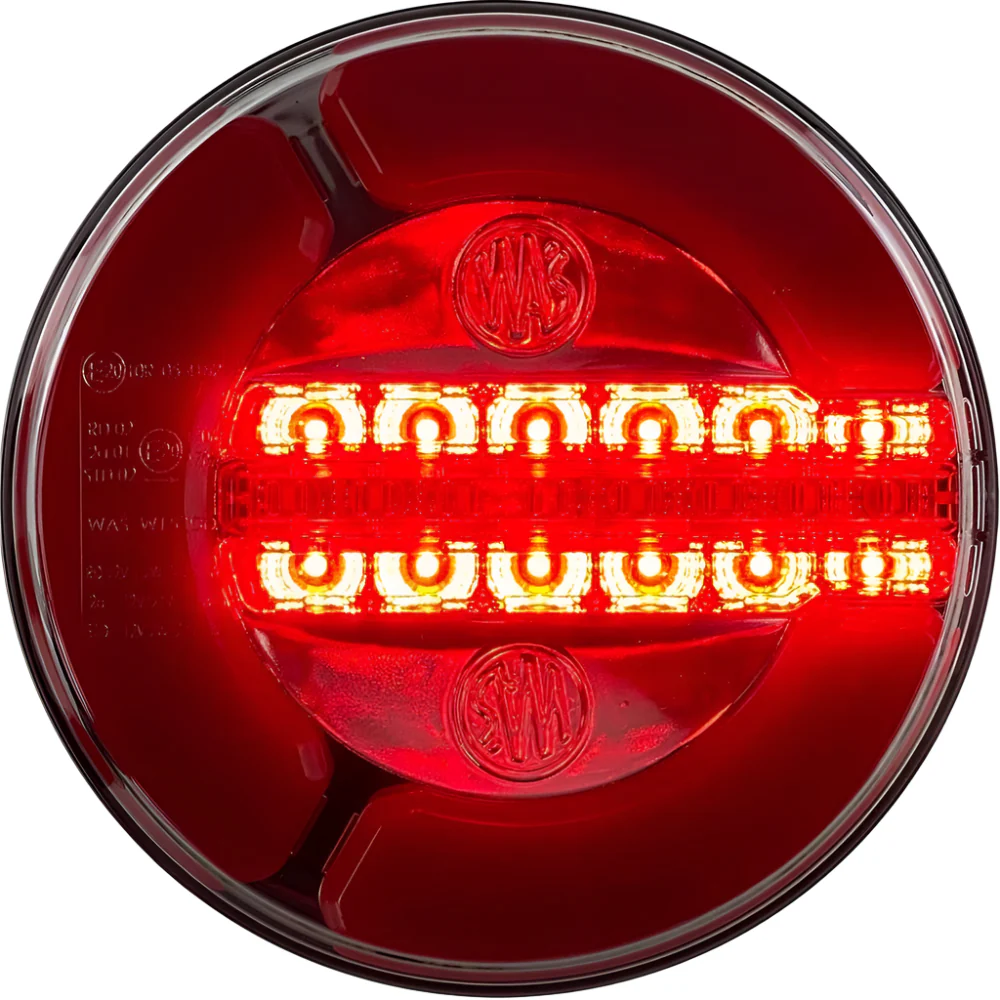

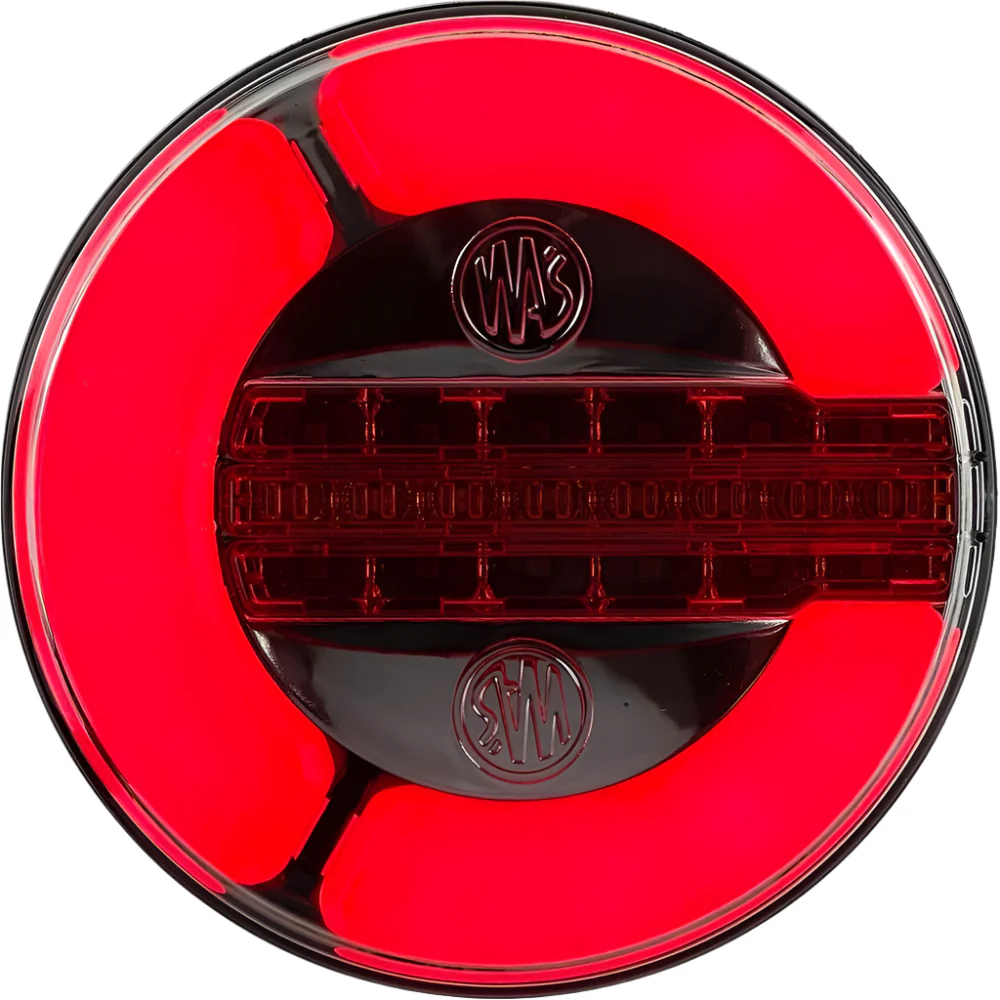

The last three pictures show lit lamps - Stop, Tail and Indicator

140mm LED ROUND STOP TAIL AND SEQUENCING INDICATOR #RL136
