Universal Air Conditioning & Heater Kit 400mm

This is the most compact, powerful and inexpensive combined Heat/AC package available - 400mm x 280mm x 120mm - the size of a large Cornflakes box.

17,000 BTU.  Straightforward installation with our detailed instructions.

Requires an engine mounted compressor and a condensing radiator.

The Aircon temperature is controlled automatically and the heater is controlled by a cable operated valve.

Remember to turn off the heater if you're using the Air Conditioning function. This is not fully automatic climate control.

• Universal kit includes:
• 4 - outlet under-dash unit with double squirrel cage, three - speed fan.

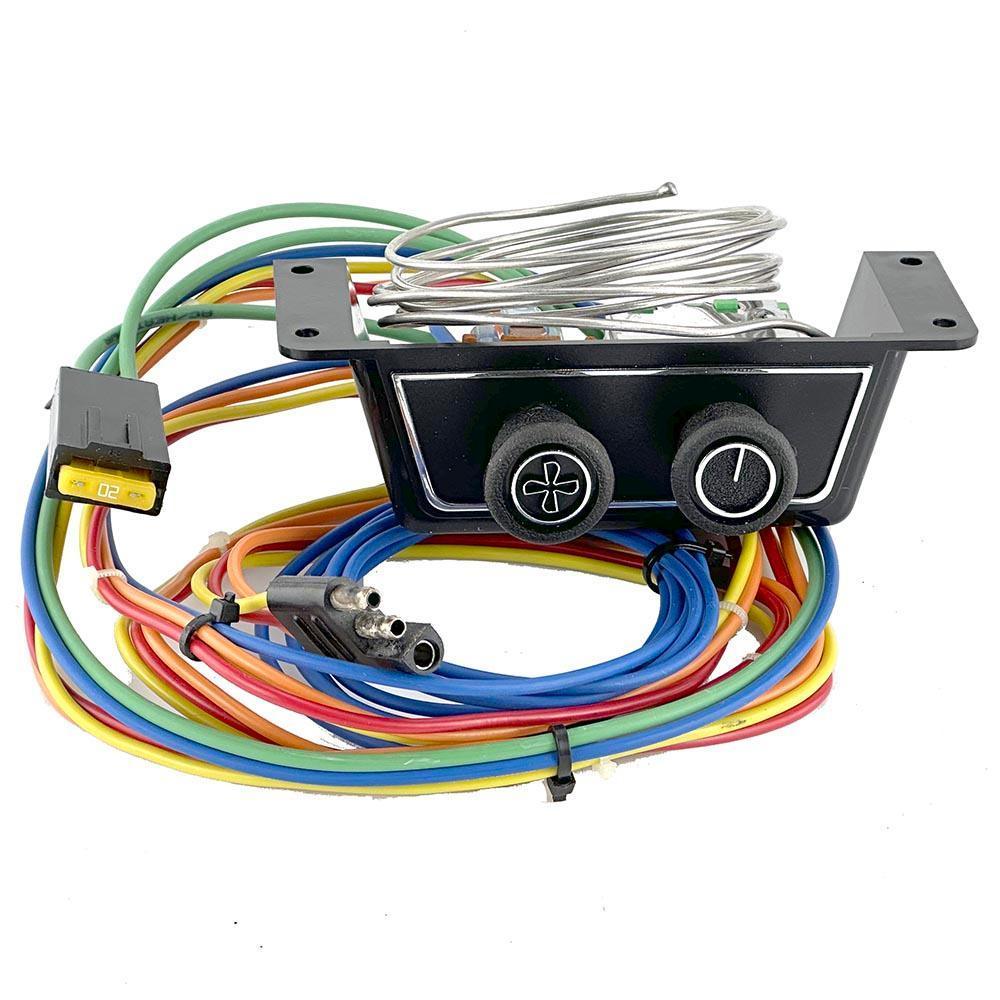

• Remote fan speed and temperature control panel (1.9m Capillary) with wiring harness.
• 2 metres of 63mm duct hose.

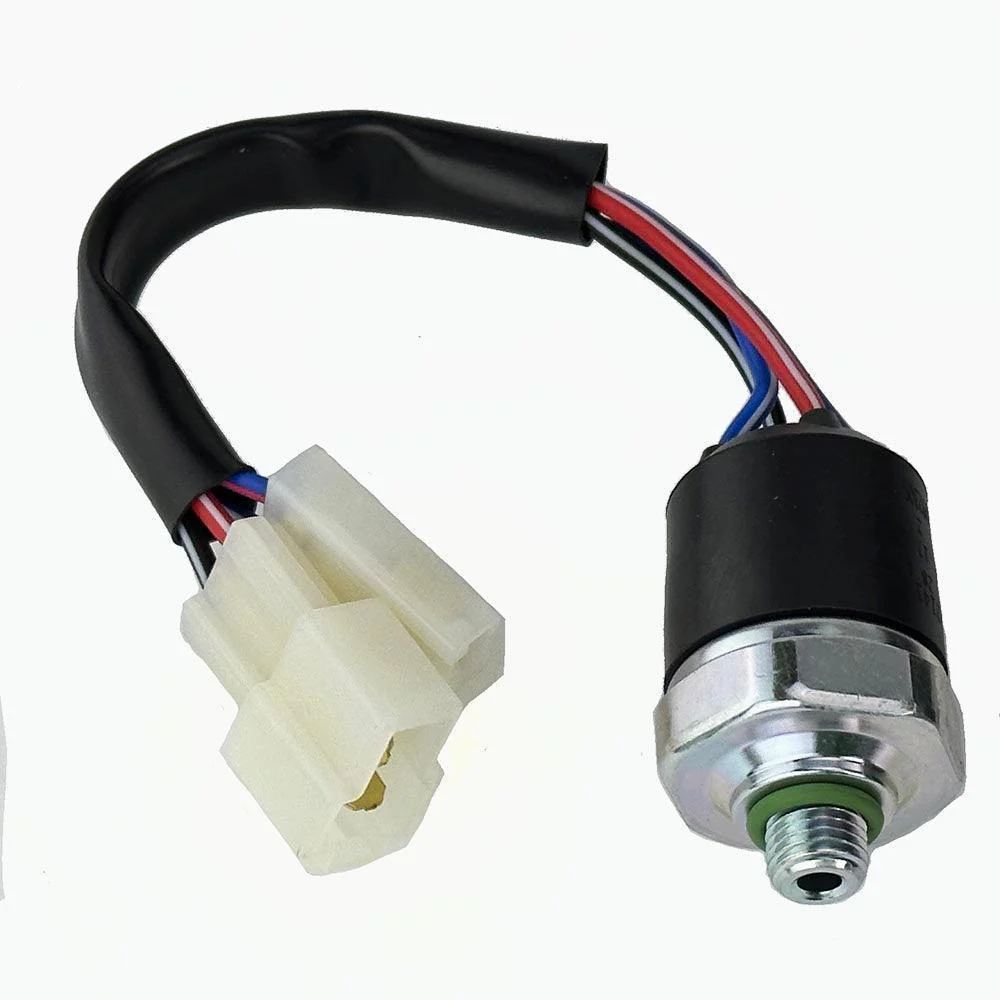

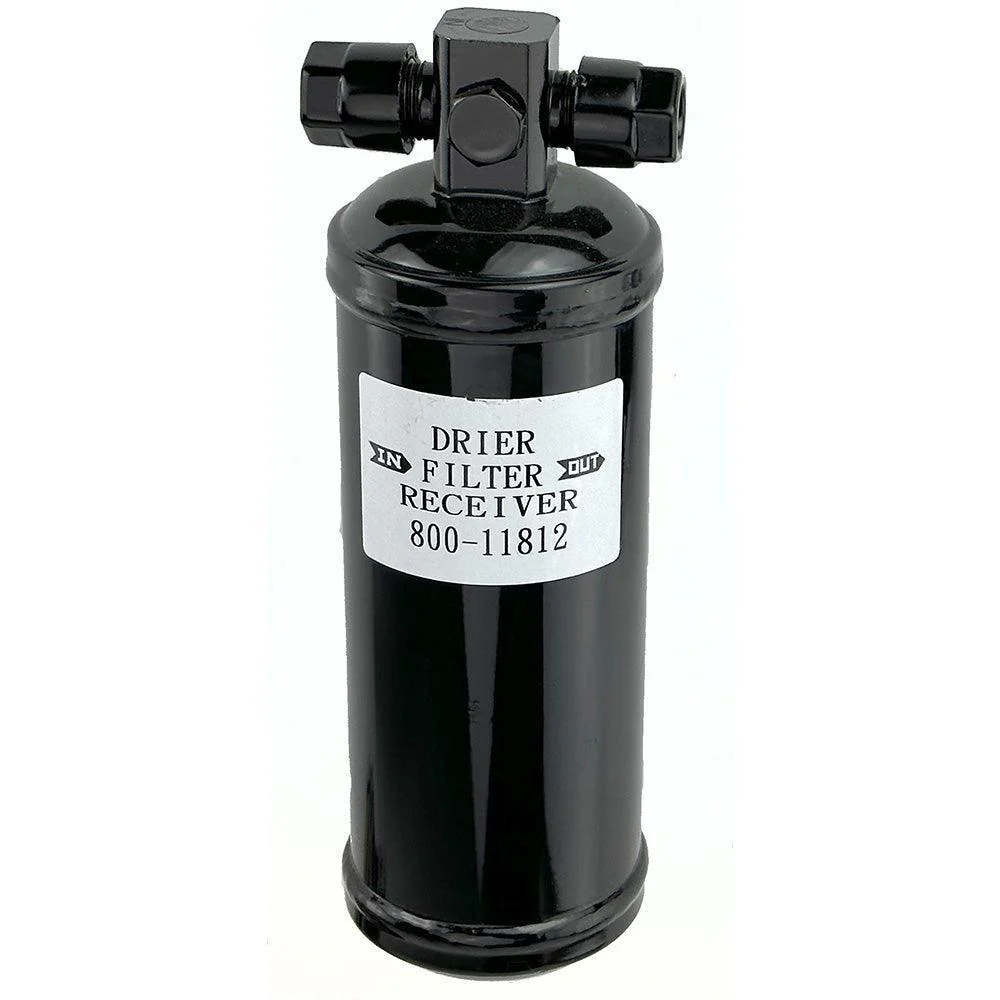

• Desiccant drier with Trinary safety/fan switch.

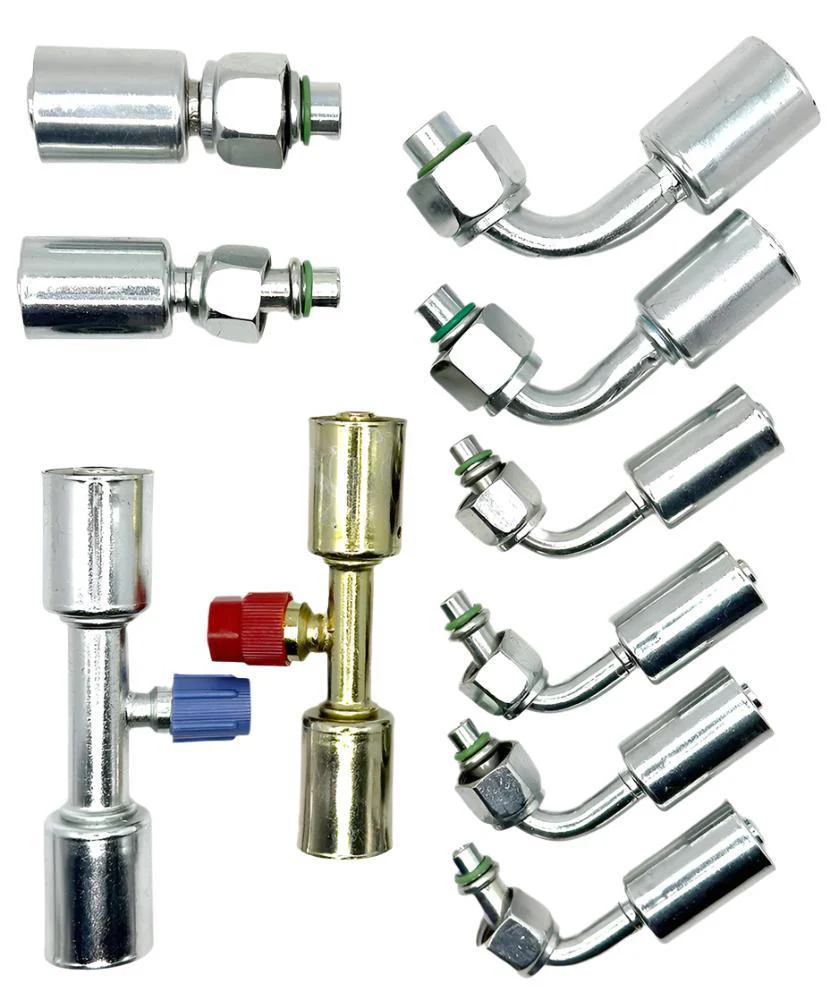

• Complete set of hose unions, ‘O’ rings and charging/service ports. (Hoses not included but we can supply)
• Heater water valve and 1.8m control cable. Full Instructions and fitting kit.

NOTE: We can now offer a crimping service for your hoses. For UK customers we can collect your boxed-up hoses and unions, crimp them and send them back to you. Full instructions on how to prepare the hoses and unions will be sent with the kit.

NOTE: The evaporator unit has mounting points on each end of the casing. You can fabricate simple brackets to suit your installation.

UNIVERSAL AIR CONDITIONING & HEATER KIT #AIRCON
