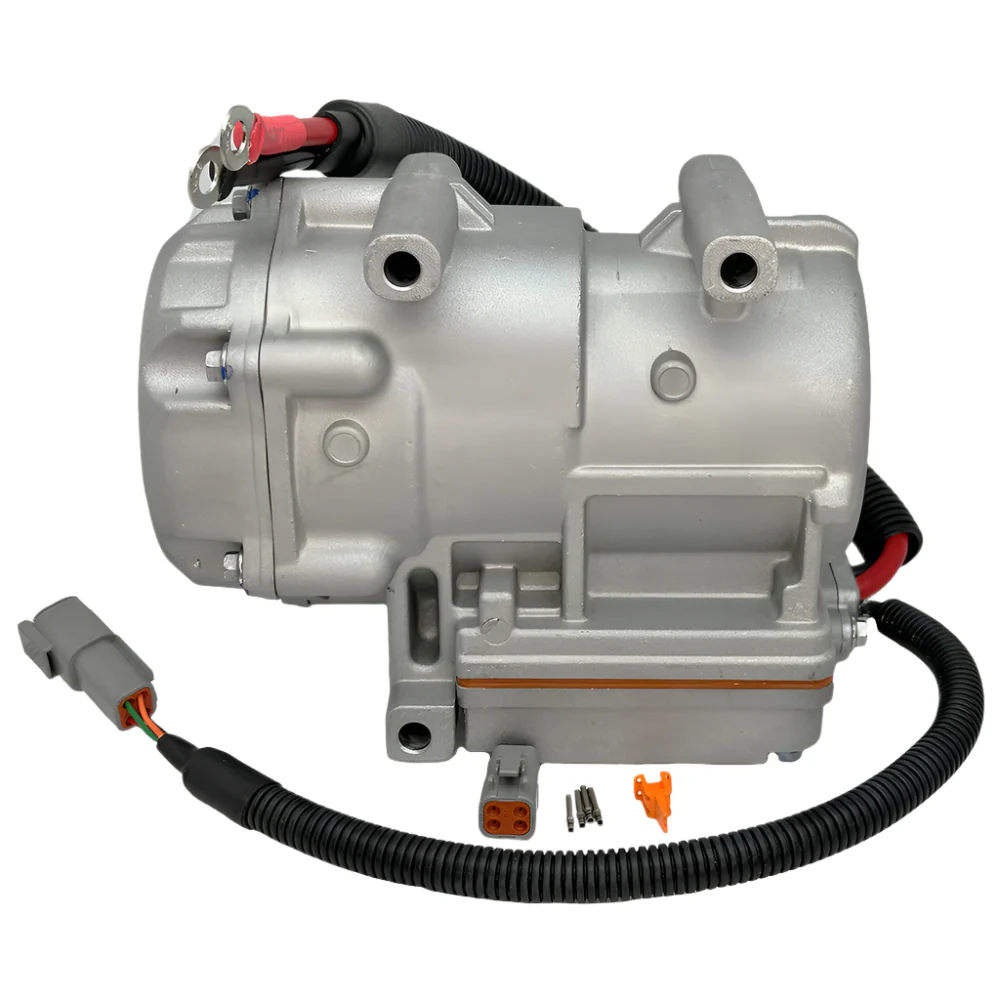

Universal 12v Electric Air Conditioning Compressor 2.2KW

Whether you need a system for your E-type Jag, or can no longer fit a belt driven
compressor our 12 volt compressor may be the solution. With only 18cc to 24cc
displacement capacity the unit can achieve higher rpm to obtain optimal cooling capacity with conservative power consumption.
2000 to 6000 rpm available depending on the application. The Compressor controller
is mounted internally within the main housing and cooled by the suction feed
back to the compressor, This also cools the internal brush-less motor.

A set of PAD to O-Ring adapters is recommended with this compressor to allow the use of more common 3/4-16 and 7/8-14 Female O-Ring.  We have these on the way and will be listed soon.

SPECIFICATIONS:
Mounting - three 9mm dia. through holes in top and bottom of main body casting.
Compressor rotated speed 4500 RPM
Maximum current drain 137 Amps - Maximum Cooling capacity 2.2 k.w.

Smart protection function. When abnormal conditions occur it will prevent compressor
damage. Soft starting function prevents high current impact during start-up
Dustproof and waterproof.

See online listing for full, dimensioned drawings. Weight 5.1Kg

ELECTRIC AIR CONDITIONING COMPRESSOR  #12VACCOMP
