Original: $100.20
-65%$100.20
$35.07The Story
This sender is designed such that each time a ferrous material (eg a propshaft bolt head) passes the sender tip, an electronic pulse is generated.
Fabricate a bracket to mount the sender in close proximity to your propshaft or driveshaft bolts.
A small LED in the cable end of the sender will glow with each pulse when the correct proximity to the bolt head is reached.

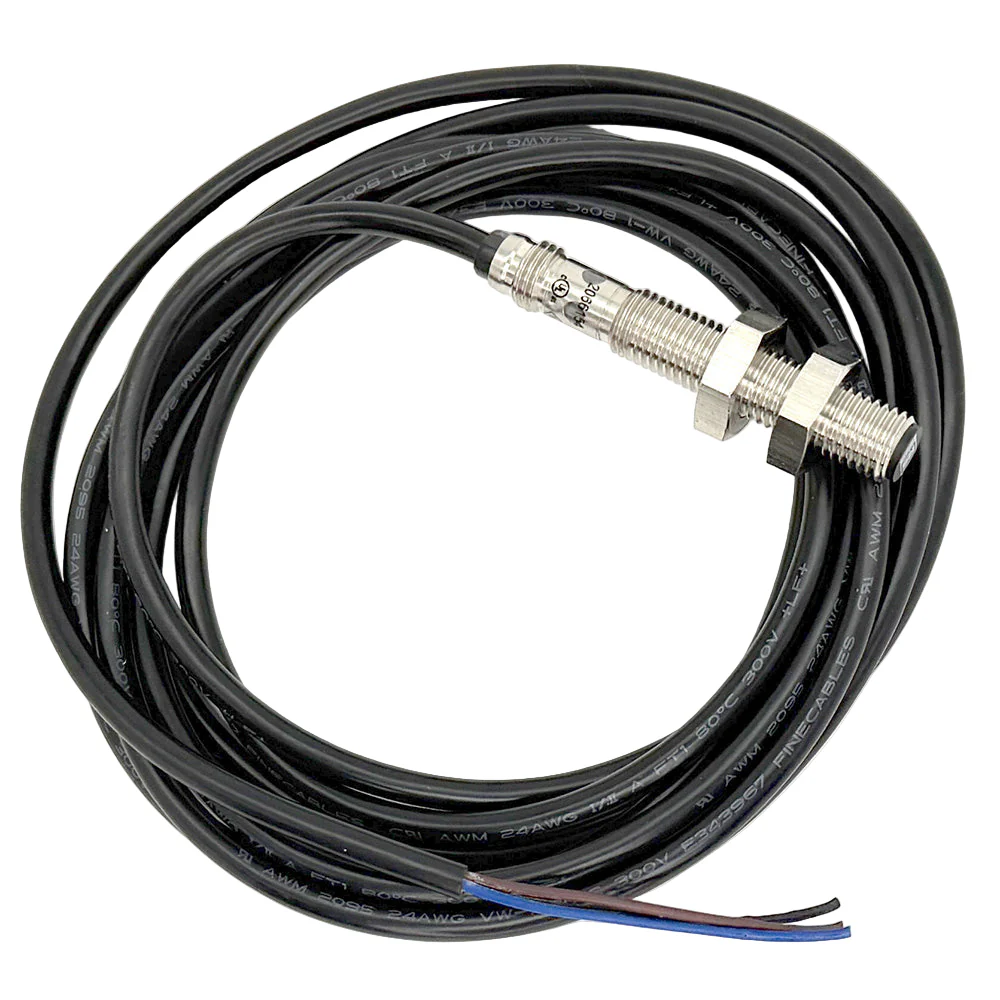

Sender head is 8mm diameter x 50mm long with two locknuts.
Cable length 2m

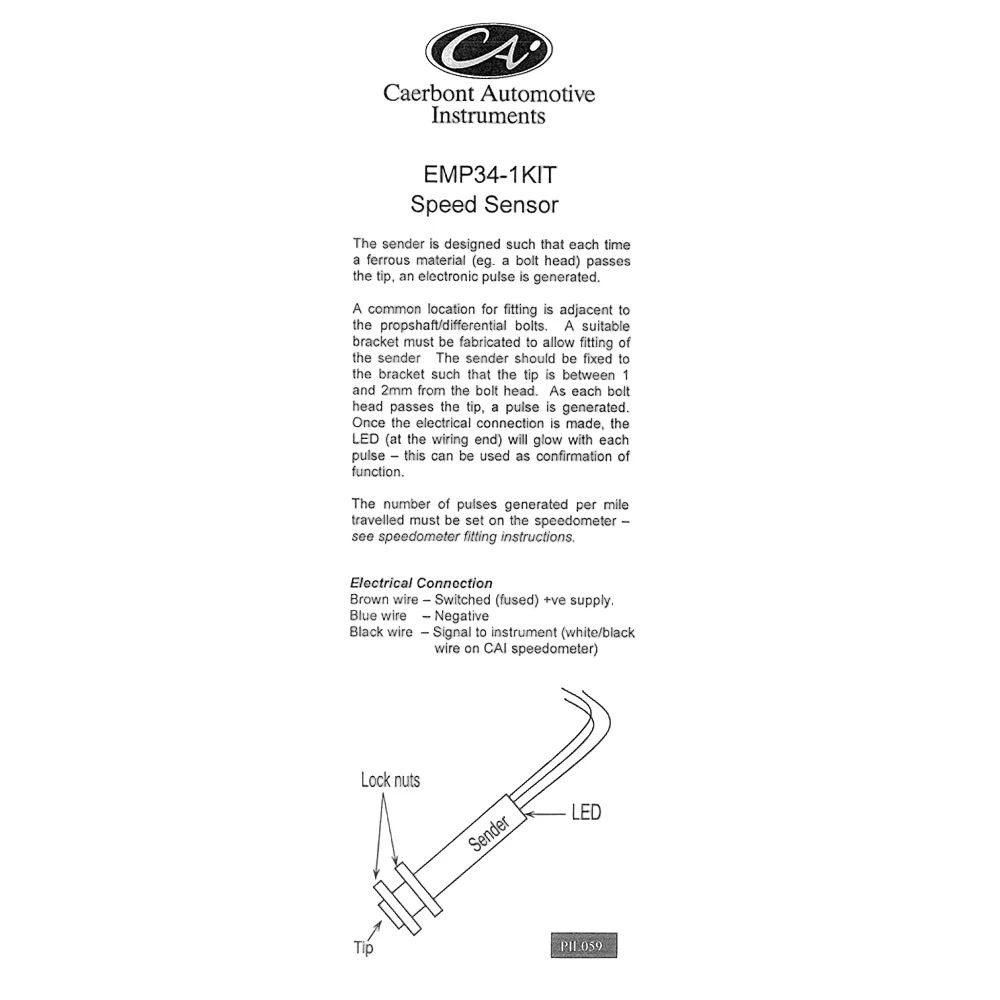

SEE INSTRUCTION SHEET IN THE PICTURES
SMITHS INDUCTIVE SPEED SENSOR #SSPEDIND
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This sender is designed such that each time a ferrous material (eg a propshaft bolt head) passes the sender tip, an electronic pulse is generated.
Fabricate a bracket to mount the sender in close proximity to your propshaft or driveshaft bolts.
A small LED in the cable end of the sender will glow with each pulse when the correct proximity to the bolt head is reached.
Sender head is 8mm diameter x 50mm long with two locknuts.
Cable length 2m
SEE INSTRUCTION SHEET IN THE PICTURES
SMITHS INDUCTIVE SPEED SENSOR #SSPEDIND
