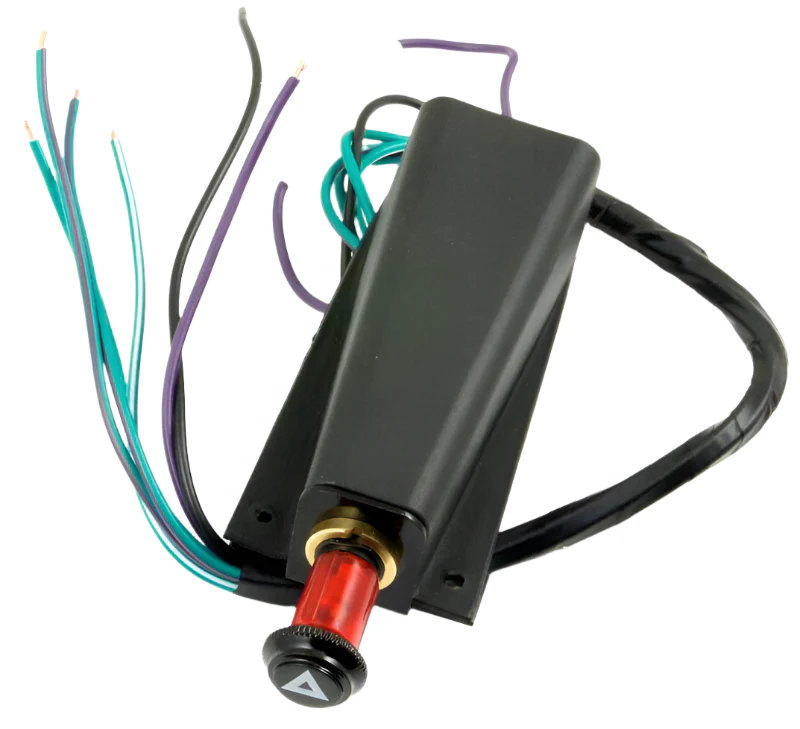

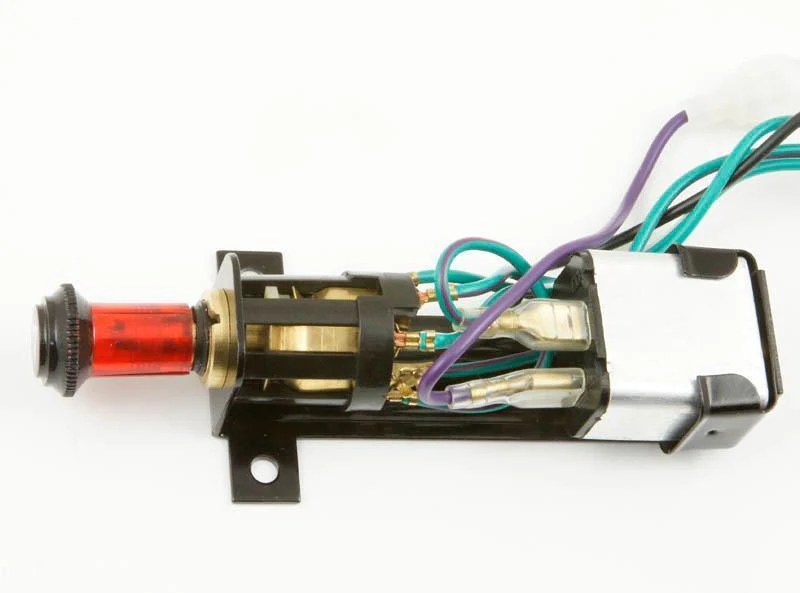

PUSH PULL HAZARD SWITCH Â Here's an under-dash mounting hazard switch that is pre-wired to a hazard relay
and is mounted on it's own steel bracket with a plastic shroud.
It has an integral fuse and holder and a 400mm long wrapped wiring harness.

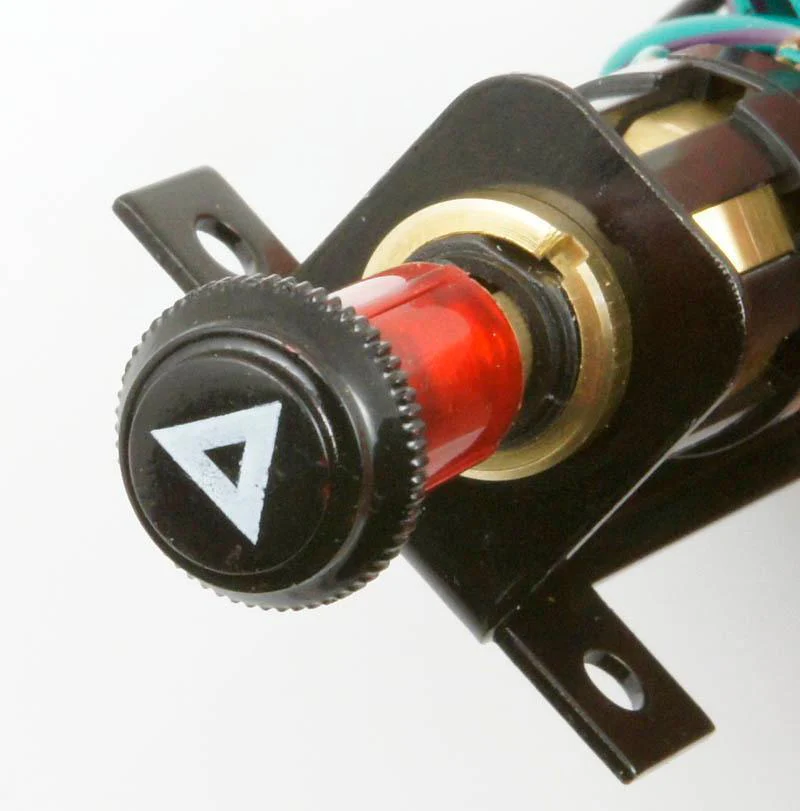

The red Push-Pull knob illuminates when pulled to the 'ON' position.

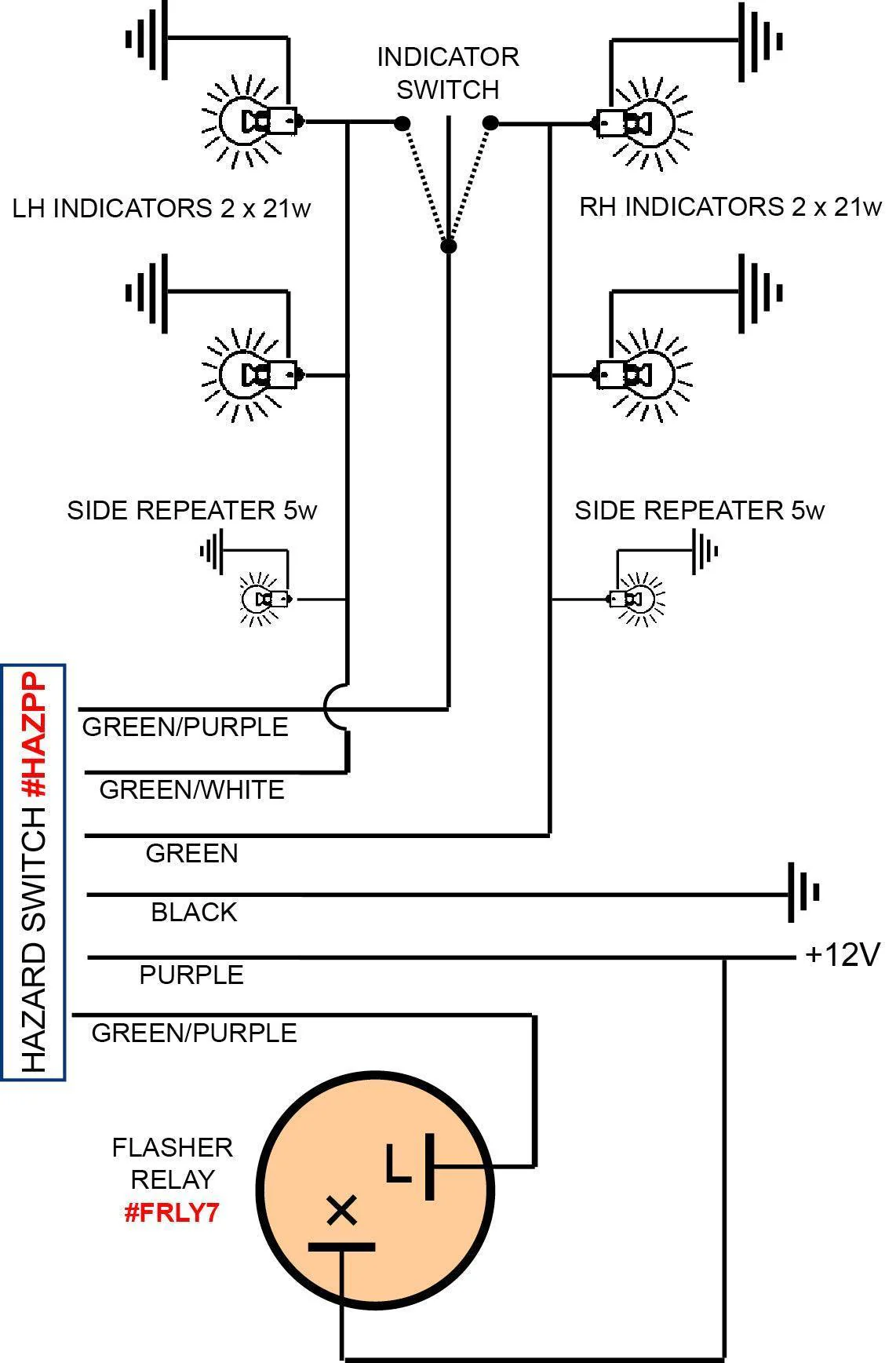

The diagram shows an example of how the six wires of the switch can be connected to an indicator flasher circuit.
Knob diameter 20mm. Maximum overall length with switch in 'ON' position 142mm.
2 x 5mm mounting holes in the bracket and shroud @ 38mm centres.
Wiring diagram also in catalogue Issue 22 onwards.
PUSH PULL HAZARD SWITCH KIT Â #HAZPP
