The Story

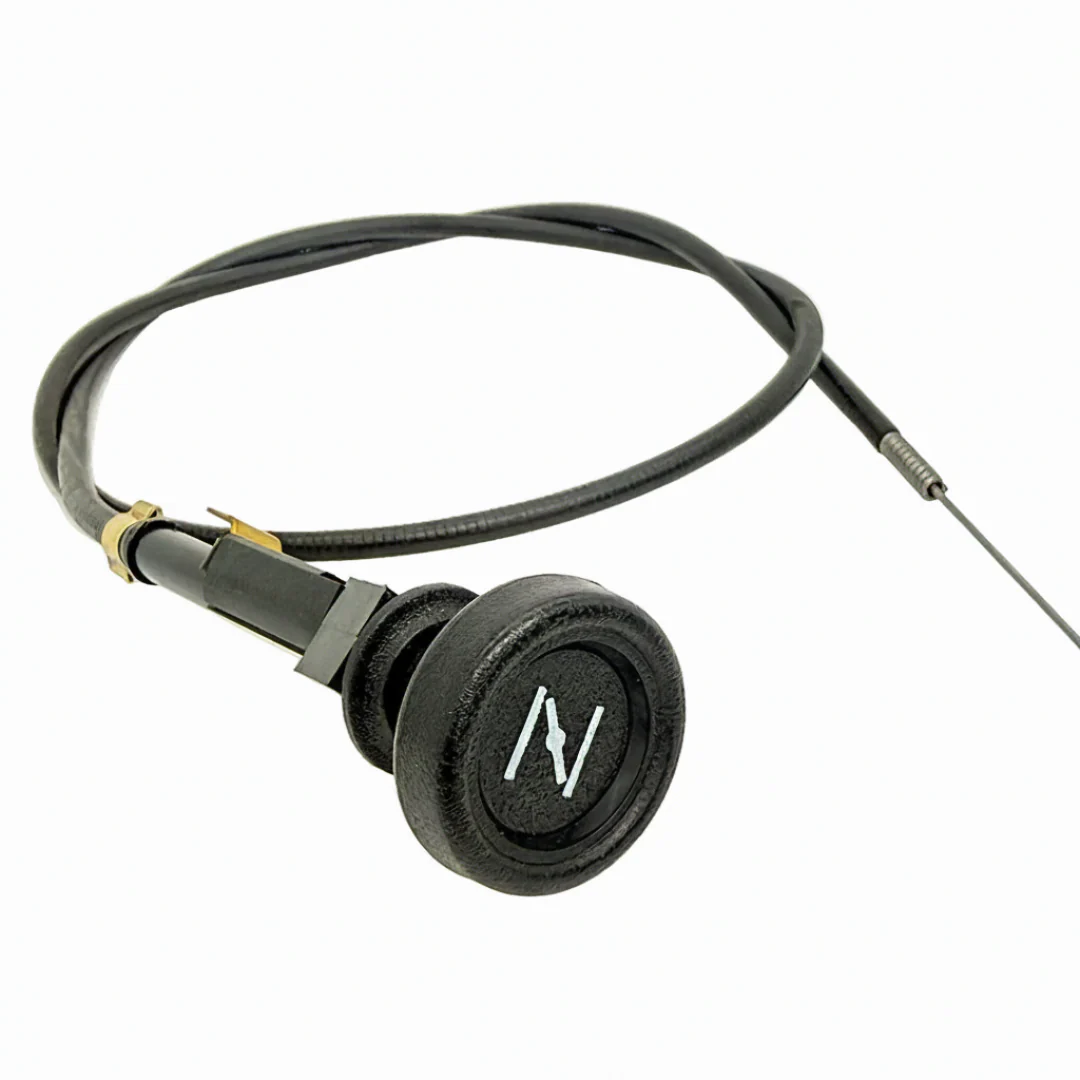

Overall length 1mtr. with solid 1.5mm diameter wire inner.Â
900mm long plastic coated outer.Â

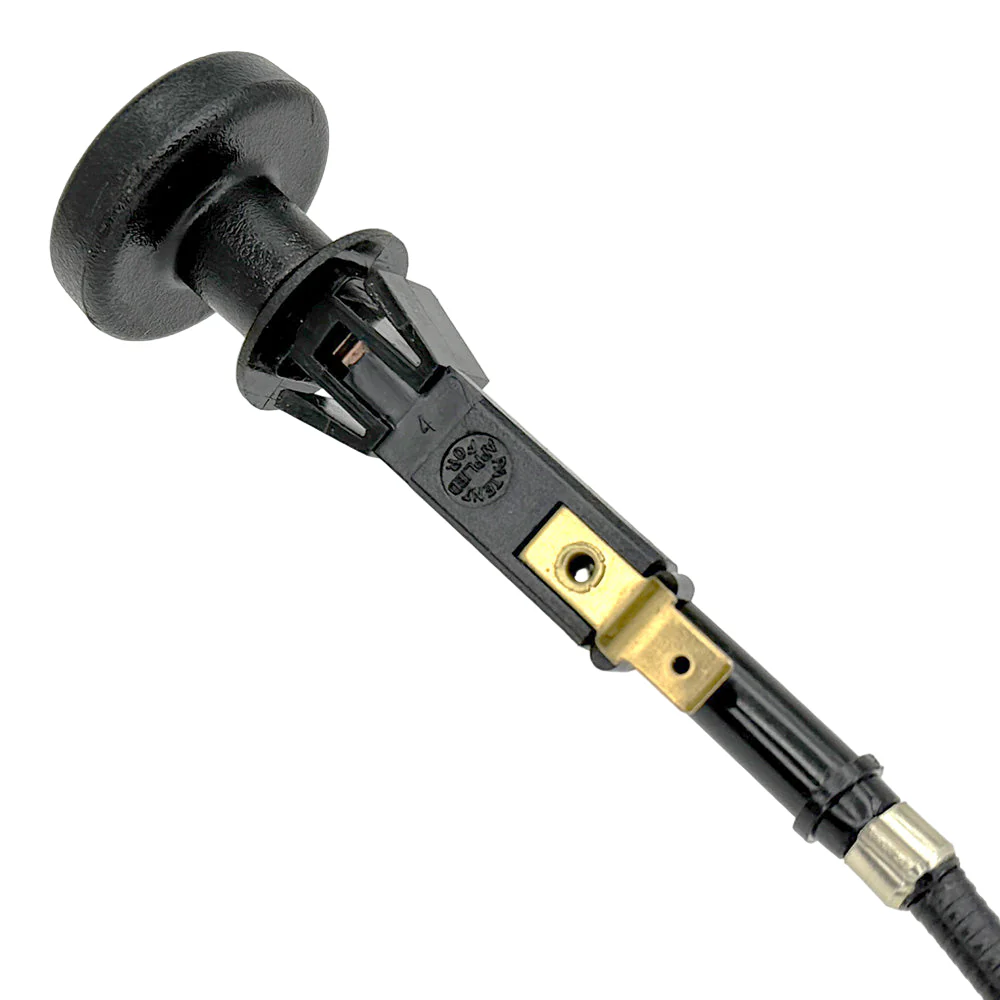

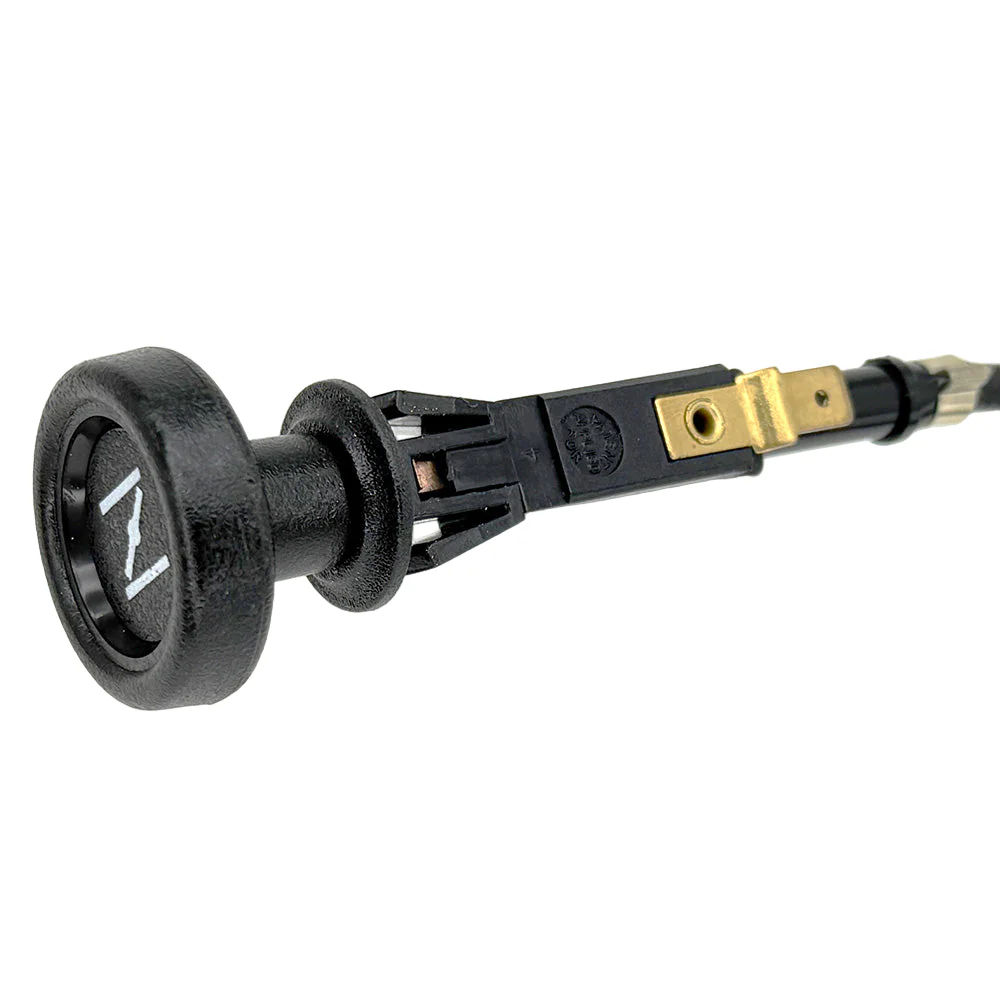

This cable features a switch with a 6.5mm male spade terminal, that can illuminate a separate dashboard warning light when the choke is on (the knob is pulled out).Â
The terminal connects to give continuity through the inner and outer cable. When the knob is pushed back in the connection is broken and the dash light goes out.
Plastic knob diameter 32mm with white printed choke legend.
Body snaps into a 12.5mm square hole in a panel up to 3mm thick.
PUSH PULL CHOKE CABLE WITH SWITCH - 1 METRE #CCSW
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Overall length 1mtr. with solid 1.5mm diameter wire inner.Â
900mm long plastic coated outer.Â
This cable features a switch with a 6.5mm male spade terminal, that can illuminate a separate dashboard warning light when the choke is on (the knob is pulled out).Â
The terminal connects to give continuity through the inner and outer cable. When the knob is pushed back in the connection is broken and the dash light goes out.
Plastic knob diameter 32mm with white printed choke legend.
Body snaps into a 12.5mm square hole in a panel up to 3mm thick.
PUSH PULL CHOKE CABLE WITH SWITCH - 1 METRE #CCSW
