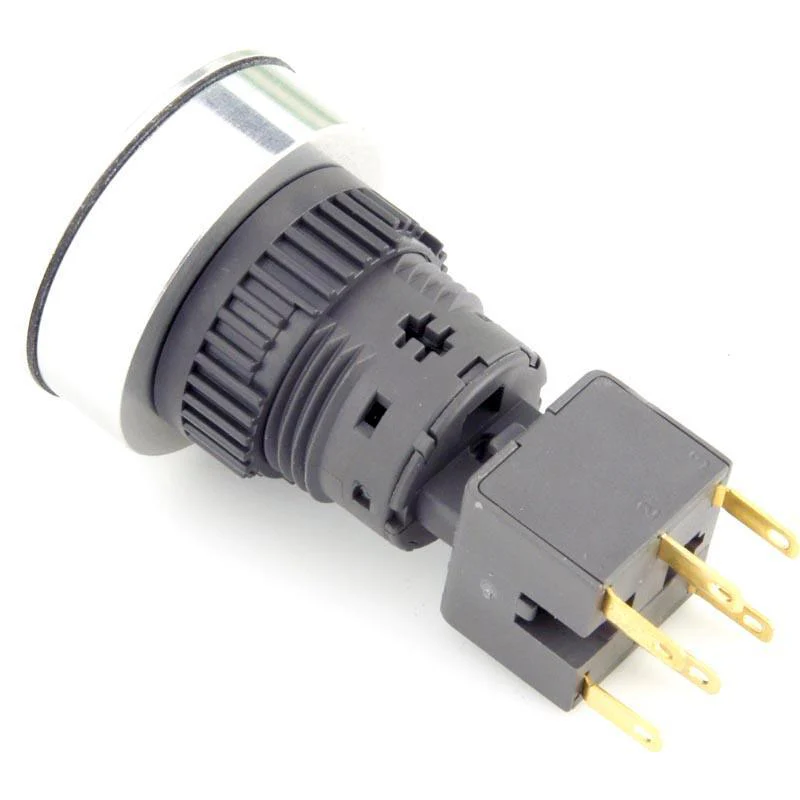

Push Button Engine Start Switch 35mm Diameter

This 35mm Diameter Push Button Engine Start Switch fits in a 22mm or 32mm hole depending on flush or raised mounting option.  Momentary switch operation. Single illumination as standard so can be wired to either illuminate with sidelights 'ON' or to illuminate with the switch itself in the 'ON' position.

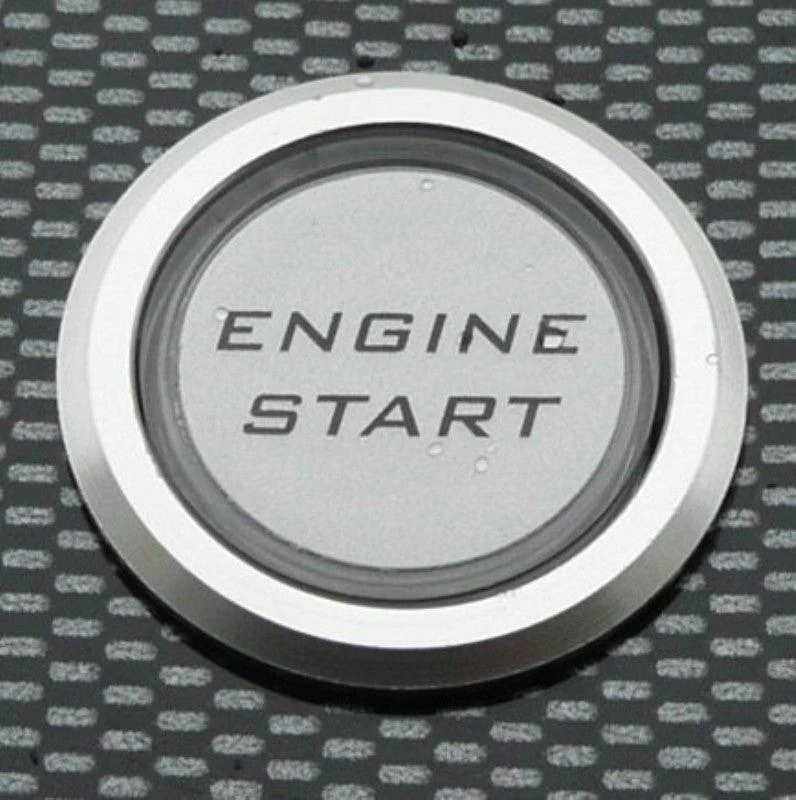

This switch has a screen printed legend, it's not billet aluminium like the smaller switches.

Natural Billet Aluminium Switch Engine Start Large..

• LED Illumination
• Momentary
• ¹⁄₈" Male spade terminals
• Double Pole Contact Block

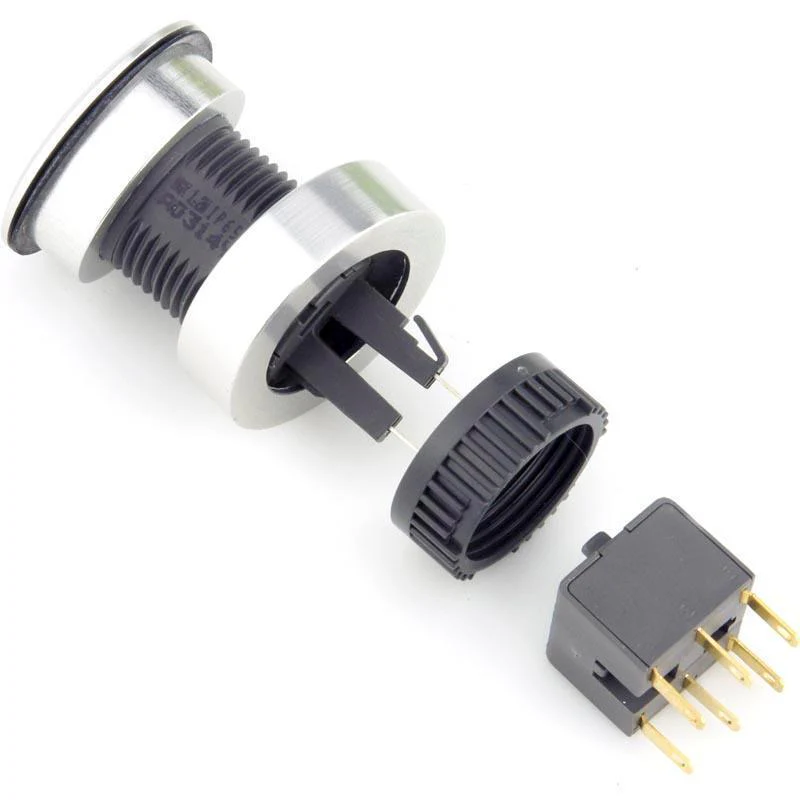

With Alloy Collar..

• Dash Projection 12mm
• Rear Projection 47mm
• Fitting hole size 22mm

Without Alloy Collar..

• Dash Projection 1.5mm
• Rear Projection 57mm
• Fitting hole size 30mm

Overall Dimensions..

• Collar Width 35mm
• Body Width 22mm
• Overall Length 59mm

NATURAL BILLET ALUMINIUM SURROUND PUSH BUTTON SWITCH ENGINE START LARGE #PBESL
