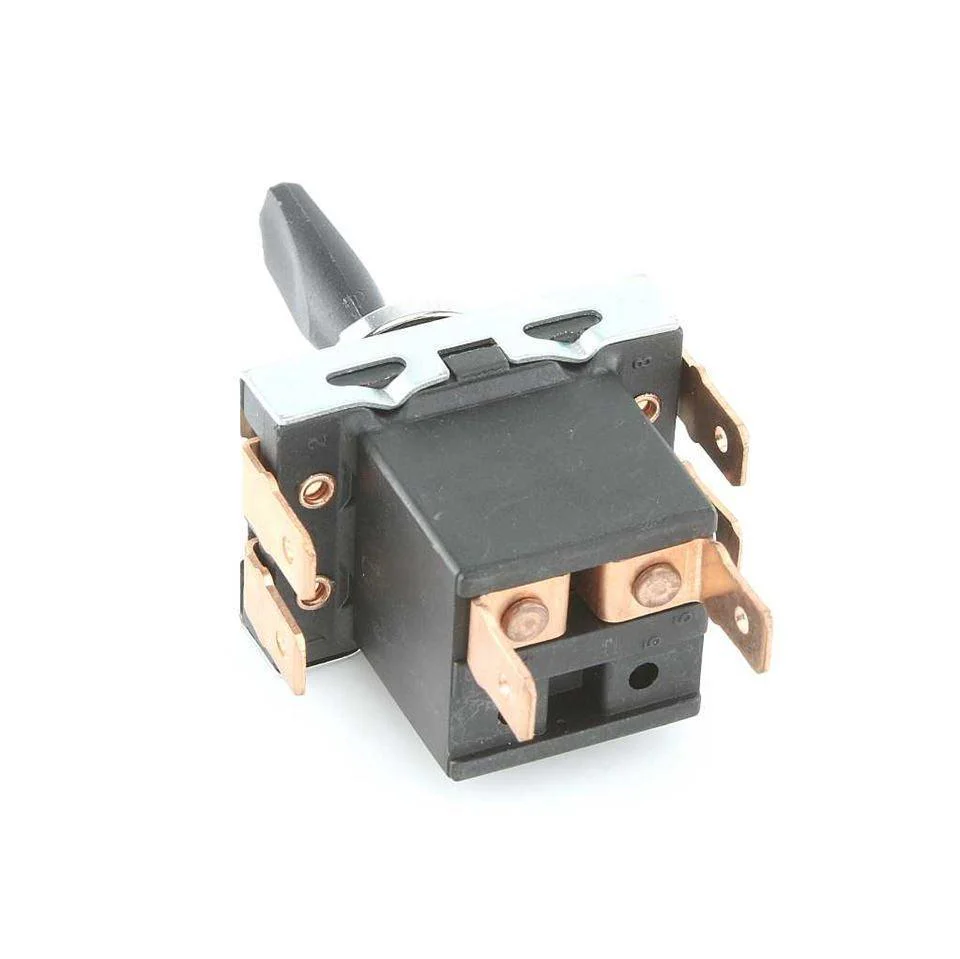

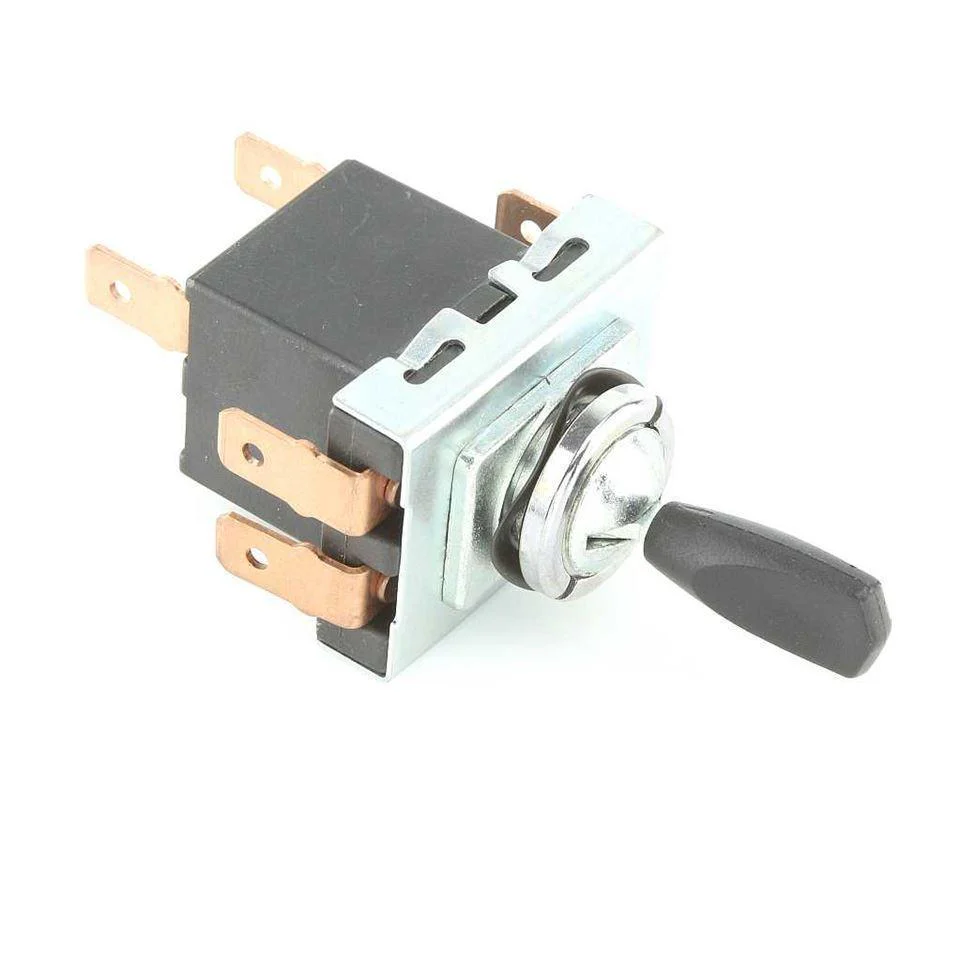

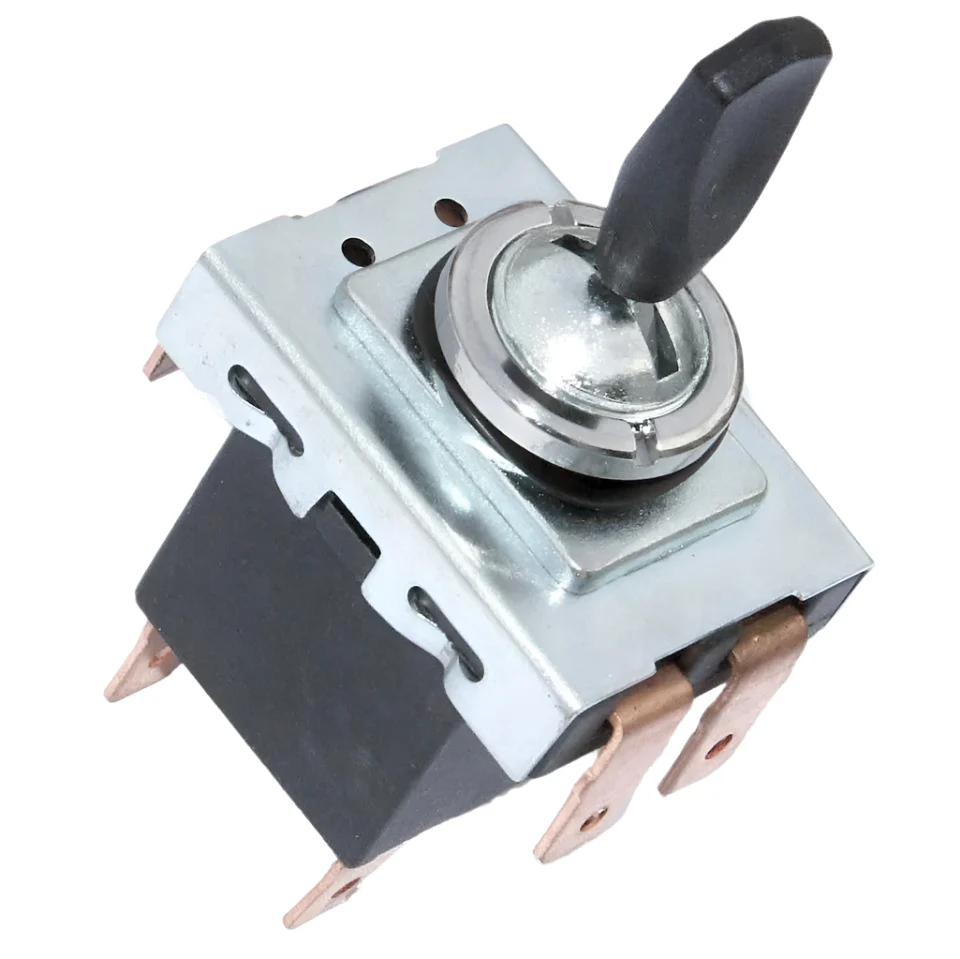

Lucas Style Black Paddle Toggle Switch Off On On

Faithful copy of the now unavailable Lucas range of classic switches.

Fits in a 14mm hole in panels up to 3mm thick.

Maximum panel thickness 3mm. Bezel diameter 19mm.

Moulded black paddle 21mm long.

Rear projection 43mm.

1/4" spade terminals.

10 amp.

WIRING :

ALL SWITCH POSITIONS - Terminals 1 and 7 made.

SWITCH POSITION 1 - 1, 7, 2 and 6 made

SWITCH POSITION 2 - 1, 7, 4 and 6 made

SWITCH POSITION 3 - 1, 7, 8 and 4 made

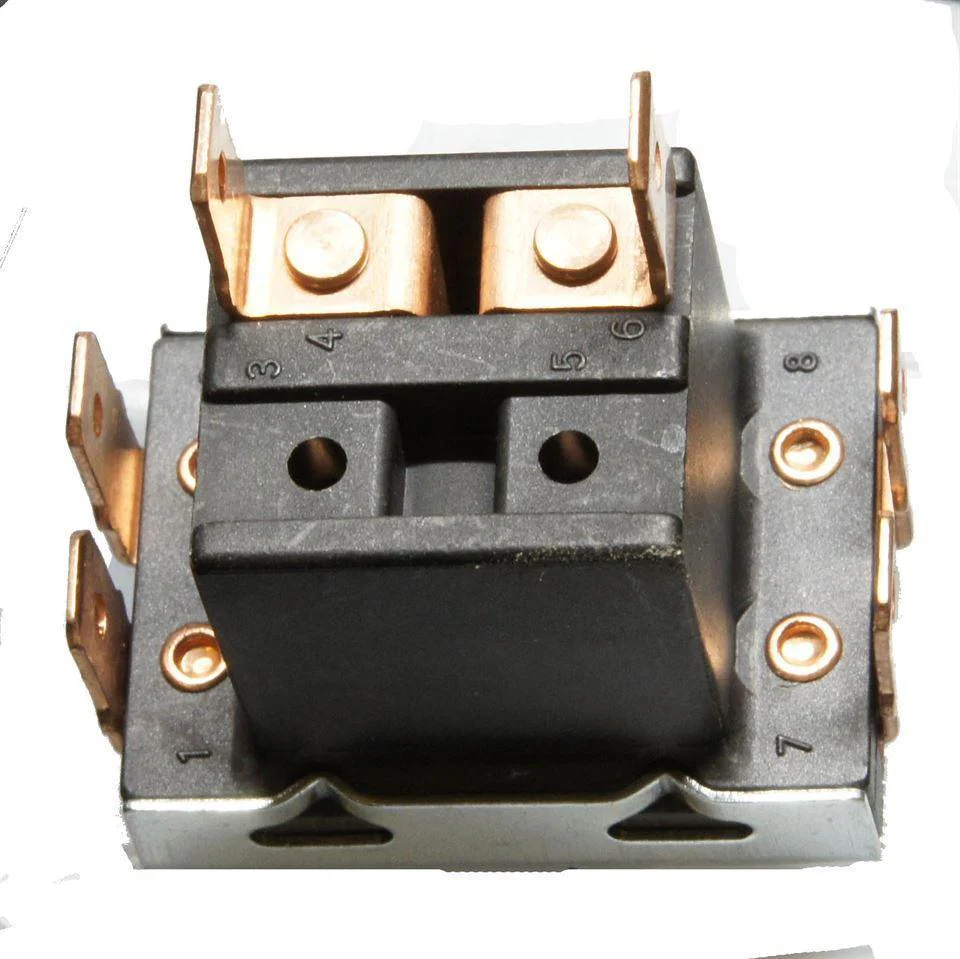

Terminals are marked on rear of switch

RETRO LUCAS-STYLE SWITCH OFF-ON-ON #TSPA4
