LOCATING Over-Centre Fastener EACH

STAINLESS LOCATING OVER CENTRE FASTENER Most over-centre fasteners are fine for securing panels together

but if you need to hold two panels together with precise alignment - to maintain accurate shut gaps, for instance,

these could be the answer. These superb, aircraft-quality over-centre fasteners have a sprung loaded 'Deadbolt'

that slides into the keeper as the latch is closed, precisely locking the two parts together in all three planes.

In picture three we have manually pushed the deadbolt forward for demonstration purposes and locked it in place with a clip.

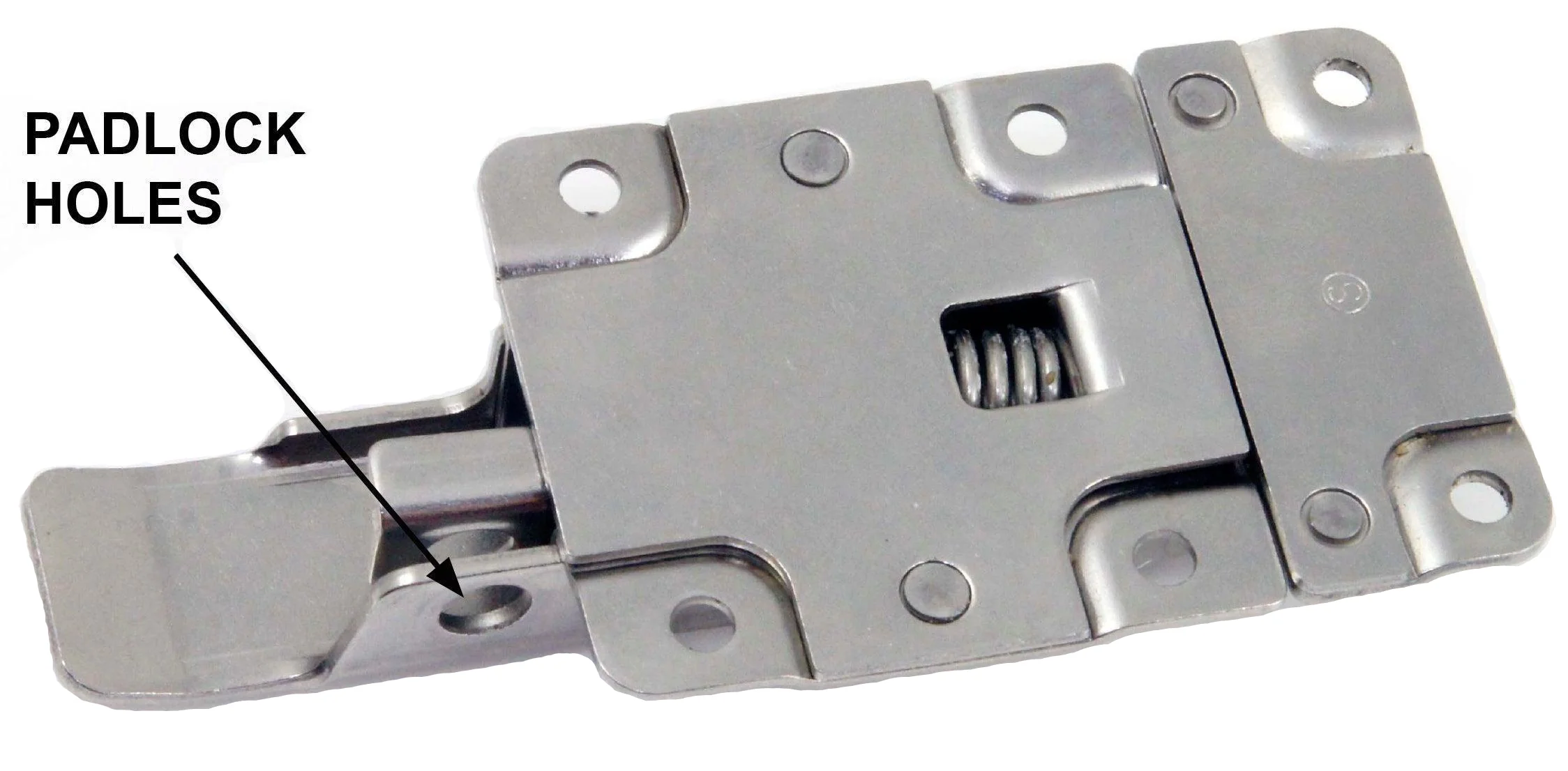

There is also a 6mm hole through for a small padlock. All stainless construction. Fixing holes 4mm.

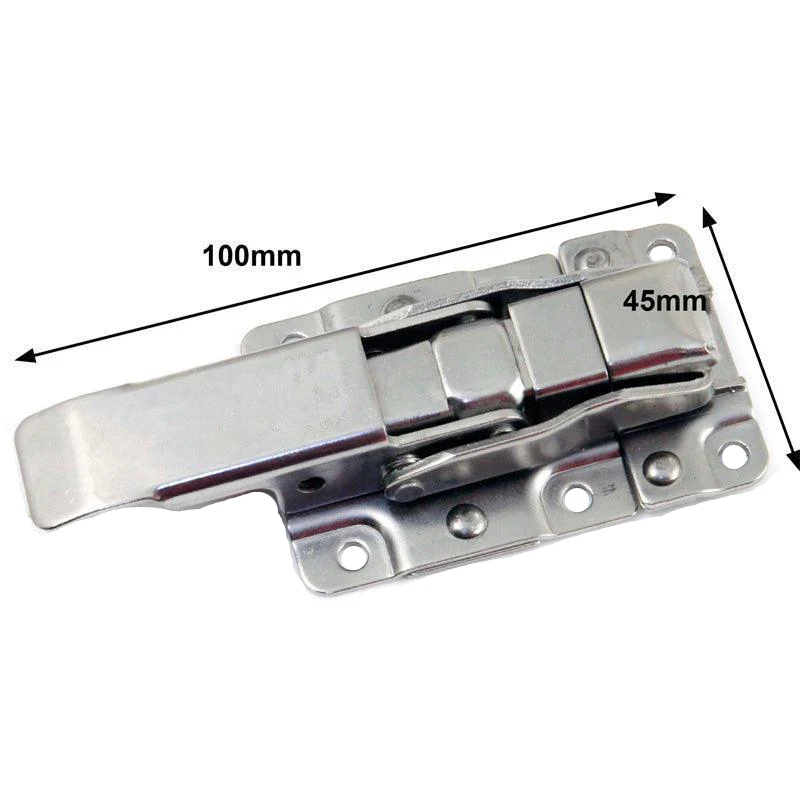

Dimensions 100mm x 45mm x 17mm above mounting surface when closed. Weight 120gm.

LOCATING STAINLESS STEEL OVER-CENTRE FASTENERS #LOCOC
