The Story
Many column-mounted indicator switches make a momentary connectionĀ just before they latch in either left or right position.
This unit uses this momentary āpulseā to switch on the indicator for three flashes.Ā
NOTE: Your vehicles indicator lamps or flasher relay must have a permanent earth for this device to work.

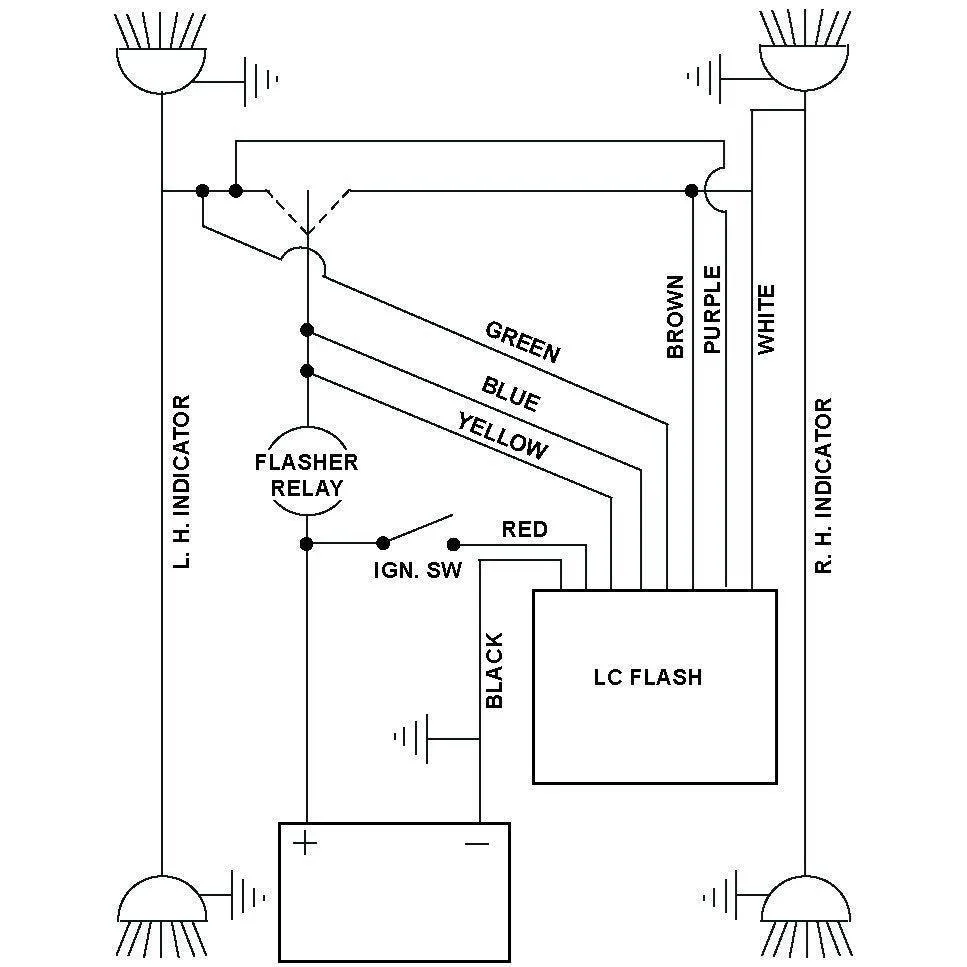

CONNECTIONS
RED - Ignition +12 volts.
BLACK -Ā Earth
WHITE -Ā Right Indicator Lamps Circuit
PURPLE - Left Indicator Lamps Circuit
BLUE - Connect into feed to Right side Indicator switch
YELLOW - Connect into feed to Left side Indicator switch
BROWN - Connect into output of Right side Indicator switch
GREEN.- Connect into output of Left side Indicator switch. Ā

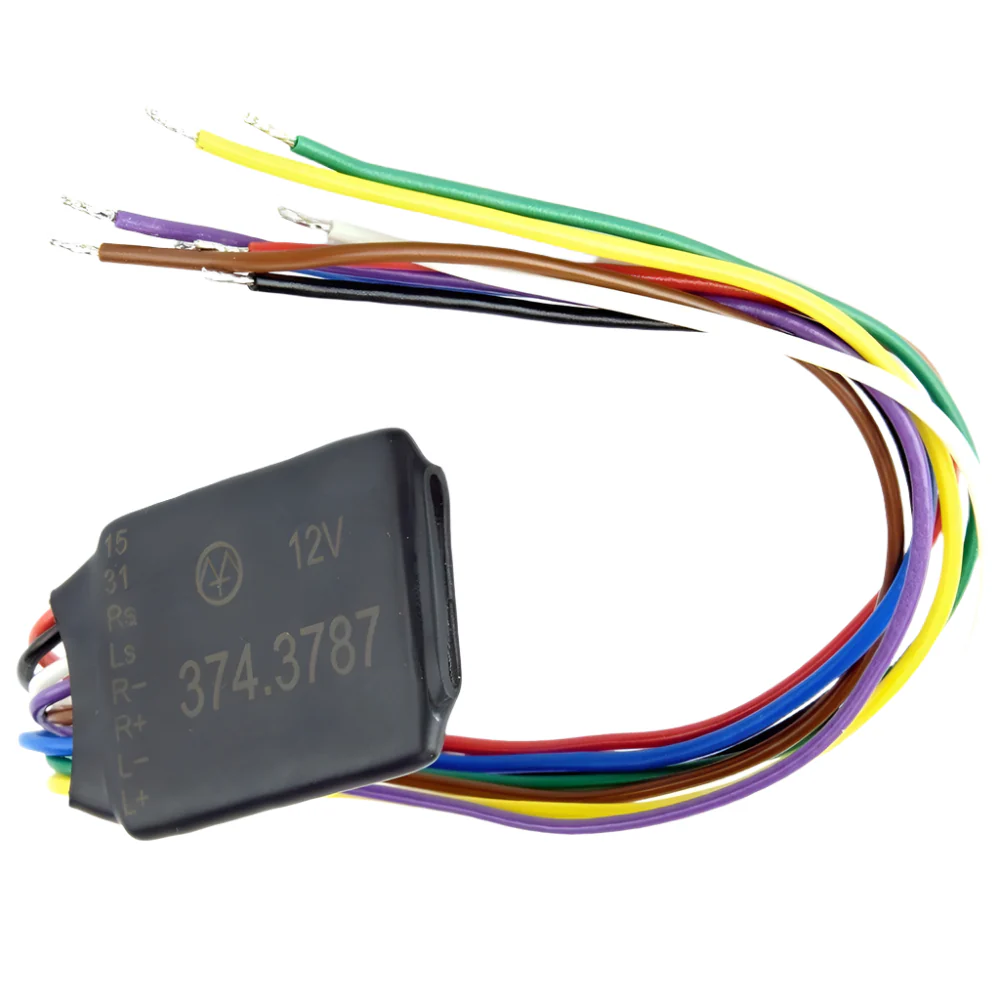

LANE CHANGE FLASHER TIMER #LCFLASH
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Many column-mounted indicator switches make a momentary connectionĀ just before they latch in either left or right position.
This unit uses this momentary āpulseā to switch on the indicator for three flashes.Ā
NOTE: Your vehicles indicator lamps or flasher relay must have a permanent earth for this device to work.
CONNECTIONS
RED - Ignition +12 volts.
BLACK -Ā Earth
WHITE -Ā Right Indicator Lamps Circuit
PURPLE - Left Indicator Lamps Circuit
BLUE - Connect into feed to Right side Indicator switch
YELLOW - Connect into feed to Left side Indicator switch
BROWN - Connect into output of Right side Indicator switch
GREEN.- Connect into output of Left side Indicator switch. Ā
LANE CHANGE FLASHER TIMER #LCFLASH
