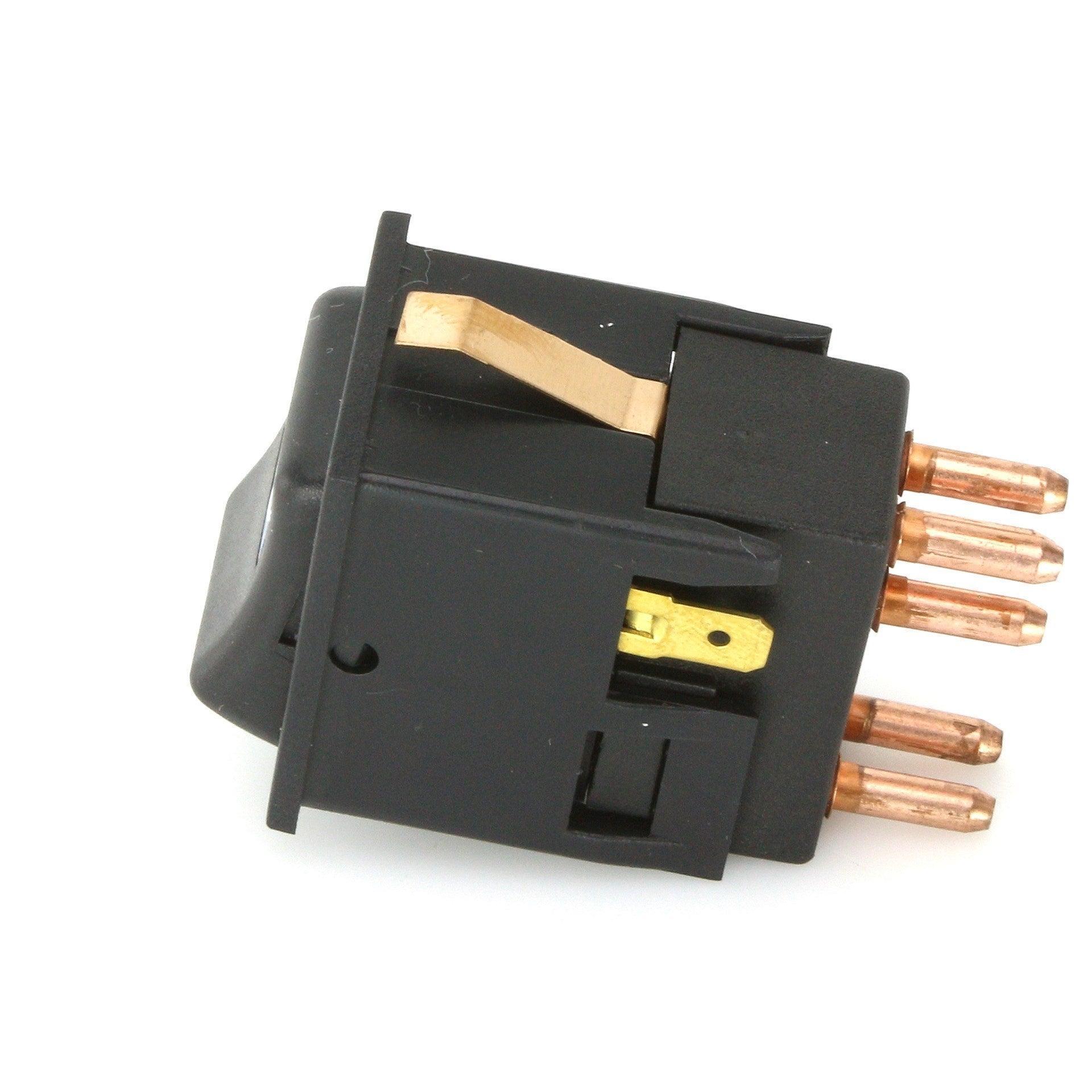

Illuminated Rocker Switch. Overall size 24mm wide by 32mm high.
Fits in a rectangular hole 22mm x 30mm.
ON-ON.
Bezel sits 2mm above mounting surface.
Top of rocker sits 9mm above and has IVA OK radii.
Maximum rear projection to tip of pins is 42mm.
High quality construction and smooth, positive action.
3mm Copper round pin terminals on rear can be connected using female bullet terminals sold separately.
2 Position Switch

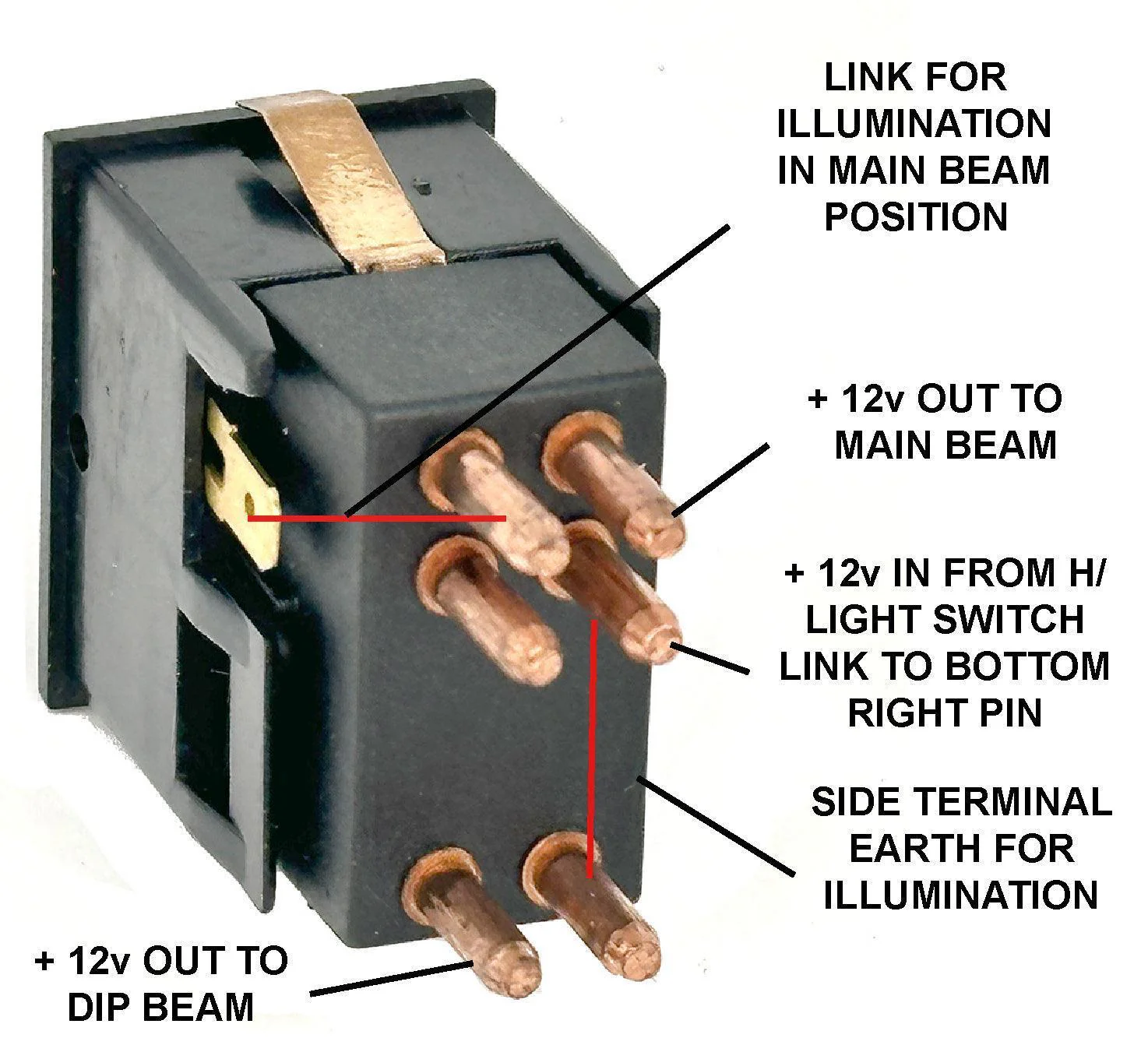

Wiring instructions in picture below
IVA ROCKER SWITCH MAIN BEAM CHANGEOVERÂ #RSVAMB
