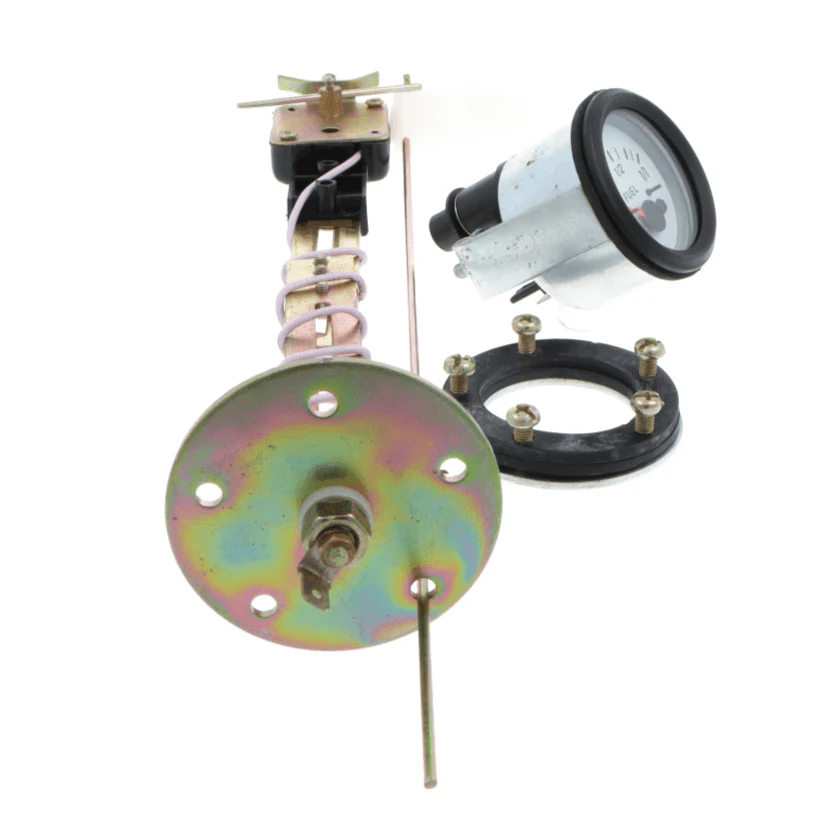

The Story
An adjustable sender that fits through a 43mm hole in your fuel tank.

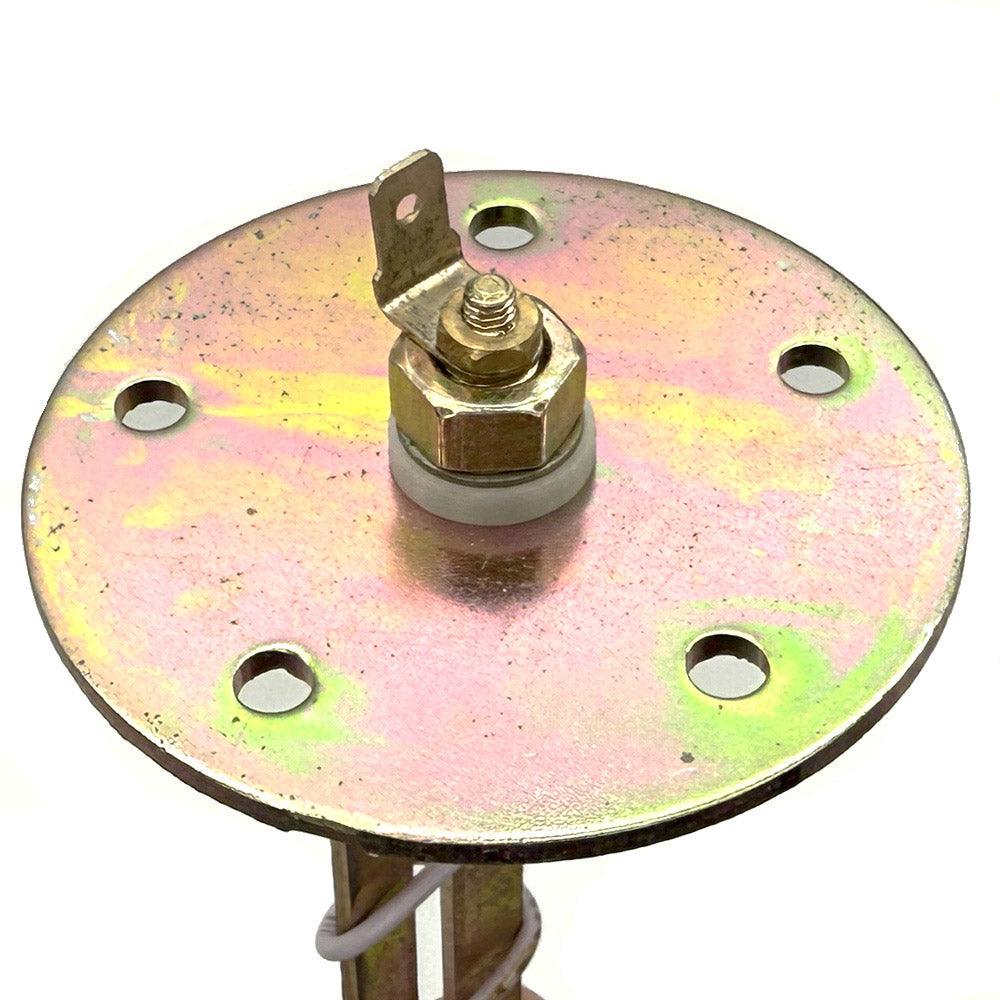

Sender flange diameter 71mm.
Five 5.6mm fixing holes at 54mm PCD.
Supplied with two rubber gaskets, a threaded internal fixing ring and five screws and washers.
The 380mm wire float arm can be cut down to suit your installation.
Float arm rotation 80 degrees.
Sender length adjustable between 247mm and 320mm (or less if slider is cut down).
 1/4" spade terminal sender connection.
Earth the sender under one of the fixing screws.Â
When you’re ready for final installation, replace the short piece of wire in the bottom pivot with the float wire, pre-cut to your required length.
Bear in mind this is a very good price even if you only want the sender.

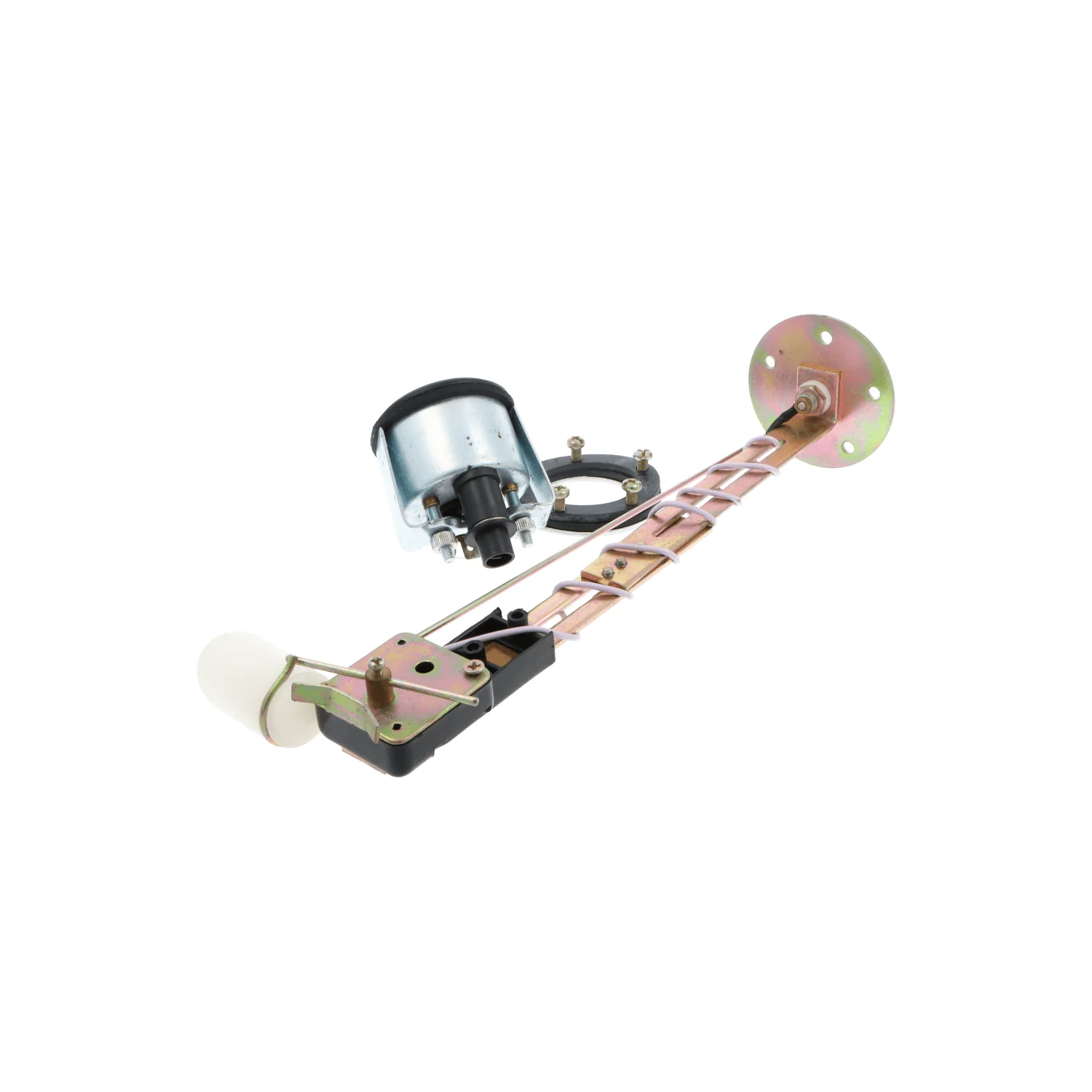

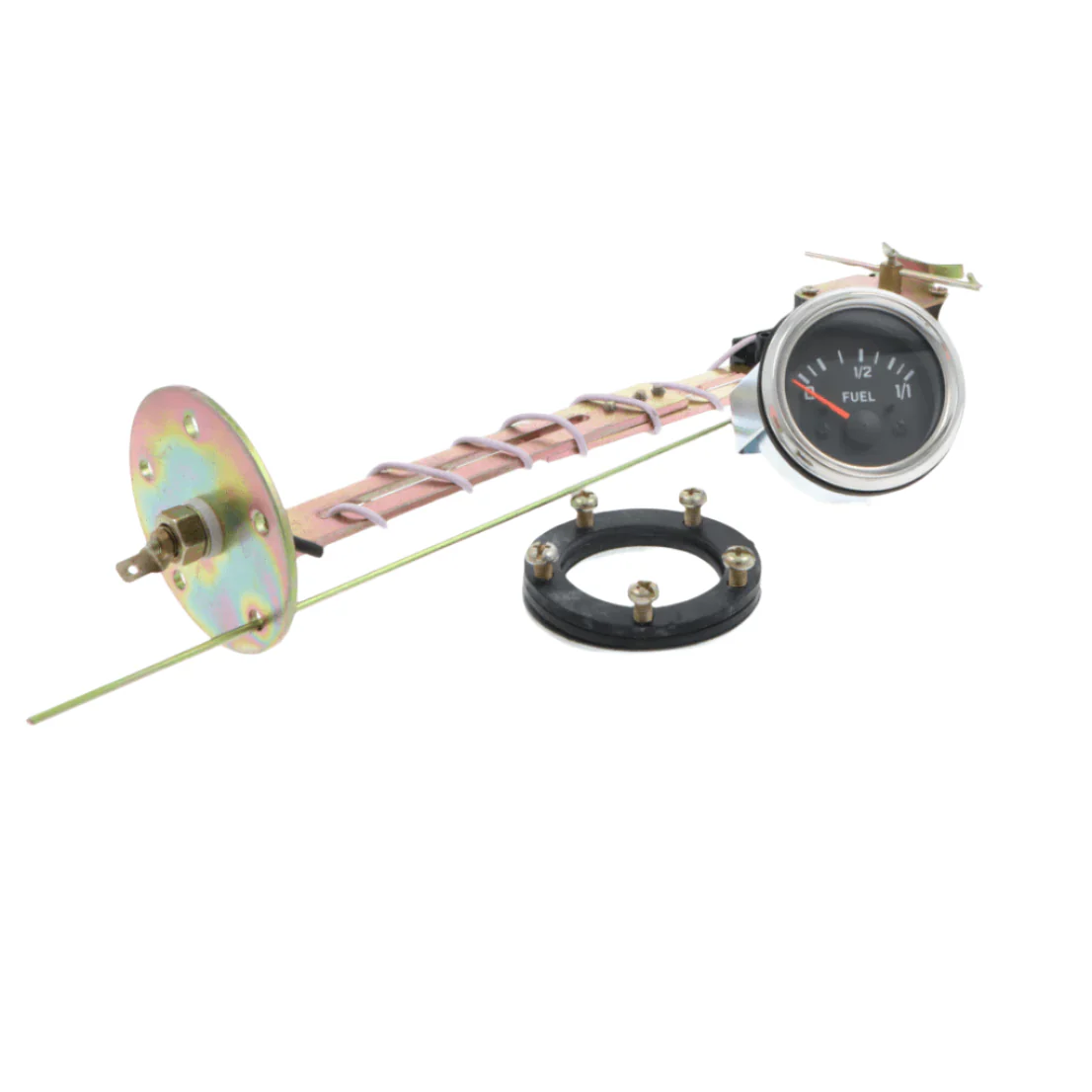

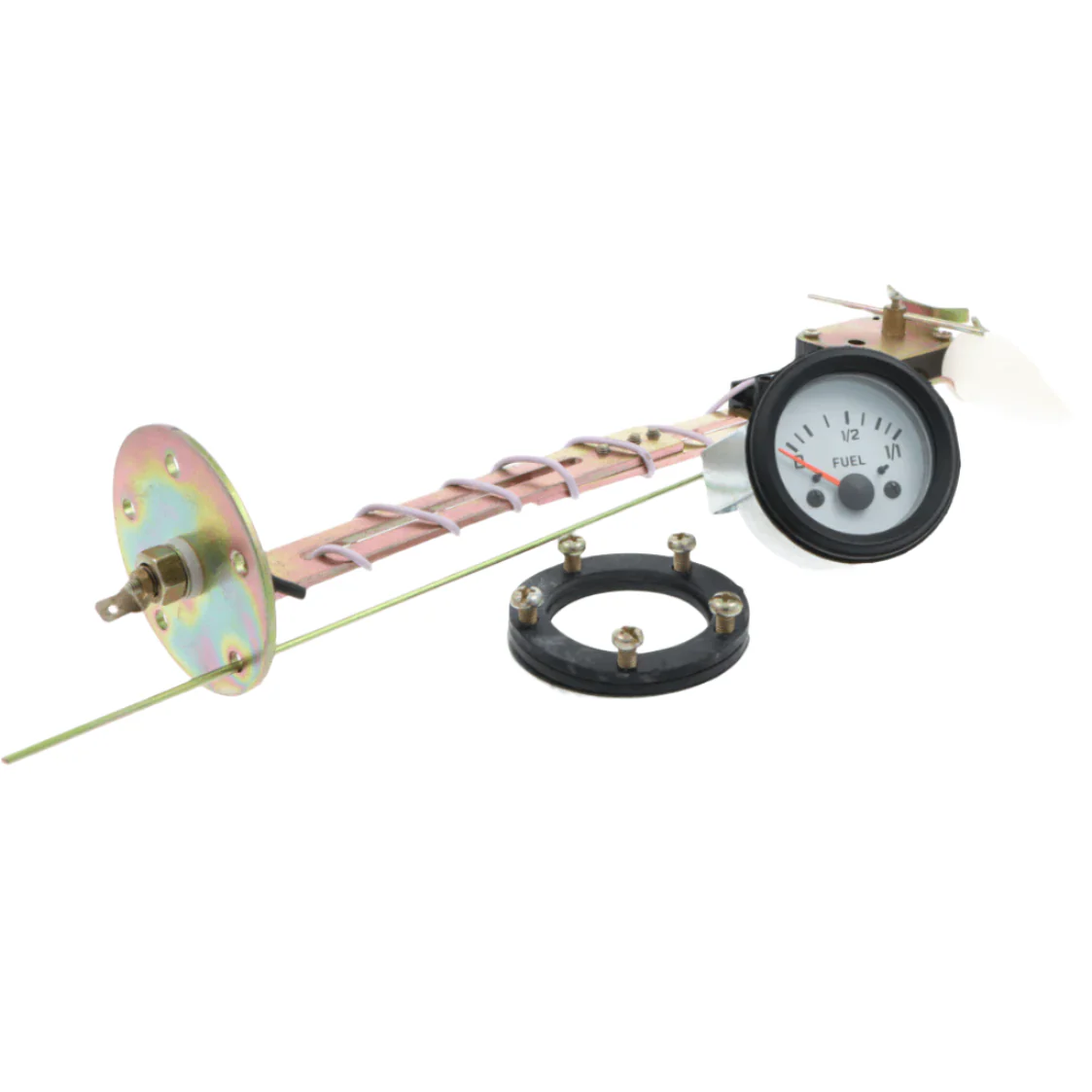

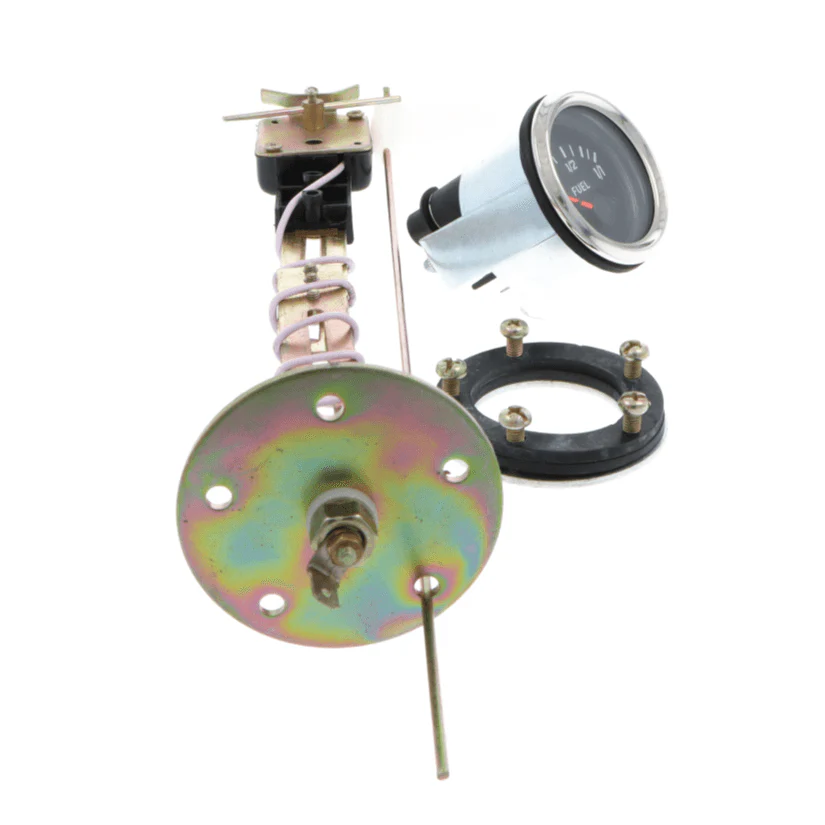

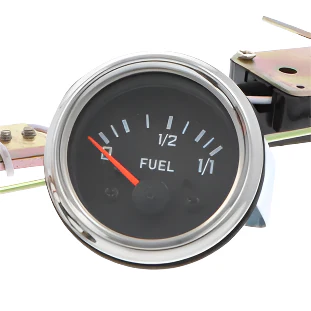

FUEL LEVEL SENDER WITH BLACK OR WHITE FACE GAUGE #WFFG or #BFFG

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.

Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
An adjustable sender that fits through a 43mm hole in your fuel tank.
Sender flange diameter 71mm.
Five 5.6mm fixing holes at 54mm PCD.
Supplied with two rubber gaskets, a threaded internal fixing ring and five screws and washers.
The 380mm wire float arm can be cut down to suit your installation.
Float arm rotation 80 degrees.
Sender length adjustable between 247mm and 320mm (or less if slider is cut down).
 1/4" spade terminal sender connection.
Earth the sender under one of the fixing screws.Â
When you’re ready for final installation, replace the short piece of wire in the bottom pivot with the float wire, pre-cut to your required length.
Bear in mind this is a very good price even if you only want the sender.
FUEL LEVEL SENDER WITH BLACK OR WHITE FACE GAUGE #WFFG or #BFFG
