The Story
12 volt, solenoid operated valve. If there is a live feed to the solenoid (ignition on) then the valve is open allowing fuel to flow.
When the power is switched off the valve closes shutting off the fuel.
Can be operated from the ignition feed or from a separate feed with a hidden switch as an additional security device.
Brass valve with 10mm OD inlet and outlet. 6mm bore. Flow rate 6 to 18.4 Litres / minute. Operating current 1 Amp.
Maximum pressure 3 bar (52 psi)

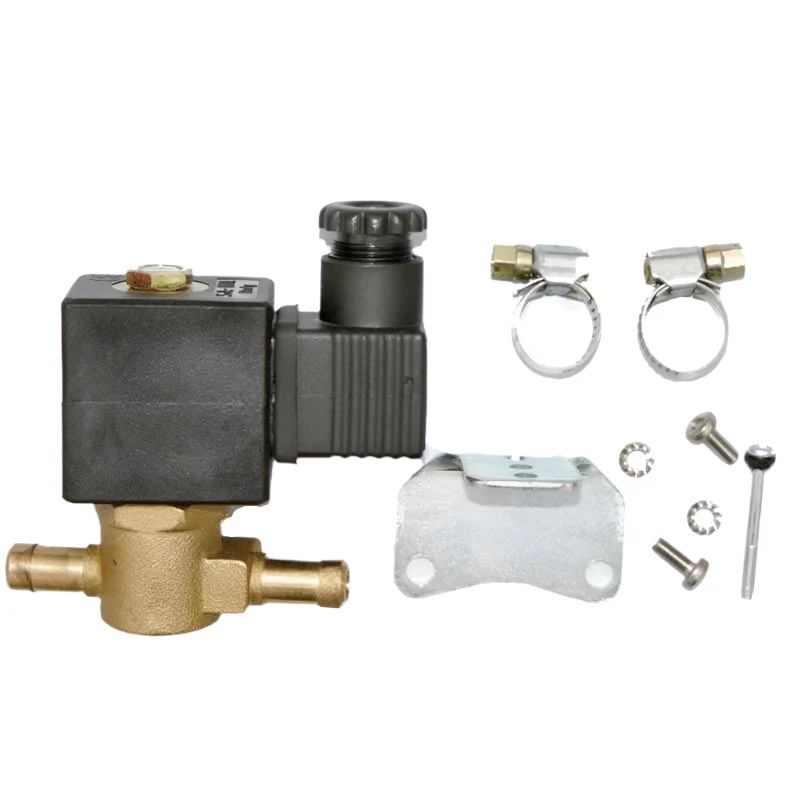

Mounting bracket, screws and hose clips included. Size: Overall height without bracket 77mm.
Overall width including connector plug 91mm. May qualify as a form of immobilisation as required by IVA

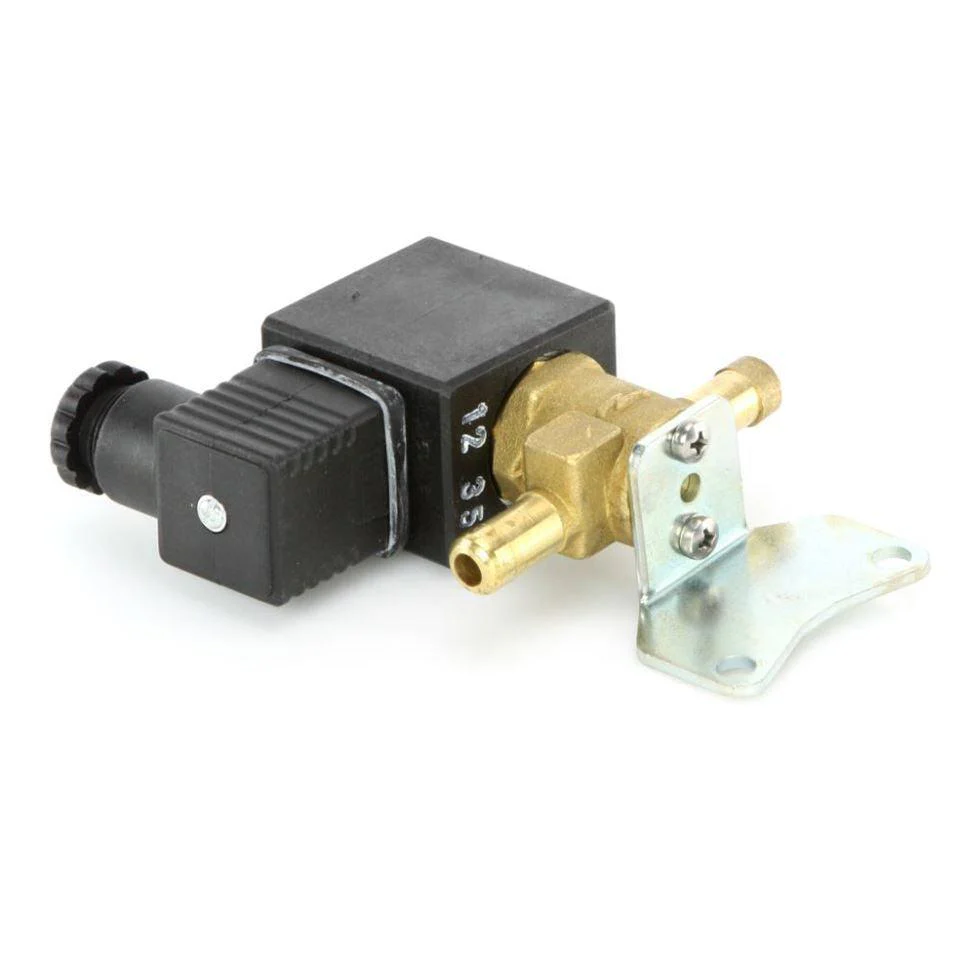

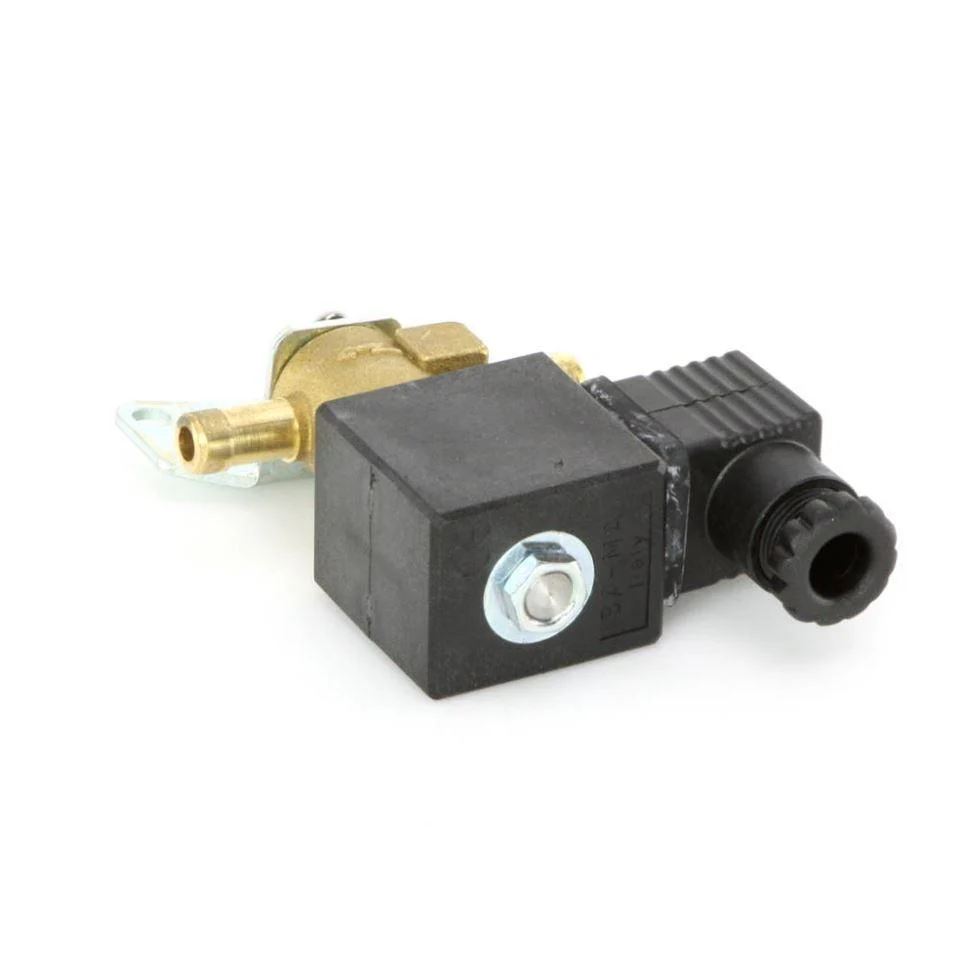

LARGE FUEL SHUT-OFF VALVE #FUVAL
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
12 volt, solenoid operated valve. If there is a live feed to the solenoid (ignition on) then the valve is open allowing fuel to flow.
When the power is switched off the valve closes shutting off the fuel.
Can be operated from the ignition feed or from a separate feed with a hidden switch as an additional security device.
Brass valve with 10mm OD inlet and outlet. 6mm bore. Flow rate 6 to 18.4 Litres / minute. Operating current 1 Amp.
Maximum pressure 3 bar (52 psi)
Mounting bracket, screws and hose clips included. Size: Overall height without bracket 77mm.
Overall width including connector plug 91mm. May qualify as a form of immobilisation as required by IVA
LARGE FUEL SHUT-OFF VALVE #FUVAL
