FACET CUBE FUEL PUMP KITS .
ALL WITH BRASS UNION AND INLET FILTER UNION,
TWO RUBBER MOUNTS AND EARTH LINKING CABLEÂ
The solid state fuel pumps from Facet are a compact design for use with carburettor equipped engines or as a supply pump to a fuel swirl pot.
They require mounting close to the fuel tank and not above it as this will lower the performance of the pump.
Solid State Reliability.
Proven on thousands of original equipment applications.
No electrical contacts. No bearings or diaphragms to wear out or fatigue.
Lasts four to five times longer than many other electric fuel pumps.
Compatible with gasoline, diesel, biodiesel, blended alcohol fuels and fuel additives.
Operating Temperature:- -40º to +180° F (all Models)
Complies with EEC 95/54.  Length:-75mm,  Height:- 60mm,  Weight:-0.5kg

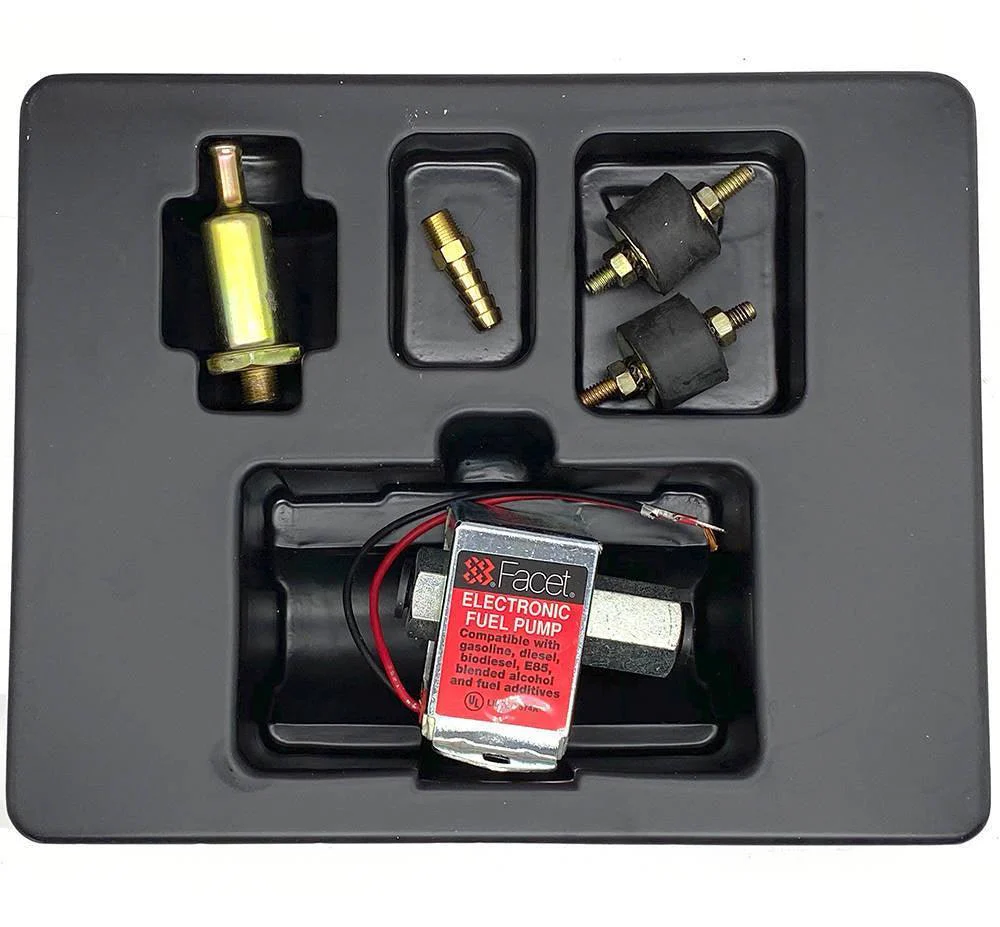

 FACET SOLID STATE FAST ROAD CUBE FUEL PUMP KIT
Manufacturers part number: 40106-K. Â
Cylindrical Fuel Pump Box Kit With one 8mm fuel union and an inlet filter union.
Flow rate 32 gallons per hour.
Delivery pressure 4 - 7psi.
Ideal for road use with engines up to 2000cc and up to 150BHP.Â
Dry Prime Height 0.3mtrs.
Thread Size:- 1/8 nptf.
IMPORTANT NOTE: ALL FUEL PUMPS MUST BE FITTED WITH A PRE-FILTER ON THE INLET SIDE. RETURNED PUMPS WILL NOT BE REPLACED OR REFUNDED IF FOUND DAMAGED DUE TO DEBRIS.
TO PREVENT VAPOUR LOCK OR AIRLOCK IT IS RECOMMENDED THAT ALL FUEL PUMPS ARE MOUNTED WITH THE OUTLET HIGHER THAN THE INLET.
FACET SOLID STATE CUBE FAST ROAD FUEL PUMP KITÂ #FAC7KIT
