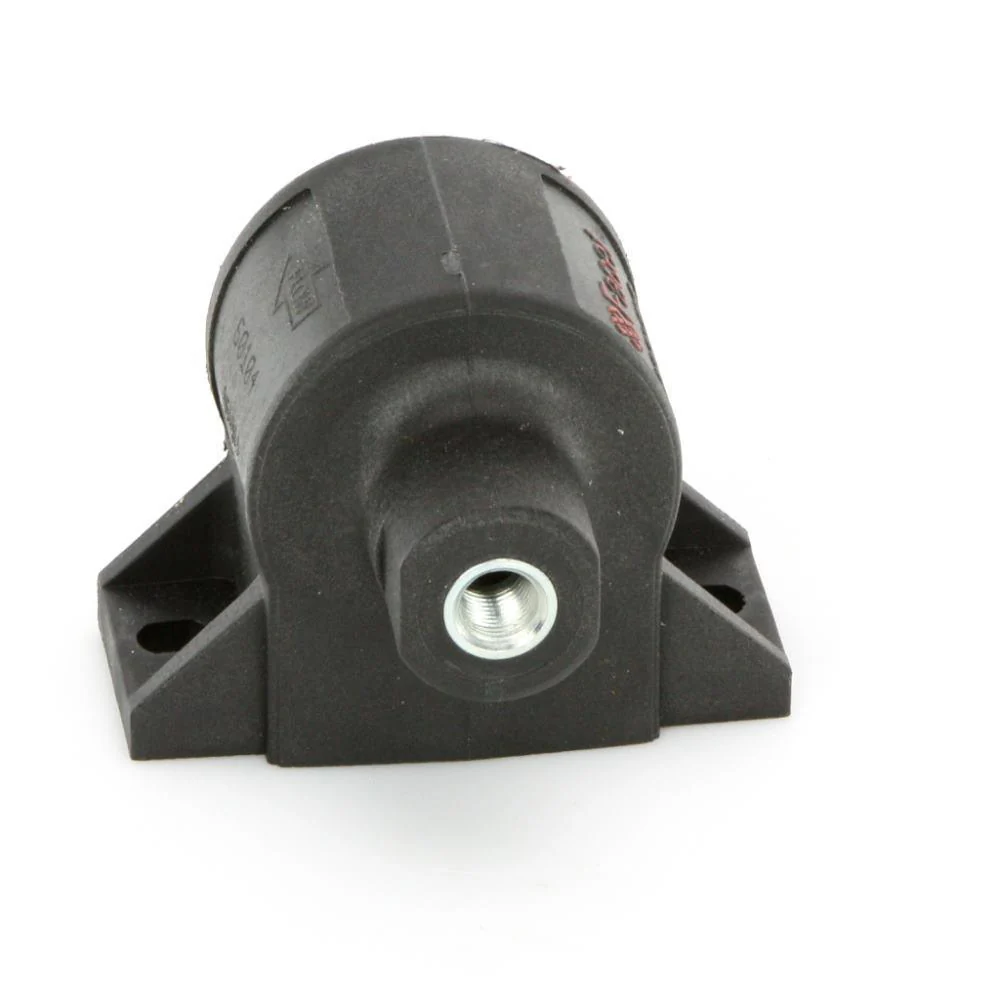

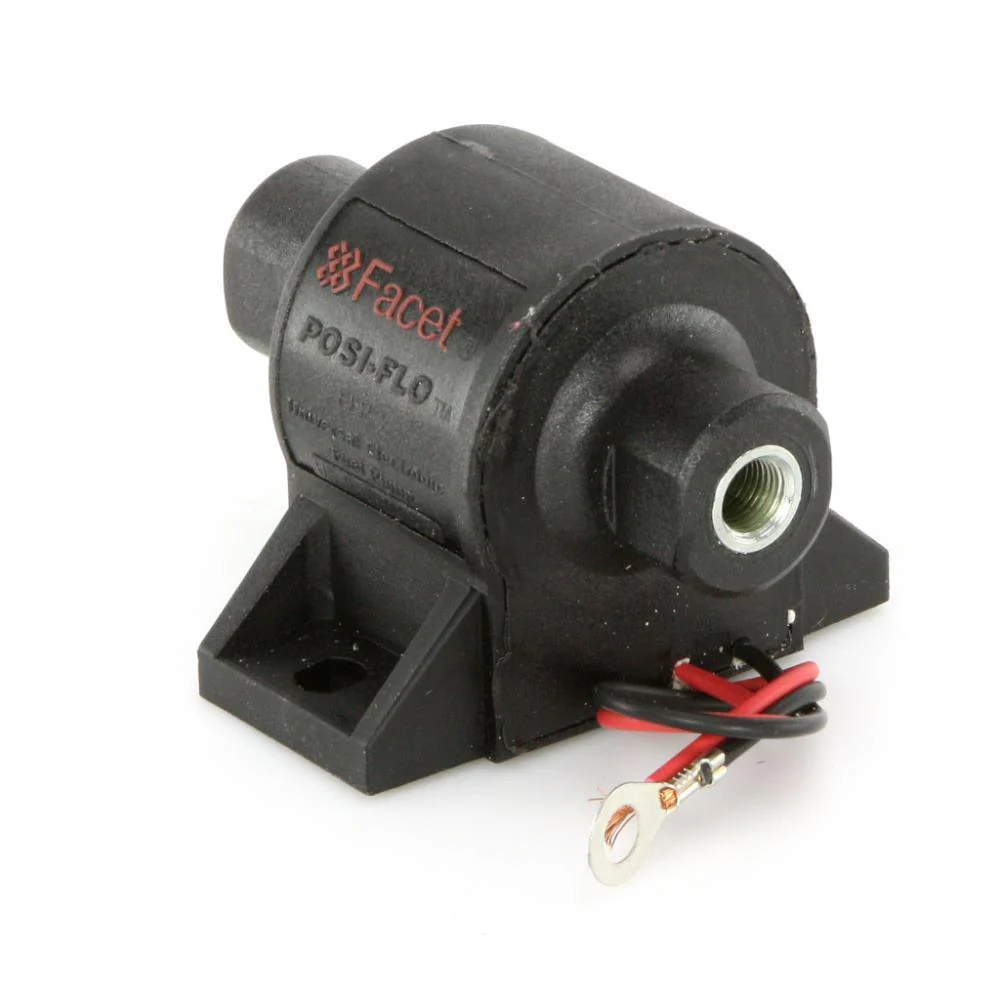

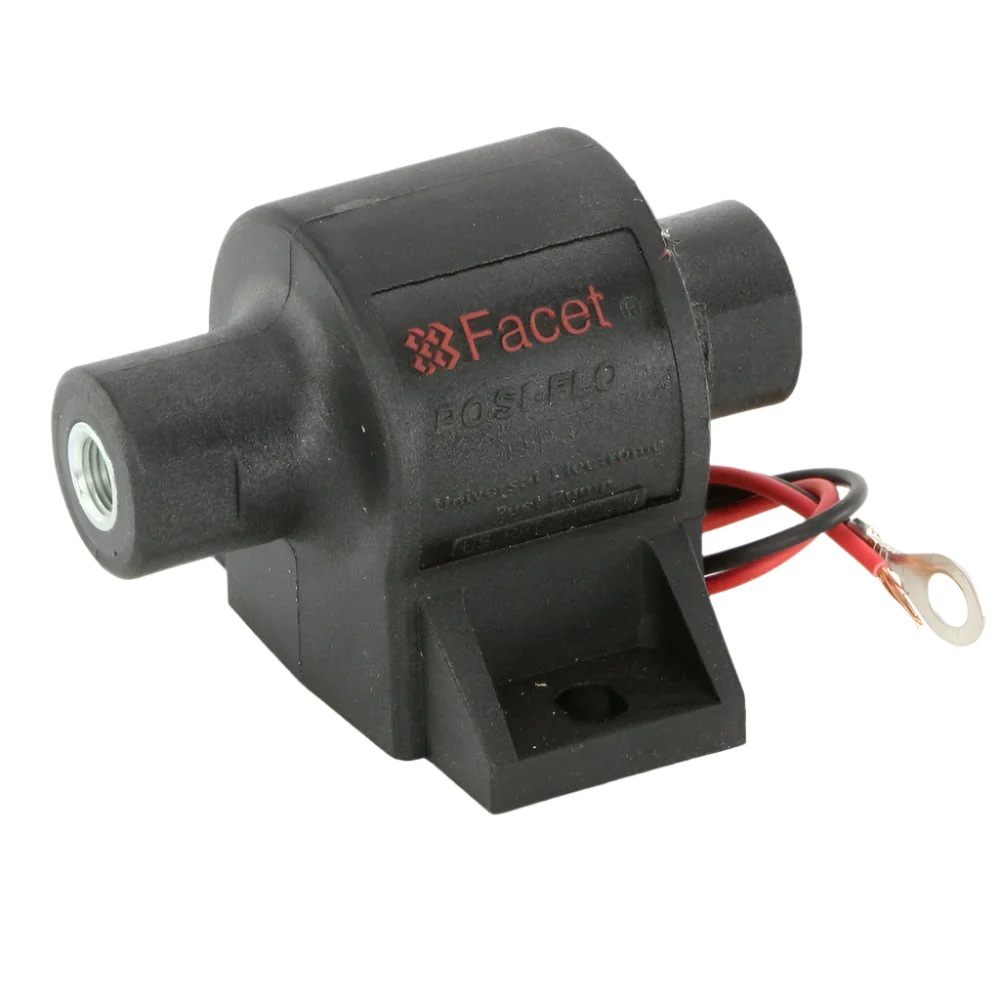

FACET 60104 ELECTRONIC FUEL PUMP For Reliable solid state internals, no electrical contacts to burn out, no bearings to wear and no diaphragms to perish.
12 volt. Less than 2 amp current drain.
Will self prime up to 0.3 mtrs lift.
Footprint 80mm x 43mm x 65mm high. 2 bolt fixing at 65mm centres.
Union thread size 1/8" npt. Operating temperature range -31 to +55 deg C. Will pump from 1.5 psi to 4 psi.
Flow rate 113 ltrs/hour.
For carburettor engines up to 150 bhp.
IMPORTANT NOTE: ALL FUEL PUMPS MUST BE FITTED WITH A PRE-FILTER ON THE INLET SIDE. RETURNED PUMPS WILL NOT BE REPLACED OR REFUNDED IF FOUND DAMAGED DUE TO DEBRIS.
TO PREVENT VAPOUR LOCK OR AIRLOCK IT IS RECOMMENDED THAT ALL FUEL PUMPS ARE MOUNTED WITH THE OUTLET HIGHER THAN THE INLET.
FACET 60104 BLACK ELECTRONIC FUEL PUMP #FAC5
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
FACET 60104 ELECTRONIC FUEL PUMP For Reliable solid state internals, no electrical contacts to burn out, no bearings to wear and no diaphragms to perish.
12 volt. Less than 2 amp current drain.
Will self prime up to 0.3 mtrs lift.
Footprint 80mm x 43mm x 65mm high. 2 bolt fixing at 65mm centres.
Union thread size 1/8" npt. Operating temperature range -31 to +55 deg C. Will pump from 1.5 psi to 4 psi.
Flow rate 113 ltrs/hour.
For carburettor engines up to 150 bhp.
IMPORTANT NOTE: ALL FUEL PUMPS MUST BE FITTED WITH A PRE-FILTER ON THE INLET SIDE. RETURNED PUMPS WILL NOT BE REPLACED OR REFUNDED IF FOUND DAMAGED DUE TO DEBRIS.
TO PREVENT VAPOUR LOCK OR AIRLOCK IT IS RECOMMENDED THAT ALL FUEL PUMPS ARE MOUNTED WITH THE OUTLET HIGHER THAN THE INLET.
FACET 60104 BLACK ELECTRONIC FUEL PUMP #FAC5
