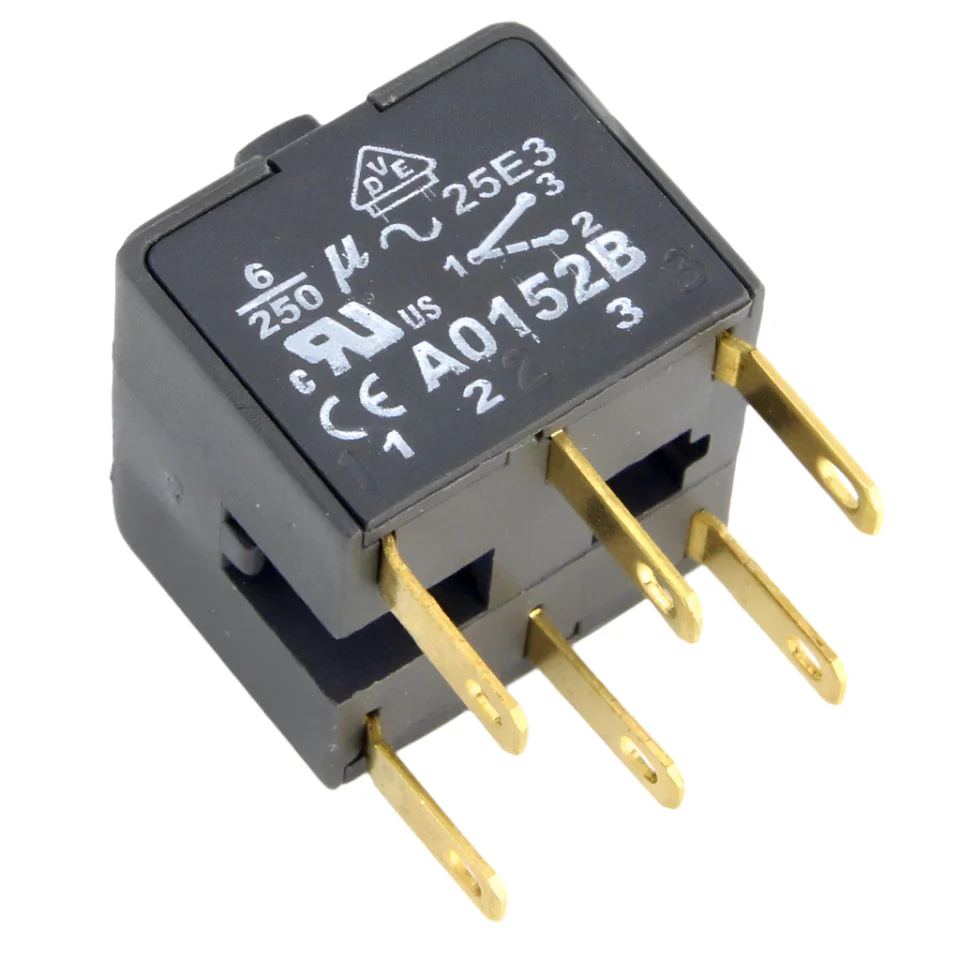

Double Pole Switch Block for Billet Alloy Switches

This item is only the Double Pole Switch Block for our Billet Alloy Switch range.

Just push it over the bottom of the switch and it snaps into place.

To remove the switch block simply press the little release tang and pull the block off.

Current Rating 6 amps

Size 18mm x 18mm x 25mm high.

3mm male spade terminals for connection either by soldering

or with our female terminals (part number #TER185F)

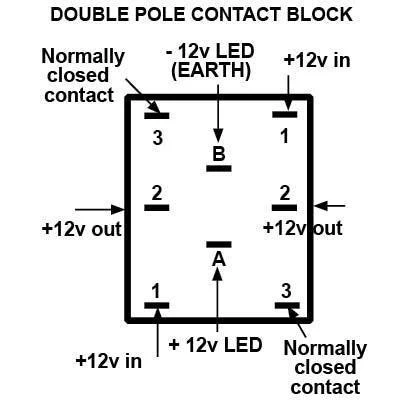

SWITCH INSTRUCTIONS

Pin 1 is +12v supply to the switch

Pin 2 is the switched +12v out to your accessory.

For illumination when switch is operated, fit a link between pin 2 and pin A

NOTE: Pin 3 is normally closed and opens when the switch is operated

DOUBLE POLE SWITCH BLOCK #DPSWBK
