The Story

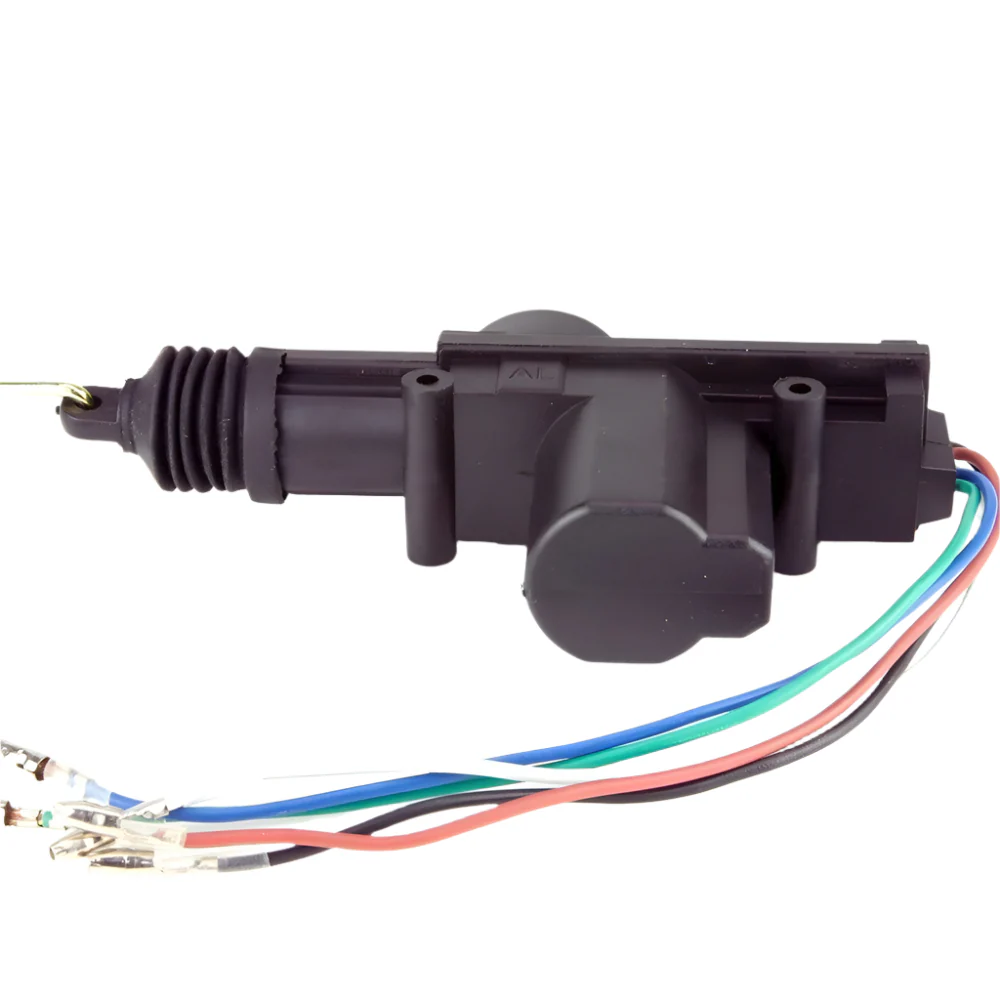

The Heavy Duty, 12 volt, 5 wire, Power Door Lock / Boot lid Actuator has built in switches that trigger a module with relays to lock and unlock the other doors.
It will push and/or pull the door lock mechanism using the power supplied from the keyless entry system in the vehicle or a simple push-button.
This door lock actuator will work with most security systems.
The Blue and Green wires can be used as a two-wire actuator for boot release using a simple push-button switch or relays.
The output shaft can rotate 360 degrees.

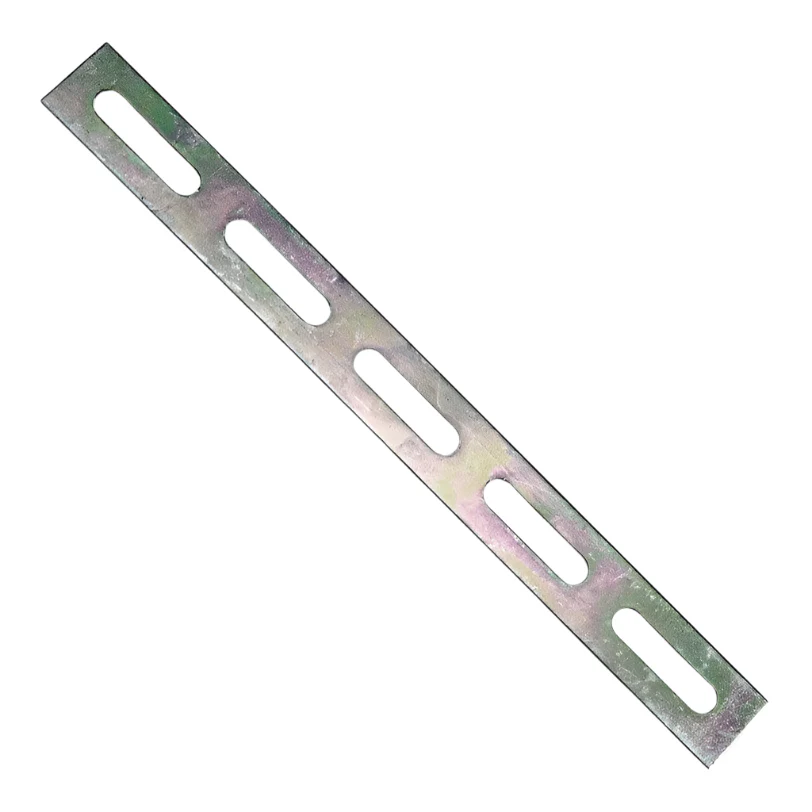

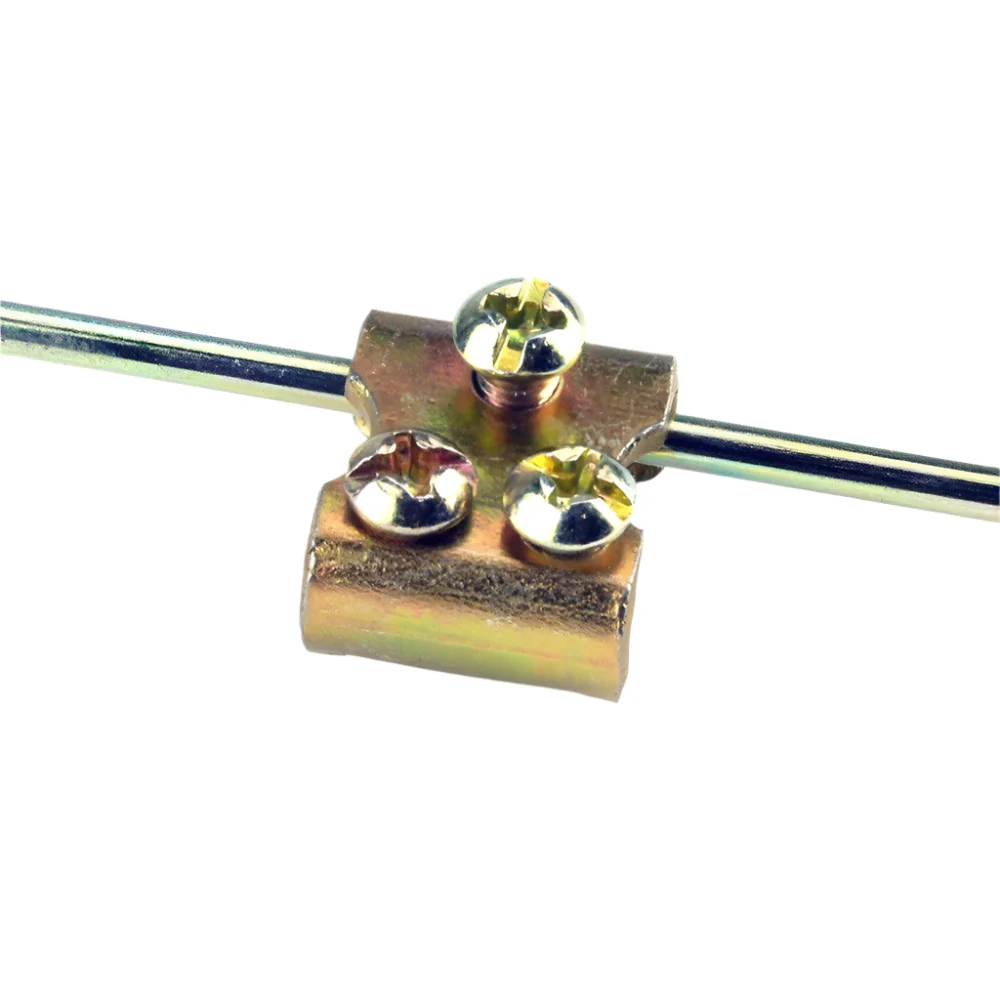

Supplied with 2.7mm diameter x 220mm (7.0in) long wire, steel mounting plate and joining block.
Current consumption: 0.15A to 3A
Push & pull force: 4kg
Travel distance: 20mm
Actuator size: approx. 150 x 63 / 32mm.
Two 3.5mm mounting holes at 58mm centres.
Weight: 140g
WIRING:
BROWN - Lock Input
BLUE - Unlock Output
WHITE - Unlock Input
Black - Earth
Green - Lock Output
WIRING FOR TWO WIRE APPLICATION:
GREEN +ve,
BLUE -ve - PULL
BLUE +ve,
GREEN -ve - PUSH
DOOR LOCK ACTUATOR #ACTU1
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Heavy Duty, 12 volt, 5 wire, Power Door Lock / Boot lid Actuator has built in switches that trigger a module with relays to lock and unlock the other doors.
It will push and/or pull the door lock mechanism using the power supplied from the keyless entry system in the vehicle or a simple push-button.
This door lock actuator will work with most security systems.
The Blue and Green wires can be used as a two-wire actuator for boot release using a simple push-button switch or relays.
The output shaft can rotate 360 degrees.
Supplied with 2.7mm diameter x 220mm (7.0in) long wire, steel mounting plate and joining block.
Current consumption: 0.15A to 3A
Push & pull force: 4kg
Travel distance: 20mm
Actuator size: approx. 150 x 63 / 32mm.
Two 3.5mm mounting holes at 58mm centres.
Weight: 140g
WIRING:
BROWN - Lock Input
BLUE - Unlock Output
WHITE - Unlock Input
Black - Earth
Green - Lock Output
WIRING FOR TWO WIRE APPLICATION:
GREEN +ve,
BLUE -ve - PULL
BLUE +ve,
GREEN -ve - PUSH
DOOR LOCK ACTUATOR #ACTU1
