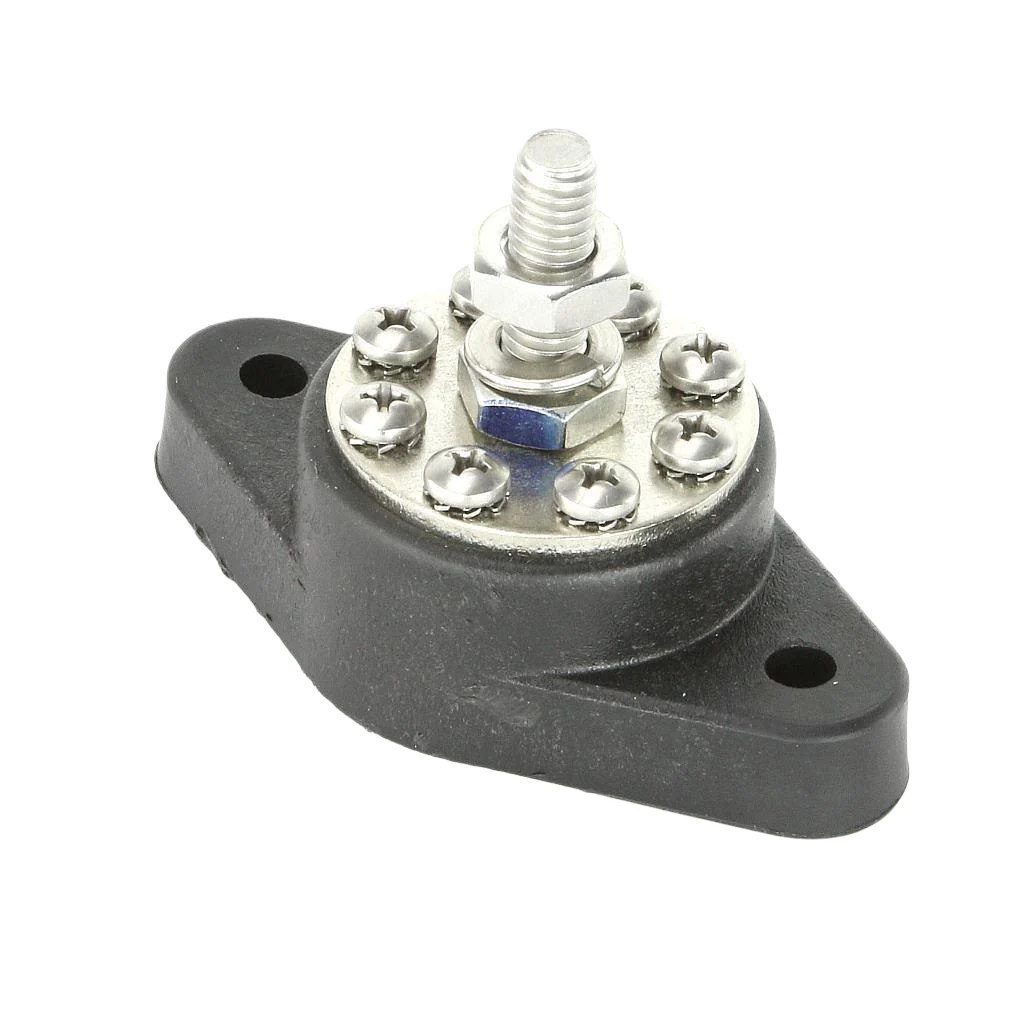

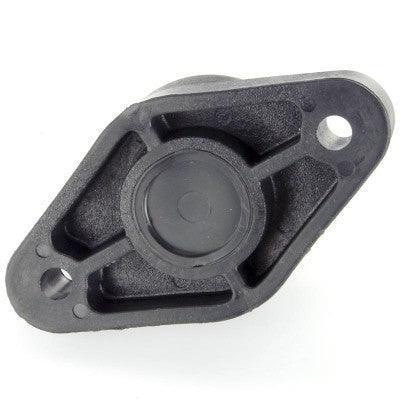

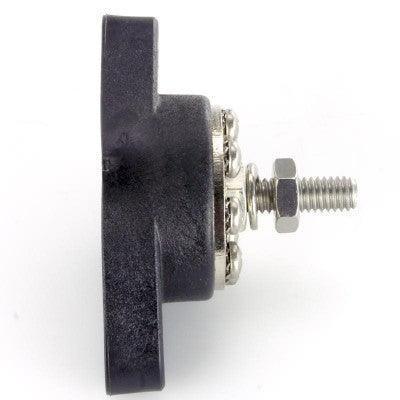

DISTRIBUTION POST Distribute live or earth feeds with this very heavy duty post.
12 volt or 24 volt. A 22mm long M8 stud is mounted on a 2.5mm thick 40mm dia disc
with 8 x M4 dome-head Pozi screw terminals with shakeproof washers, mounted on an insulated ABS base.
Two 6.5mm fixing holes at 63mm centres.
Size: 84mm x 45mm x 54mm high.
Weight 110 gm.
DISTRIBUTION POST #DISTPOST
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
DISTRIBUTION POST Distribute live or earth feeds with this very heavy duty post.
12 volt or 24 volt. A 22mm long M8 stud is mounted on a 2.5mm thick 40mm dia disc
with 8 x M4 dome-head Pozi screw terminals with shakeproof washers, mounted on an insulated ABS base.
Two 6.5mm fixing holes at 63mm centres.
Size: 84mm x 45mm x 54mm high.
Weight 110 gm.
DISTRIBUTION POST #DISTPOST
