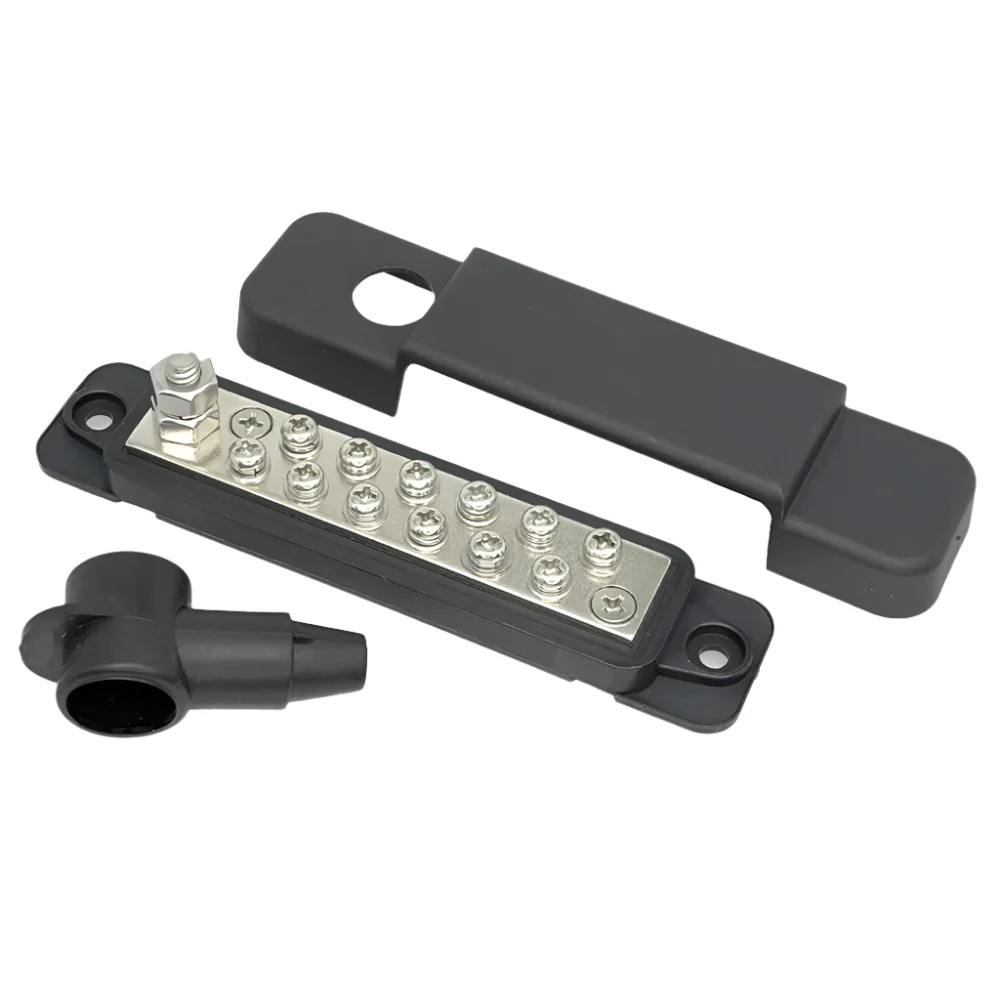

DISTRIBUTION BAR
180 Amp.

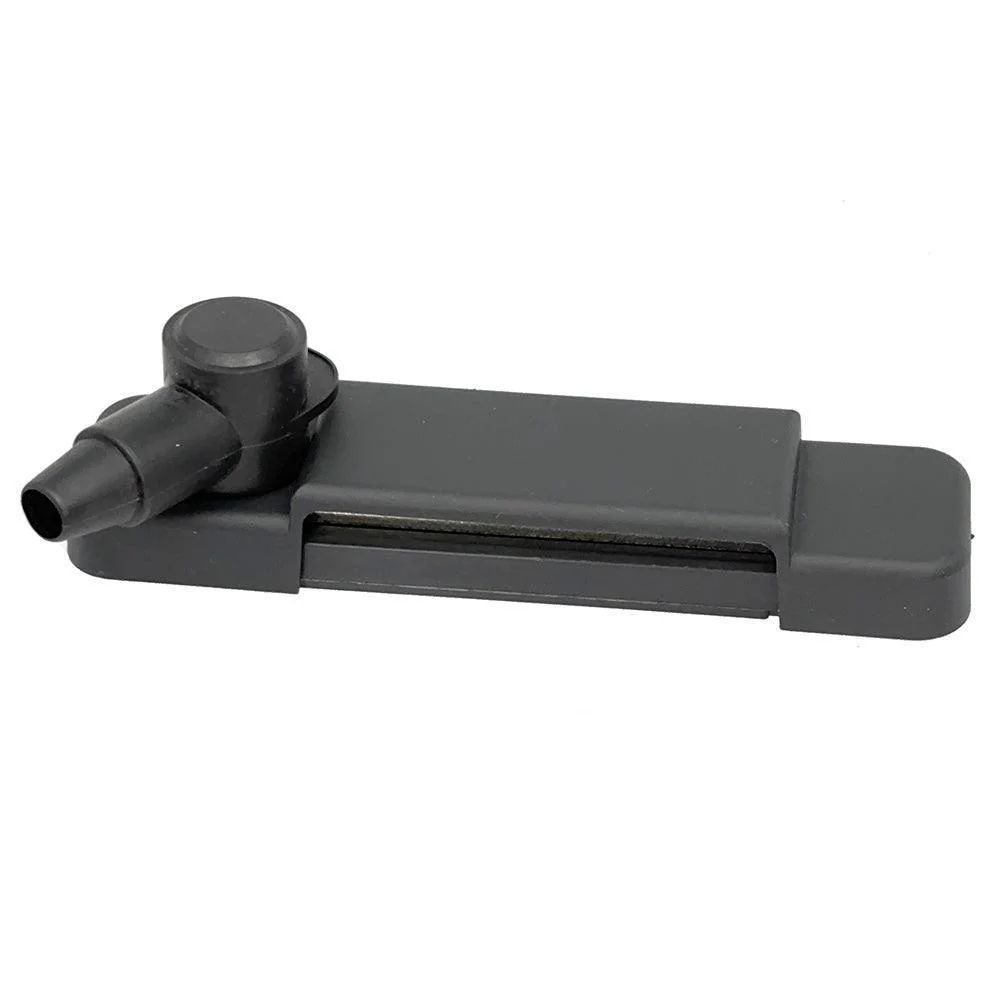

With snap-on cover and rubber boot.
Distribute live or earth feeds with this heavy duty bar.
12 volt or 24 volt.
A 3/8" long 1/4" UNC stud is mounted on a 2.5mm thick plate
with 12 x 6-32 UNC x 1/4" long, dome-head Pozi screws for ring or
fork terminals with shakeproof washers, mounted on an insulated ABS base.Â
Two 5mm fixing holes at 119mm centres.Â
Size: 133mm x 29mm x 29mm (max) high.
16 ring terminals included
Weight 86 gm.
DISTRIBUTION BAR #DISTBAR
