The Story

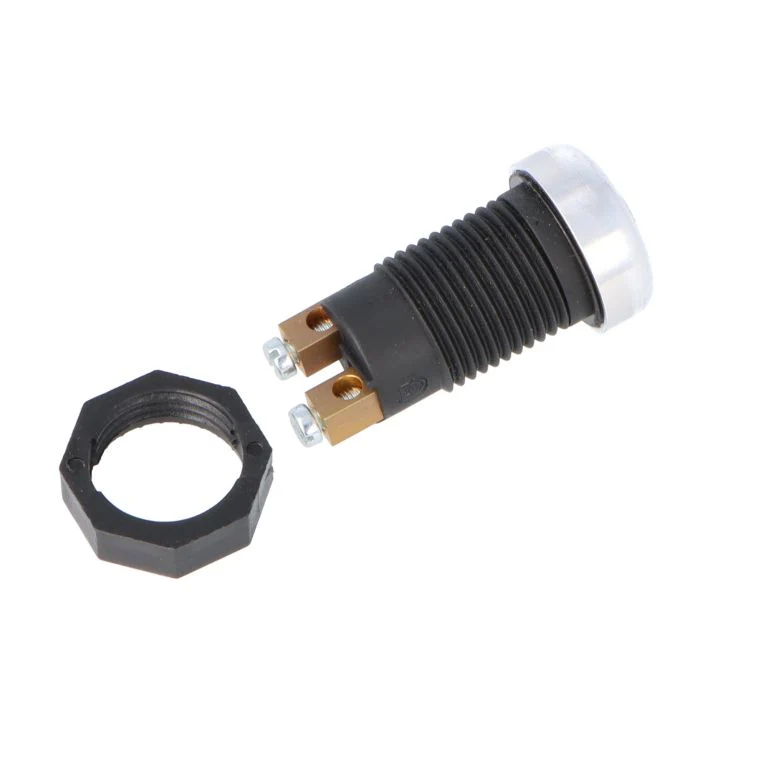

These large diameter warning lights have a 22mm diameter screw on bezel with a dash projection of 9mm, the rear projection of the light body is 36mm, mounting through a 17mm hole with a maximum panel thickness of 14mm. Screw terminals on the rear and a threaded collar to secure it to the dashboard. This warning light also includes a 2w Bulb.
- 46mm Overall Length
- 17mm Body Width & Mounting Hole
- 22mm Bezel Diameter
- 14mm Lens Diameter
- 2w Replaceable Bulb Included
- Screw terminals
- 22mm Hex Fixing Nut

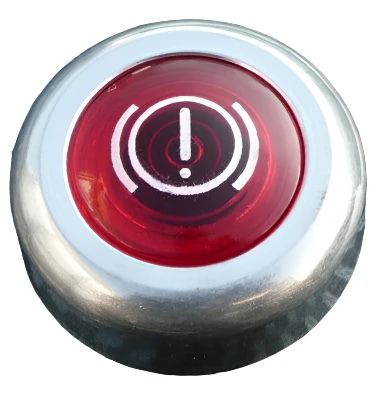

WARNING LIGHT LARGE BRAKE Red #WLLBRK
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
These large diameter warning lights have a 22mm diameter screw on bezel with a dash projection of 9mm, the rear projection of the light body is 36mm, mounting through a 17mm hole with a maximum panel thickness of 14mm. Screw terminals on the rear and a threaded collar to secure it to the dashboard. This warning light also includes a 2w Bulb.
- 46mm Overall Length
- 17mm Body Width & Mounting Hole
- 22mm Bezel Diameter
- 14mm Lens Diameter
- 2w Replaceable Bulb Included
- Screw terminals
- 22mm Hex Fixing Nut
WARNING LIGHT LARGE BRAKE Red #WLLBRK
