Black Rotary Switch 3 Position Spring Return
HomeStore

Black Rotary Switch 3 Position Spring Return

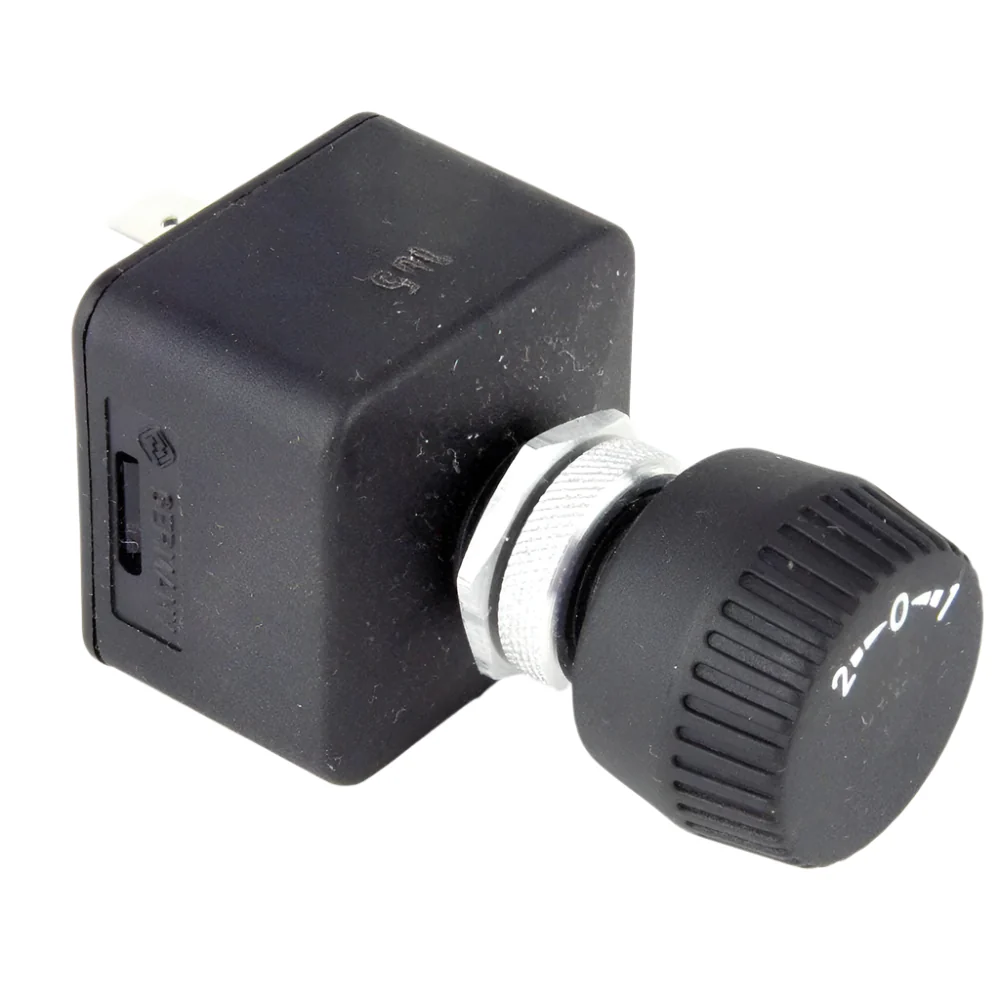

Black Rotary Switch 3 Position Spring Return

$14.89
Black Rotary Switch 3 Position Spring Return—
$14.89

The Story

3 position  LEFT, SPRING RETURN - OFF - RIGHT, SPRING RETURN

For electric windows, bonnet or boot release etc.

Three 1/4" spade terminals.

Mounts through a 12mm hole.

Maximum panel thickness 8mm.

Knob diameter 23mm.

Front projection max 25mm. Rear projection max 37mm.

Square main body 30mm x 30mm.

15 amp contacts.

ROTARY LEFT / RIGHT SPRING RETURN SWITCH #ROSWSR

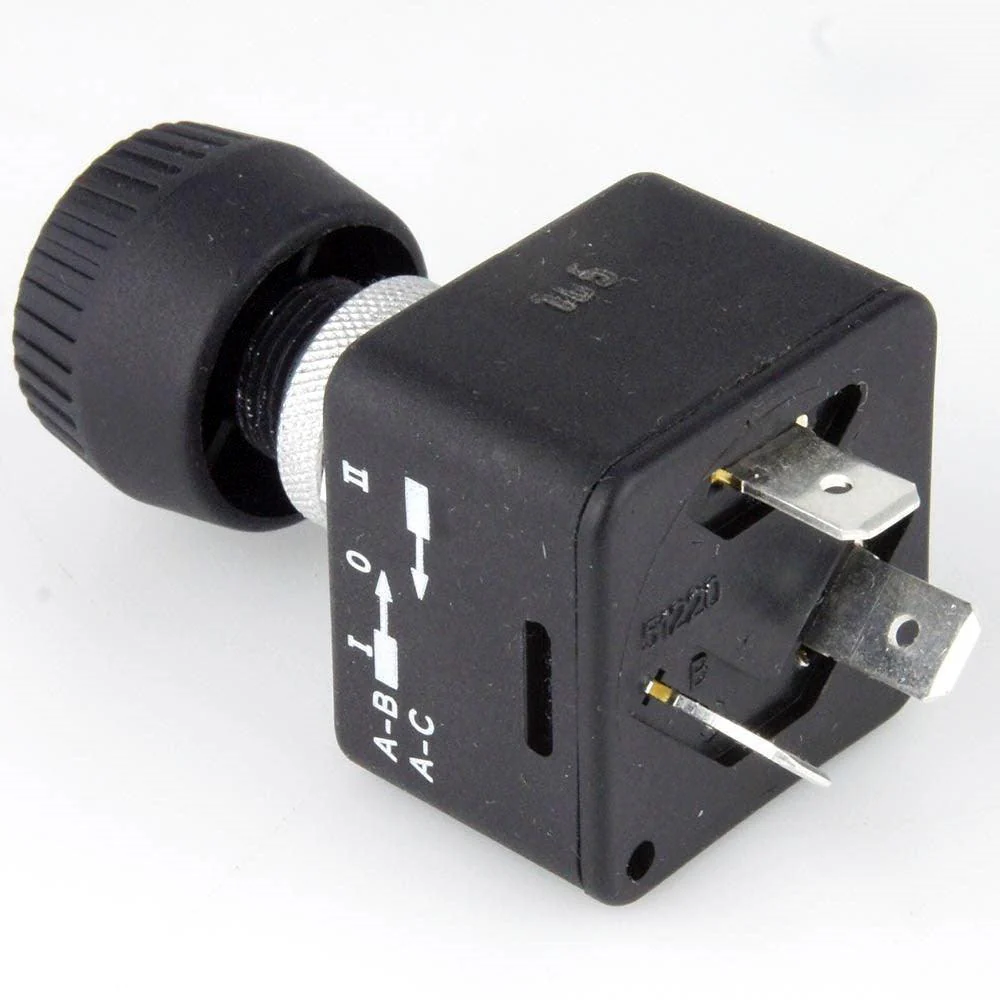

Black Rotary Switch 3 Position Spring Return - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

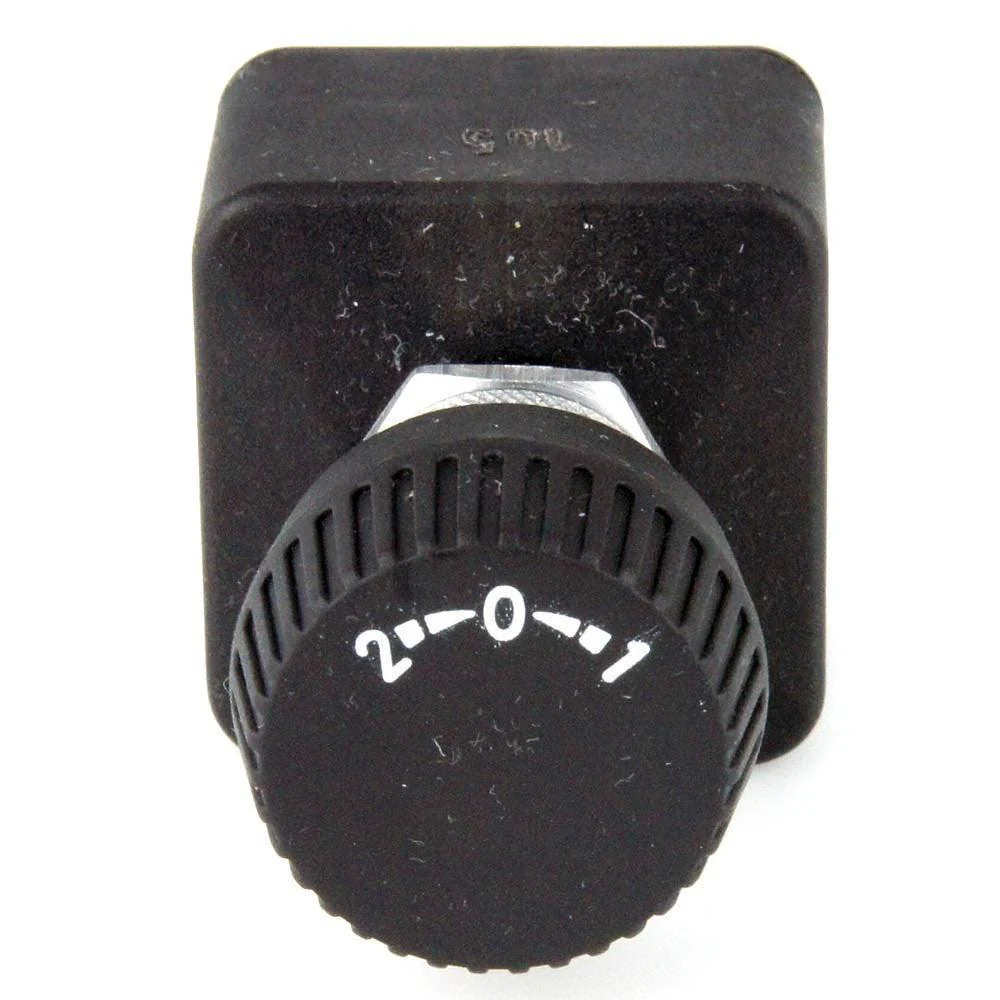

Black Rotary Switch 3 Position Spring Return - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

3 position  LEFT, SPRING RETURN - OFF - RIGHT, SPRING RETURN

For electric windows, bonnet or boot release etc.

Three 1/4" spade terminals.

Mounts through a 12mm hole.

Maximum panel thickness 8mm.

Knob diameter 23mm.

Front projection max 25mm. Rear projection max 37mm.

Square main body 30mm x 30mm.

15 amp contacts.

ROTARY LEFT / RIGHT SPRING RETURN SWITCH #ROSWSR
