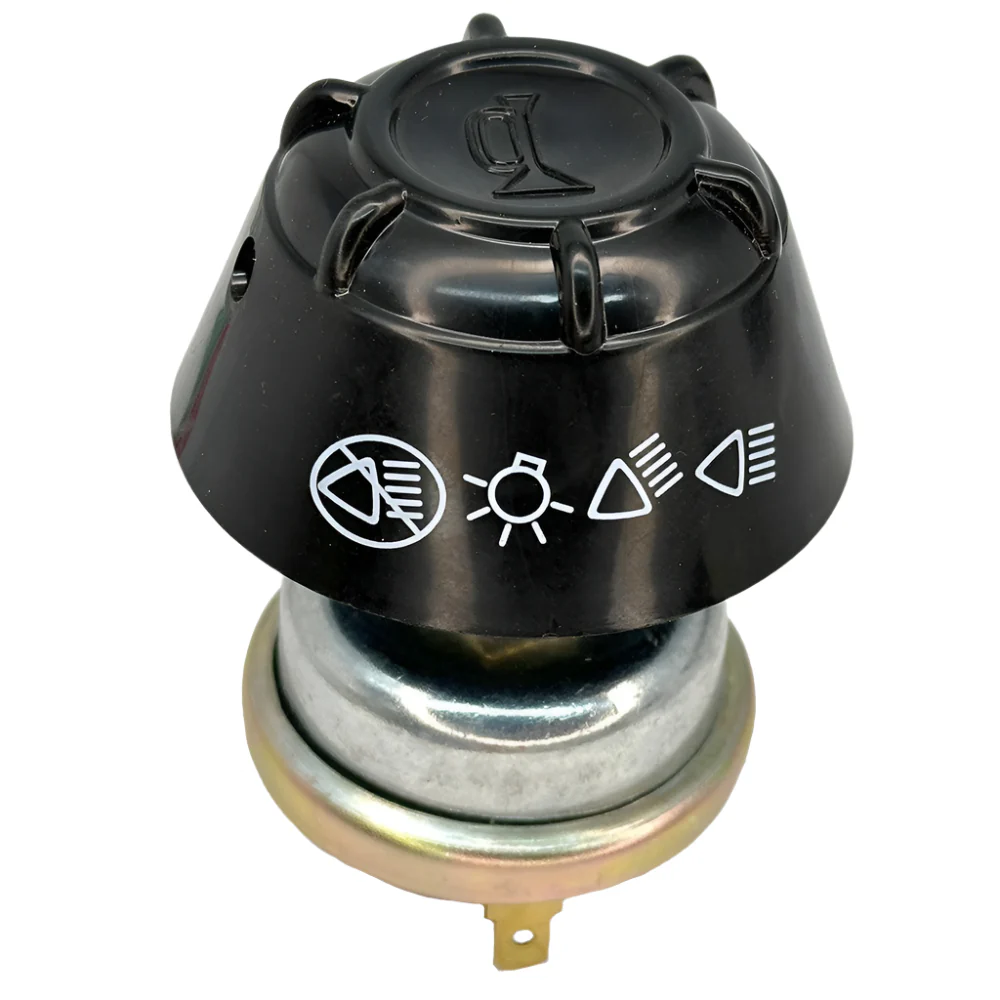

Black Large Rotary Headlamp And Horn Switch

Four position OFF-SIDE-DIP - MAIN & PUSH FOR HORN.

Big 64mm diameter 38mmfront projection knob for easy control.

1/4" spade terminal connections.

Rear projection 37mm.

Max panel thickness 4mm.

Mounts through a 12mm hole.

20 amp current rating.

NOTE: To remove knob push a pop rivet shaft into the hole in the side of the knob to release the sprung locating pin on the shaft

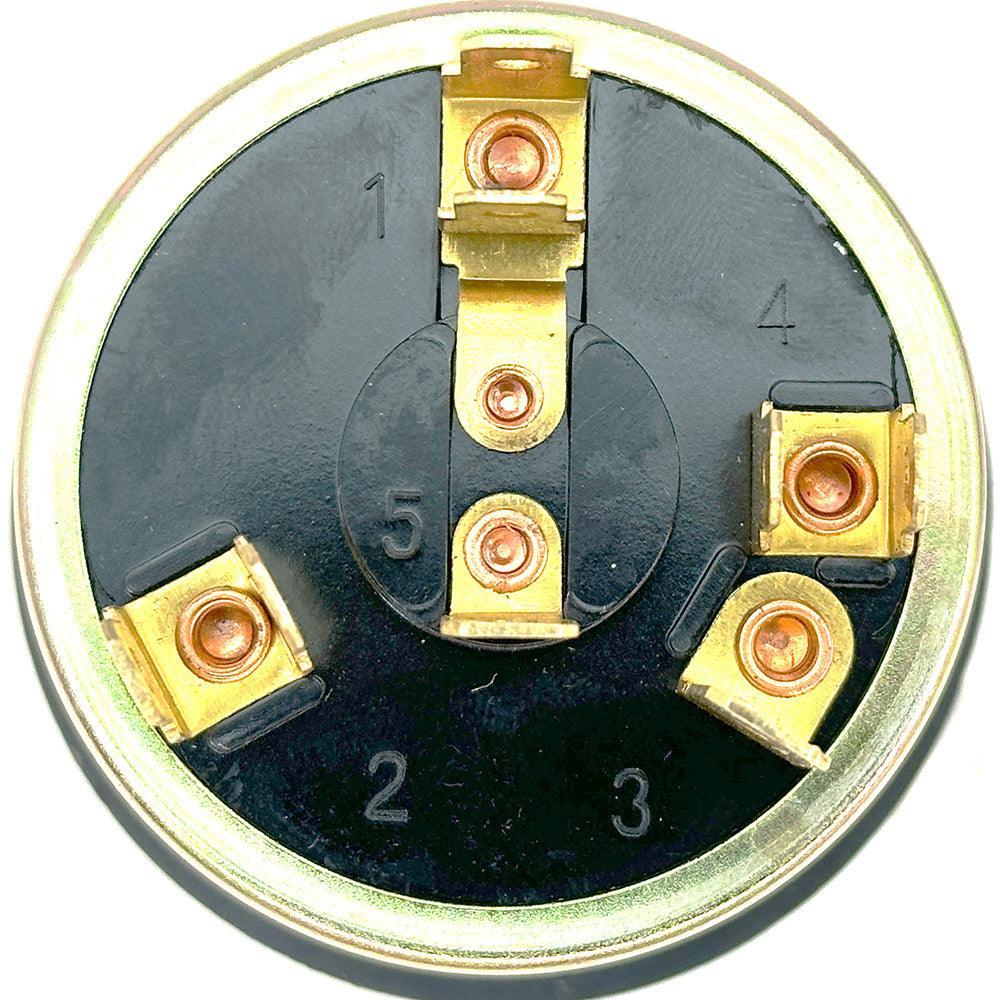

WIRING TERMINALS:

1 - Power in

2 - Side lights

3 - Dipped beam

4 - Main Beam

5- Horn

ROTARY HEADLAMP & HORN SWITCH #HLHSW
