Black Billet Aluminium Switch Momentary

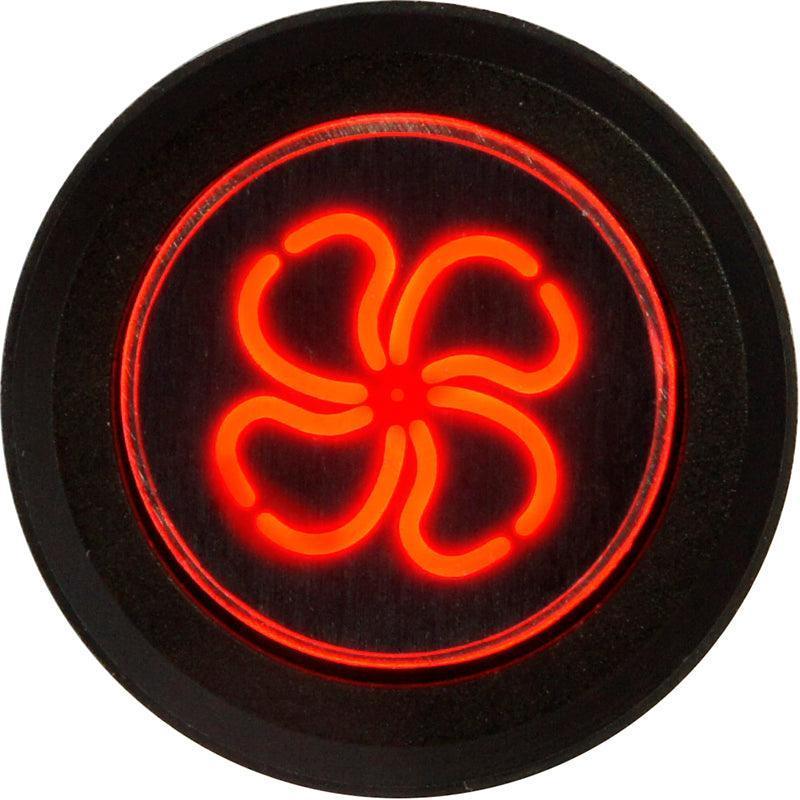

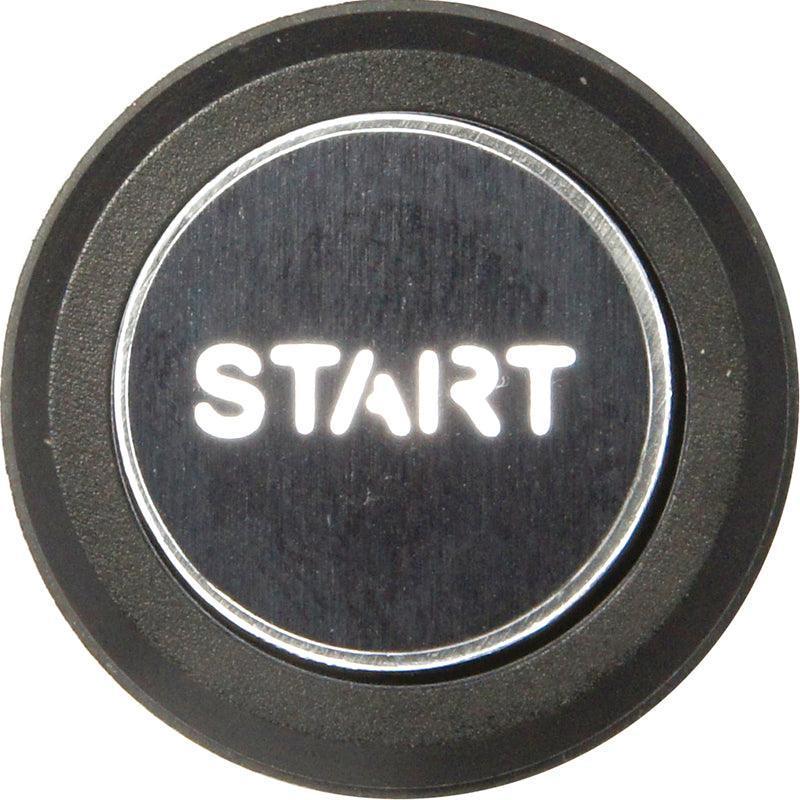

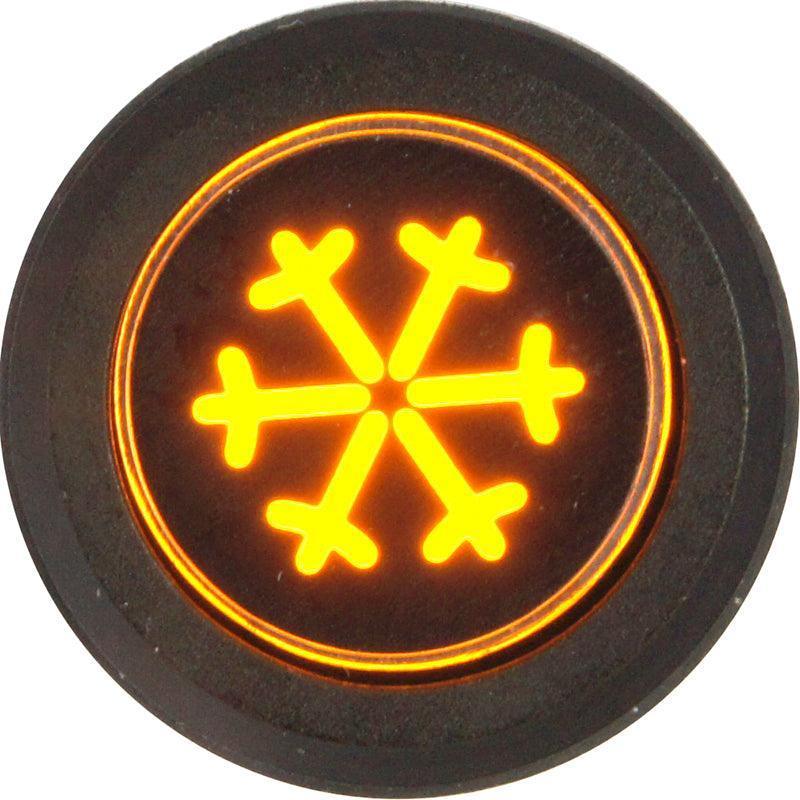

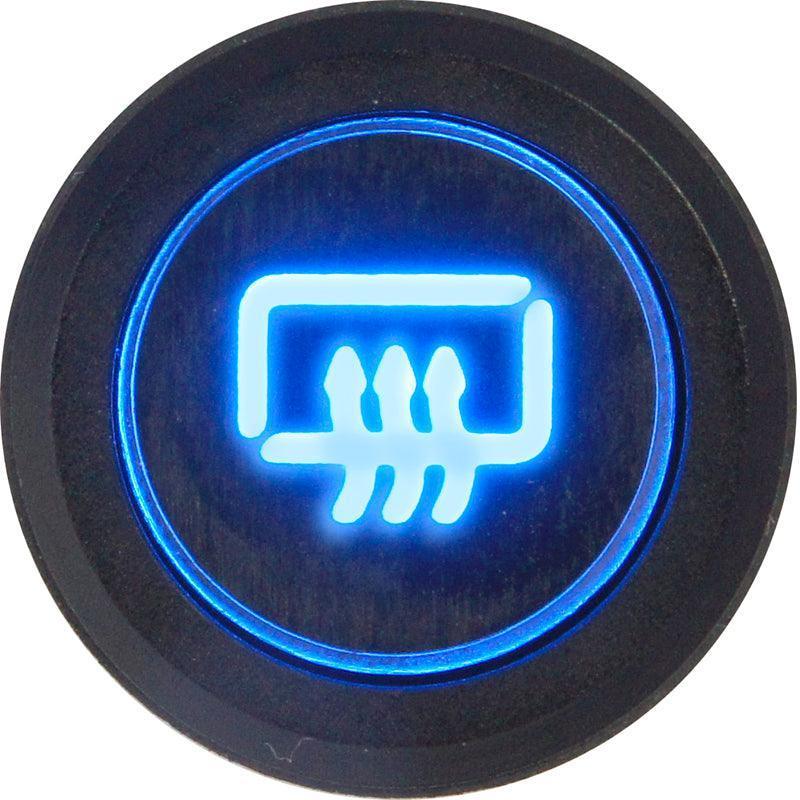

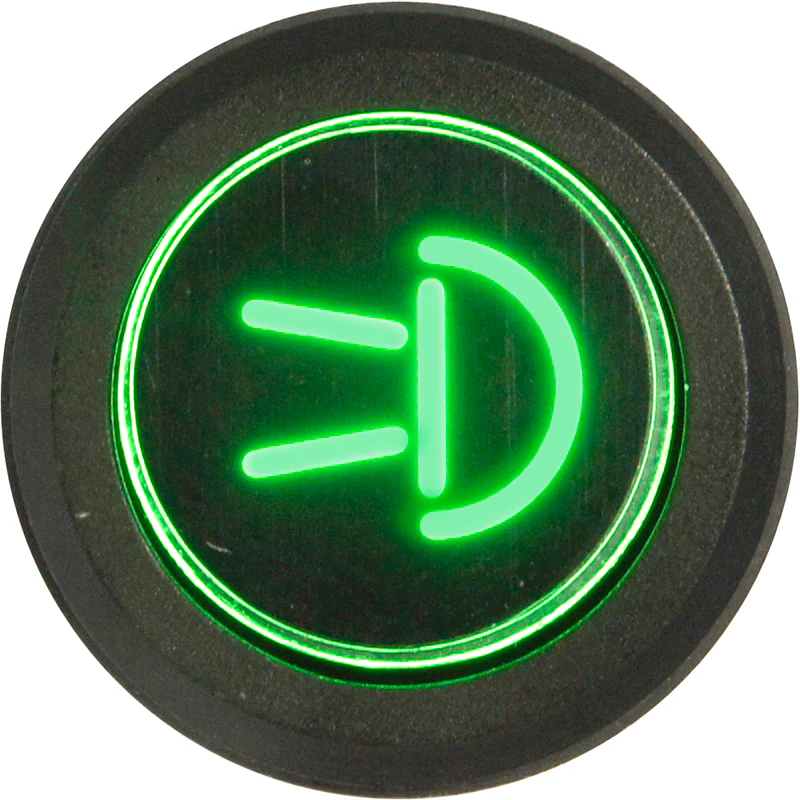

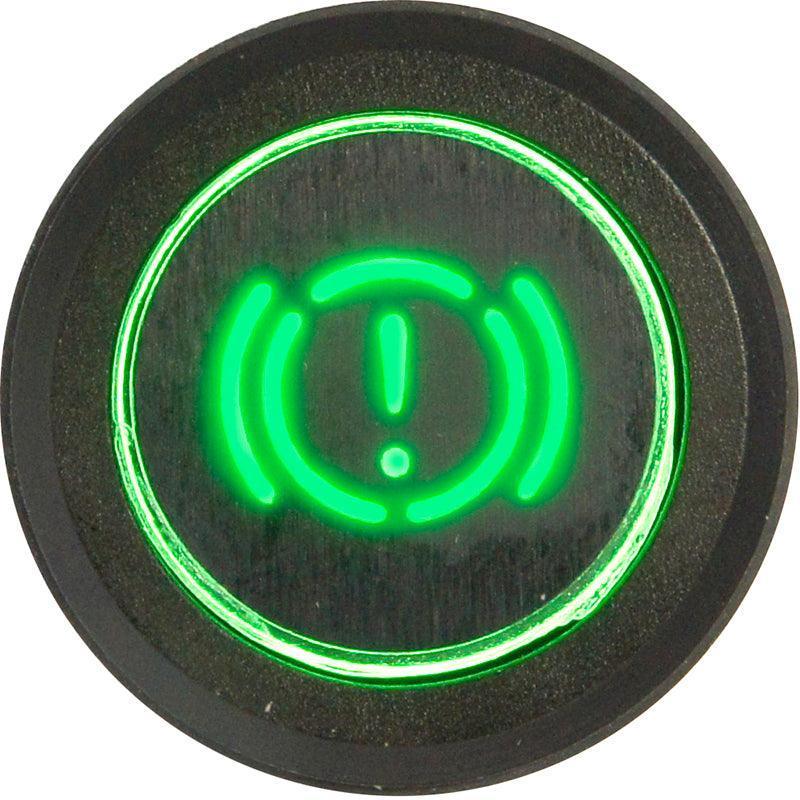

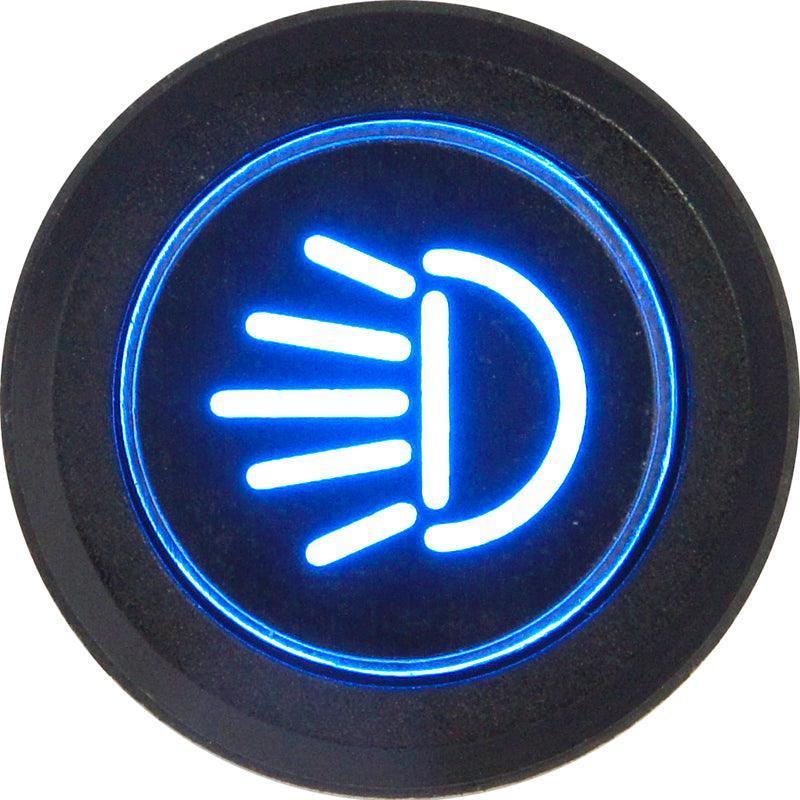

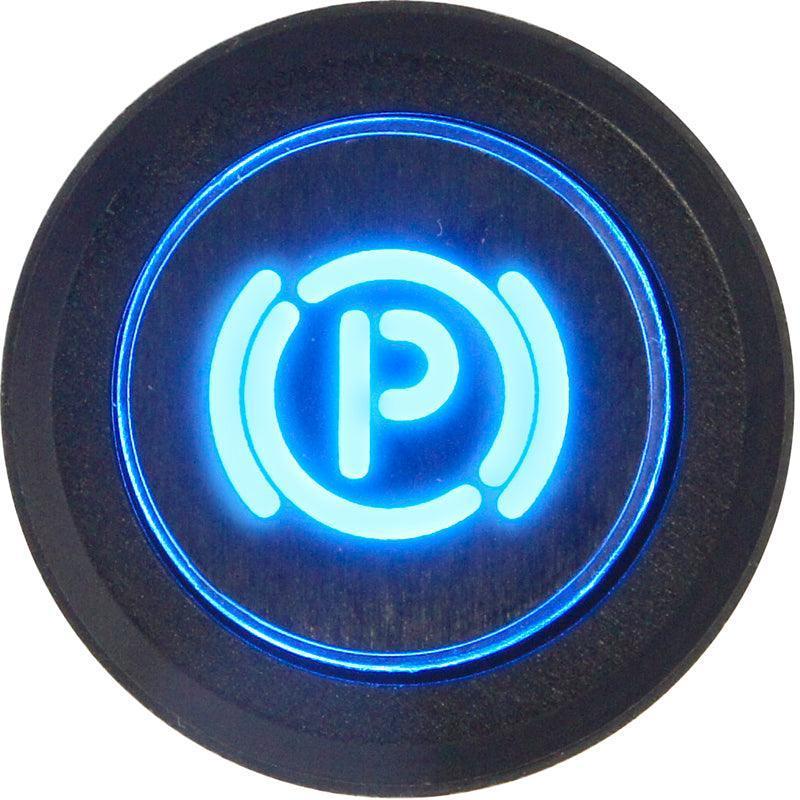

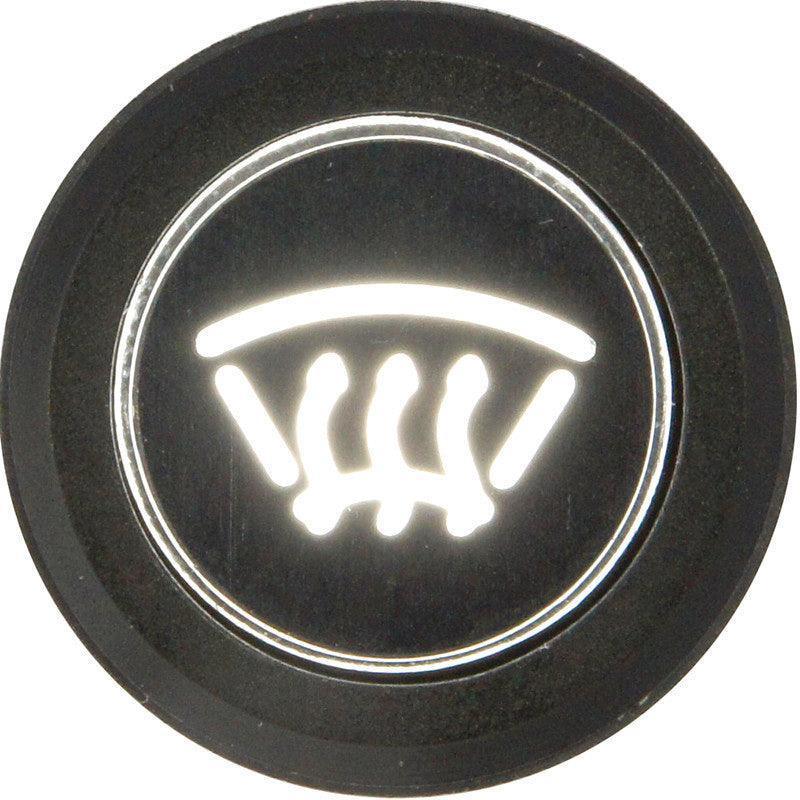

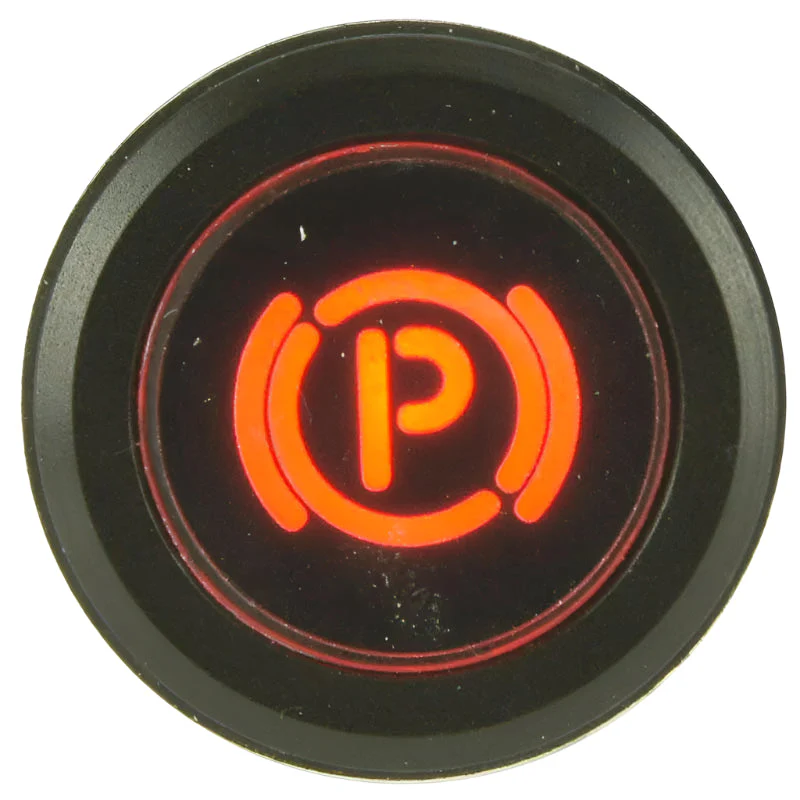

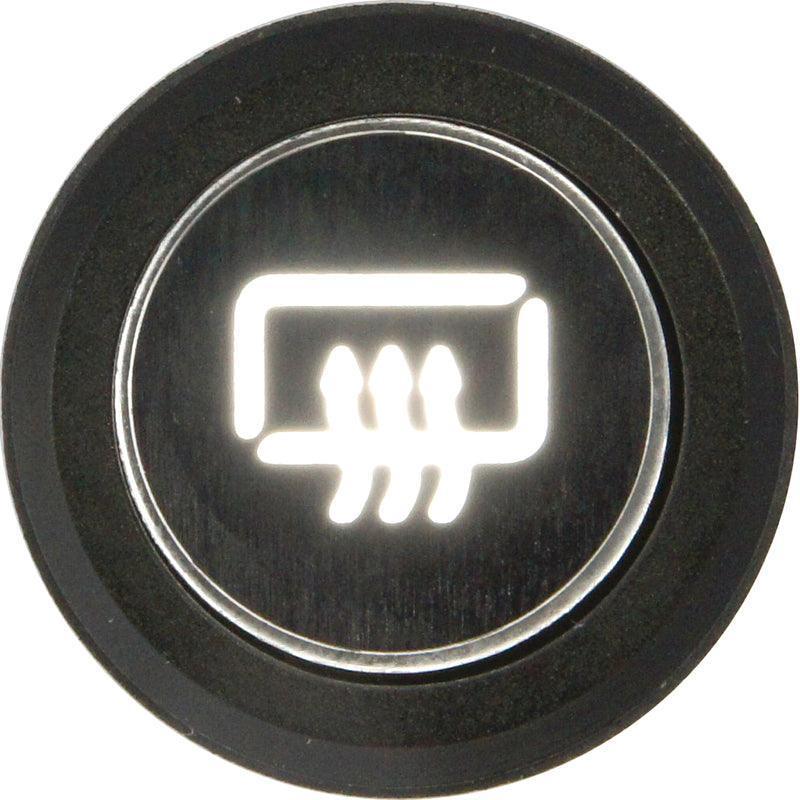

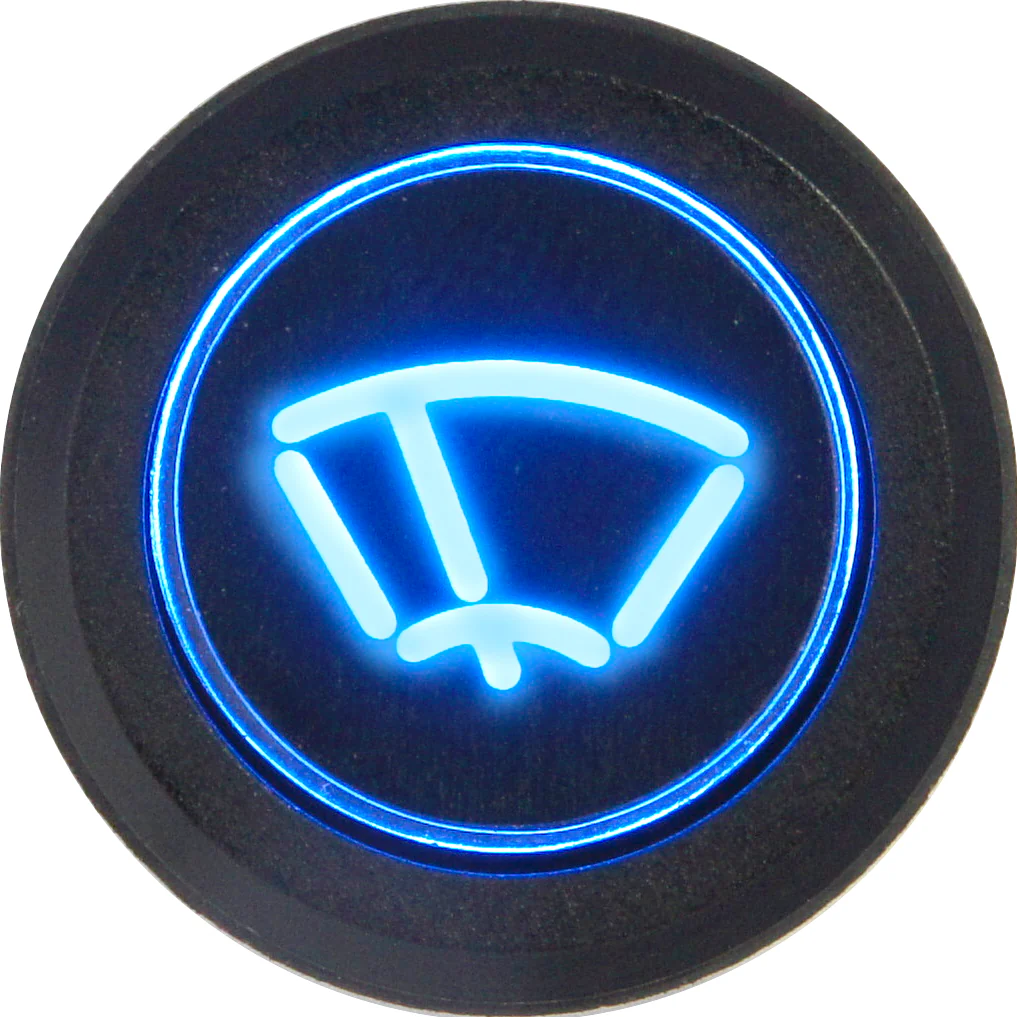

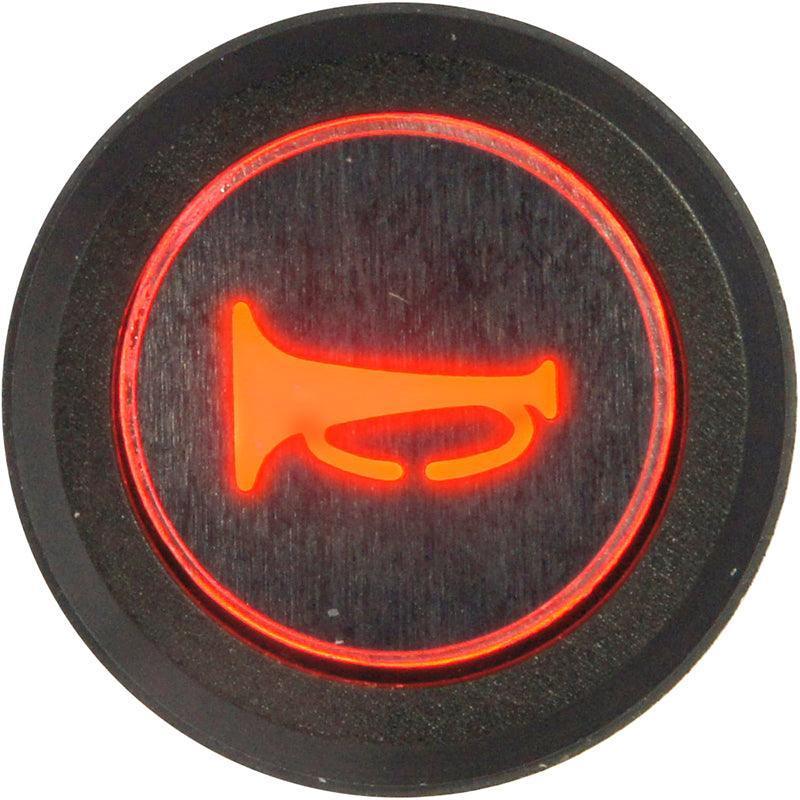

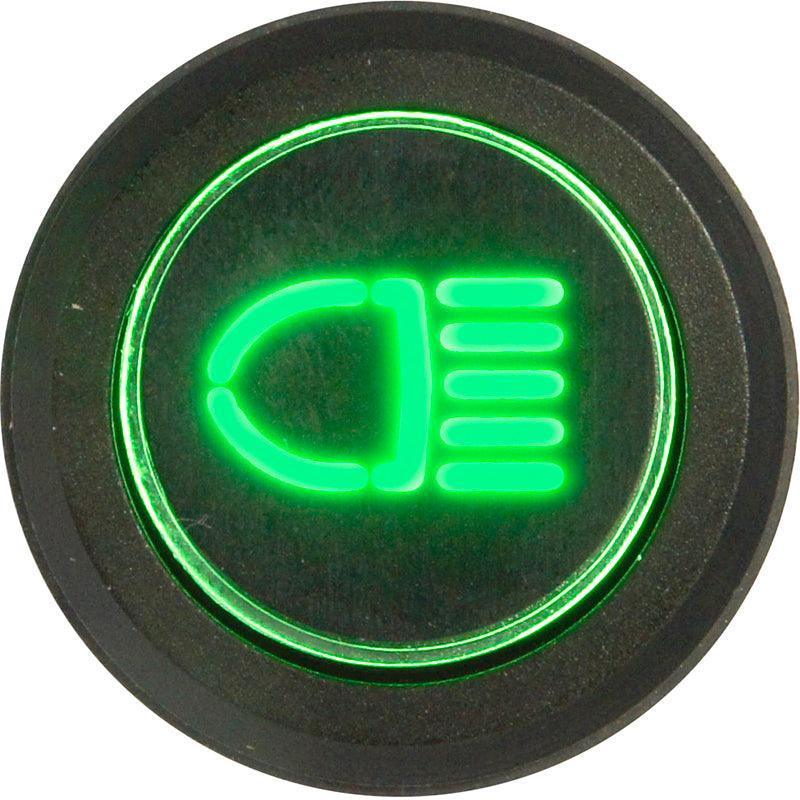

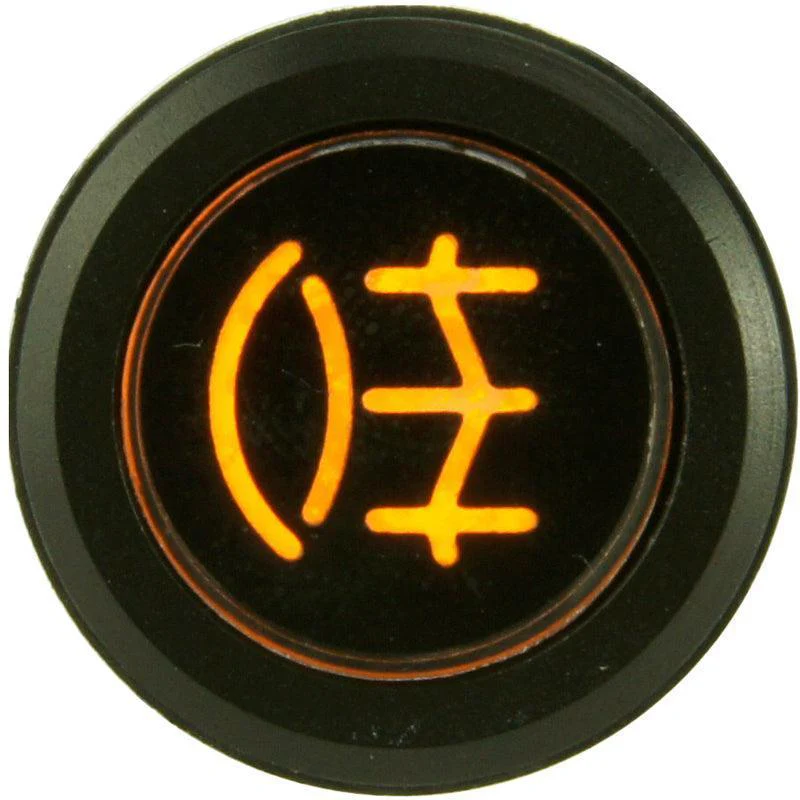

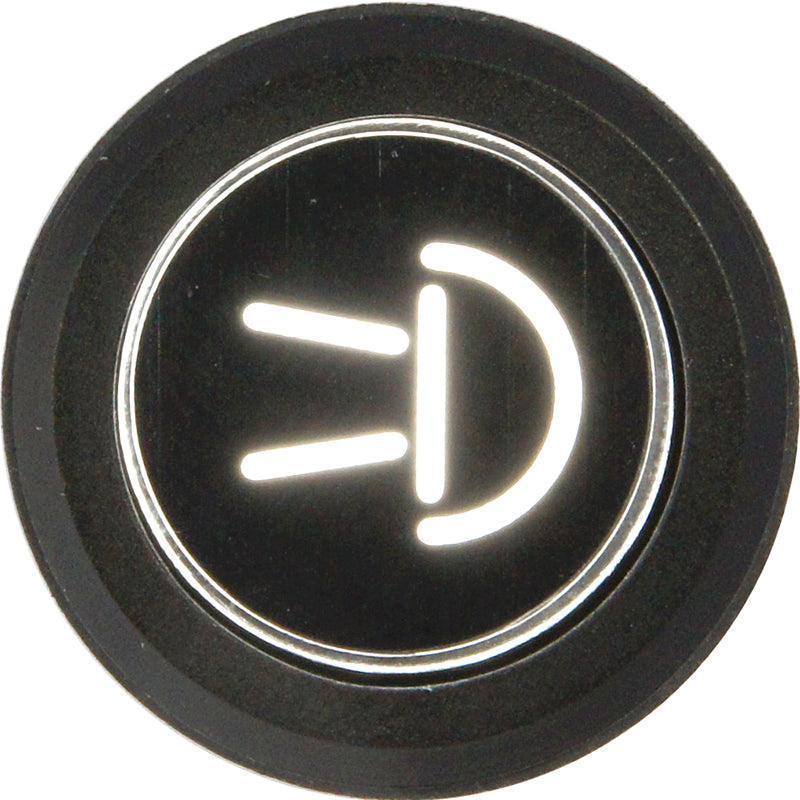

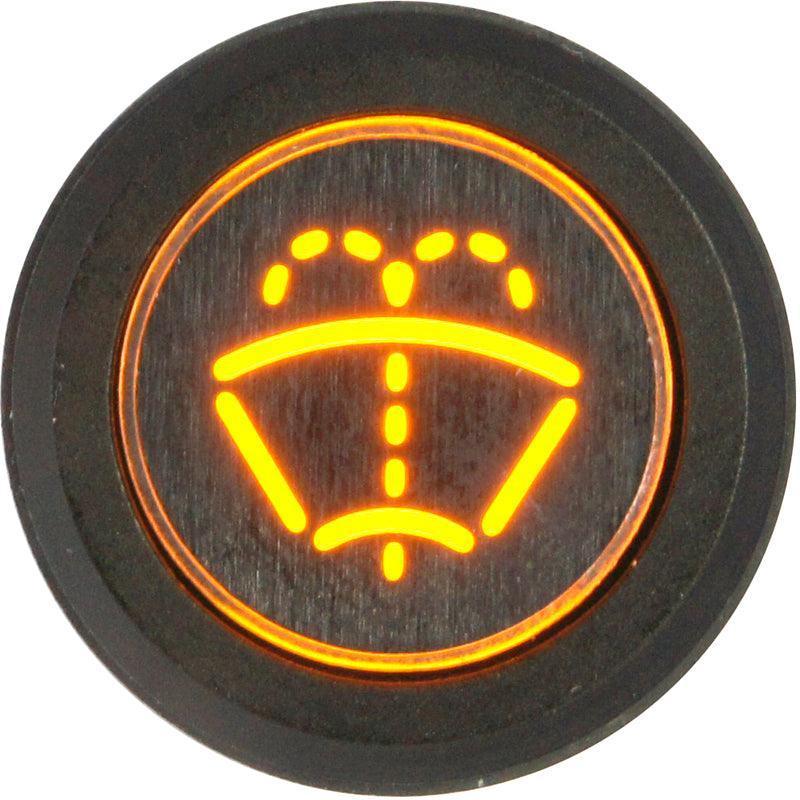

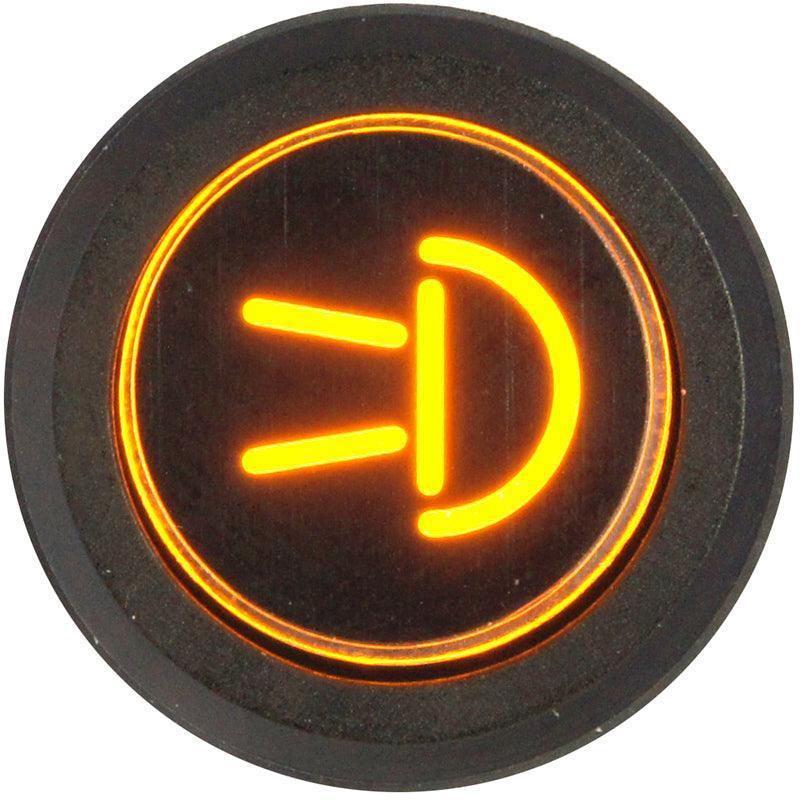

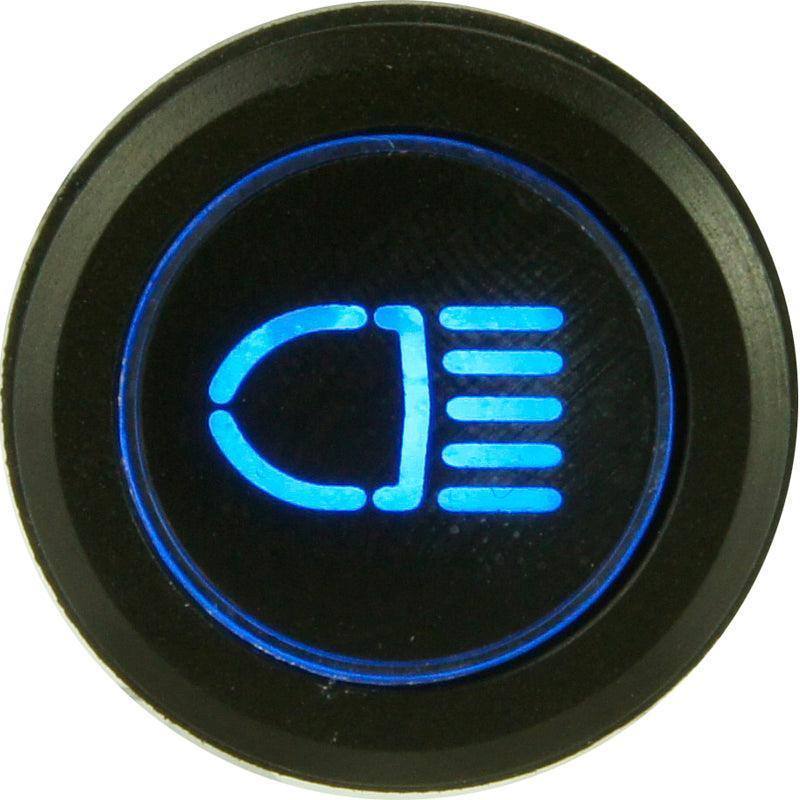

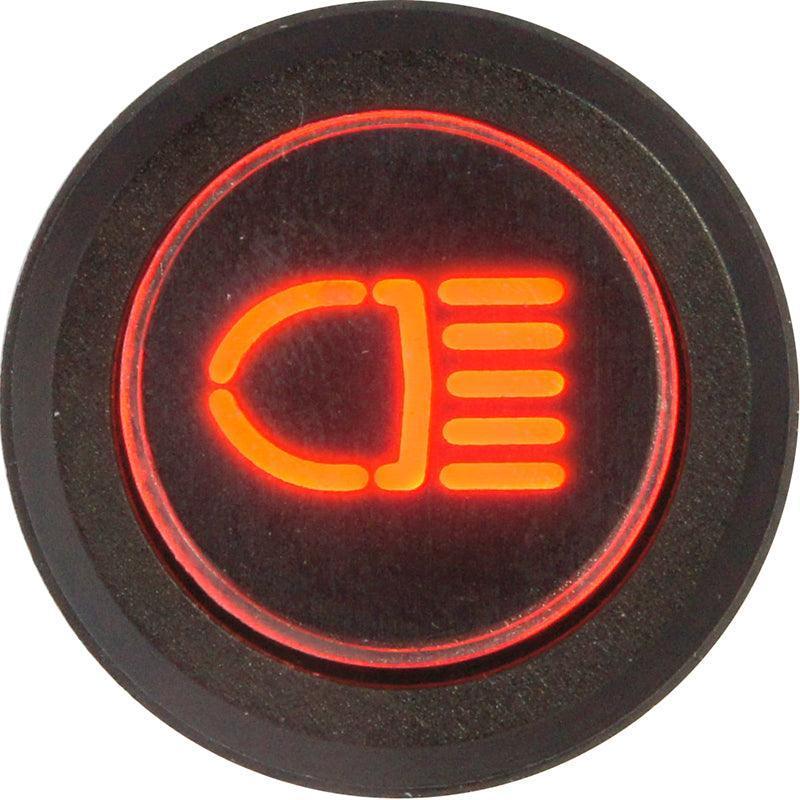

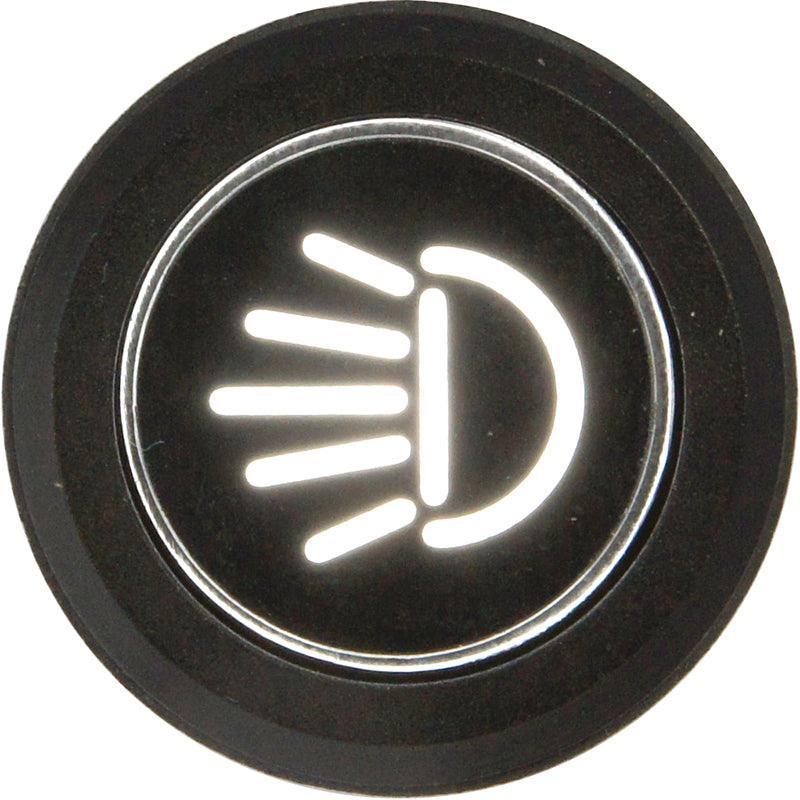

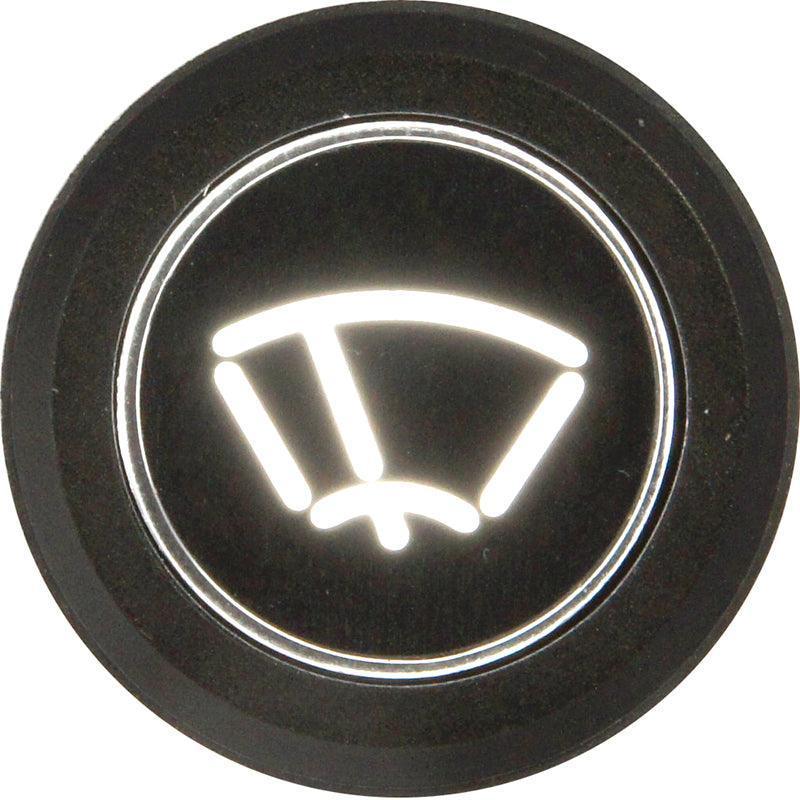

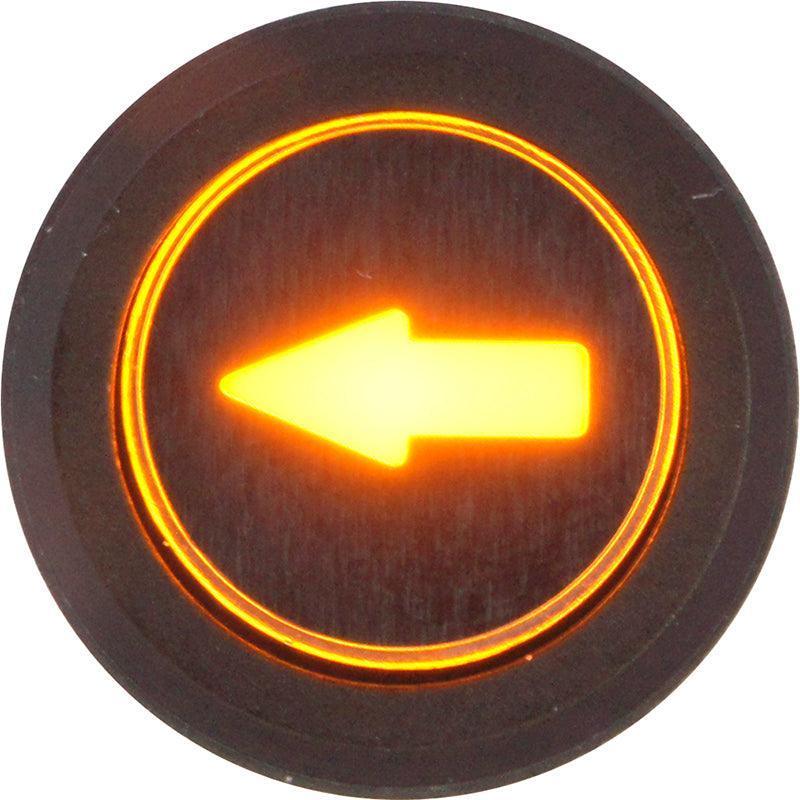

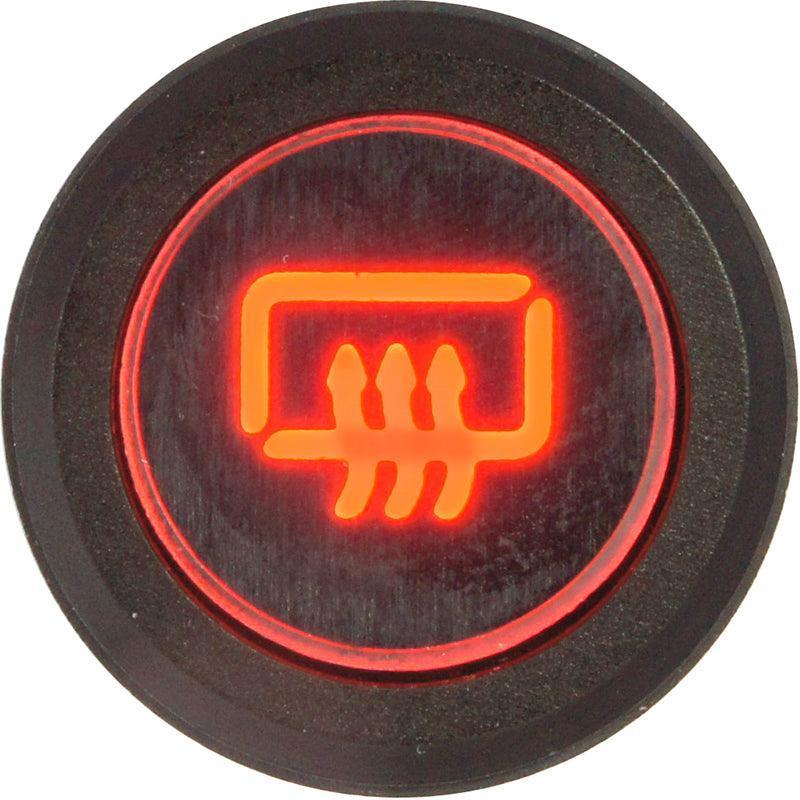

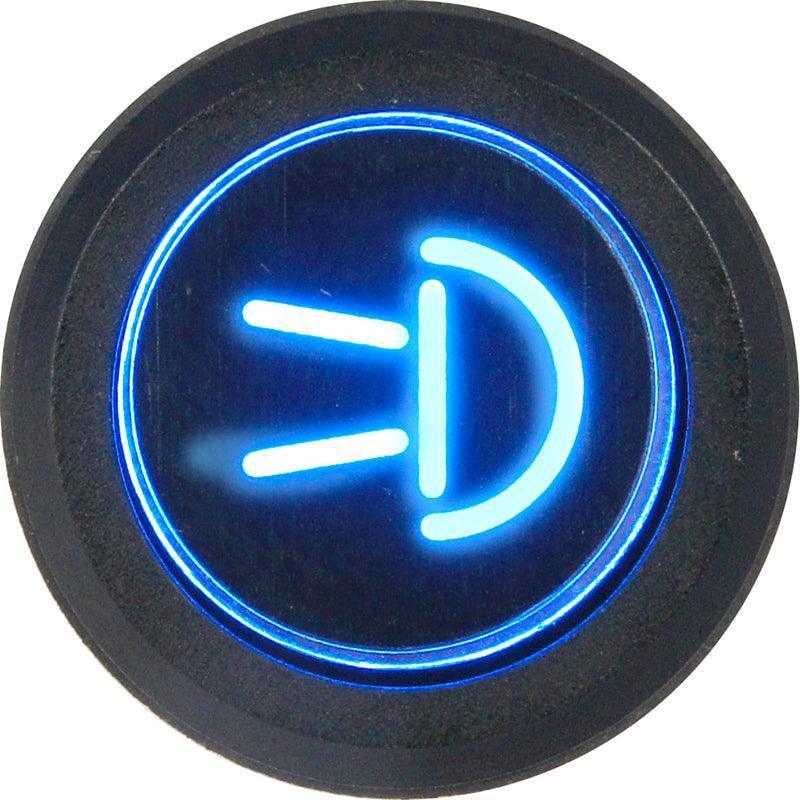

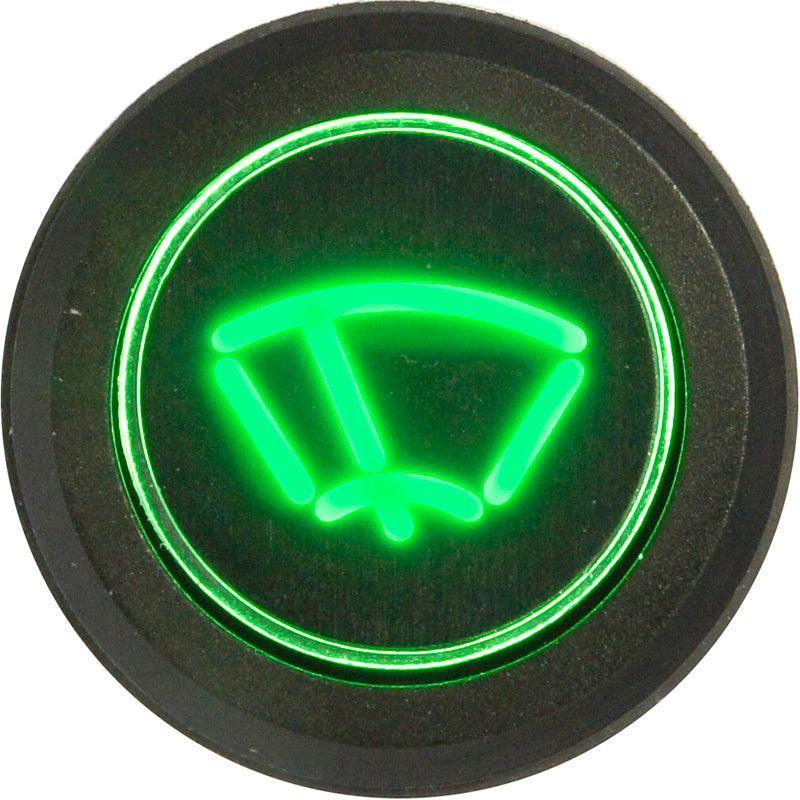

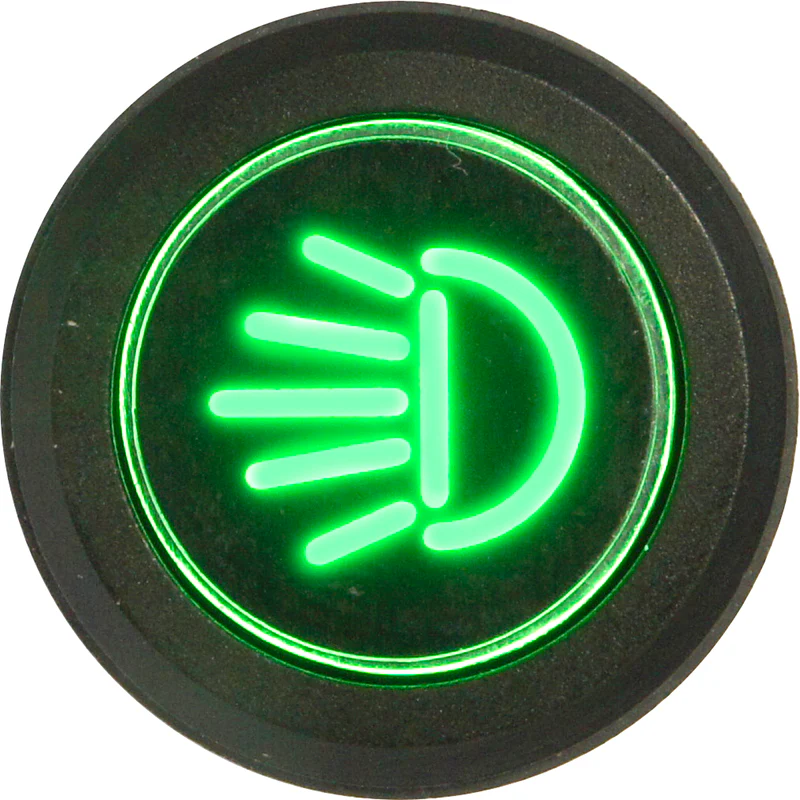

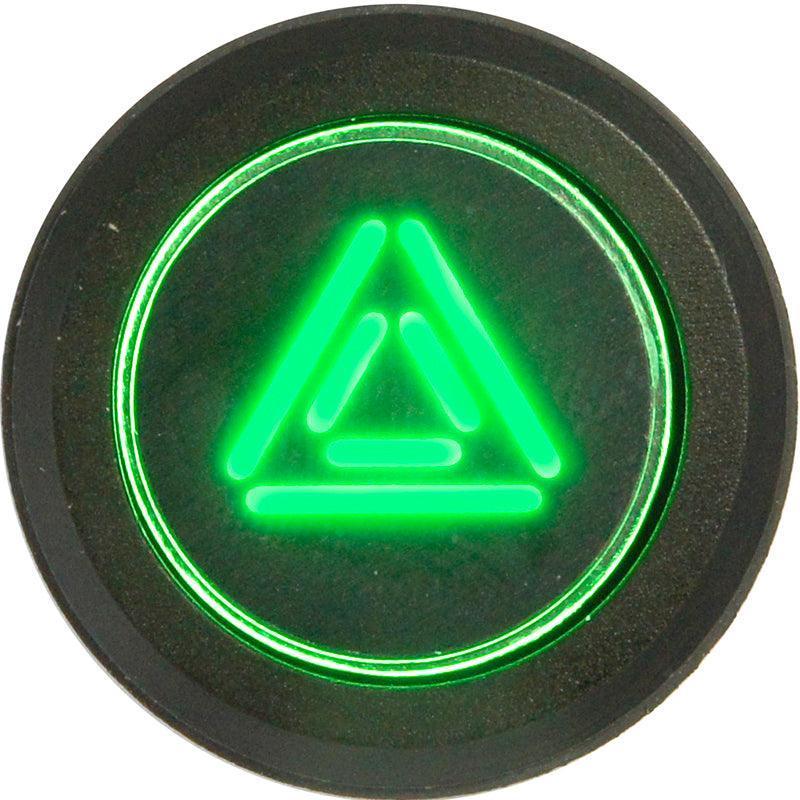

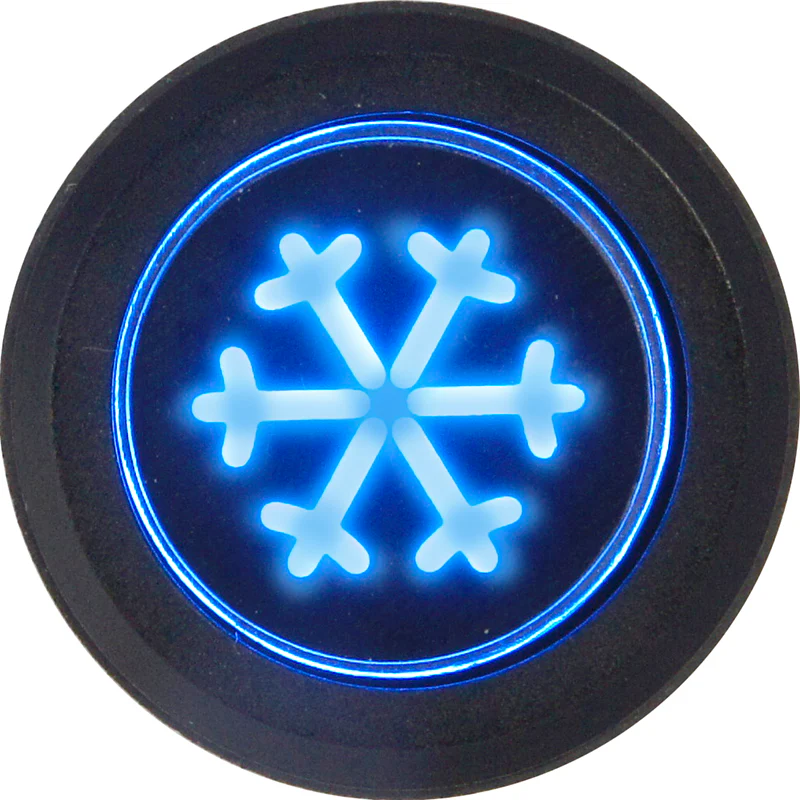

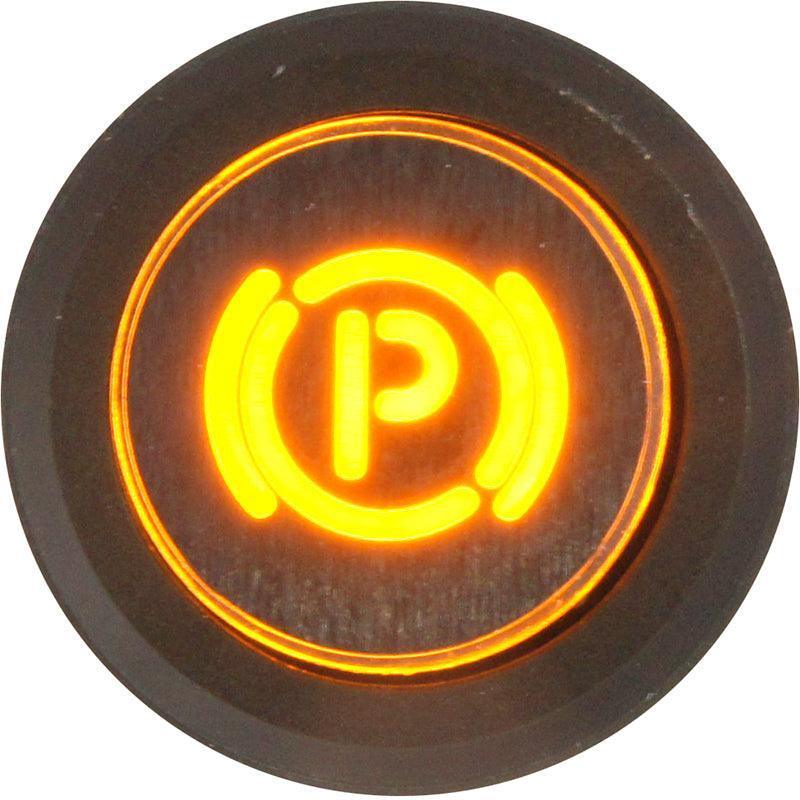

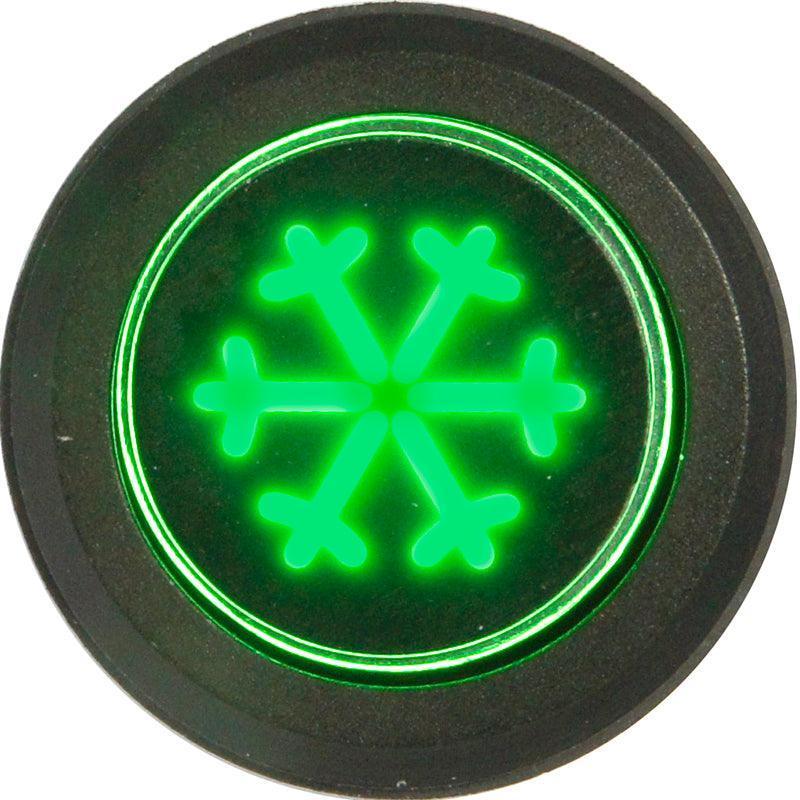

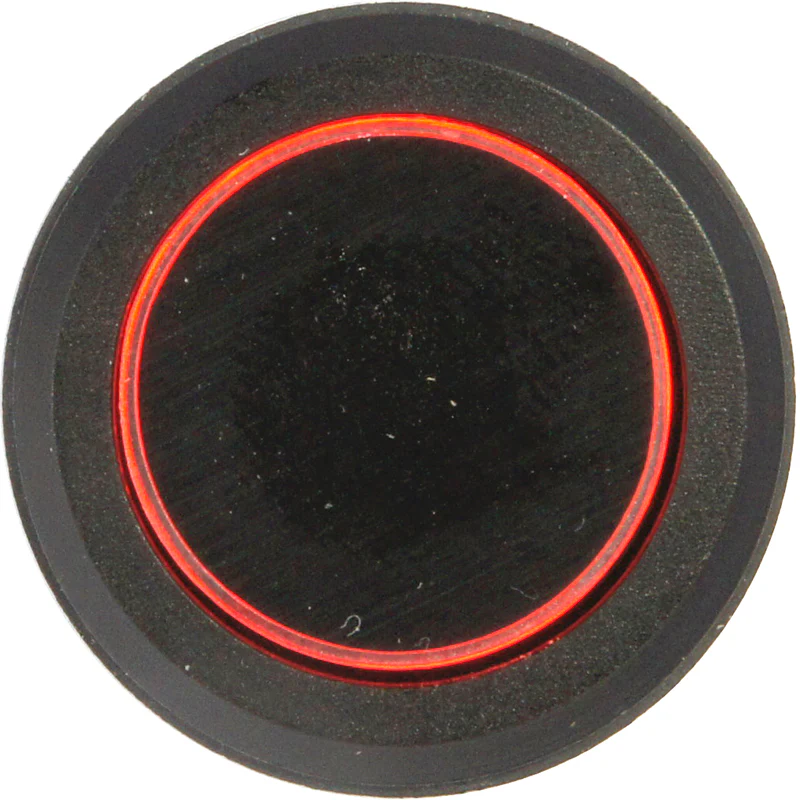

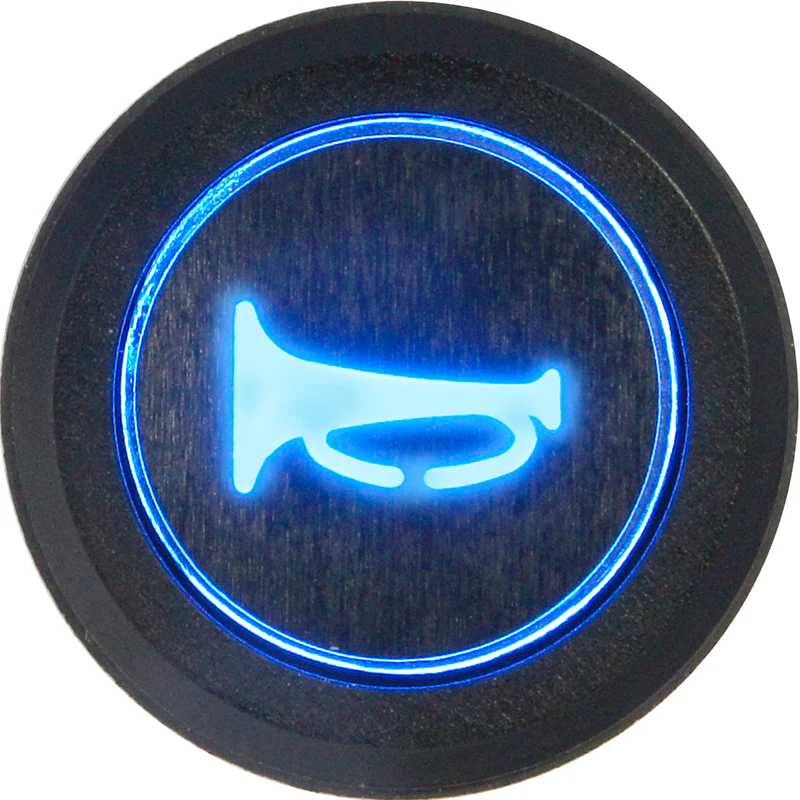

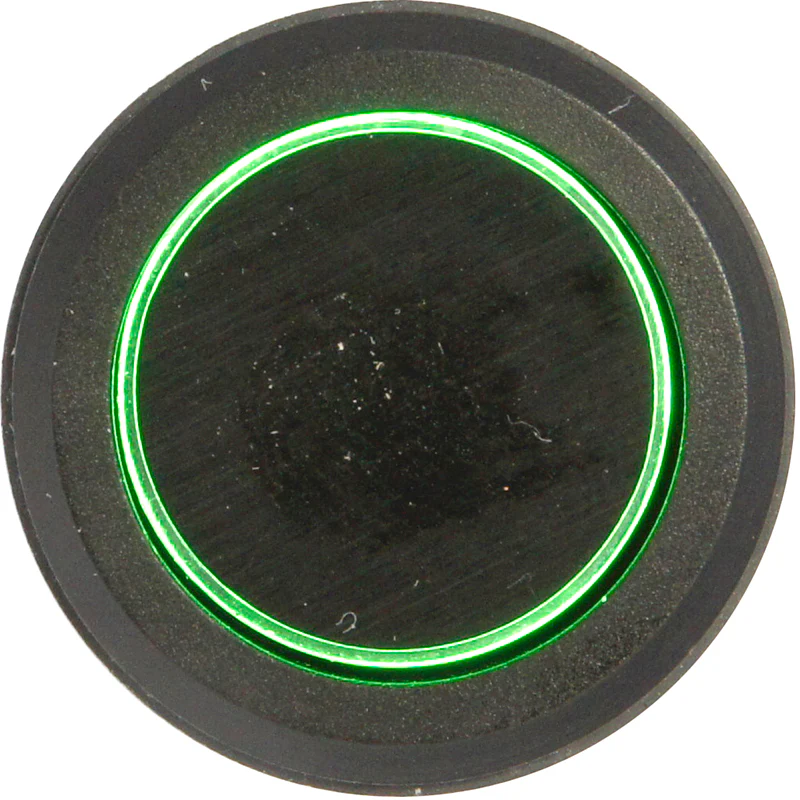

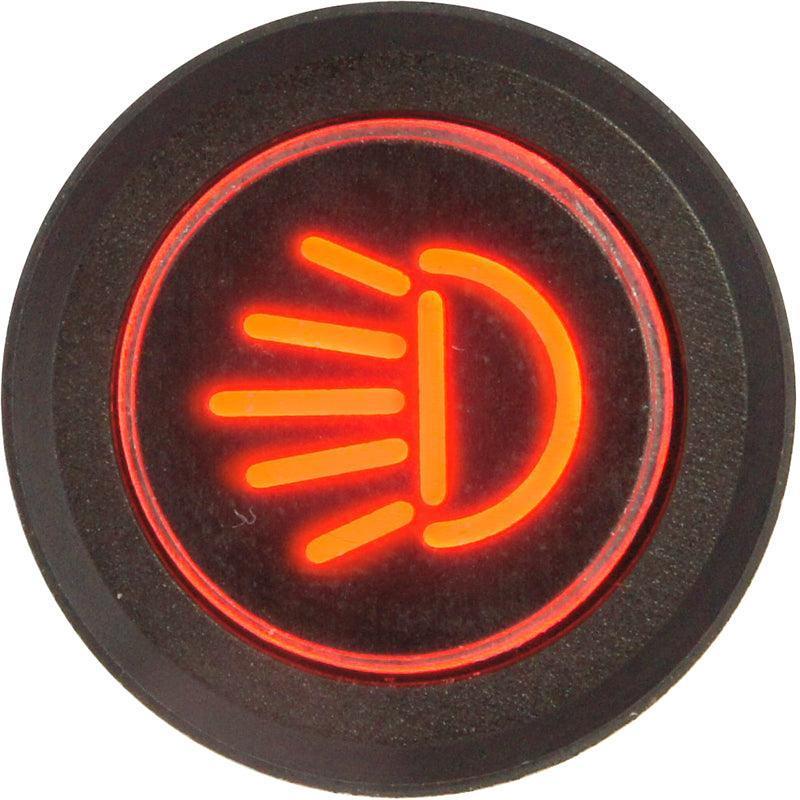

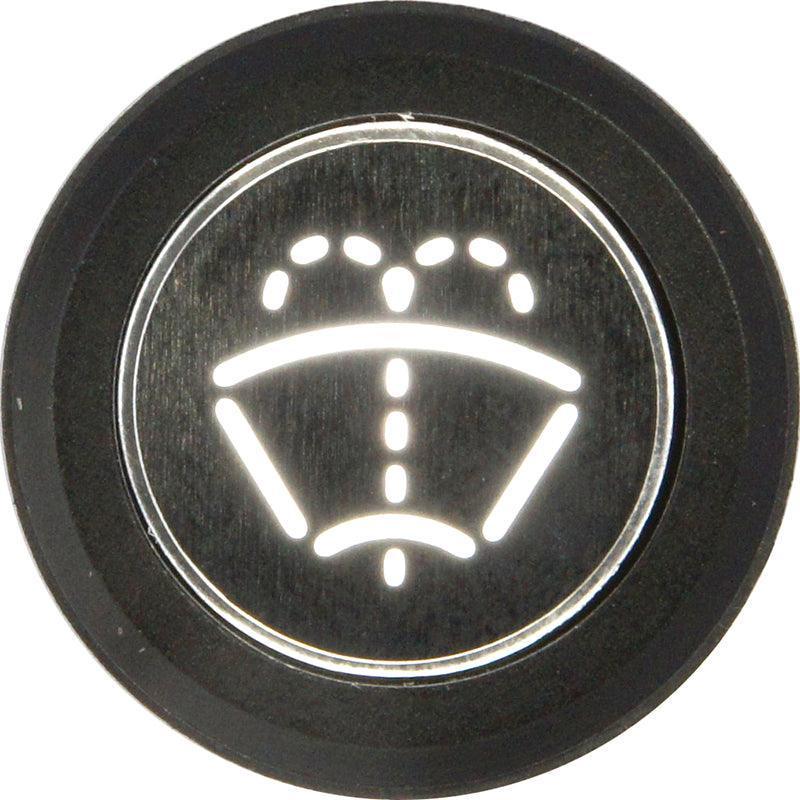

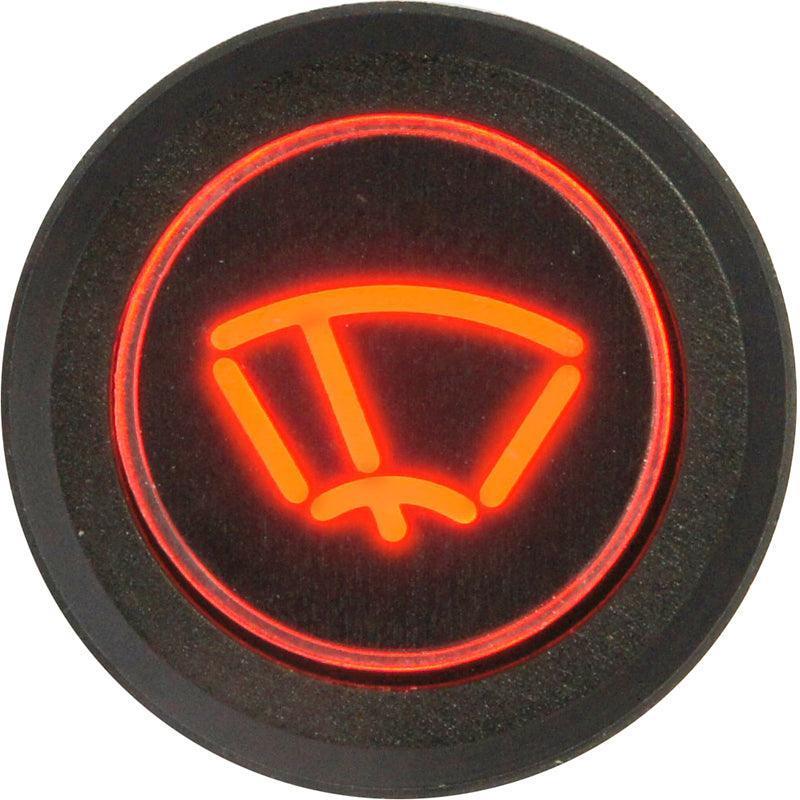

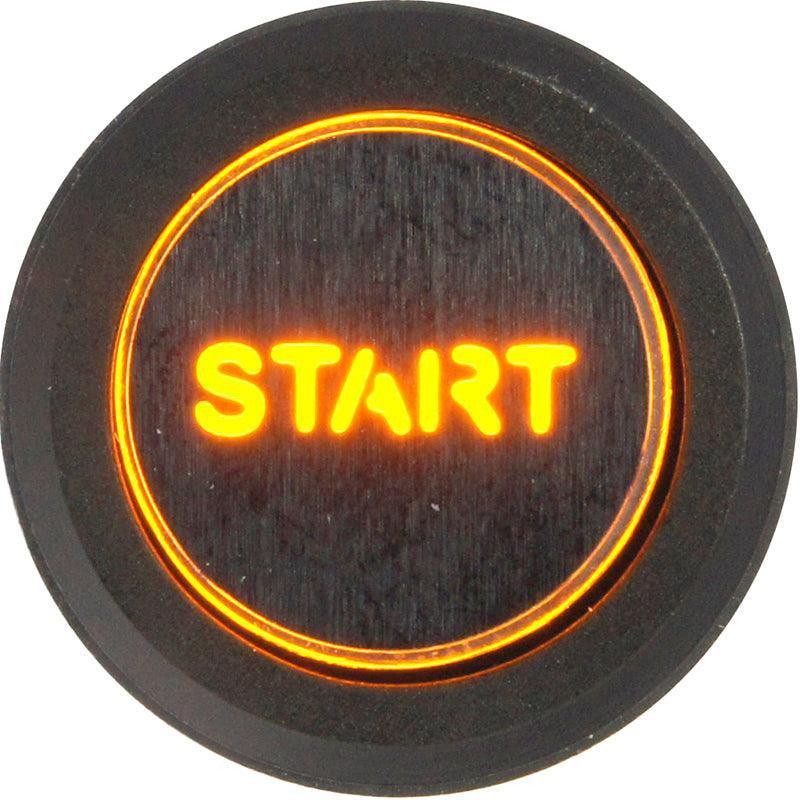

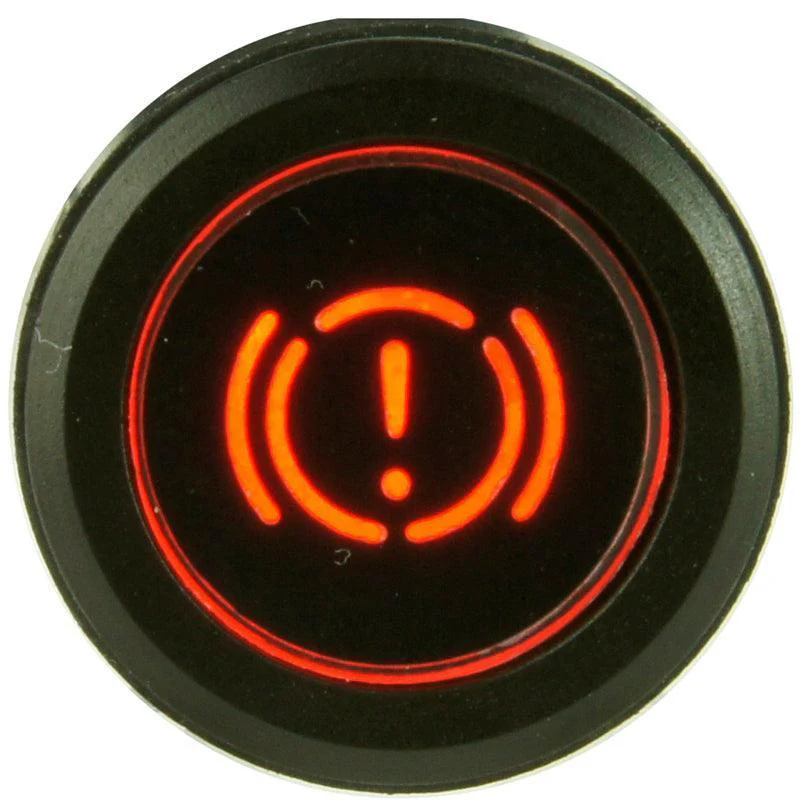

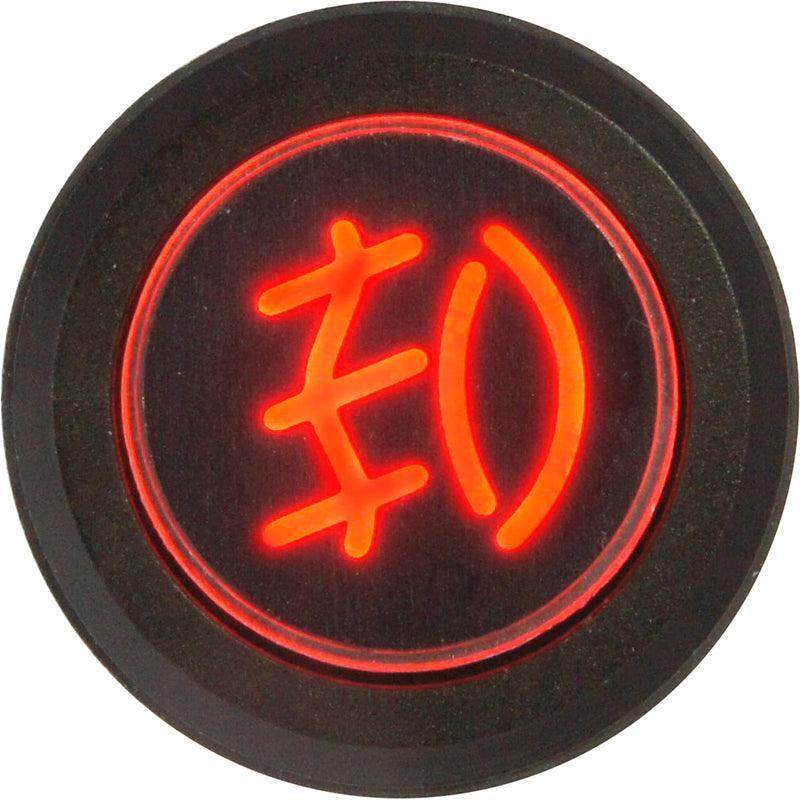

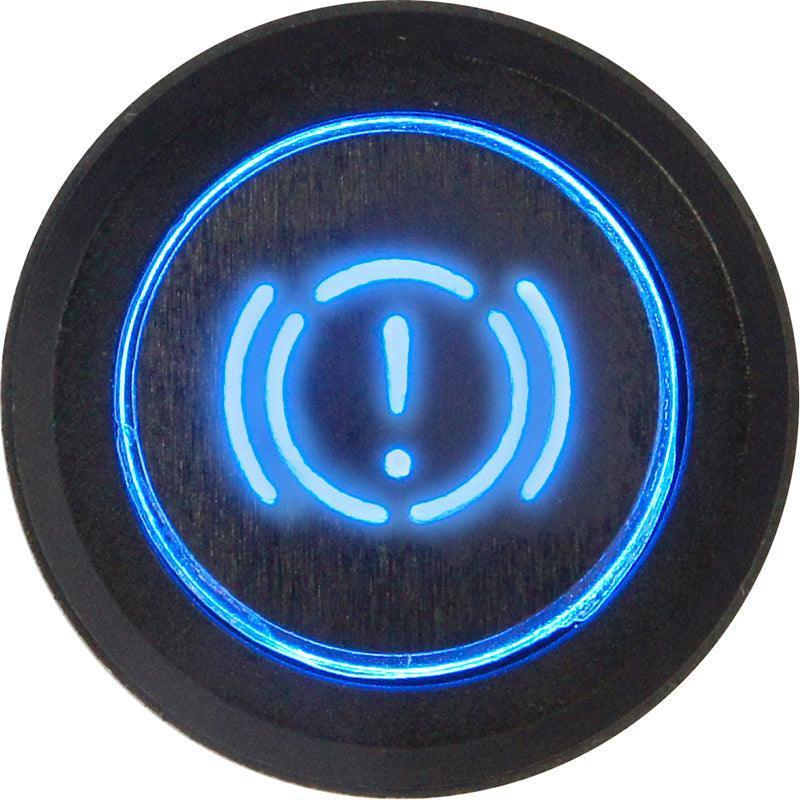

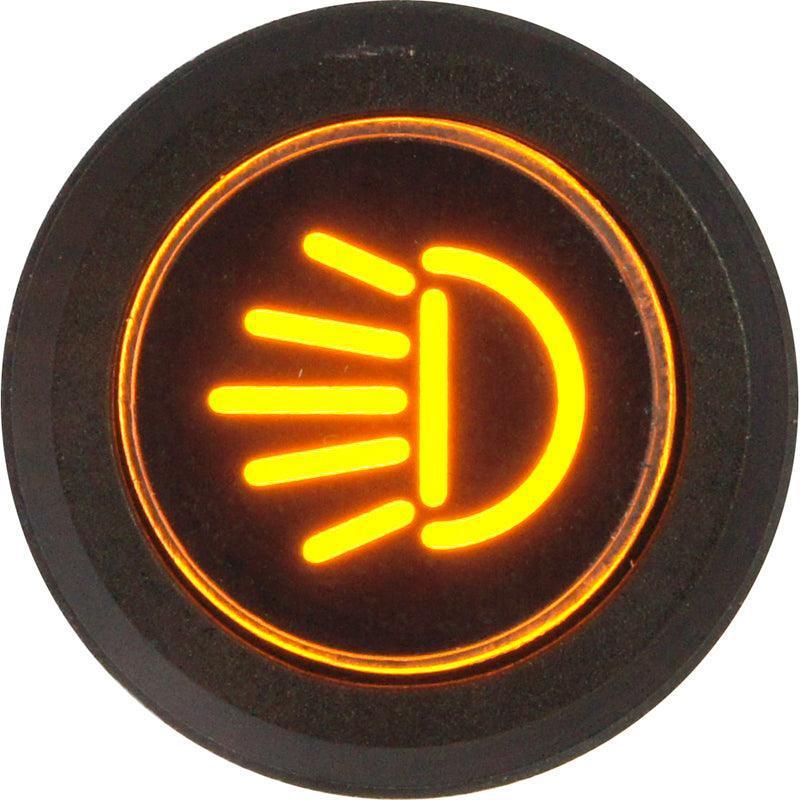

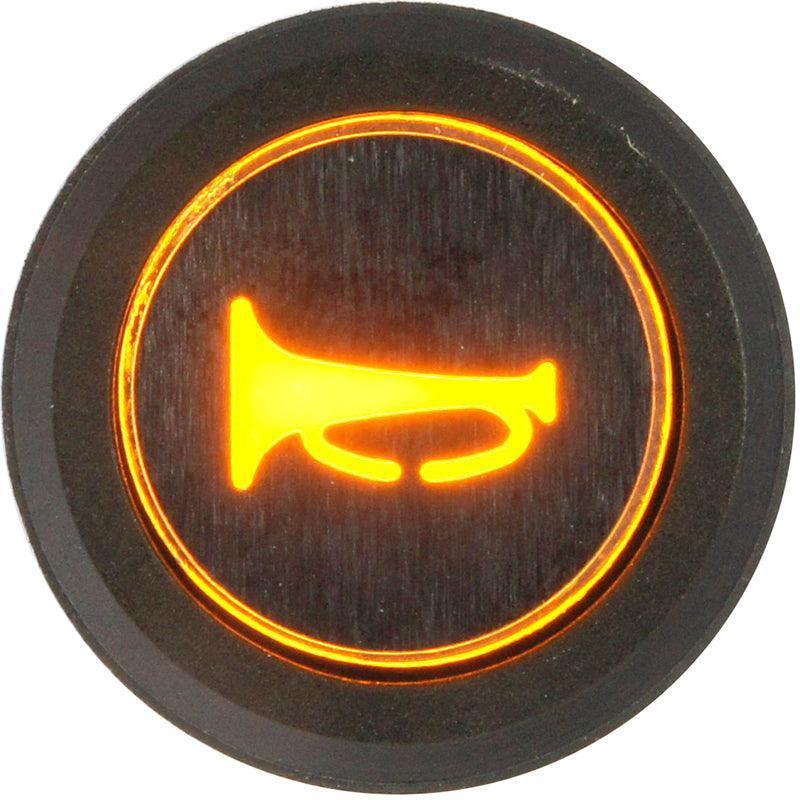

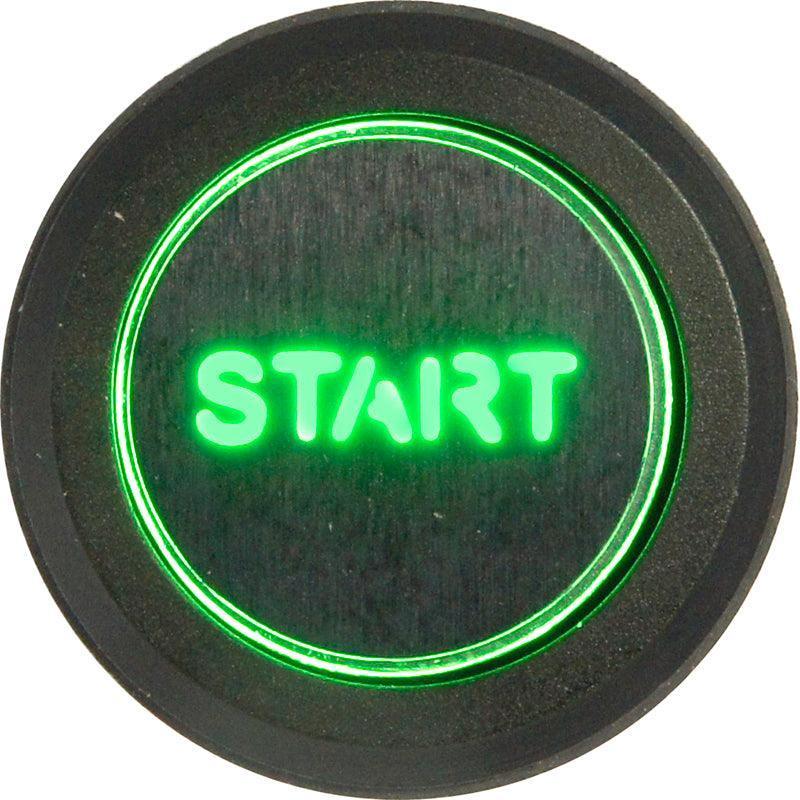

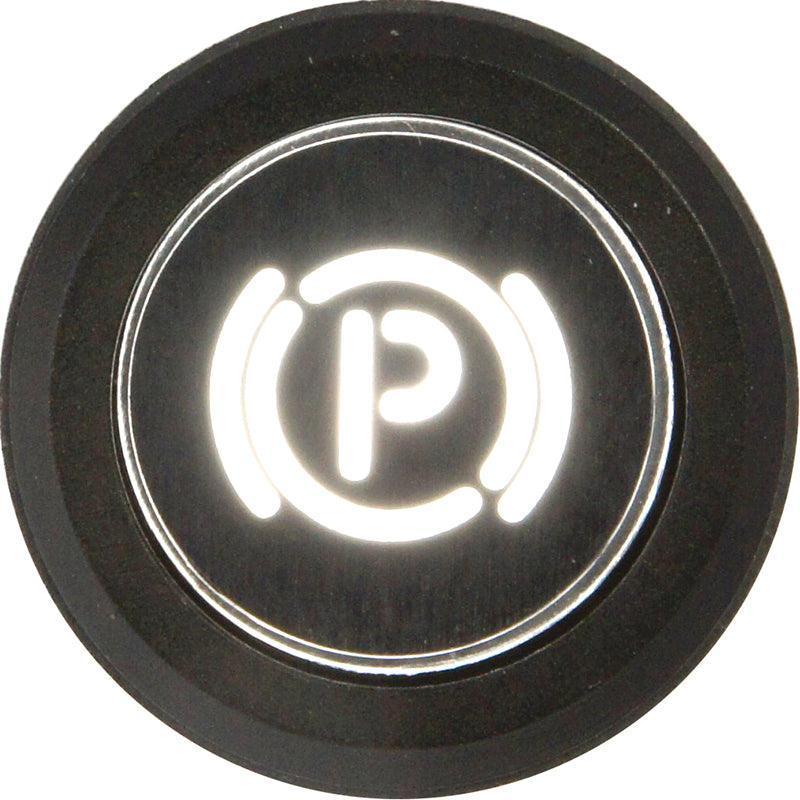

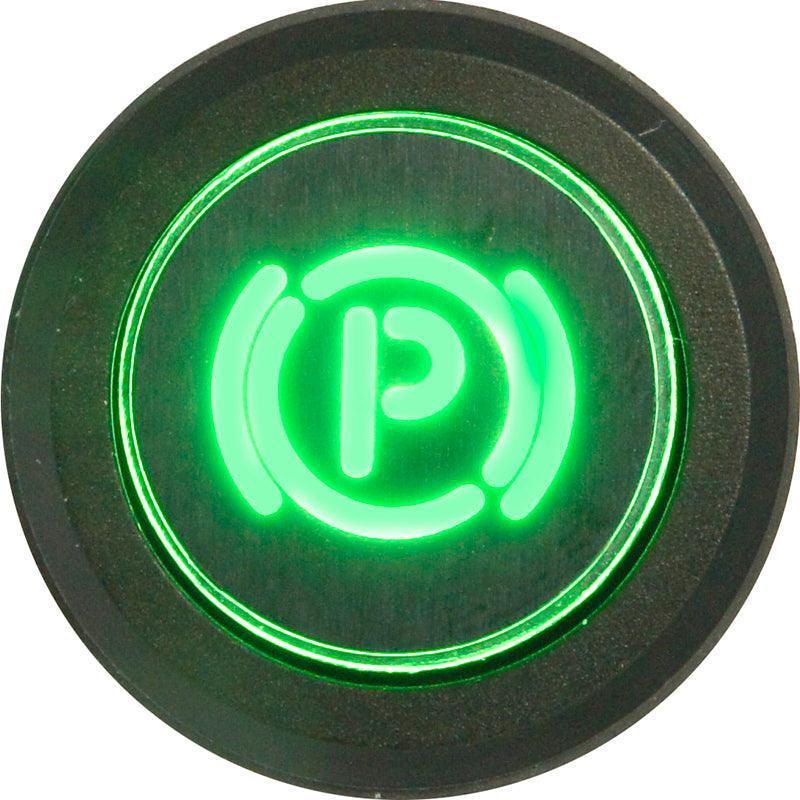

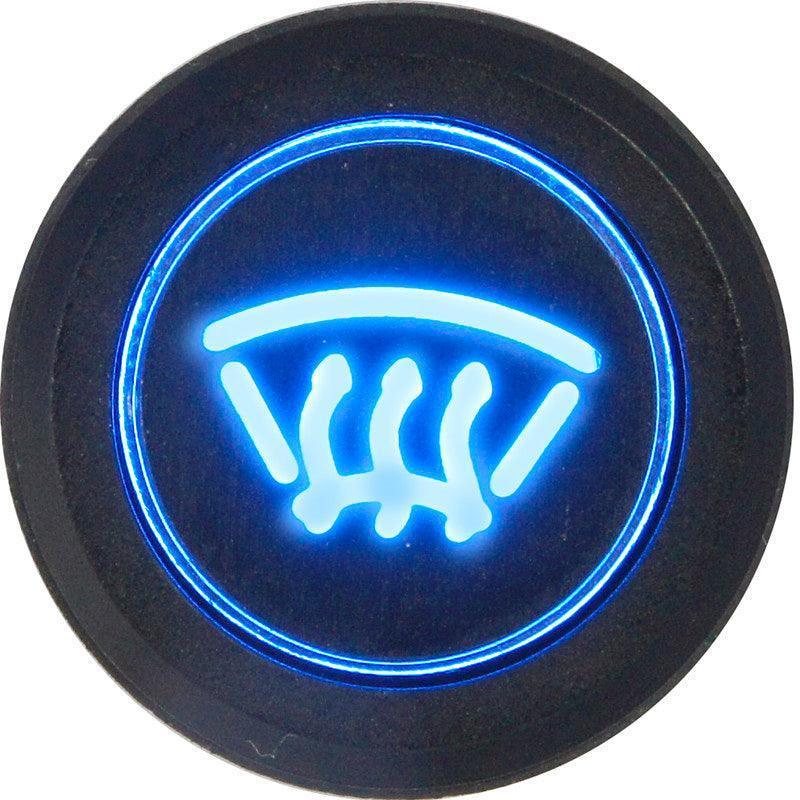

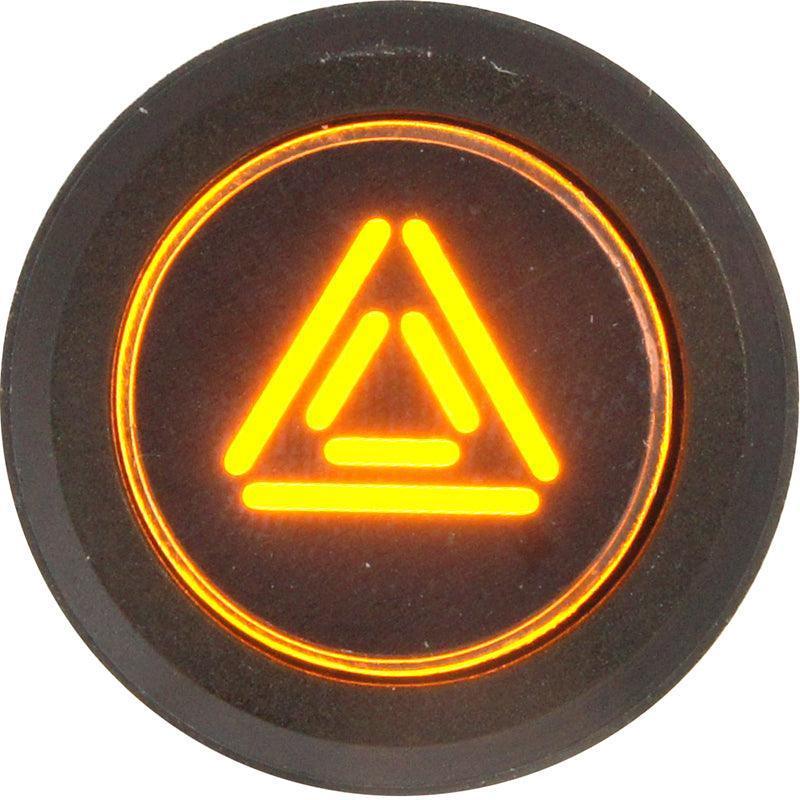

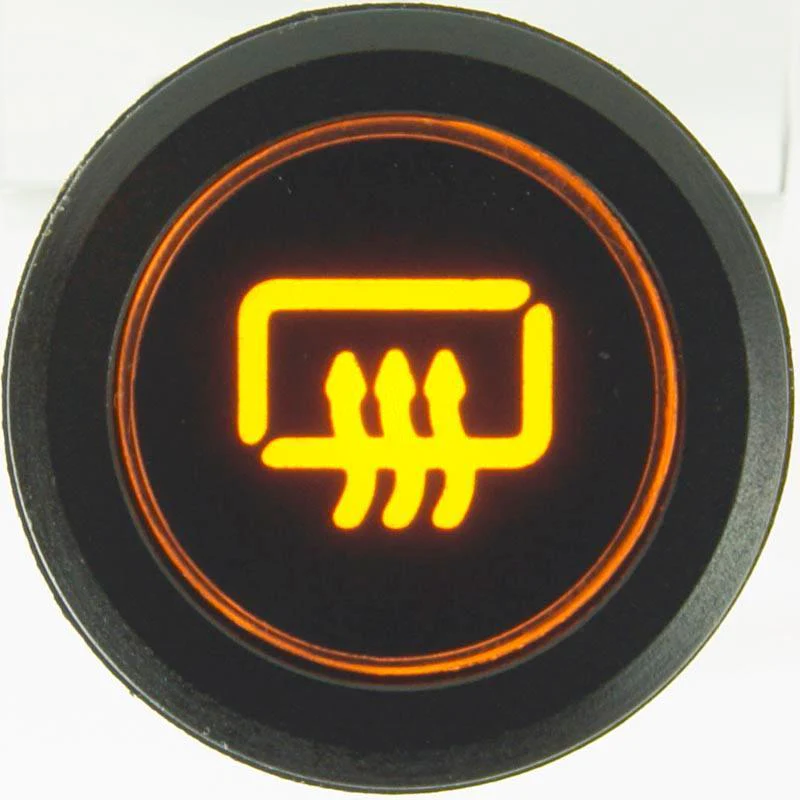

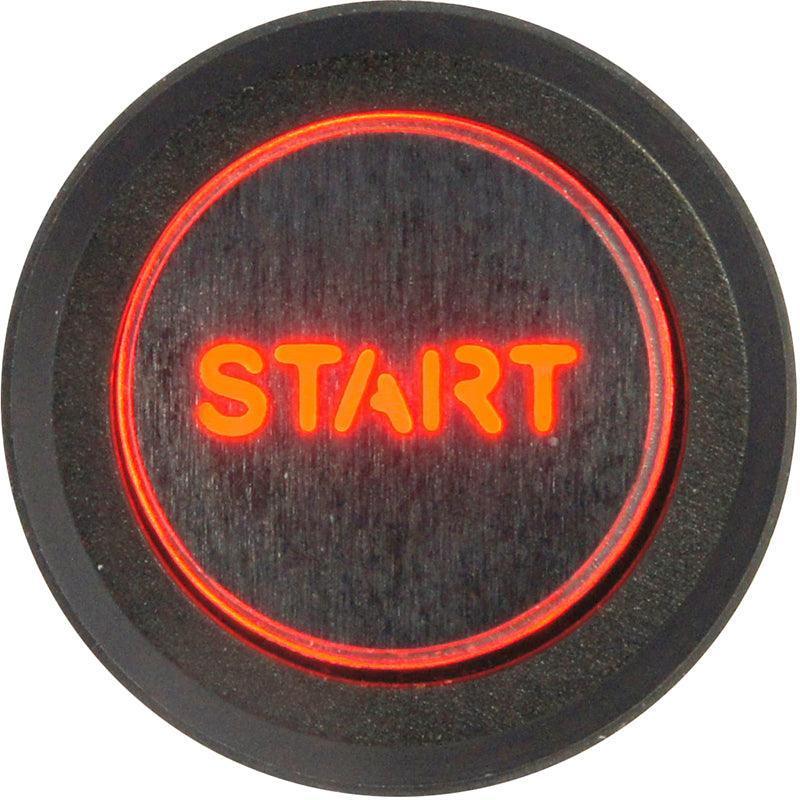

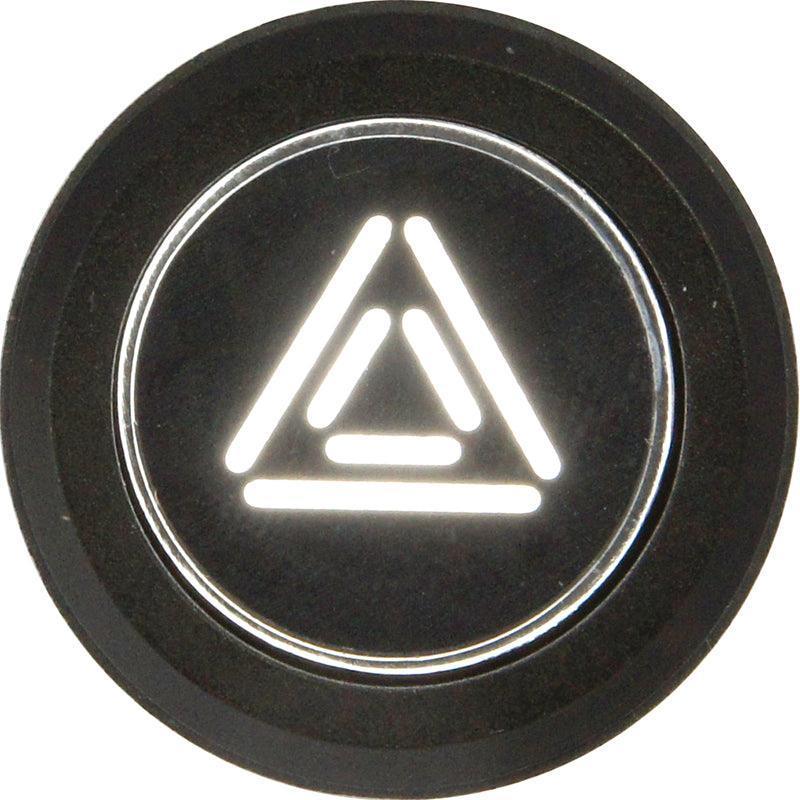

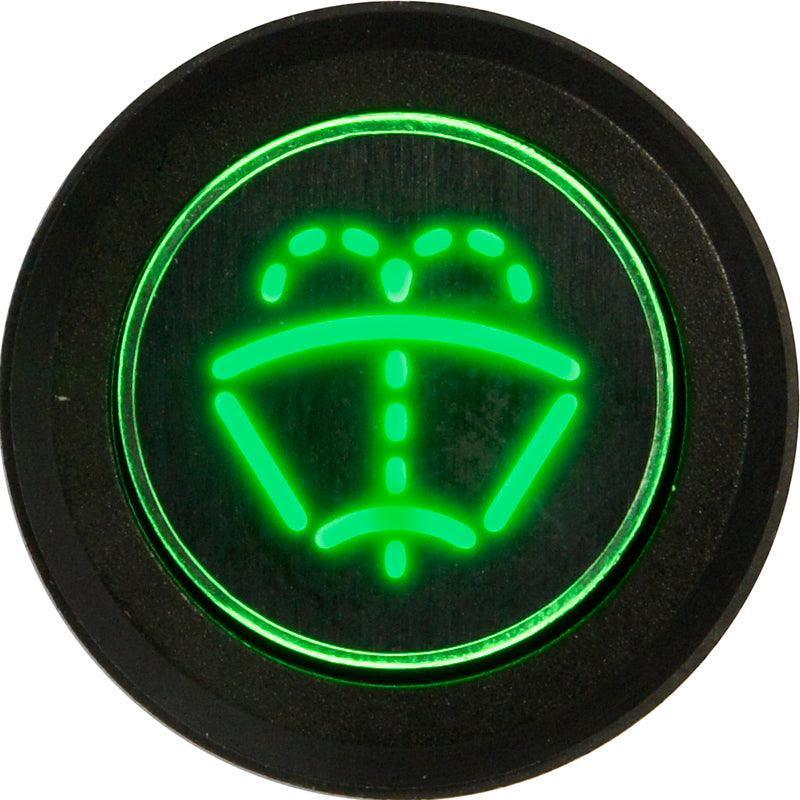

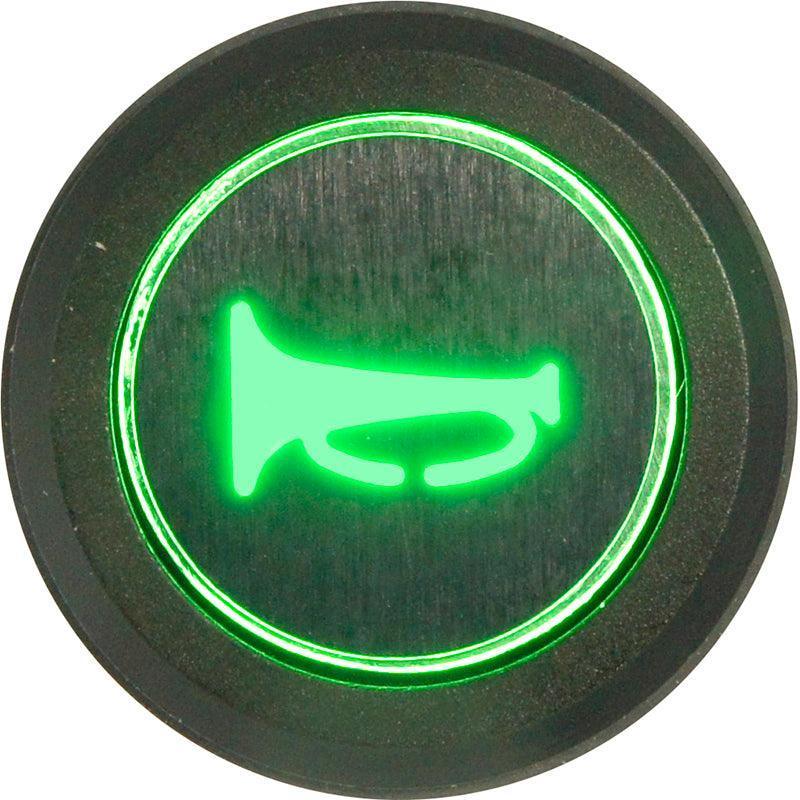

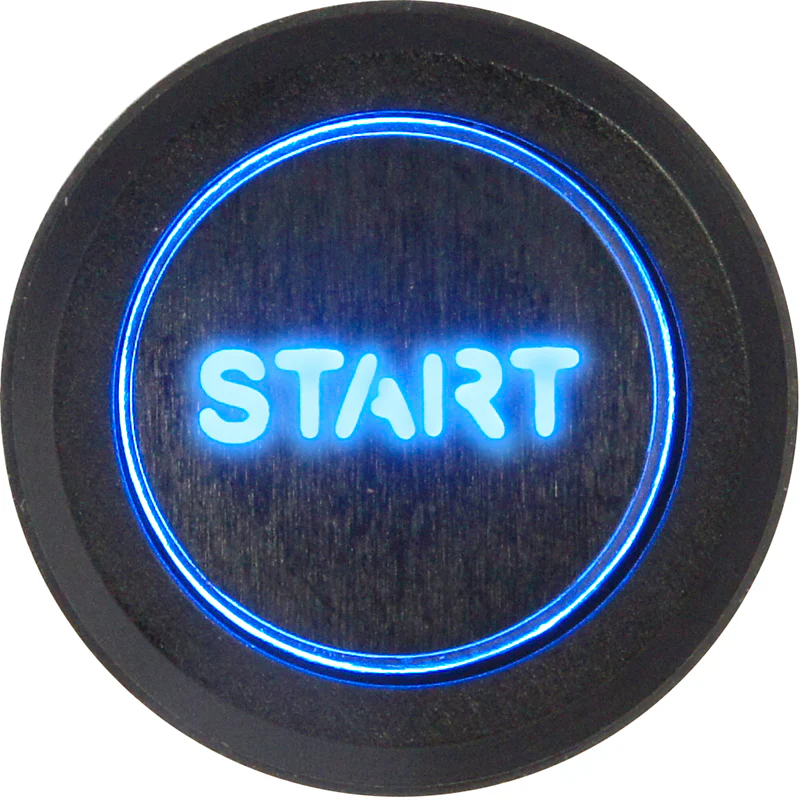

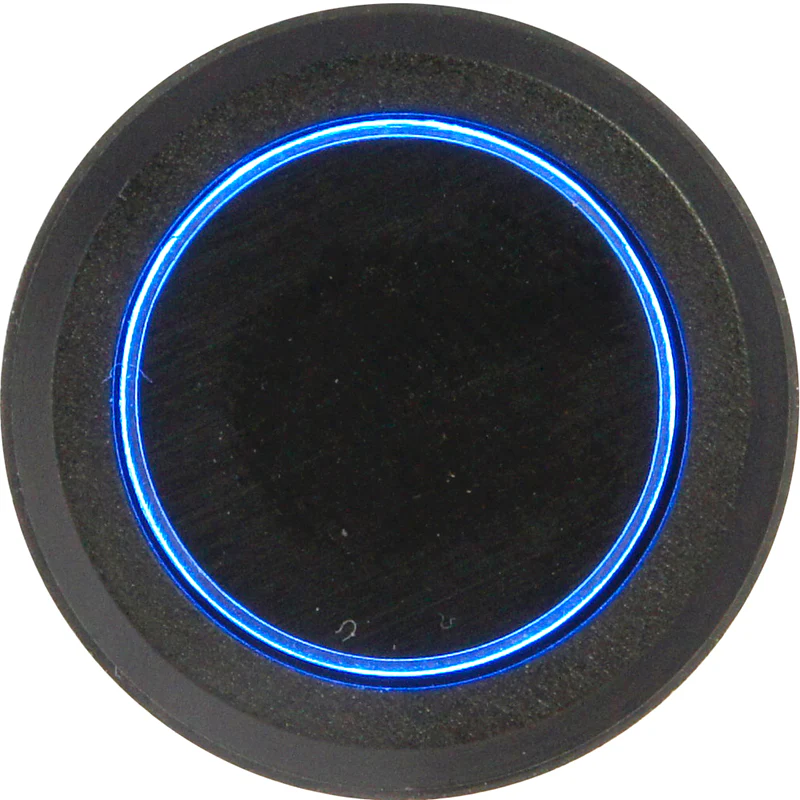

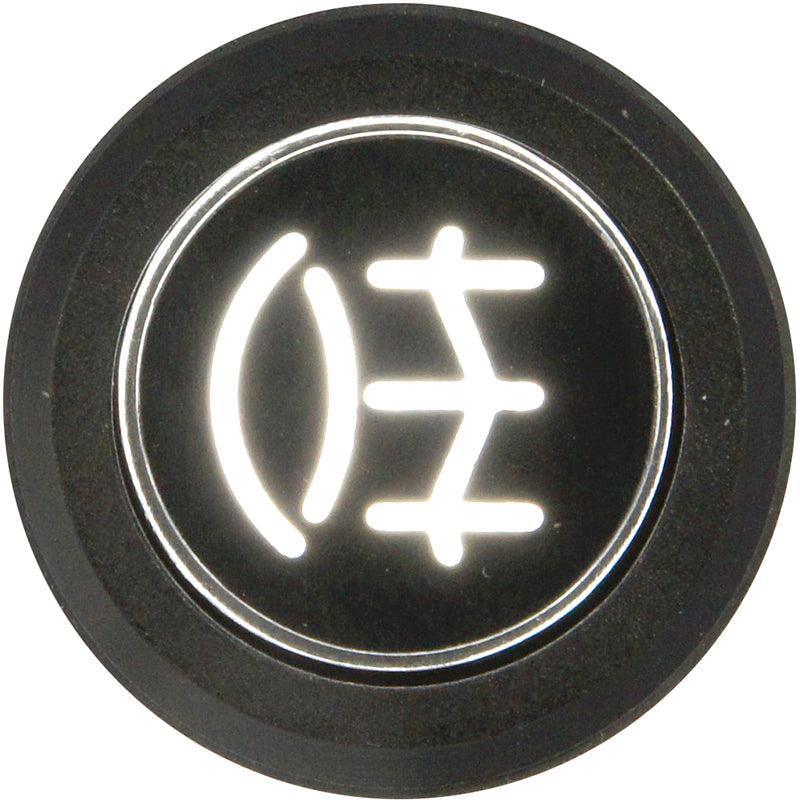

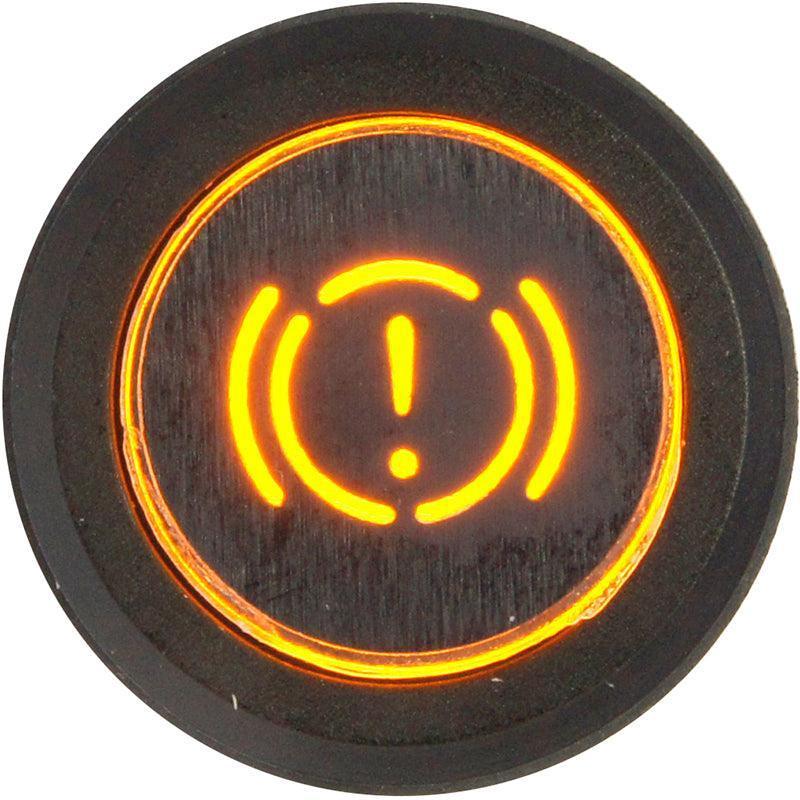

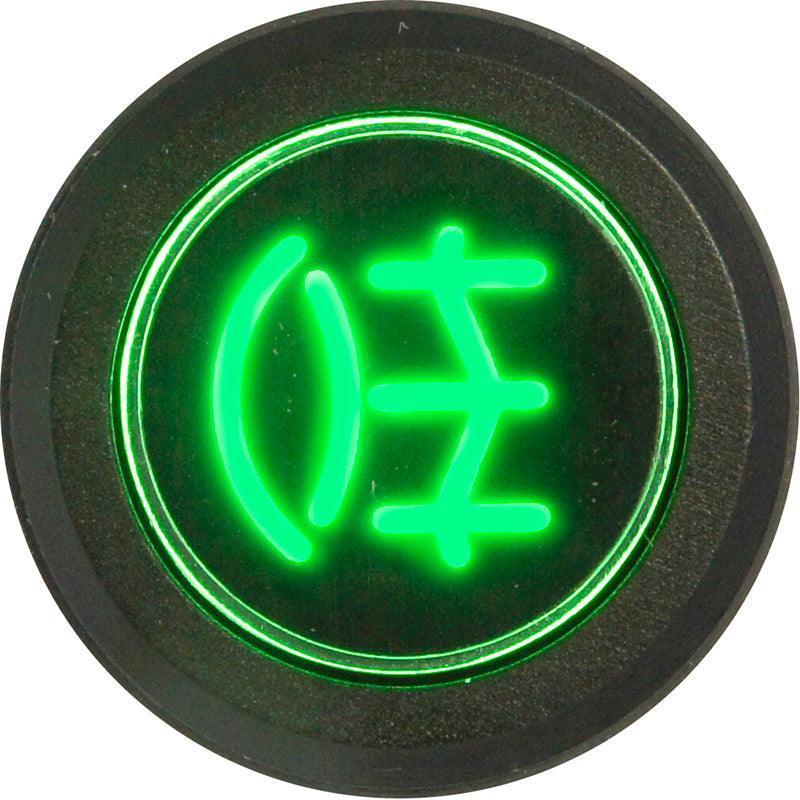

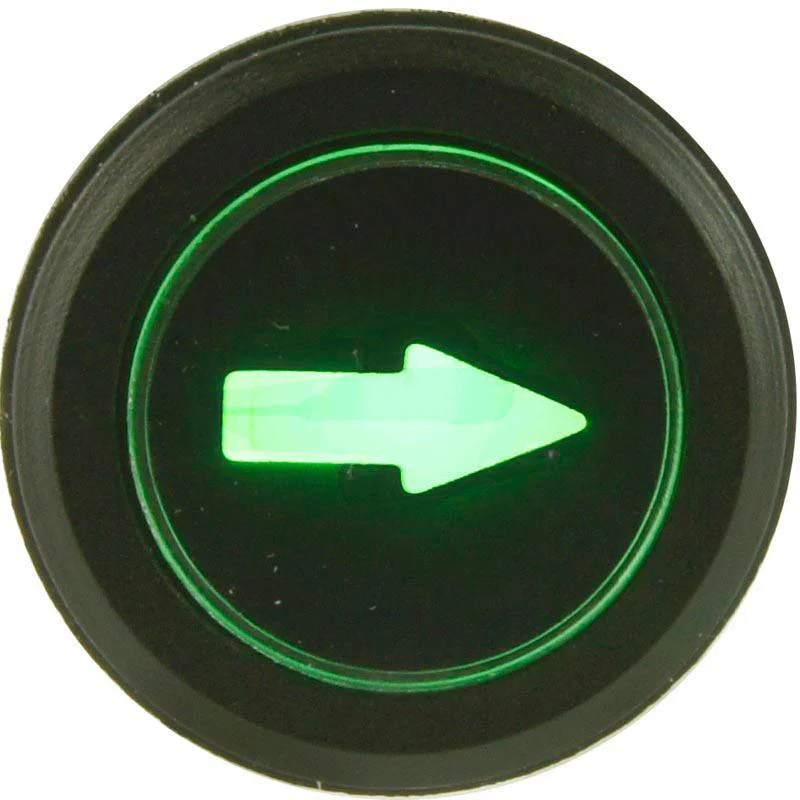

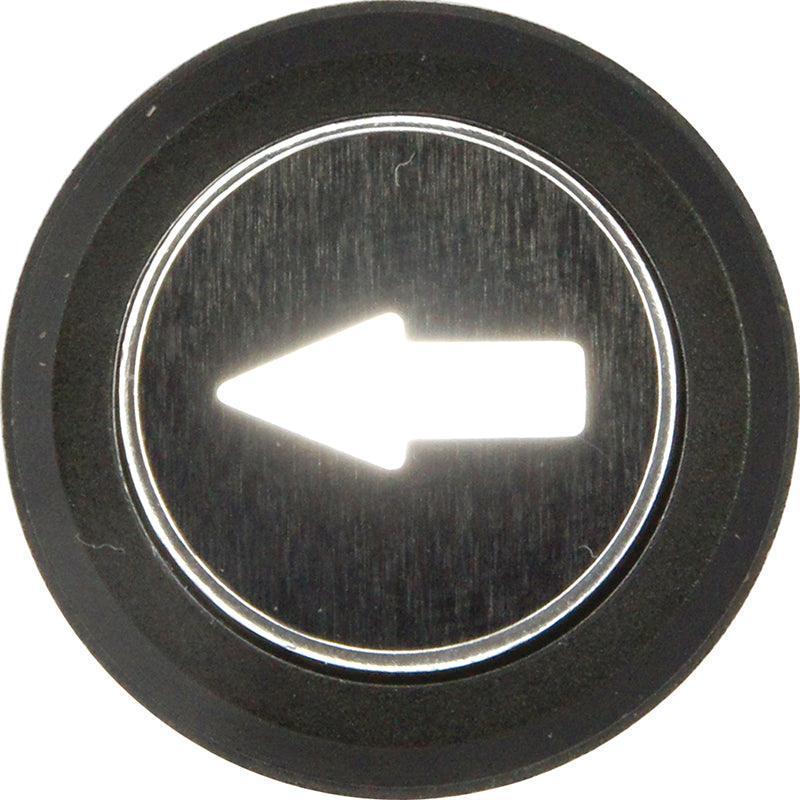

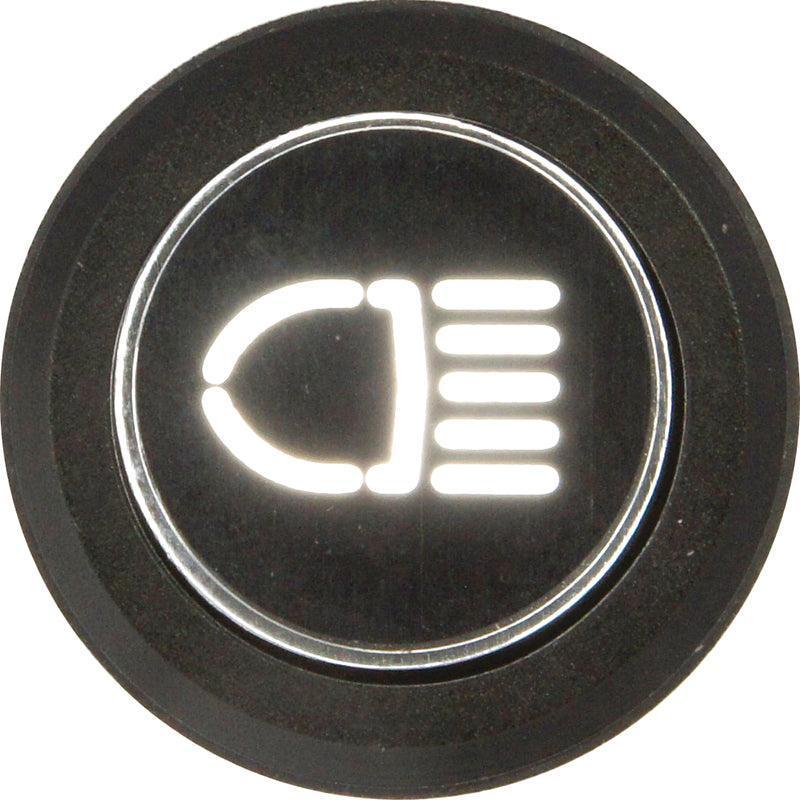

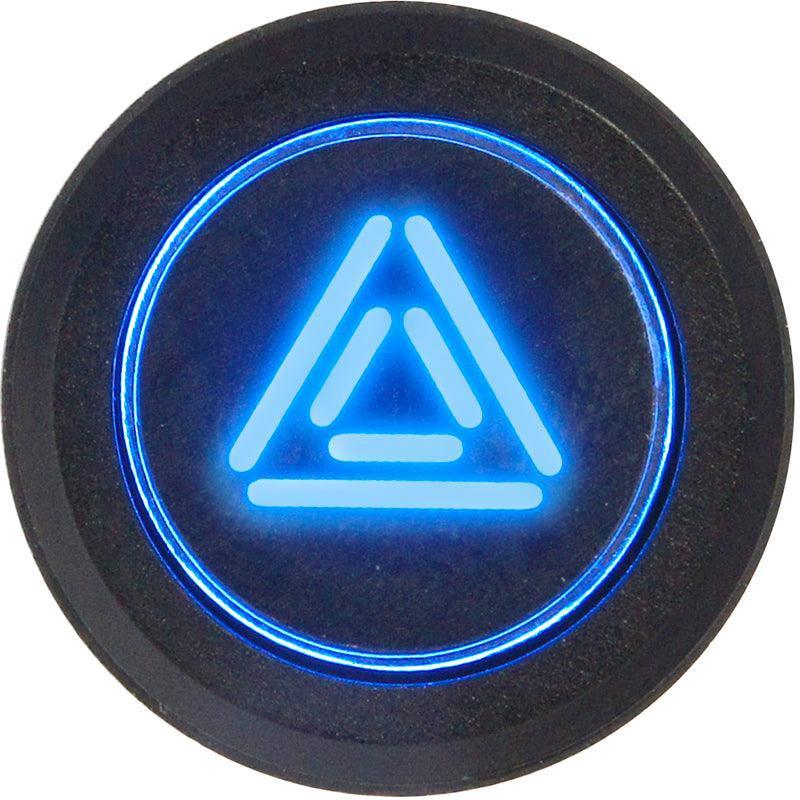

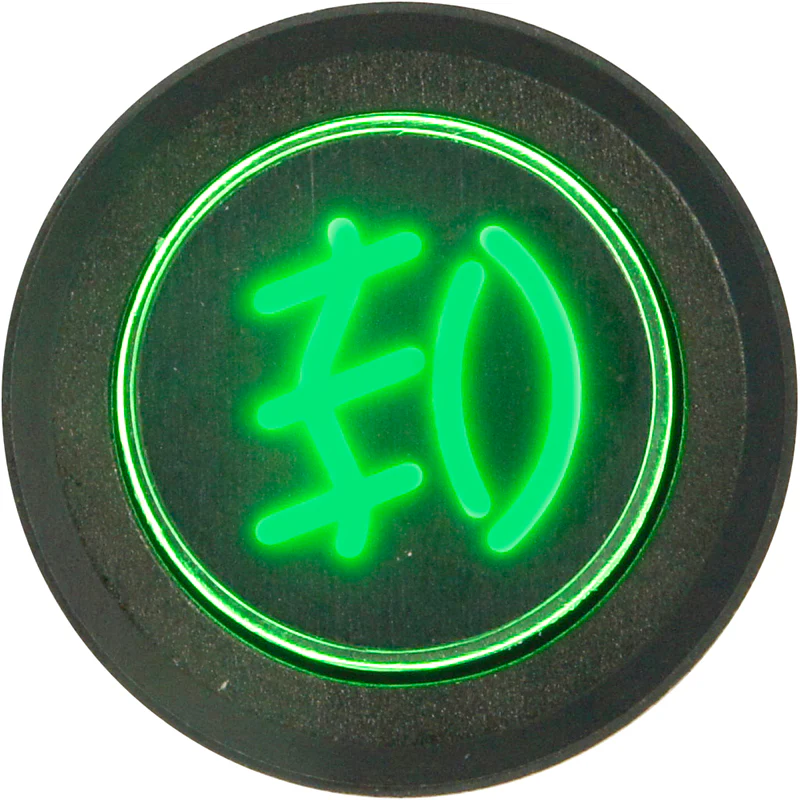

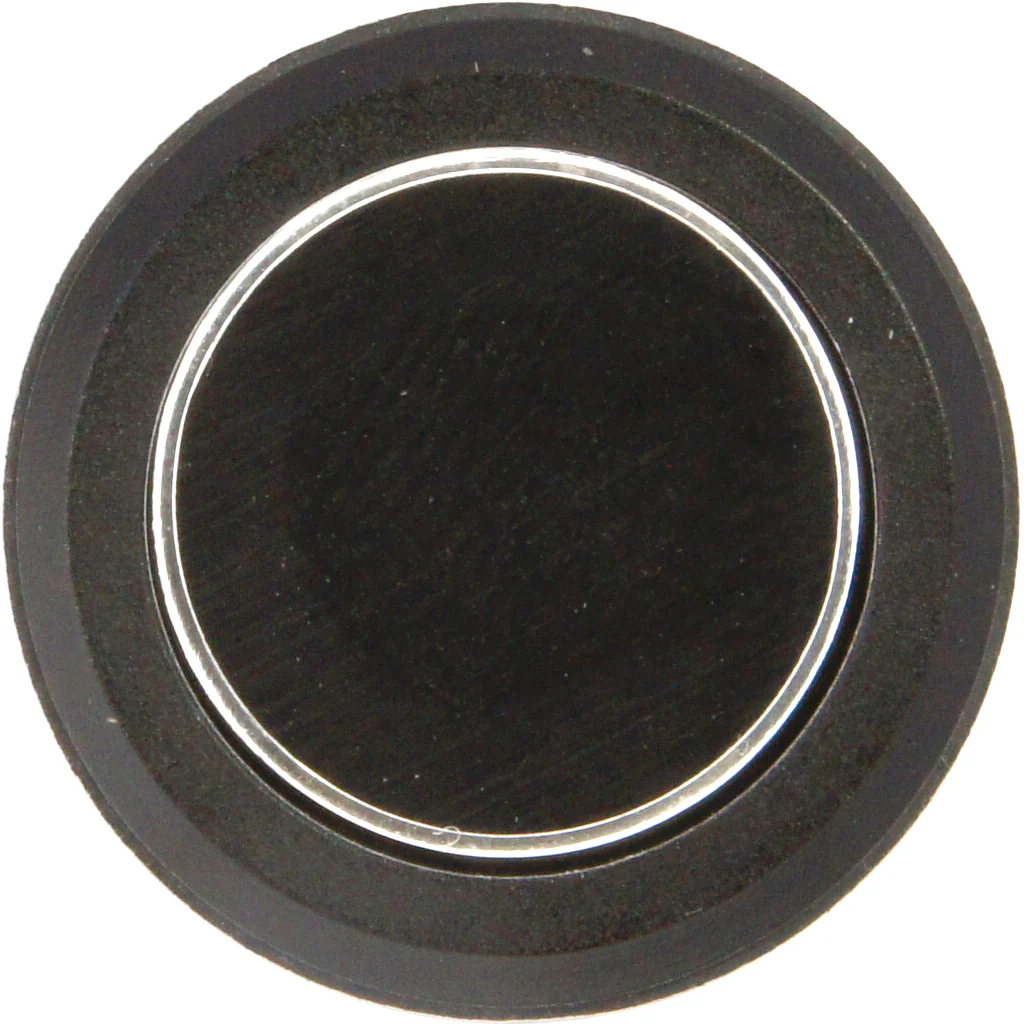

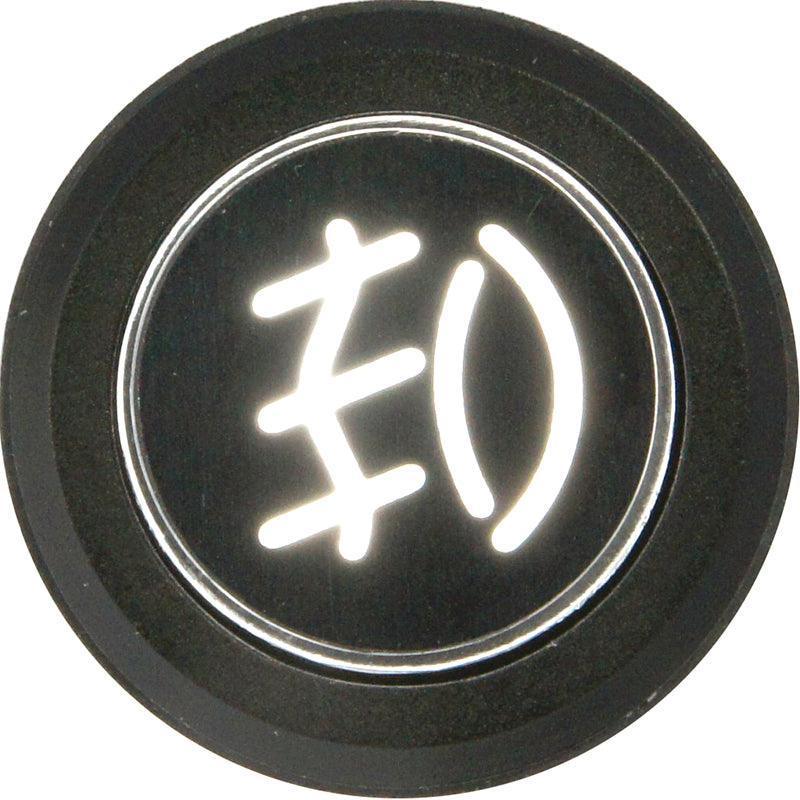

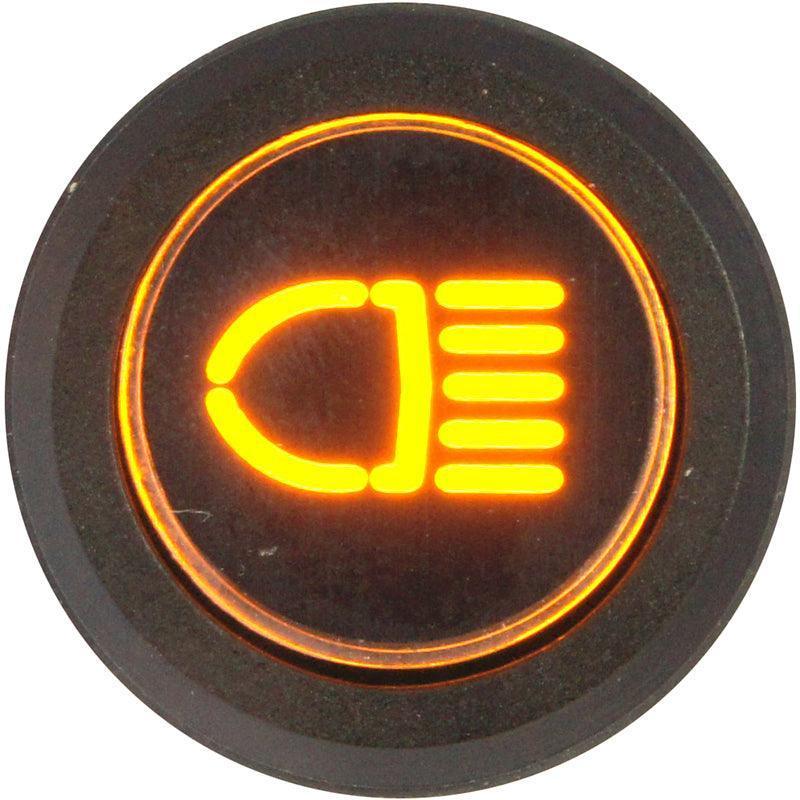

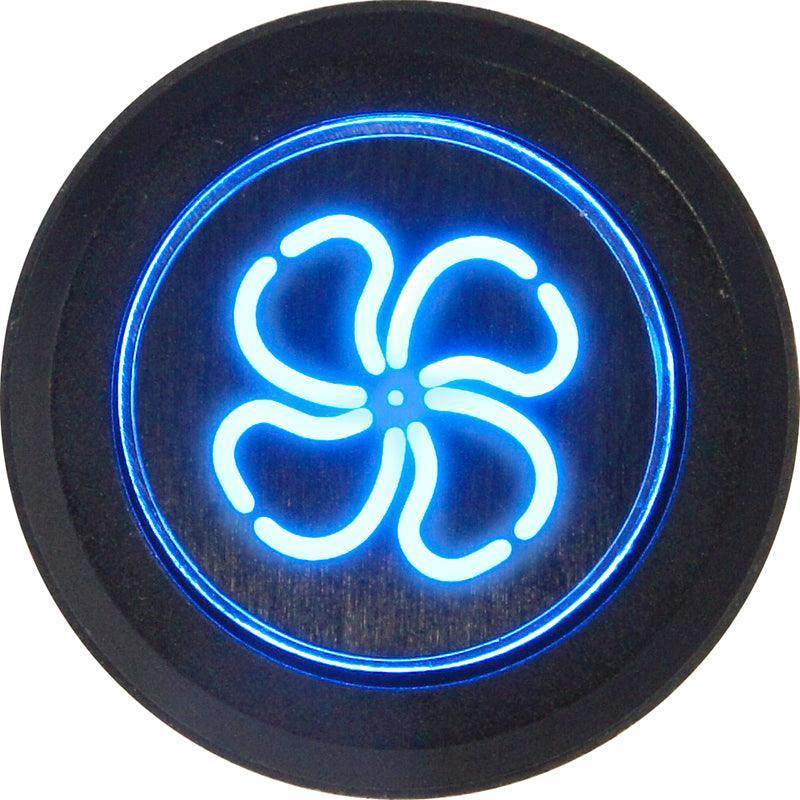

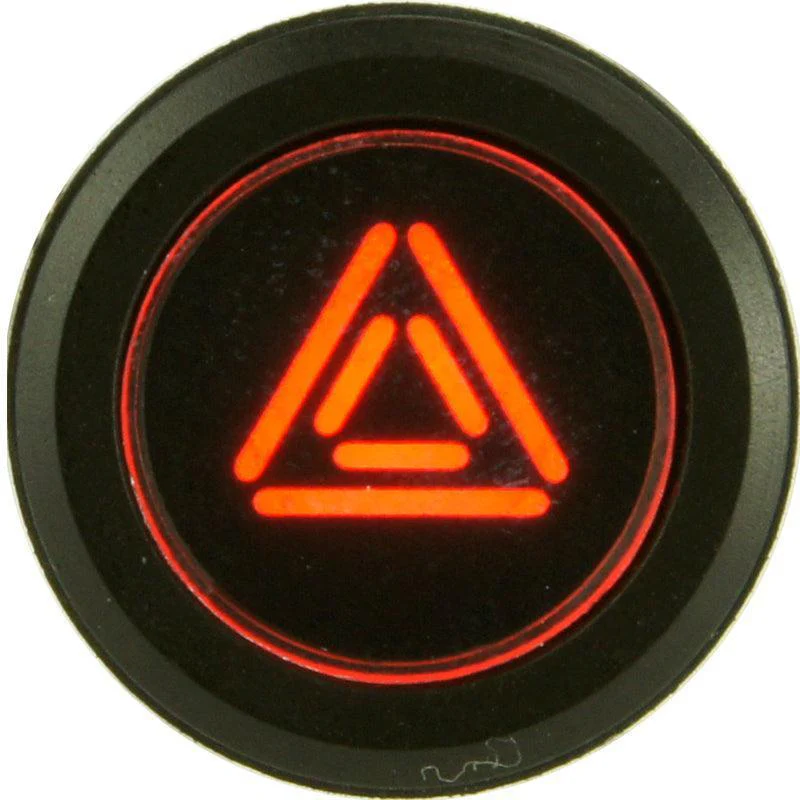

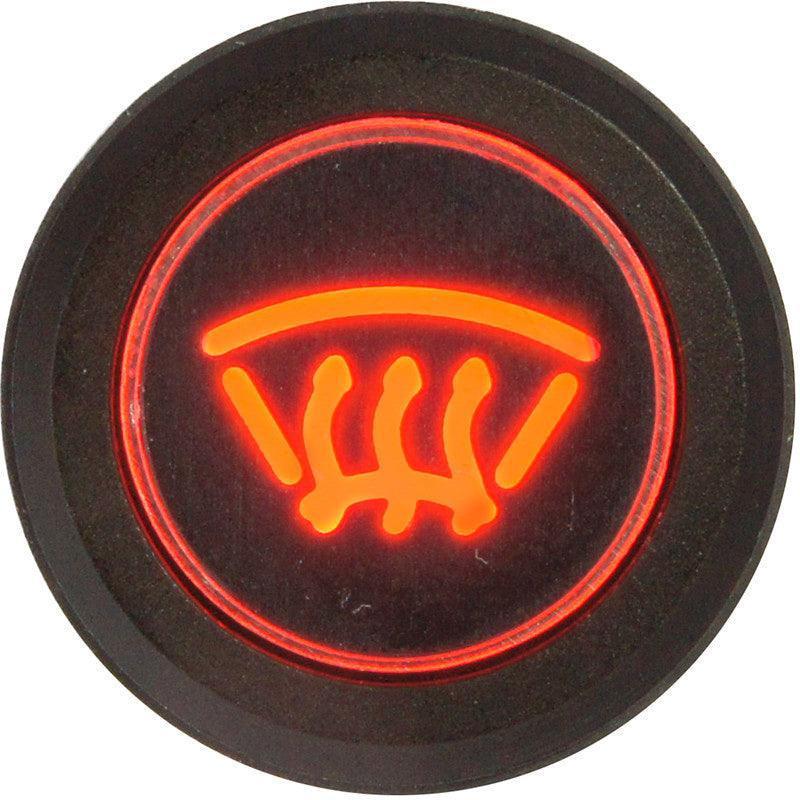

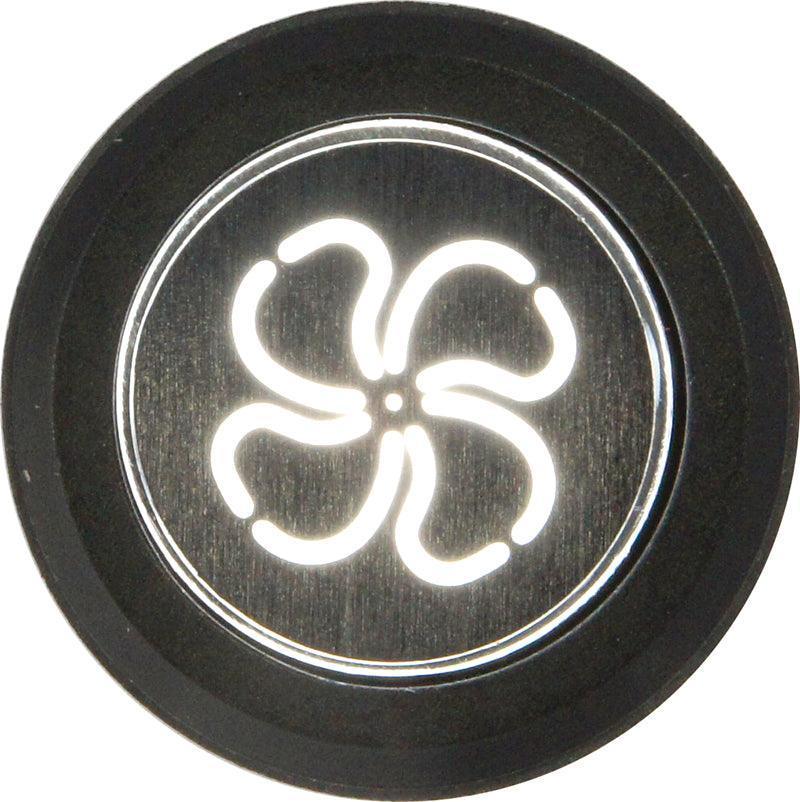

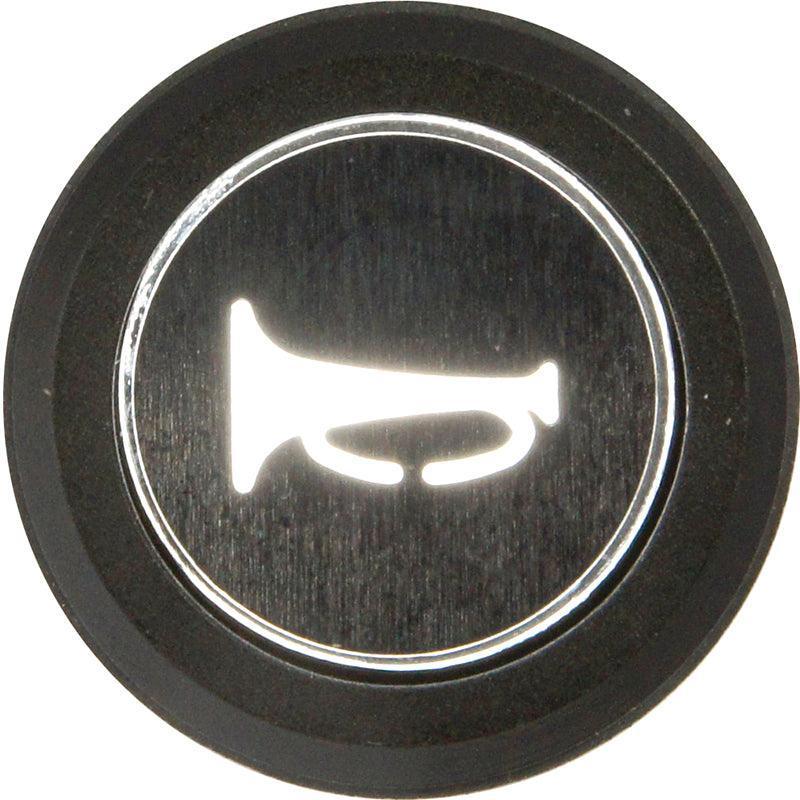

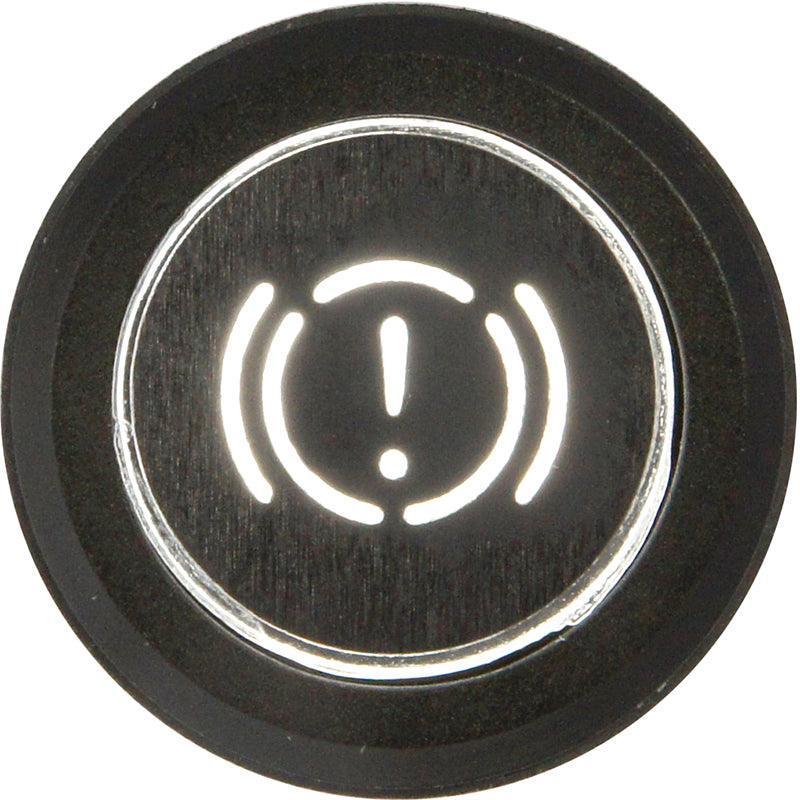

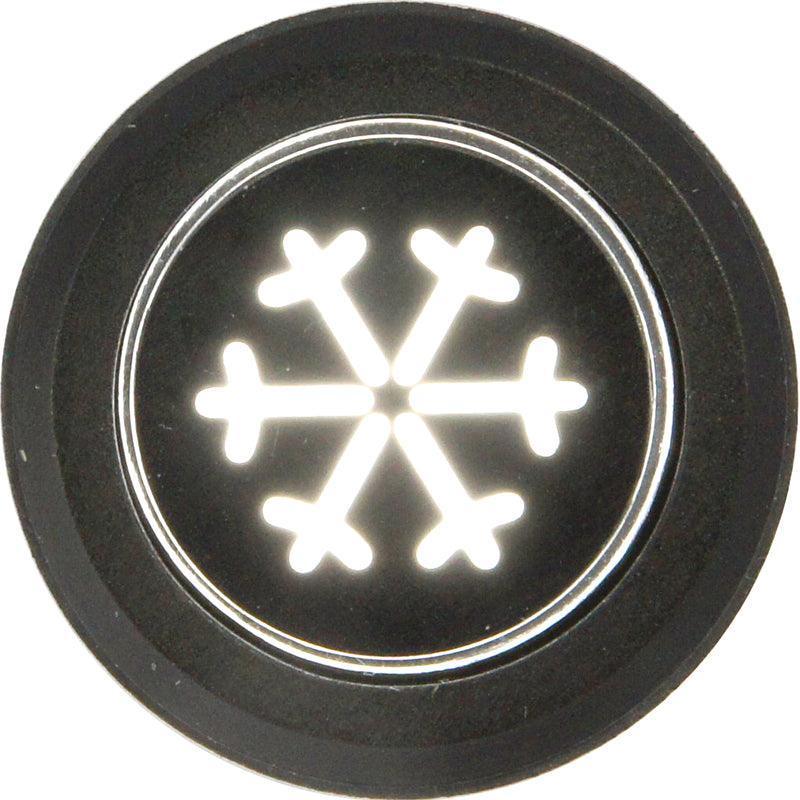

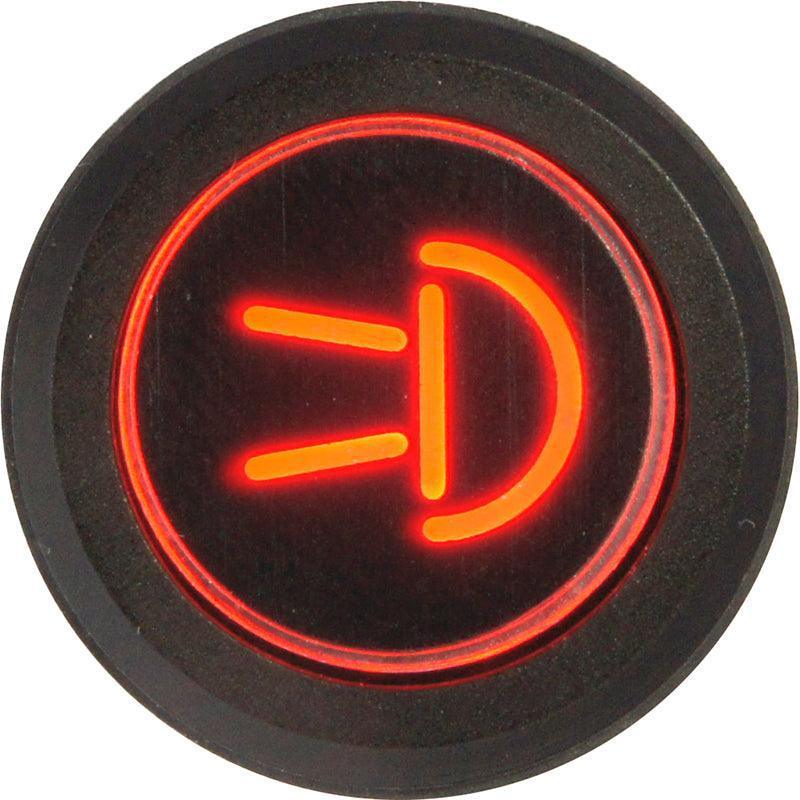

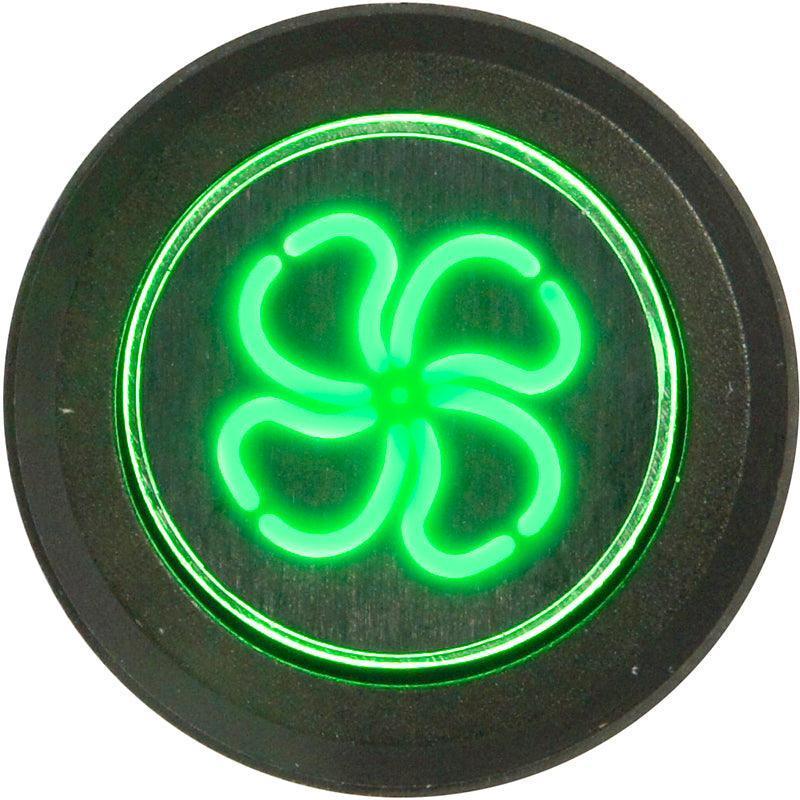

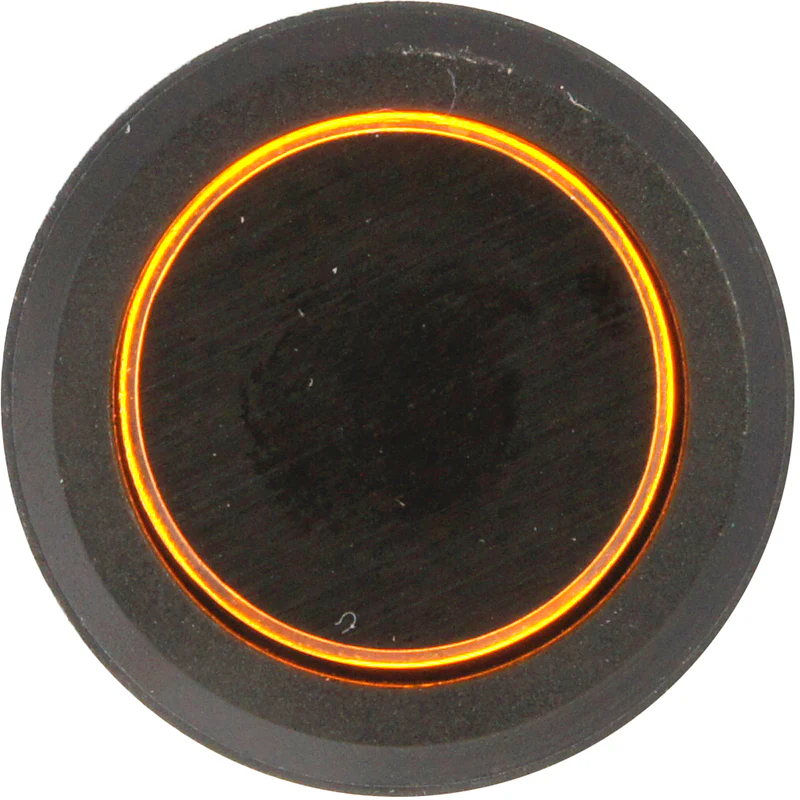

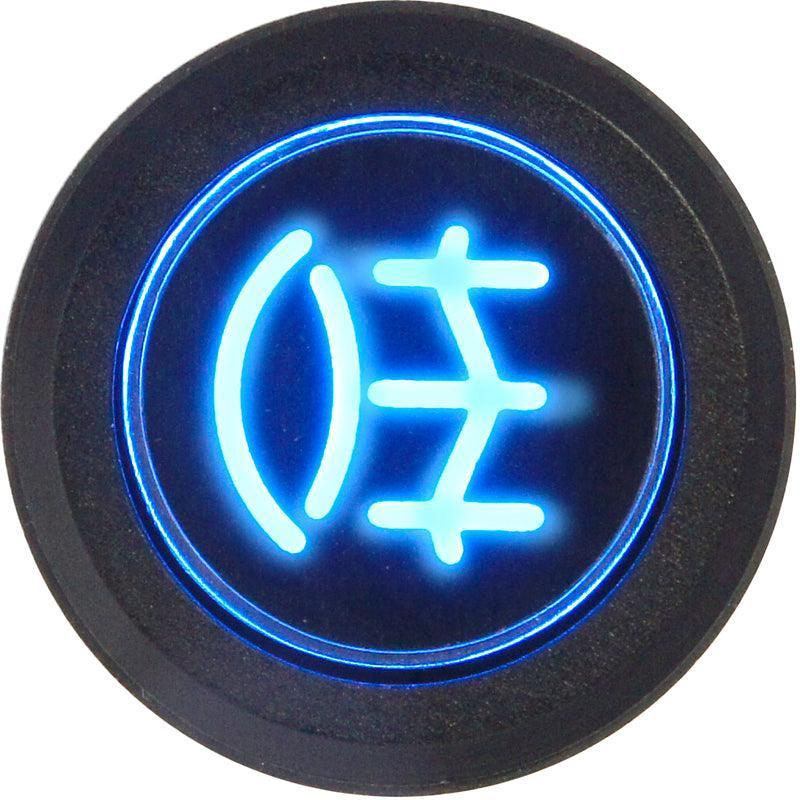

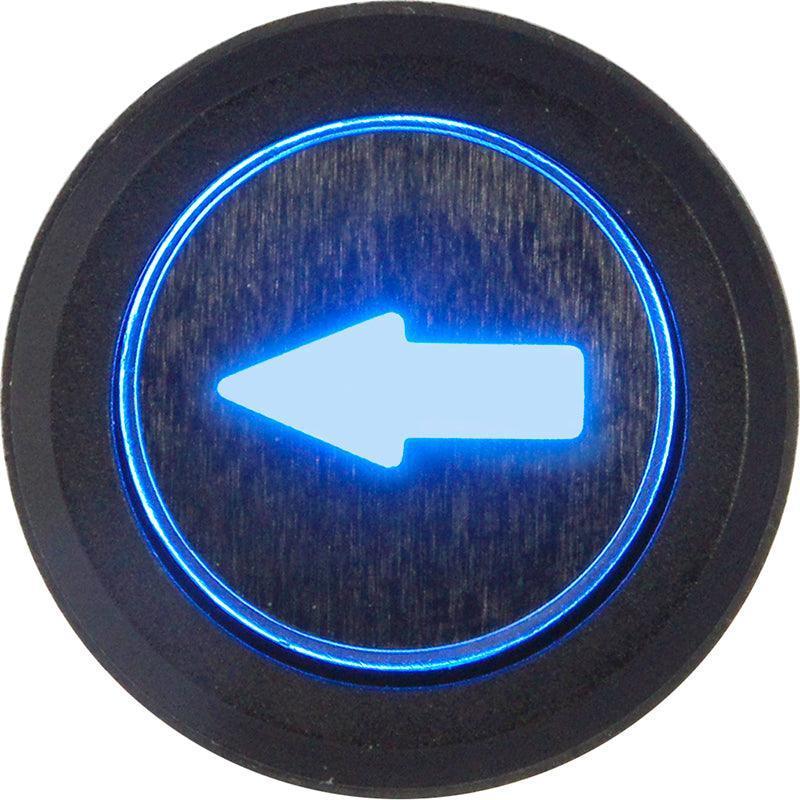

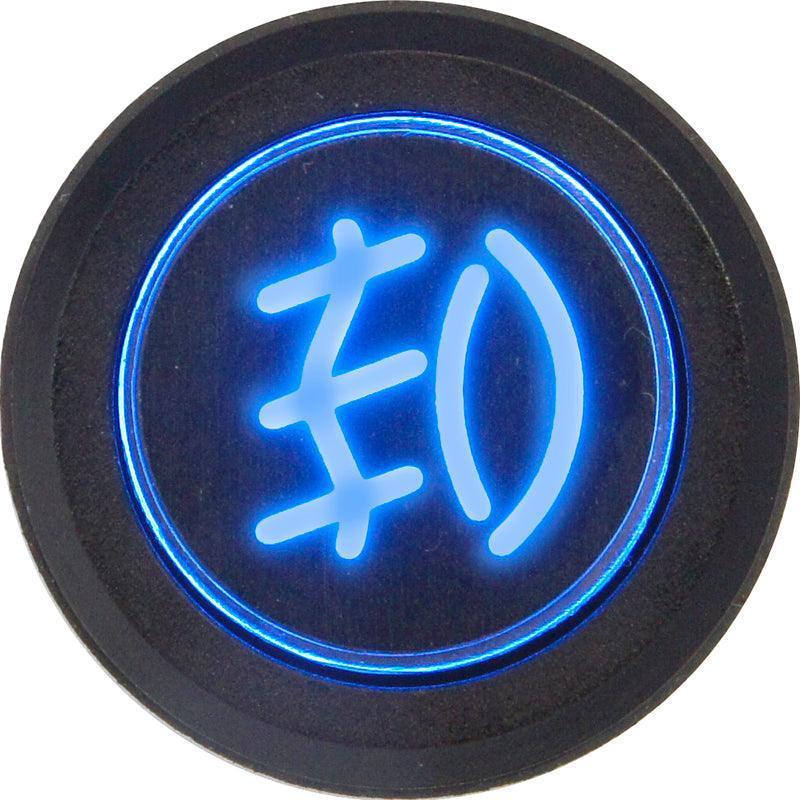

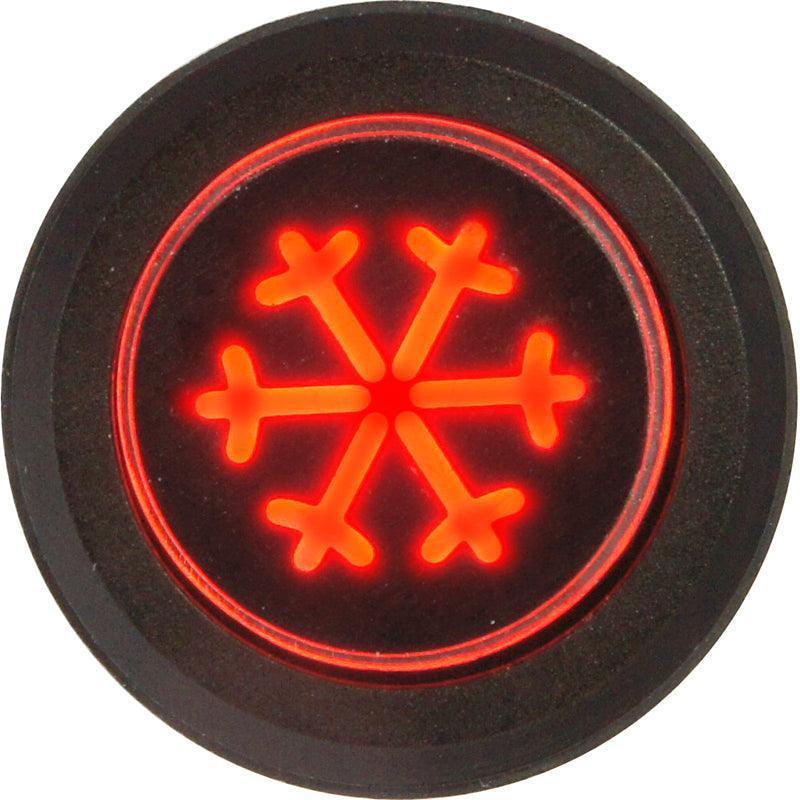

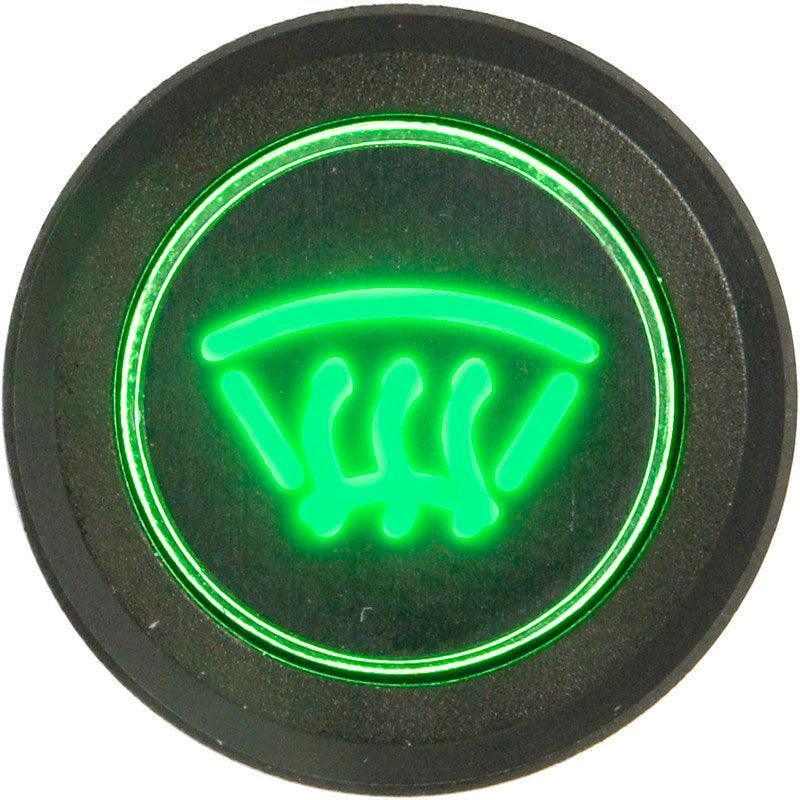

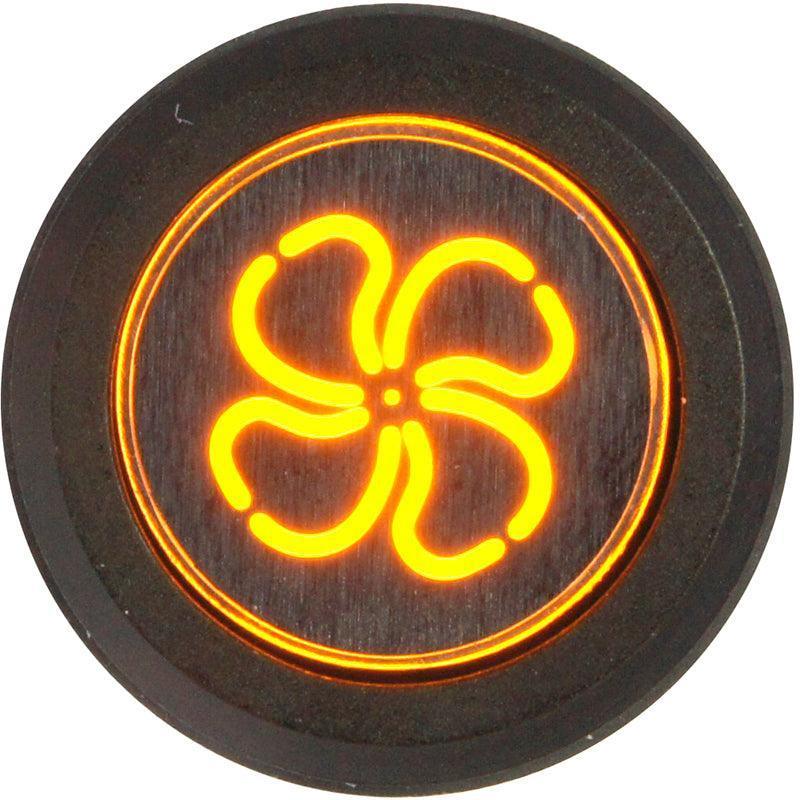

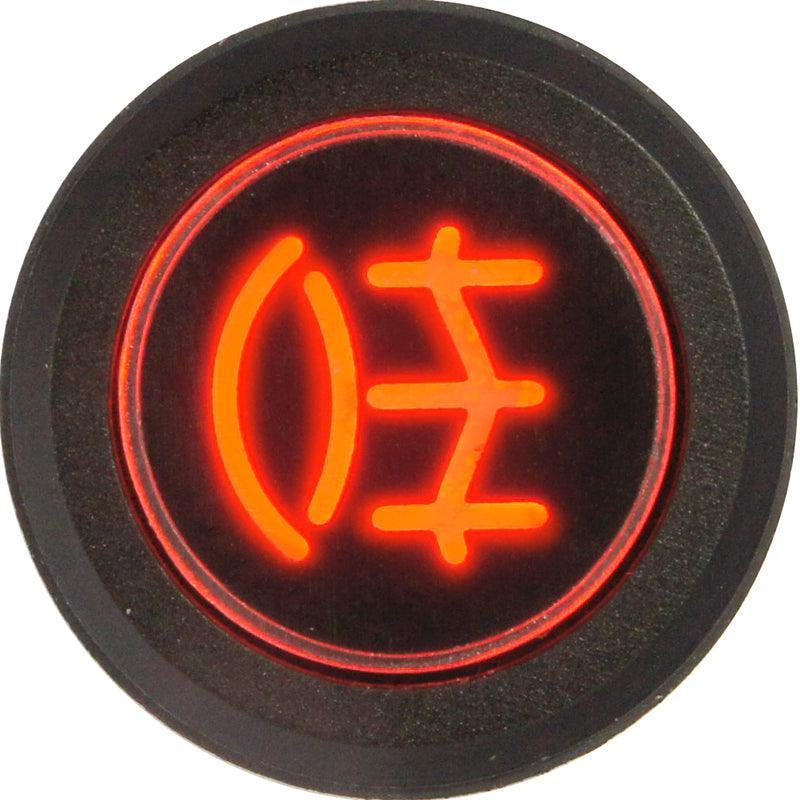

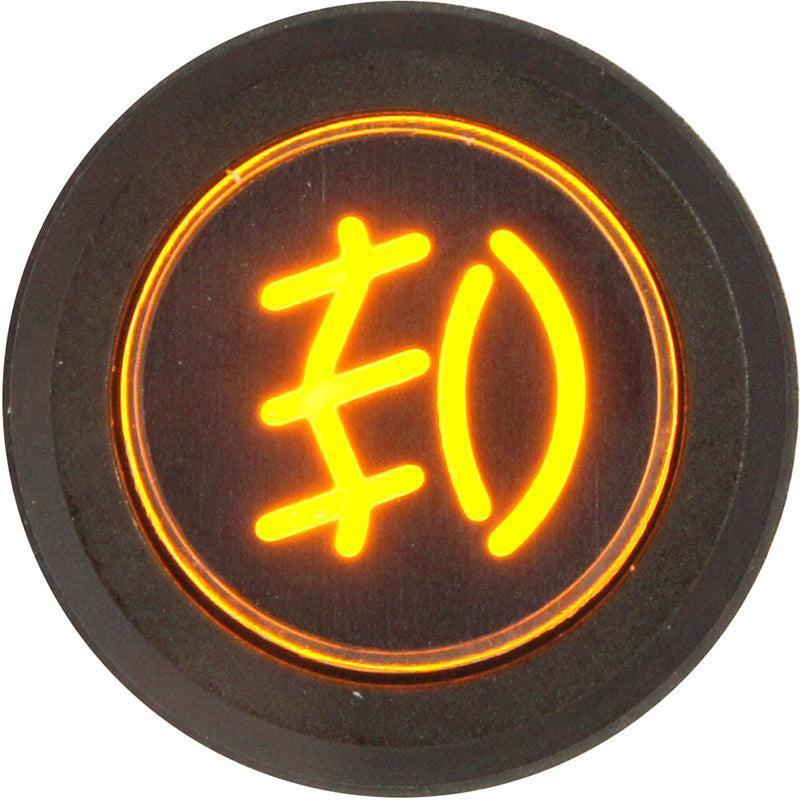

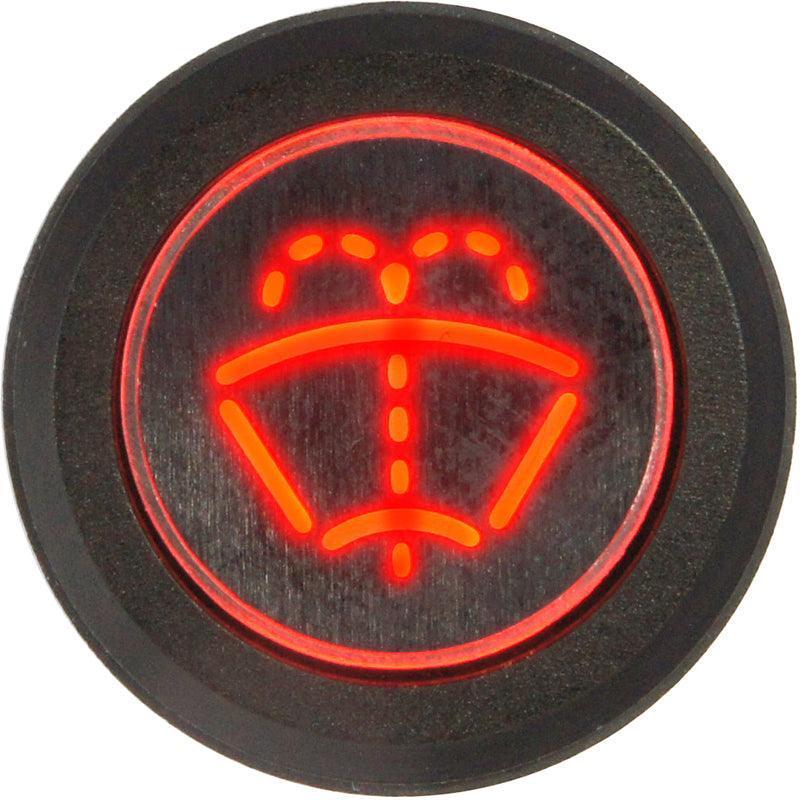

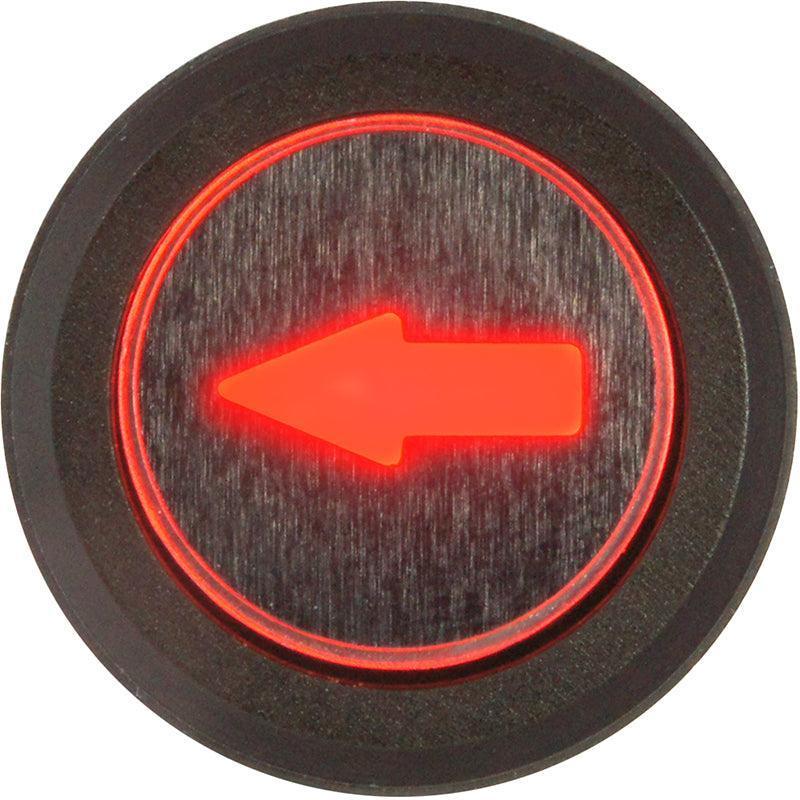

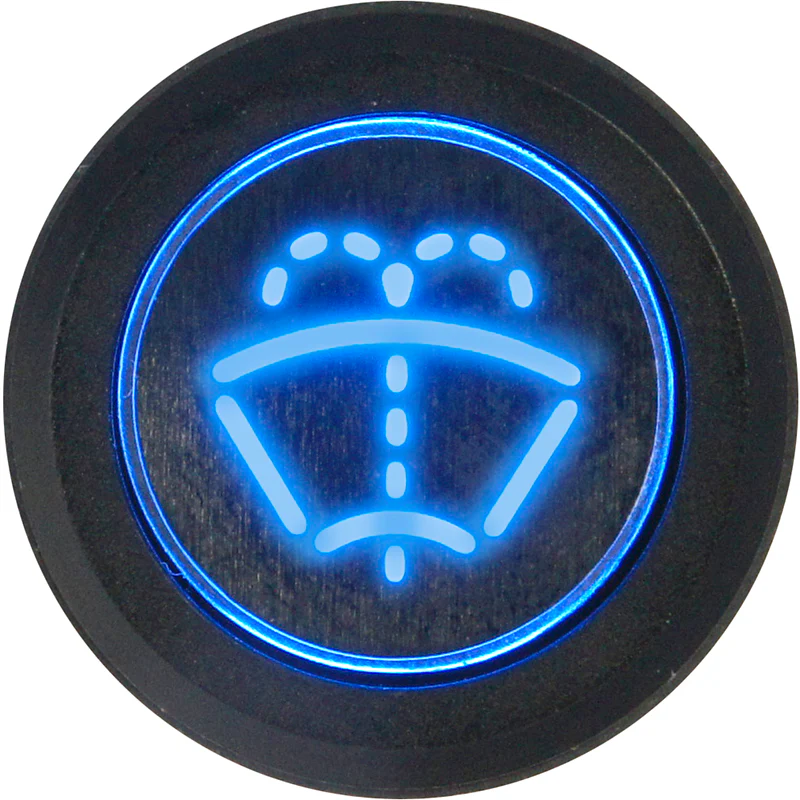

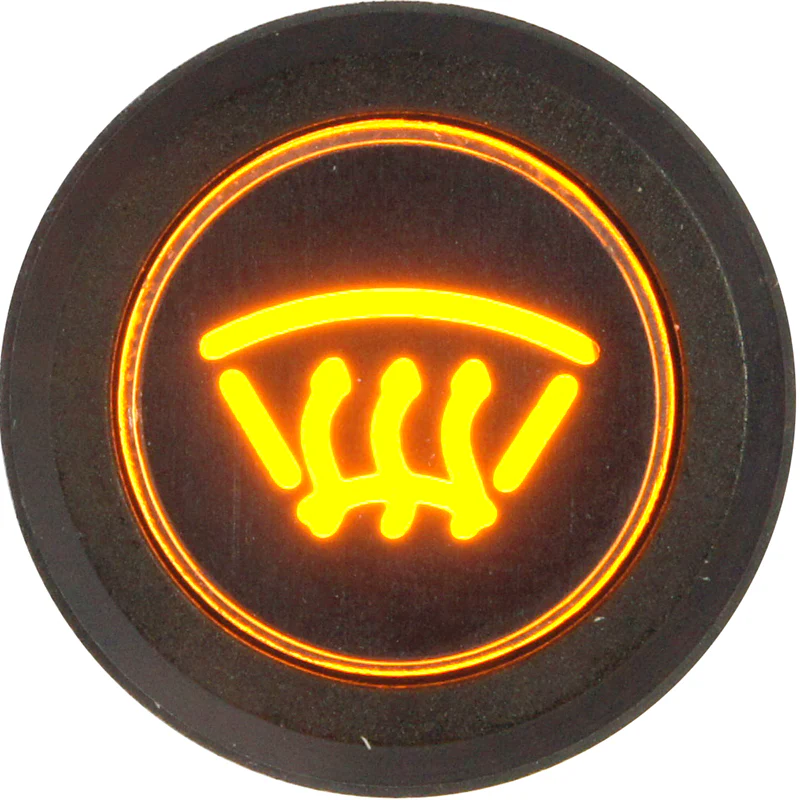

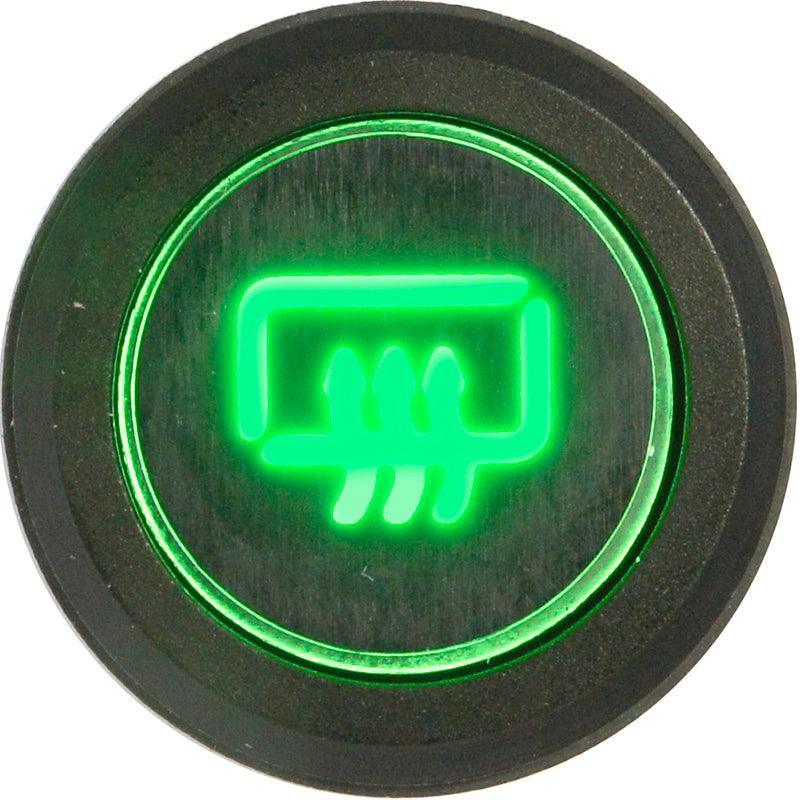

These superb CNC alloy switches (commonly know as Savage) are finished in satin black with a removable 10mm wide alloy collar which allows for flush mounting and IVA compliance. The face of the switch has a CNC engraved legend with full LED illumination.

All switches have a single illumination as standard, this is a stand alone circuit so can be wired to either illuminate with sidelights or to illuminate with the switch itself in the 'ON' position. However a 'Dim/Bright' kit (BSWDIM) is available to provide a dim illumination when your sidelights are on and then a bright illumination when the switch is activated.

This momentary version is on whilst pressed and off when released.

Black Billet Aluminium Switch

• Momentary (Push - ON  Release - OFF)
• ¹⁄₈" Male spade terminals
• Single Pole Contact Block 3 Pin Changeover
• Double Pole Contact Block  6 Pin Changeover


With Alloy Collar..

• Dash Projection 12mm
• Rear Projection 40mm
• Fitting hole size 15mm

Without Alloy Collar..

• Dash Projection 1.5mm
• Rear Projection 51mm
• Fitting hole size 23mm

Overall Dimensions..

• Collar Width 25mm
• Body Width 15mm
• Overall Length 52mm
