Black Billet Aluminium Switch Latching

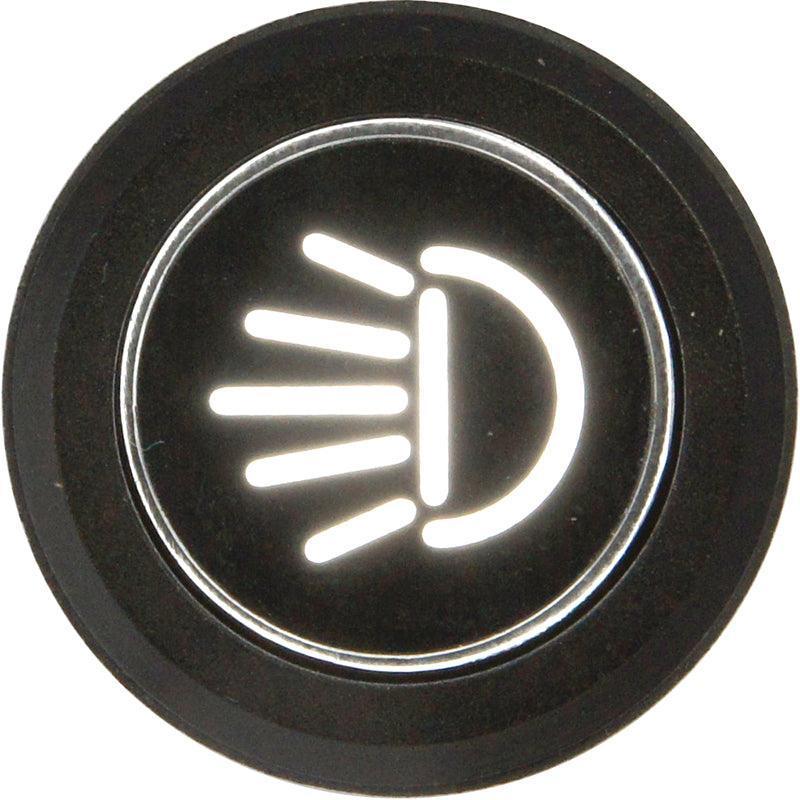

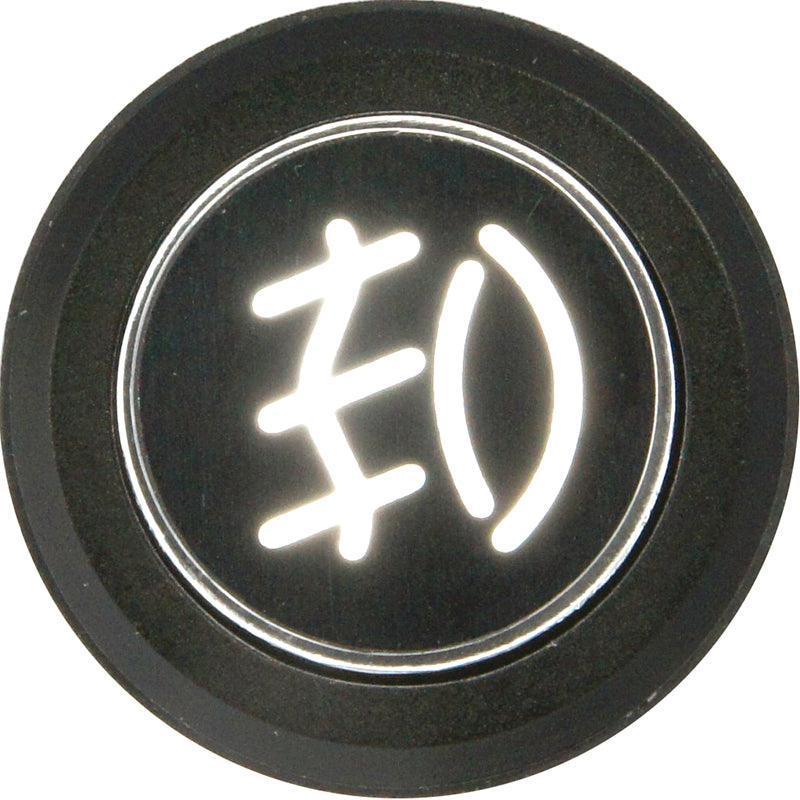

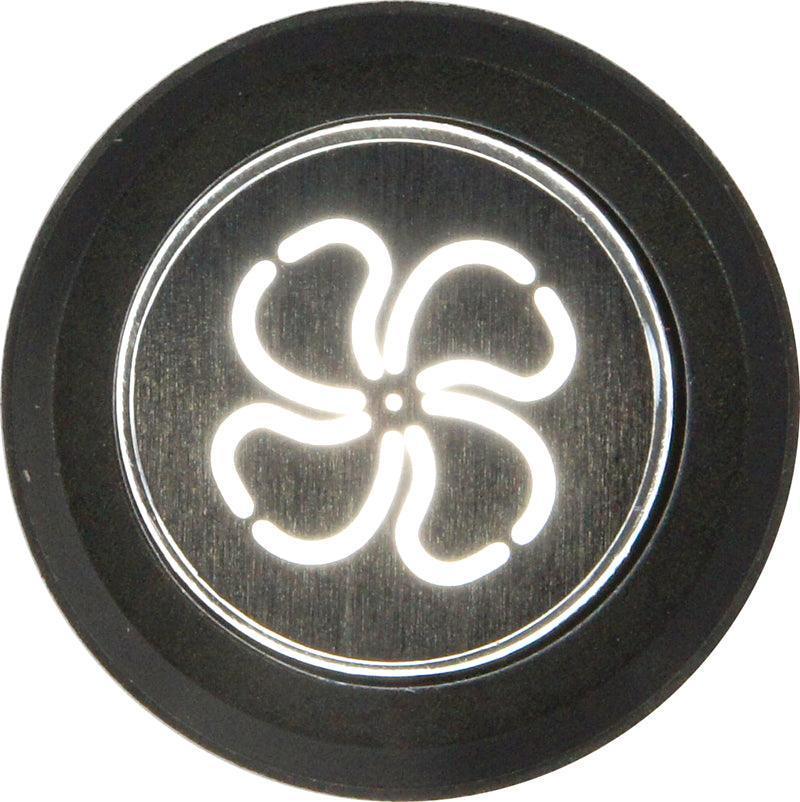

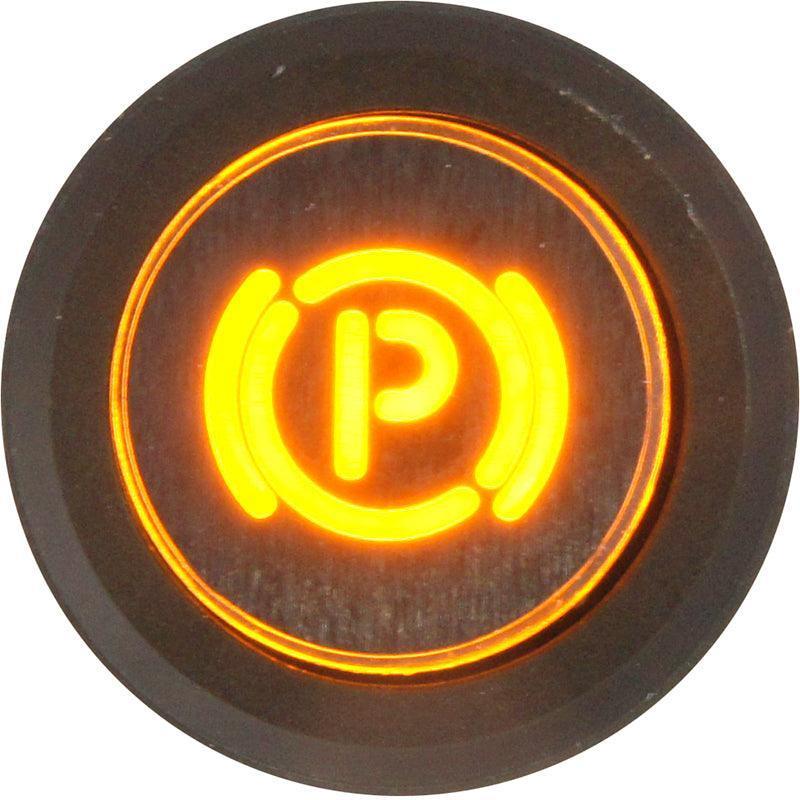

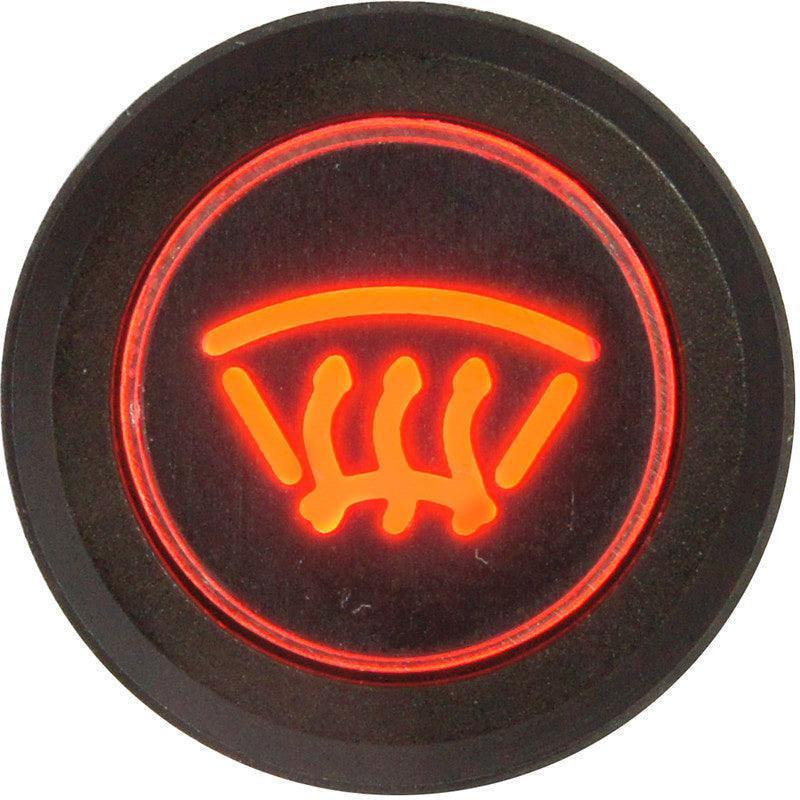

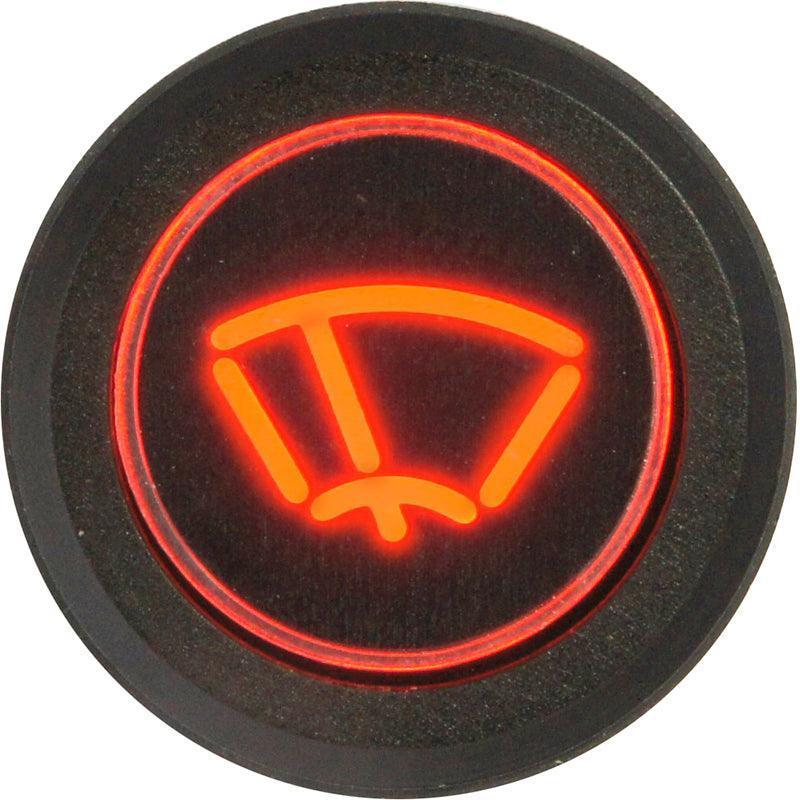

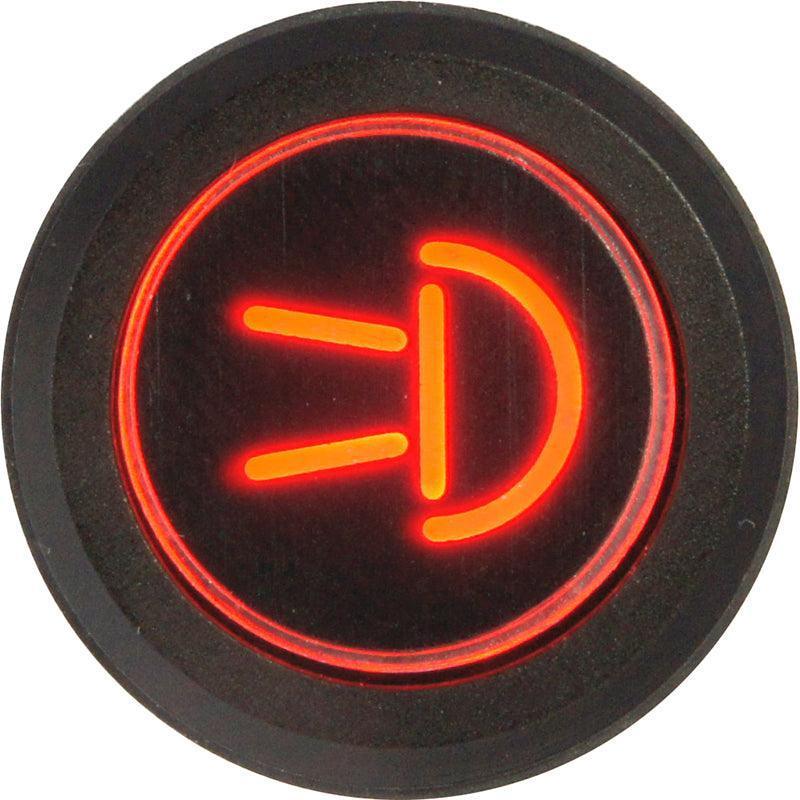

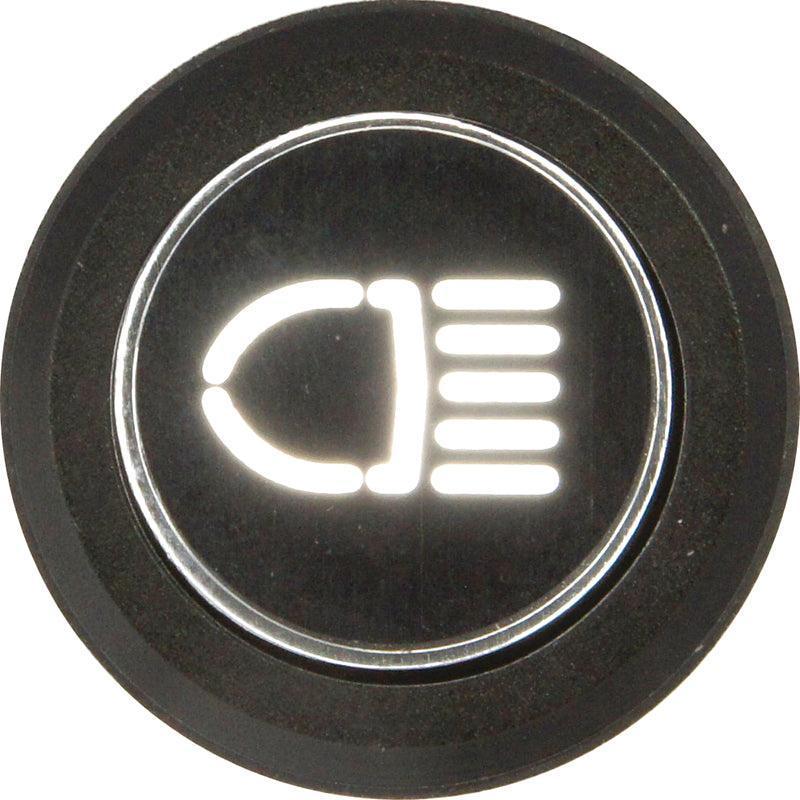

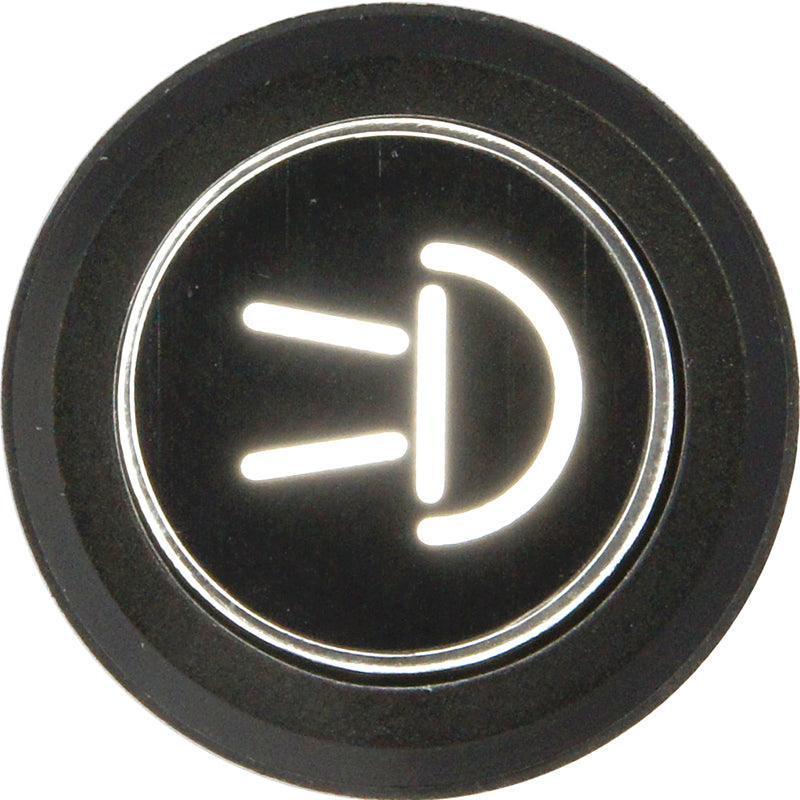

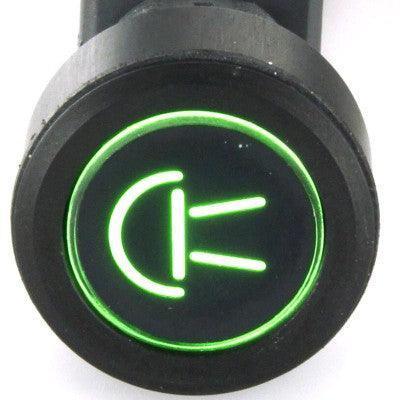

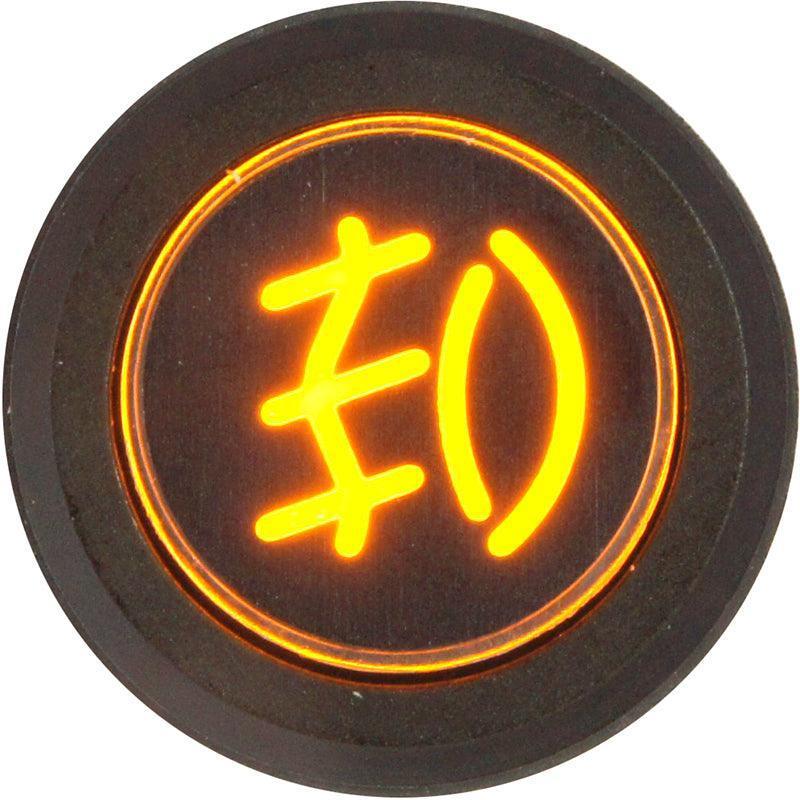

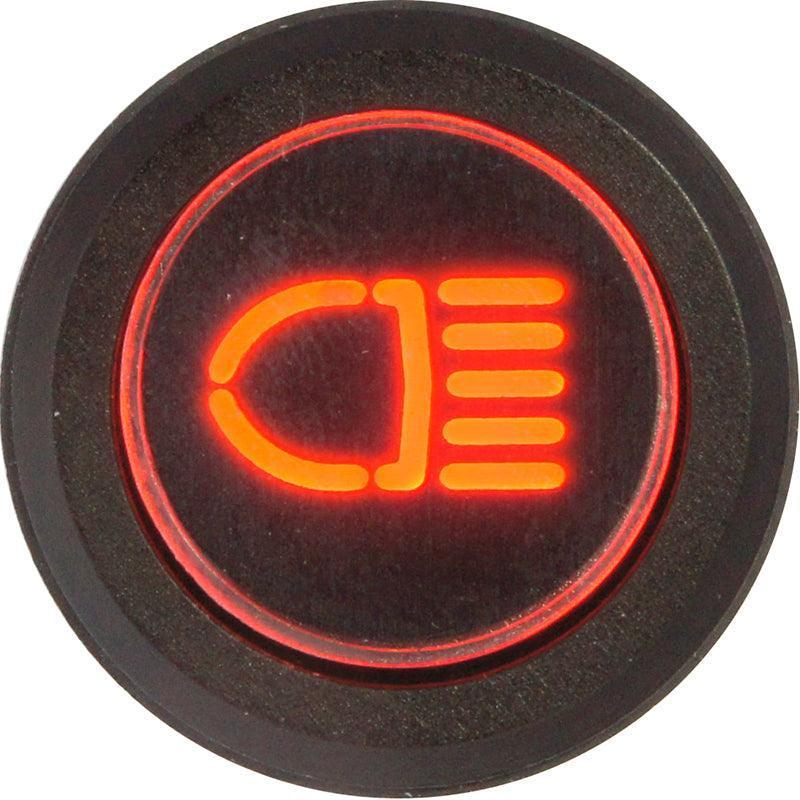

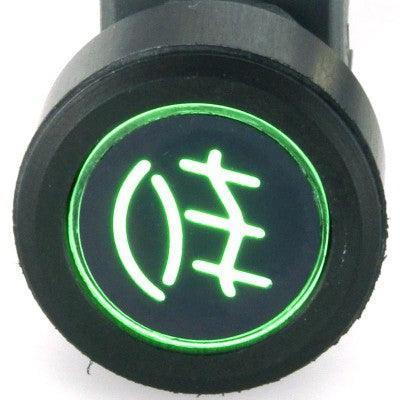

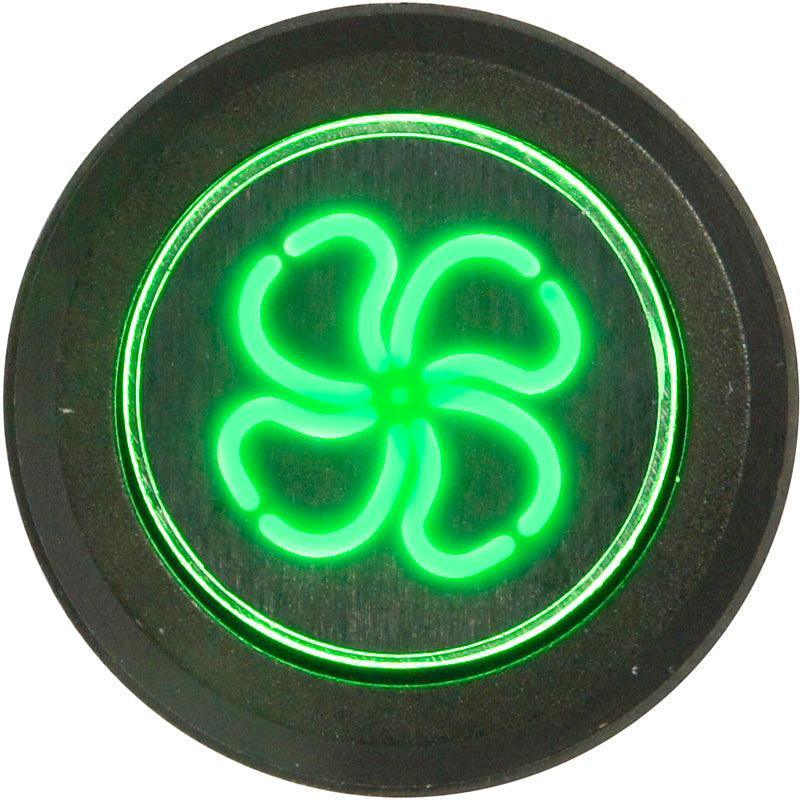

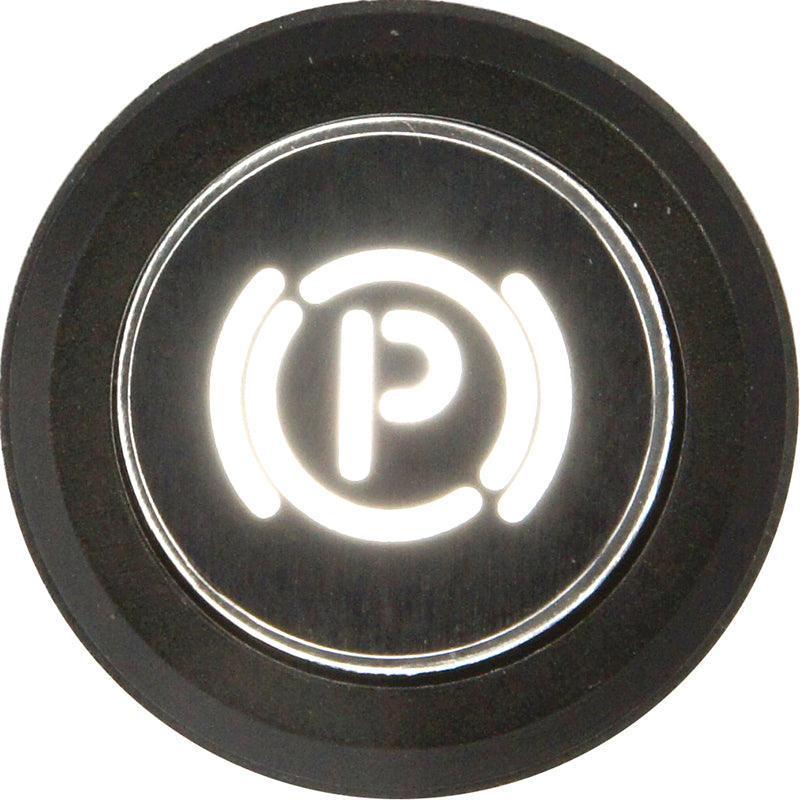

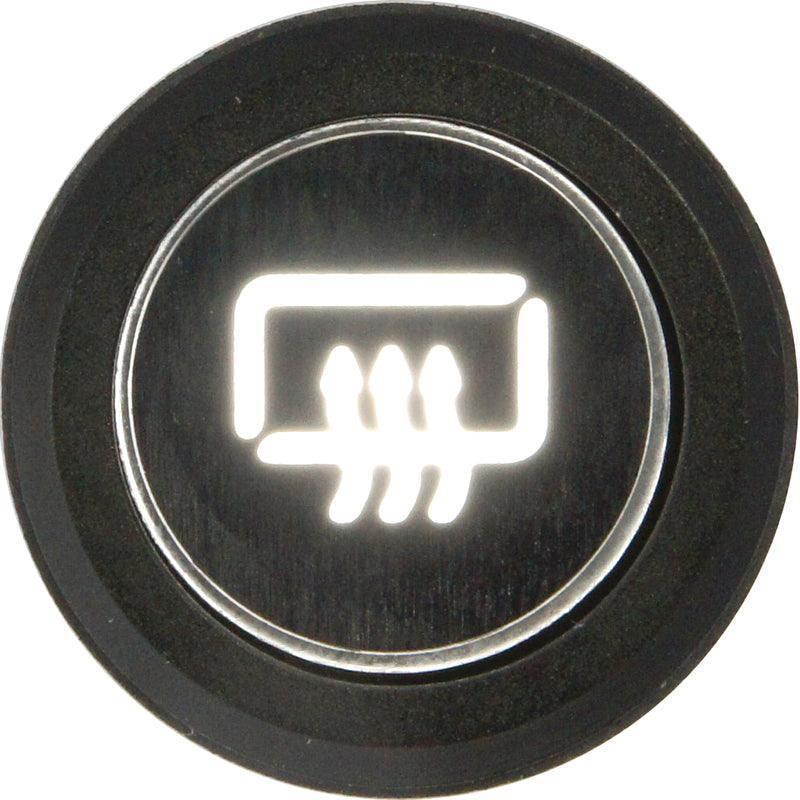

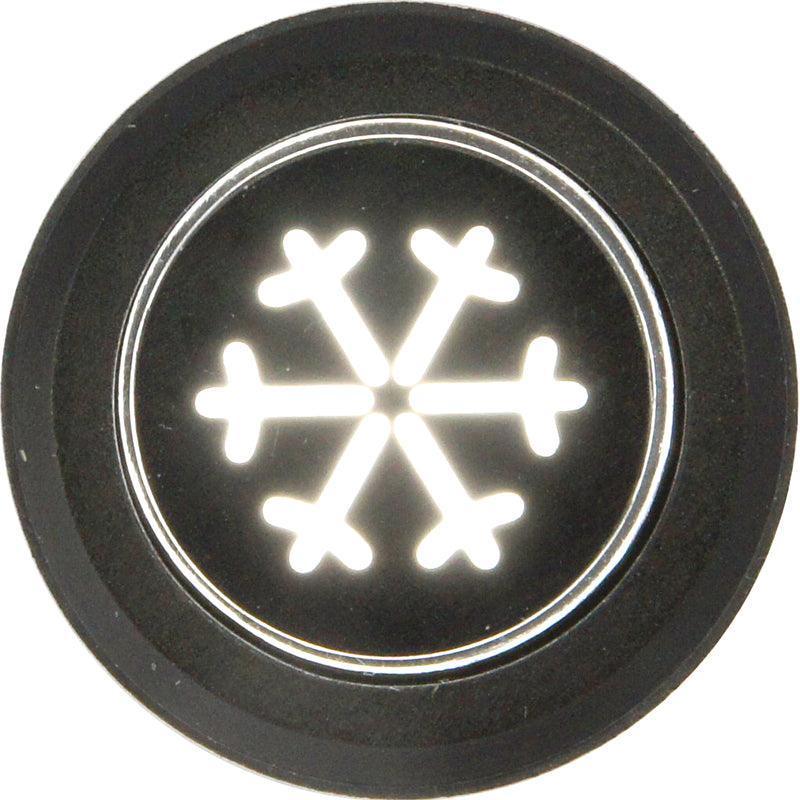

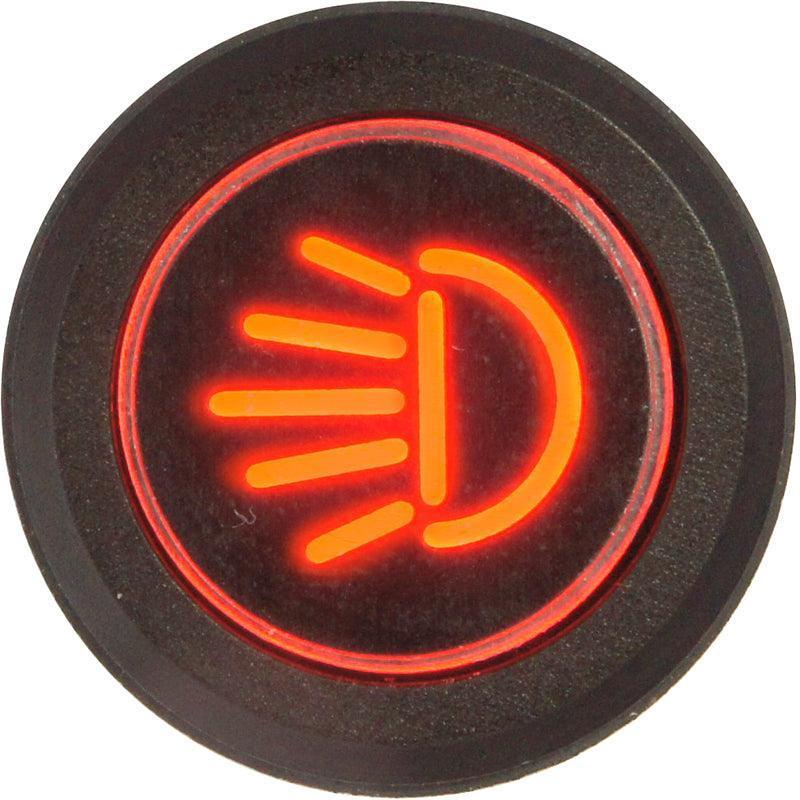

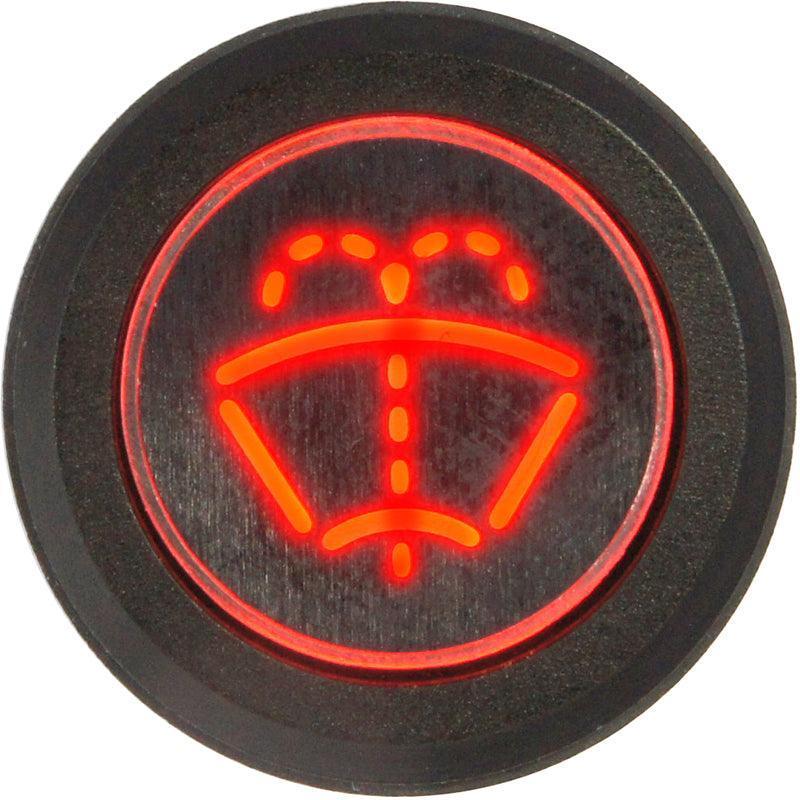

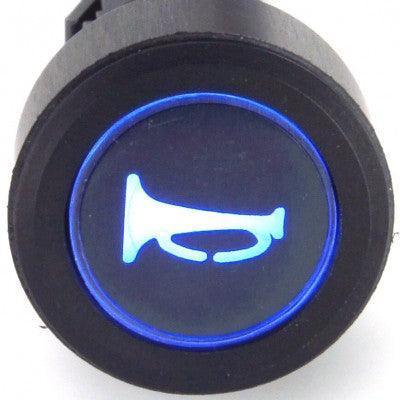

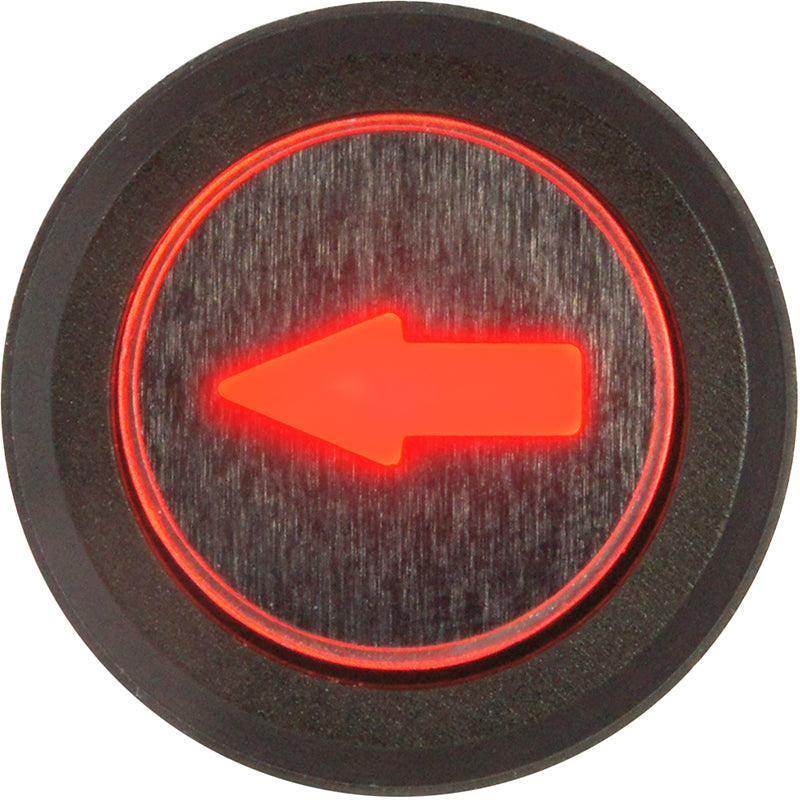

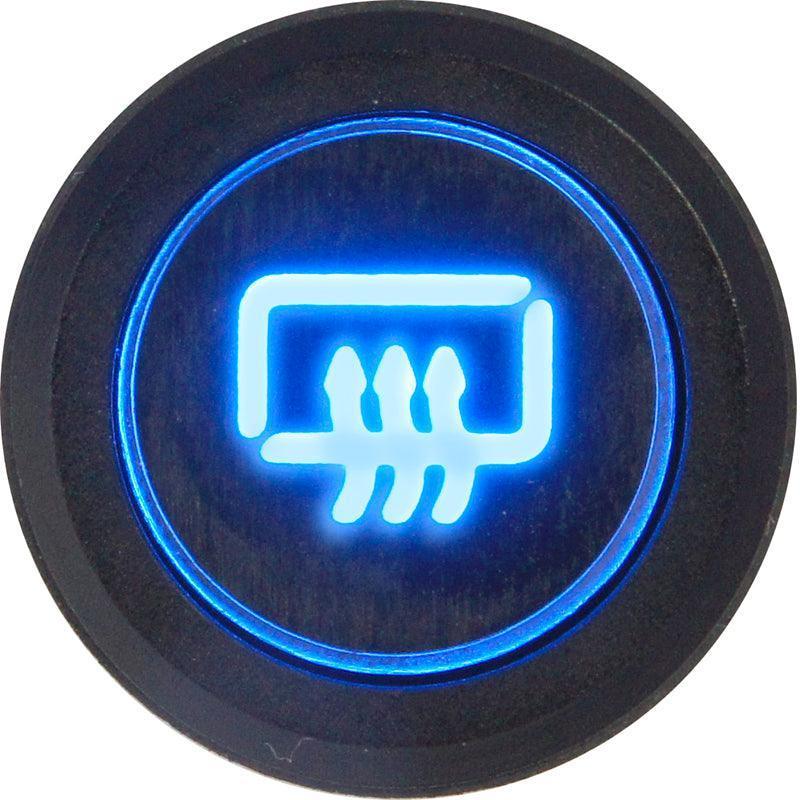

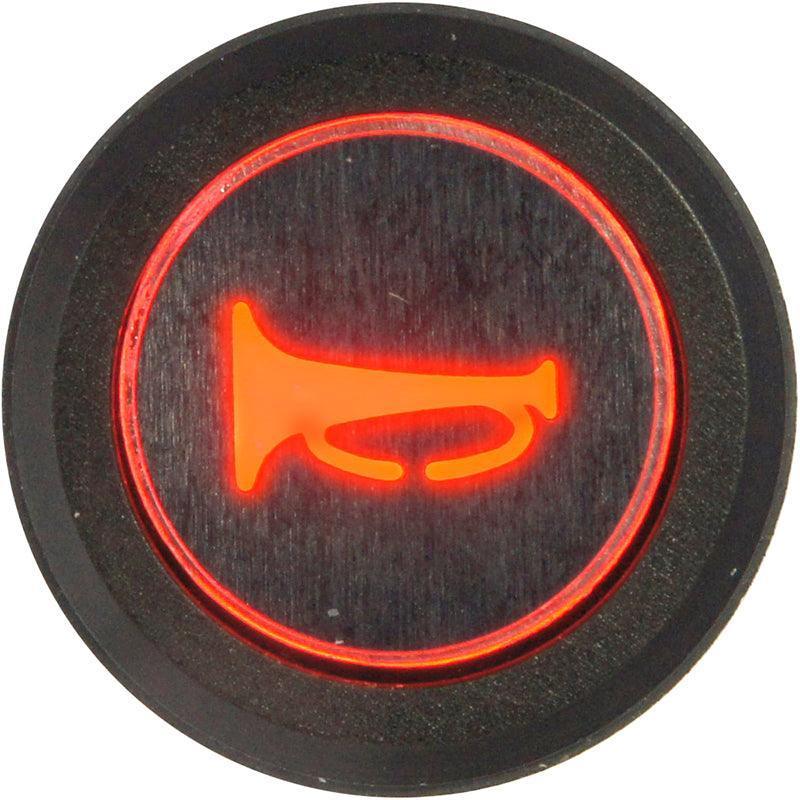

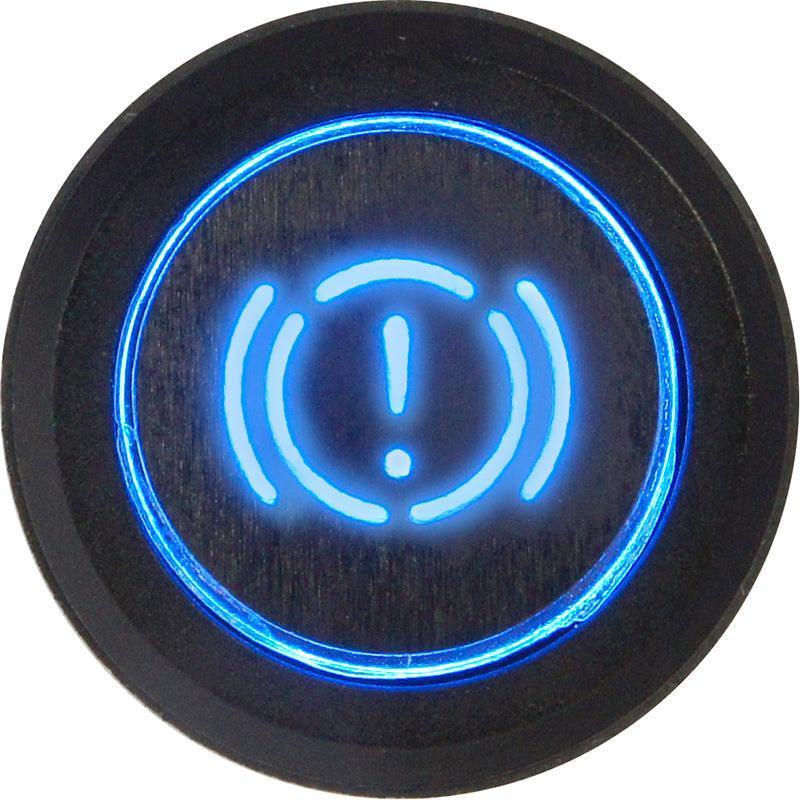

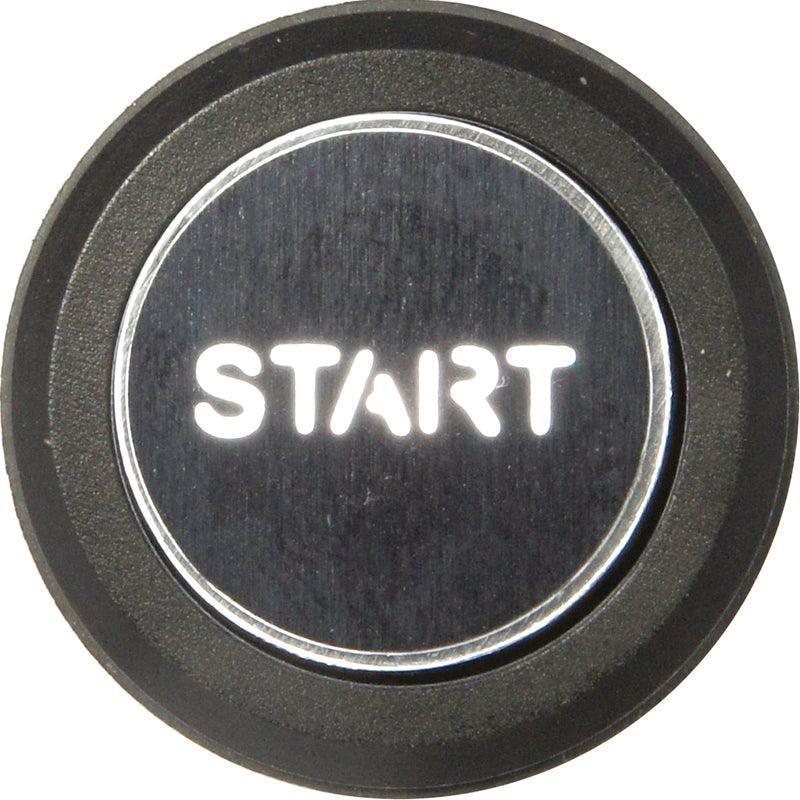

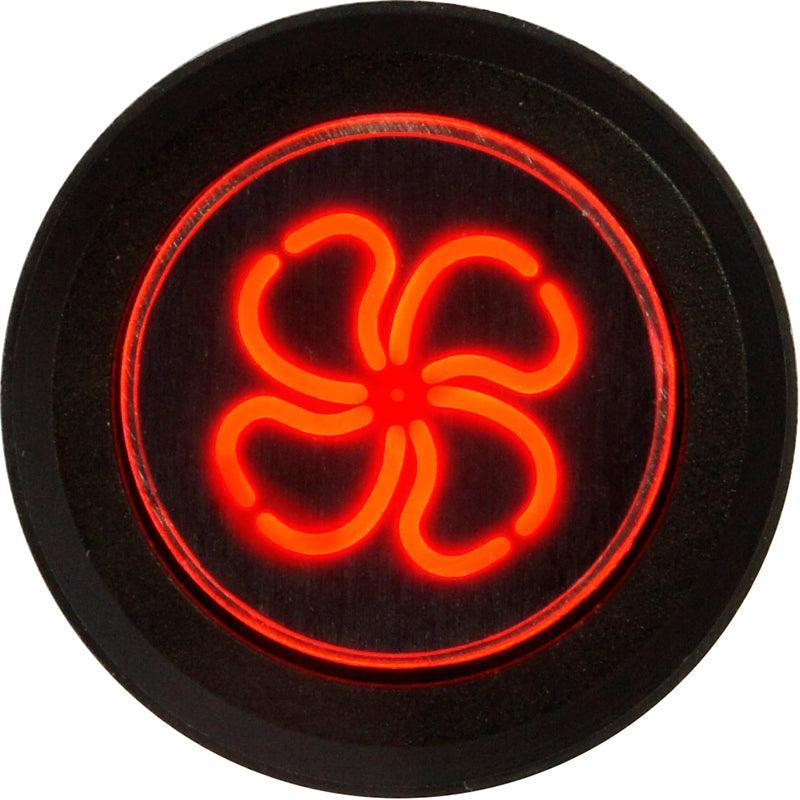

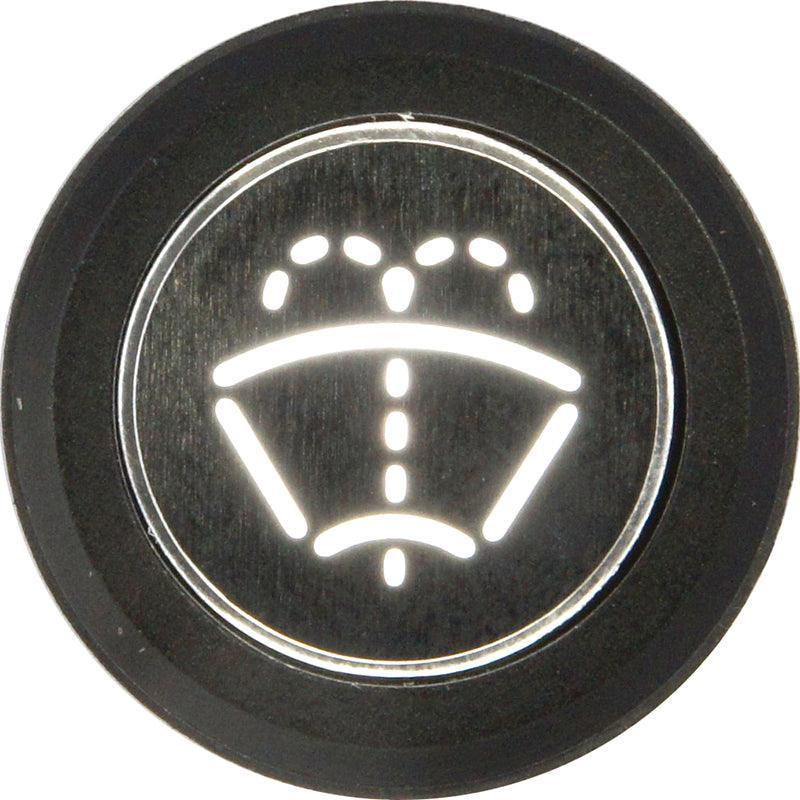

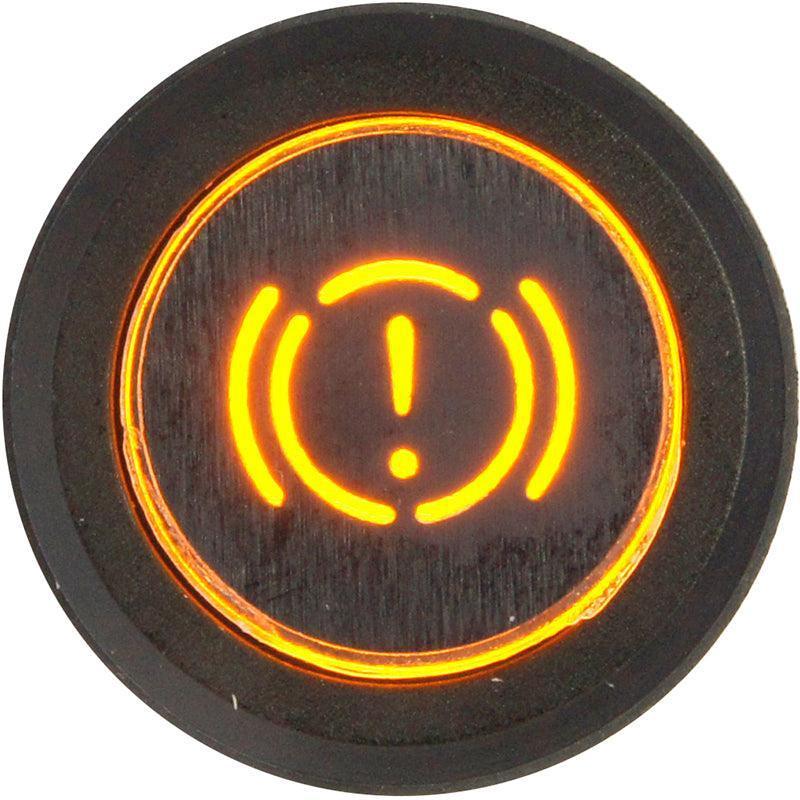

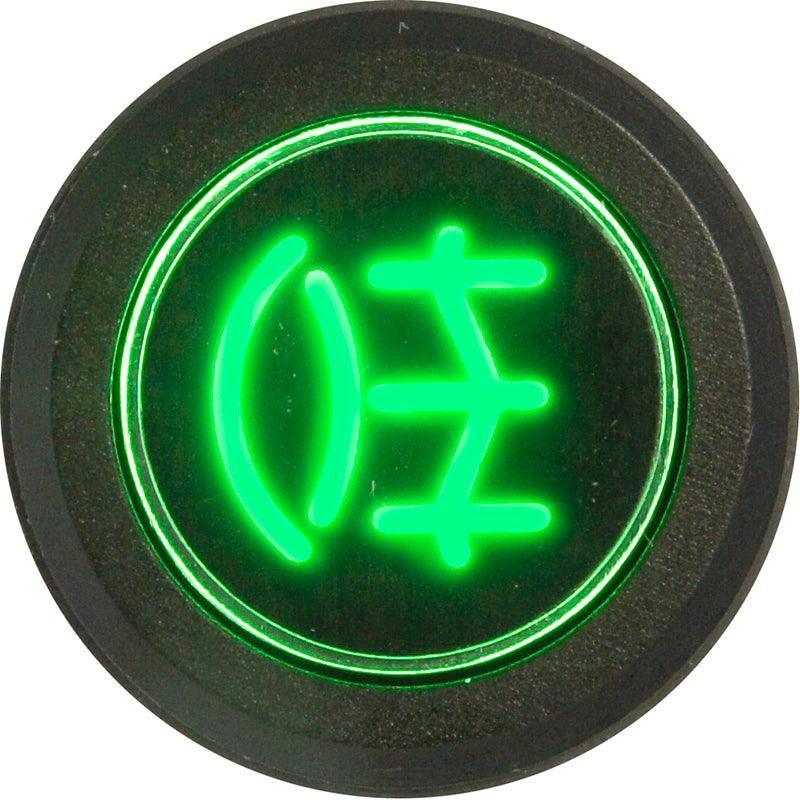

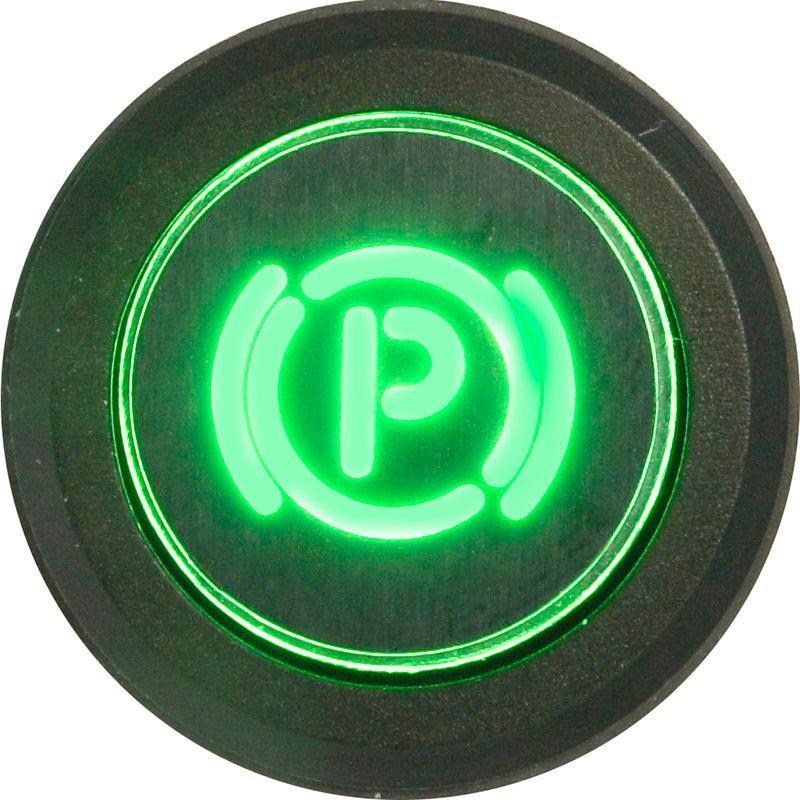

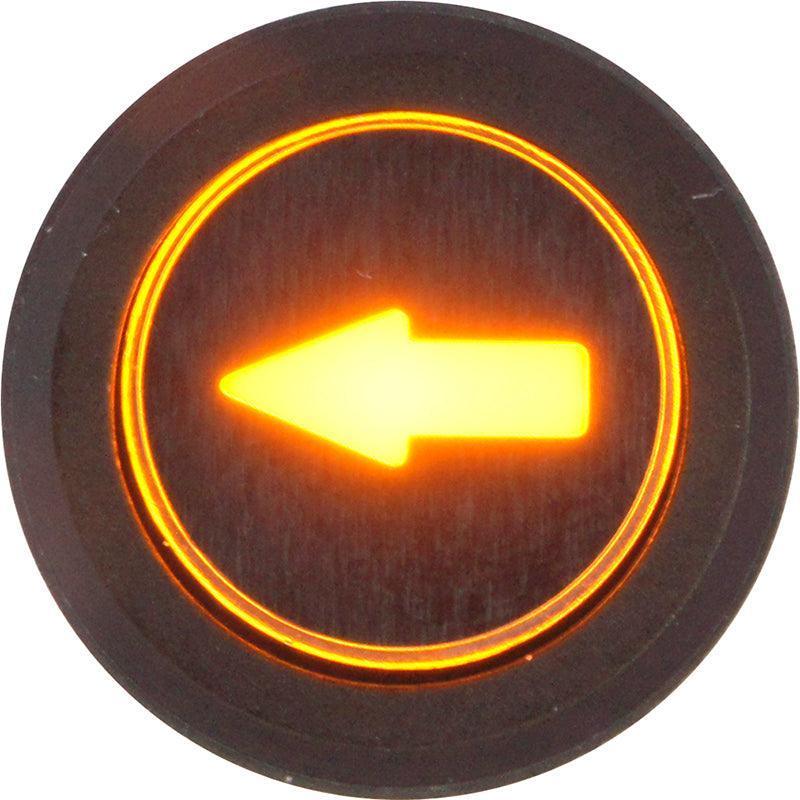

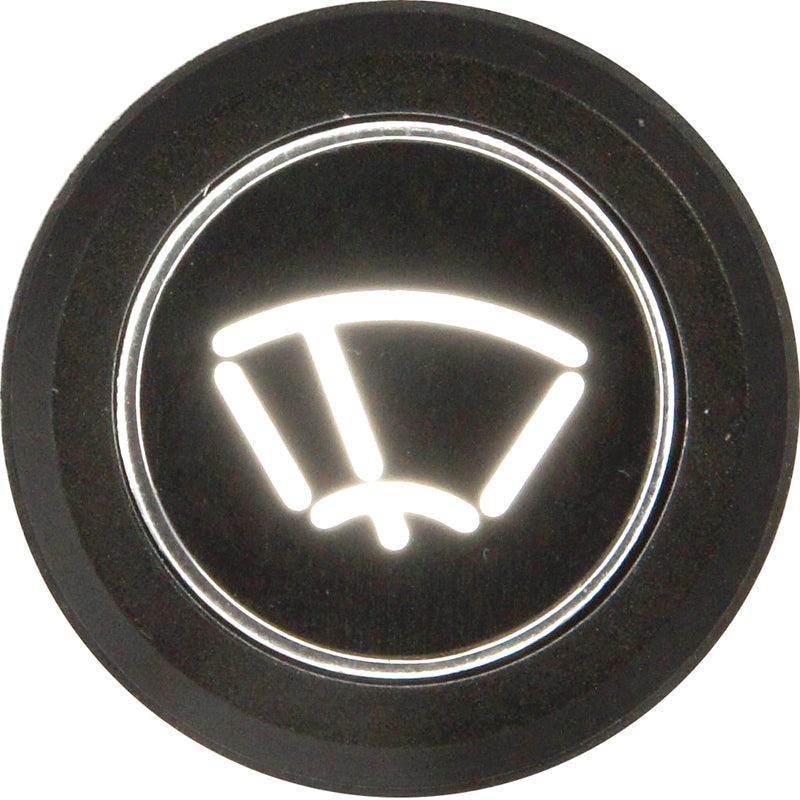

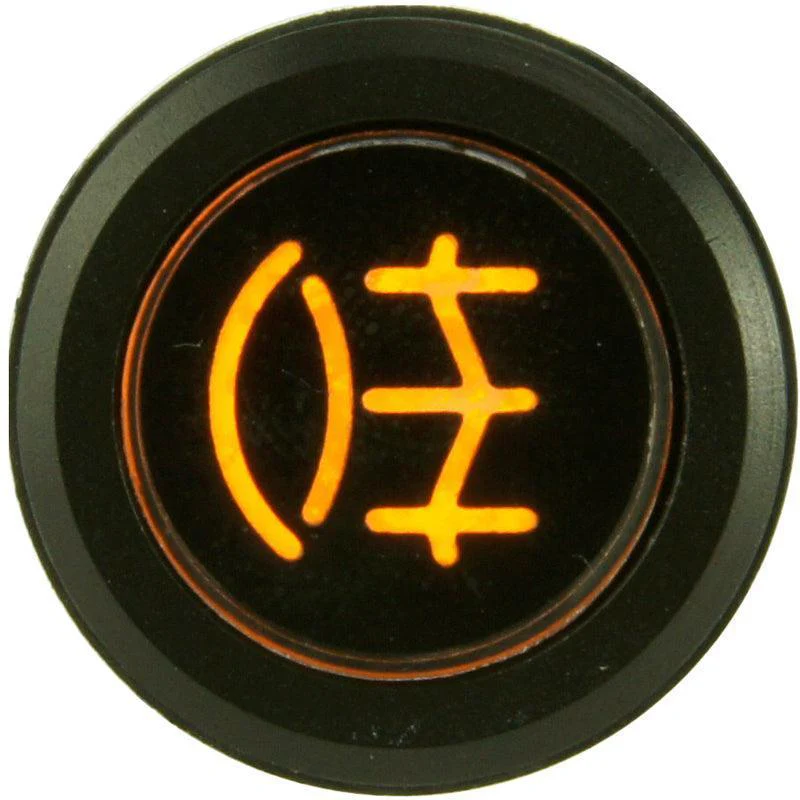

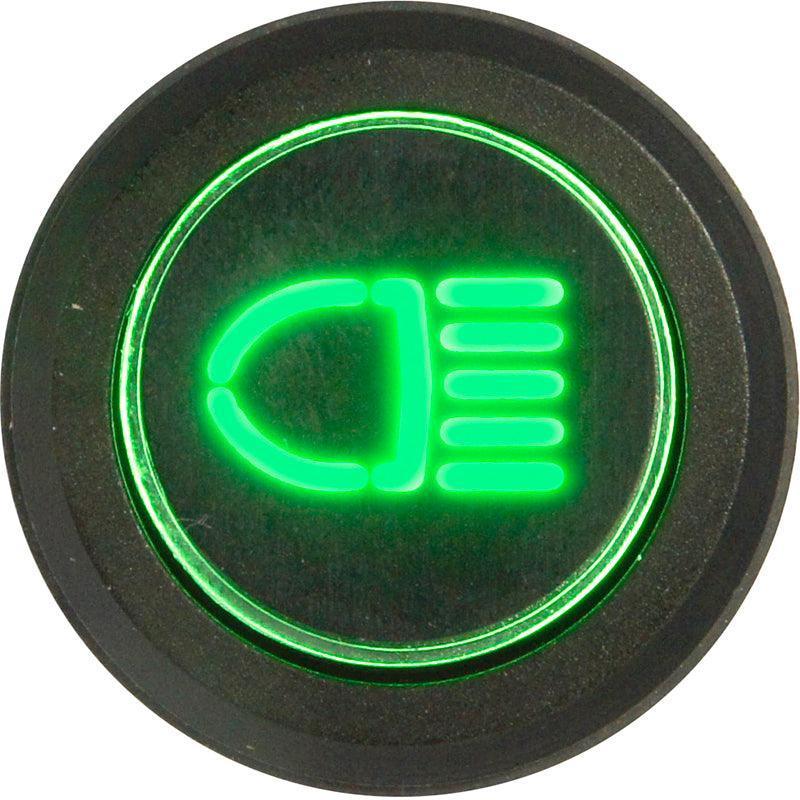

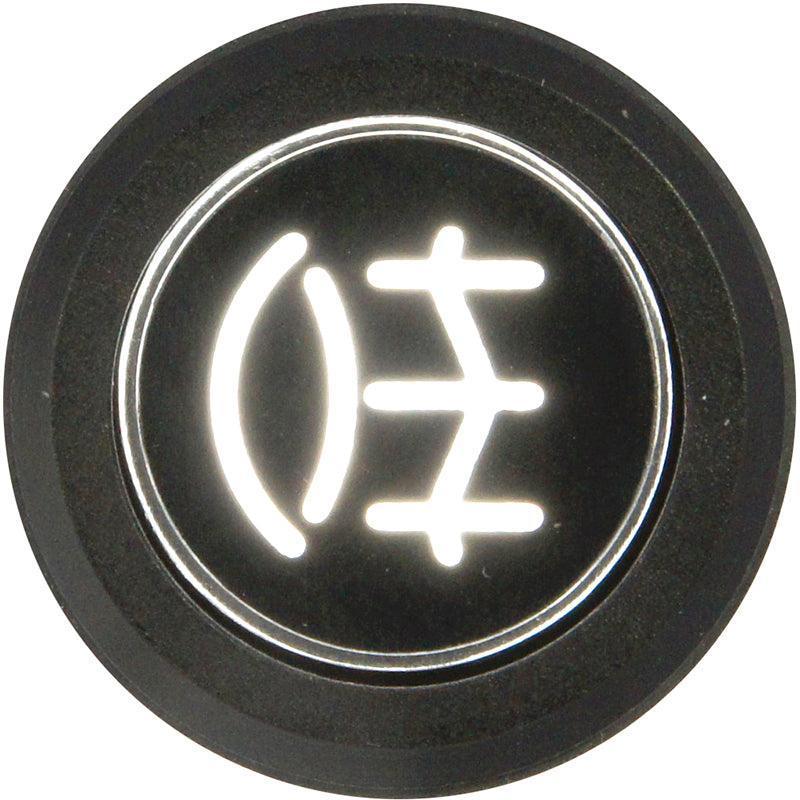

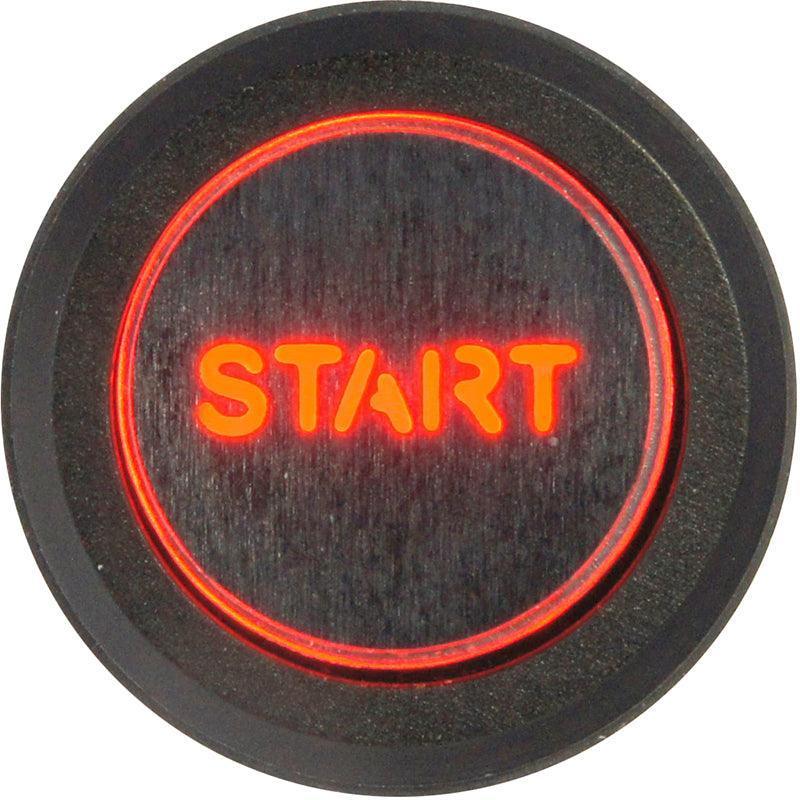

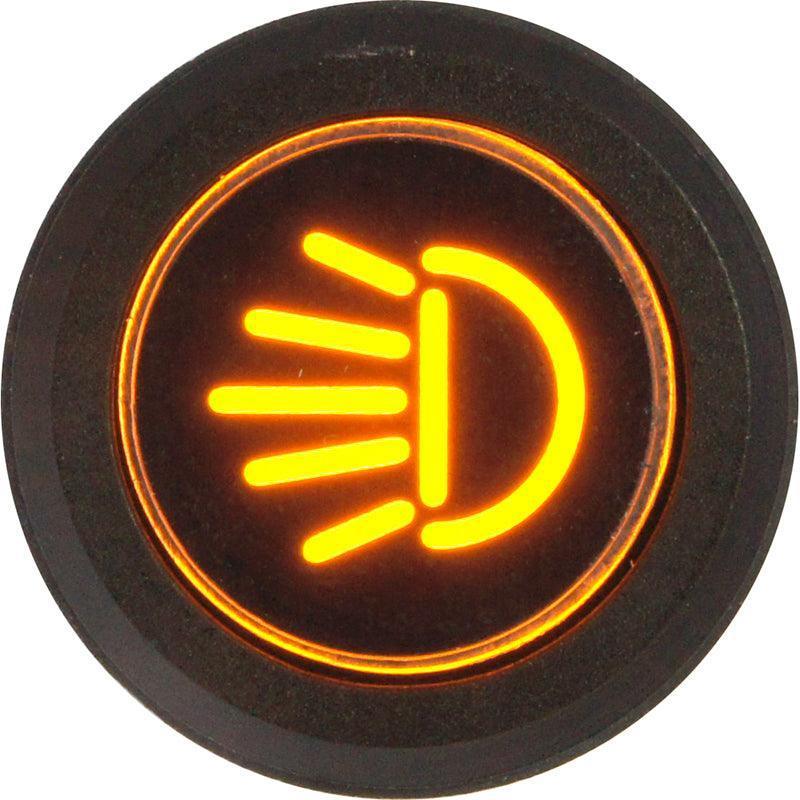

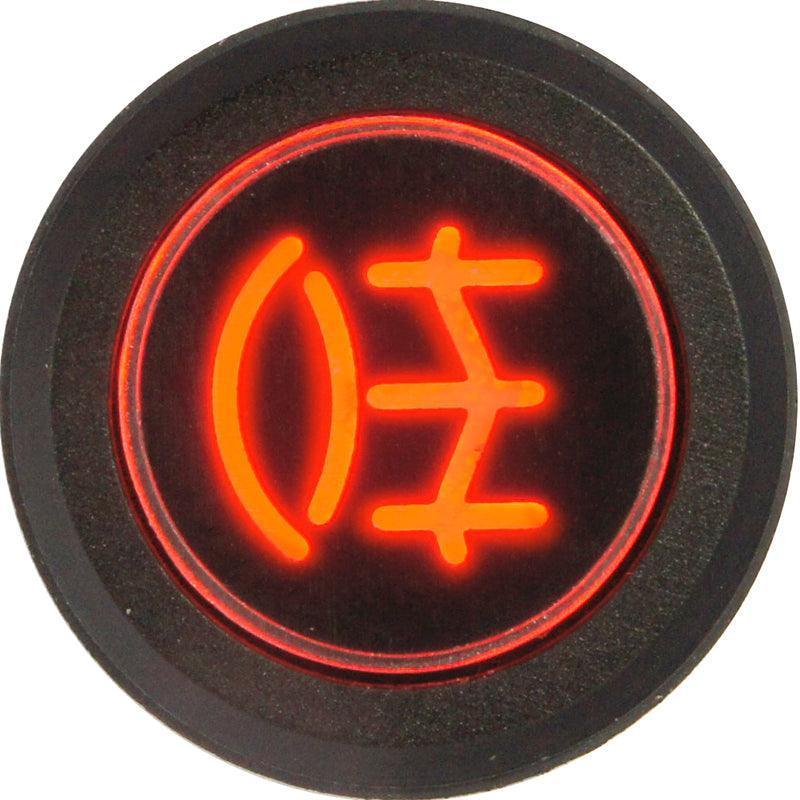

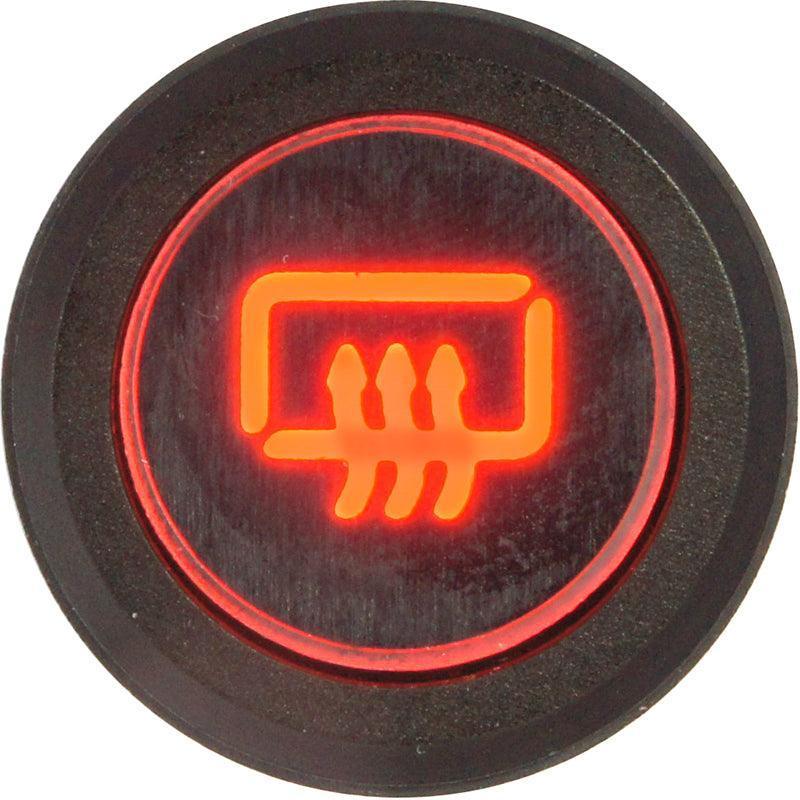

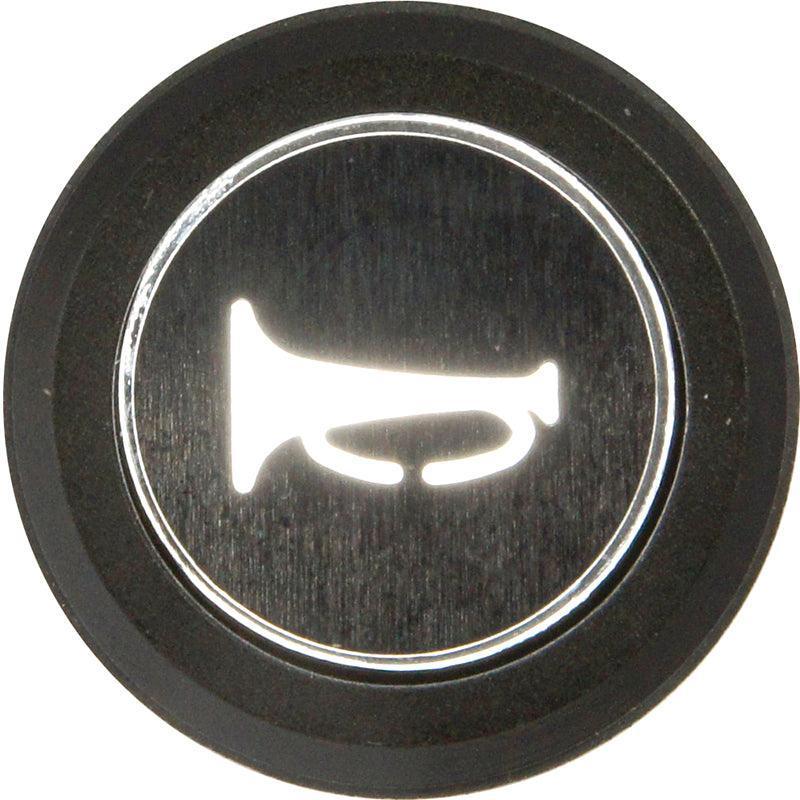

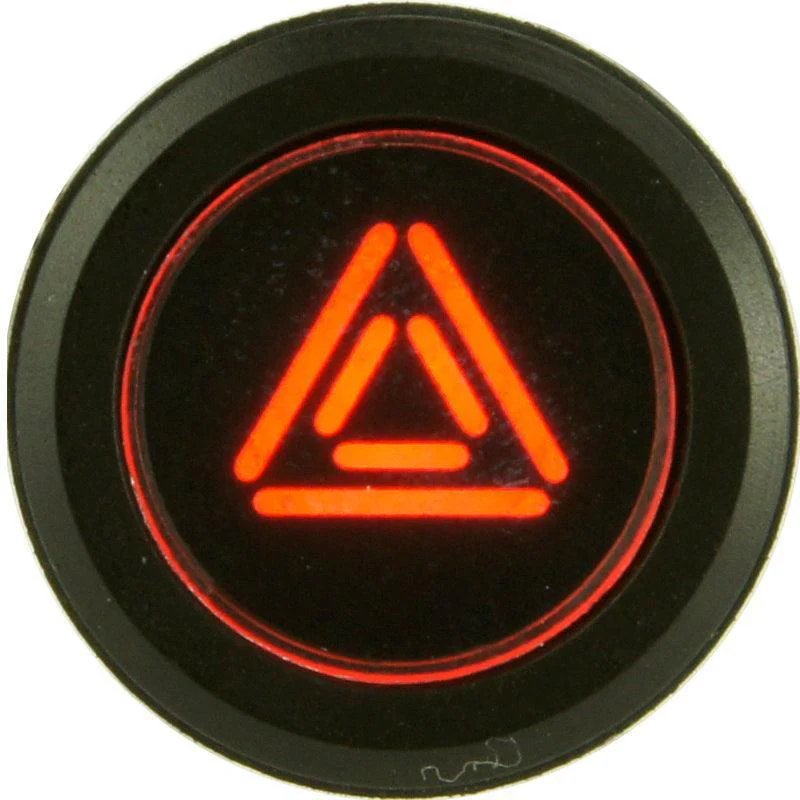

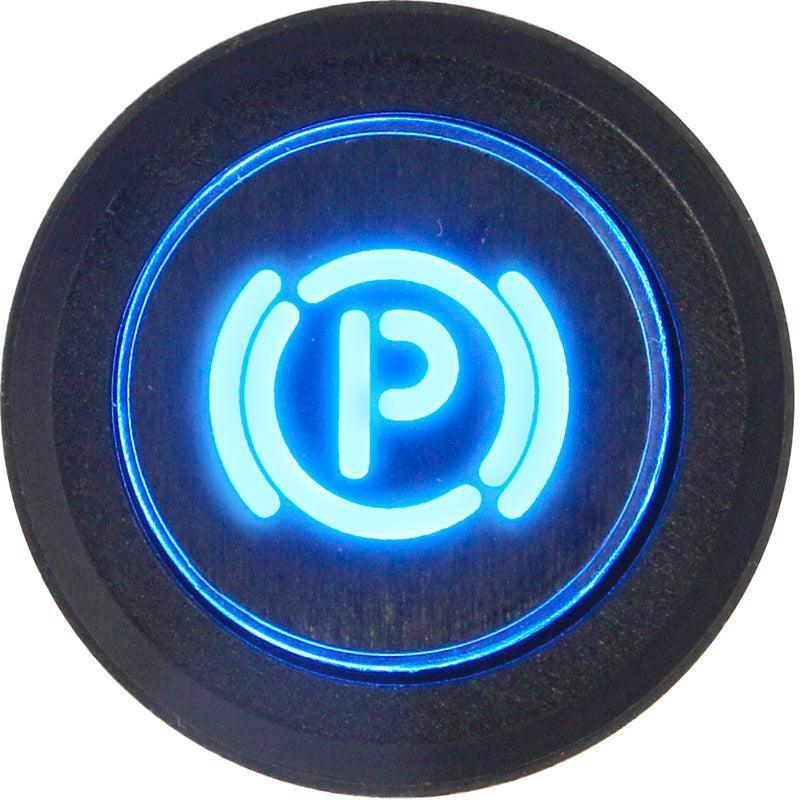

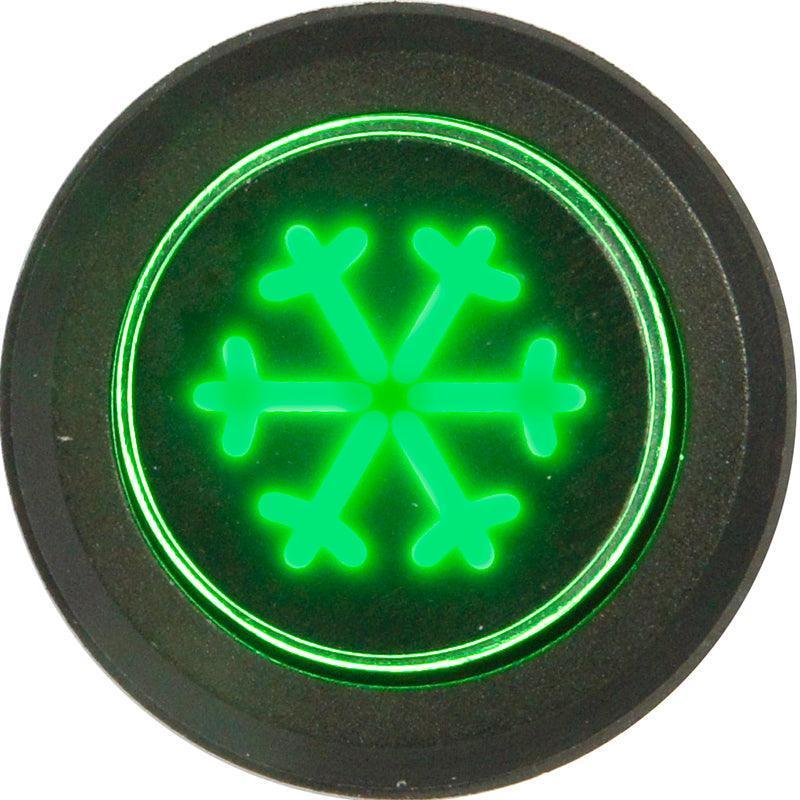

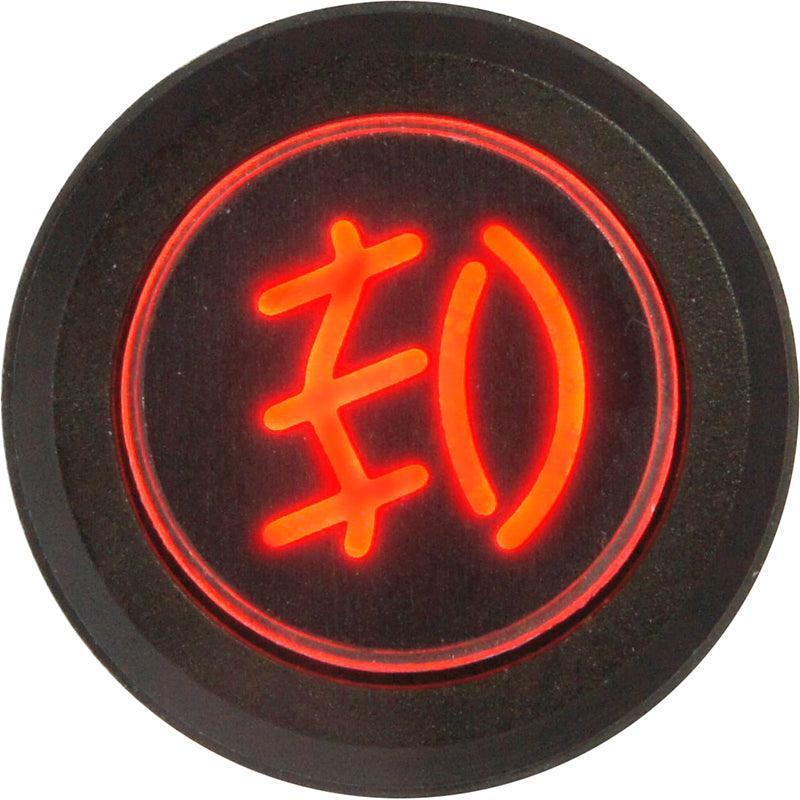

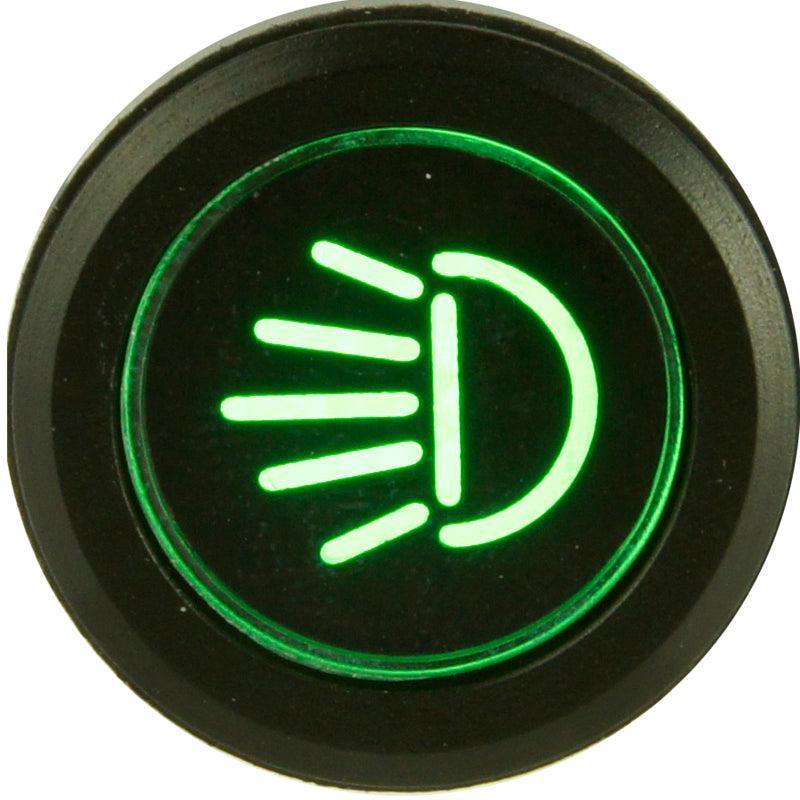

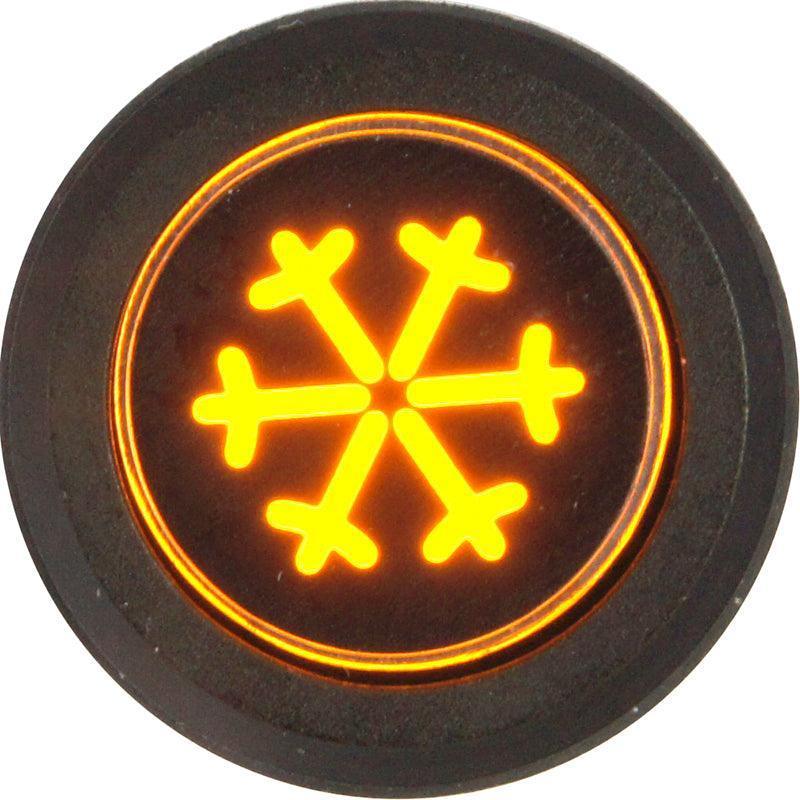

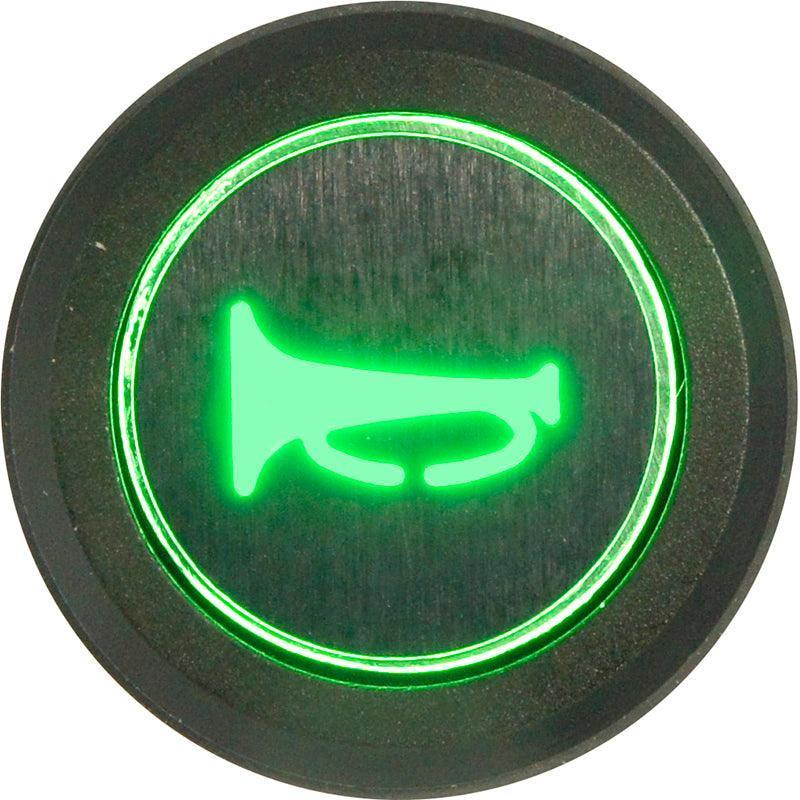

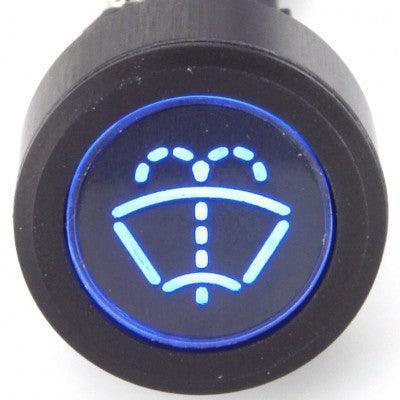

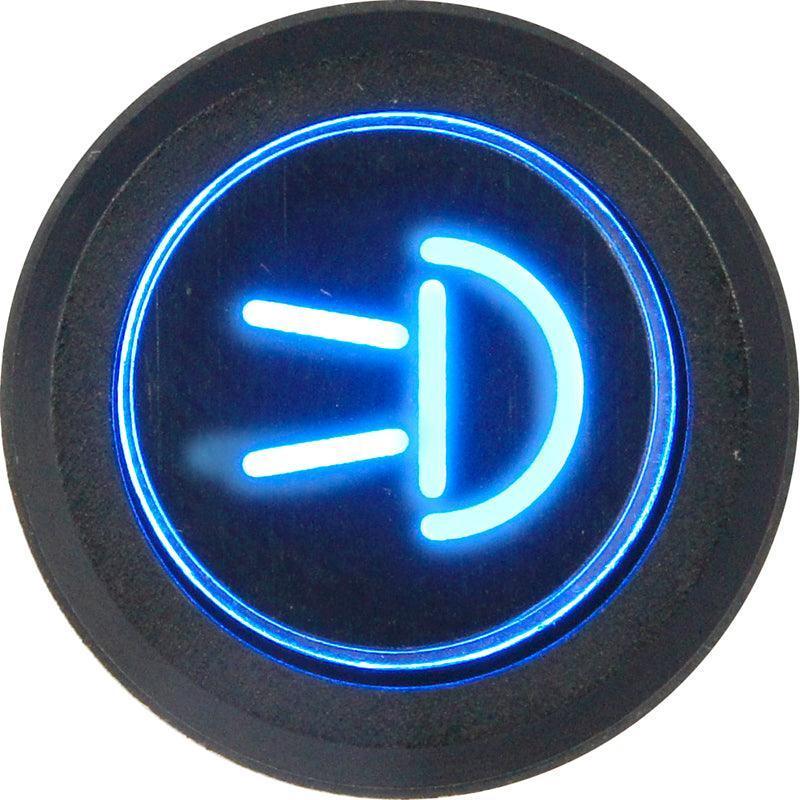

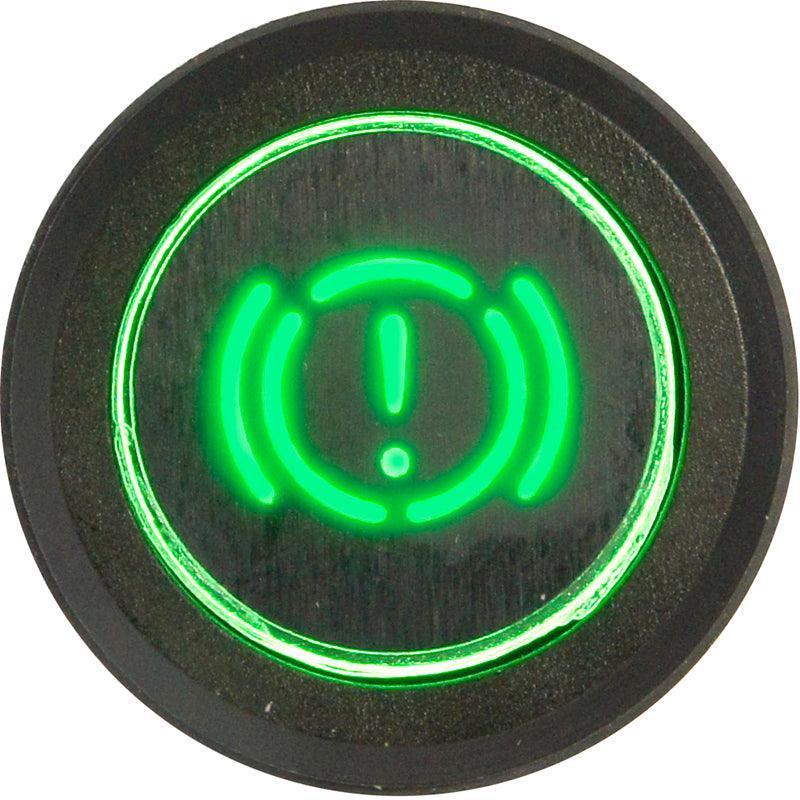

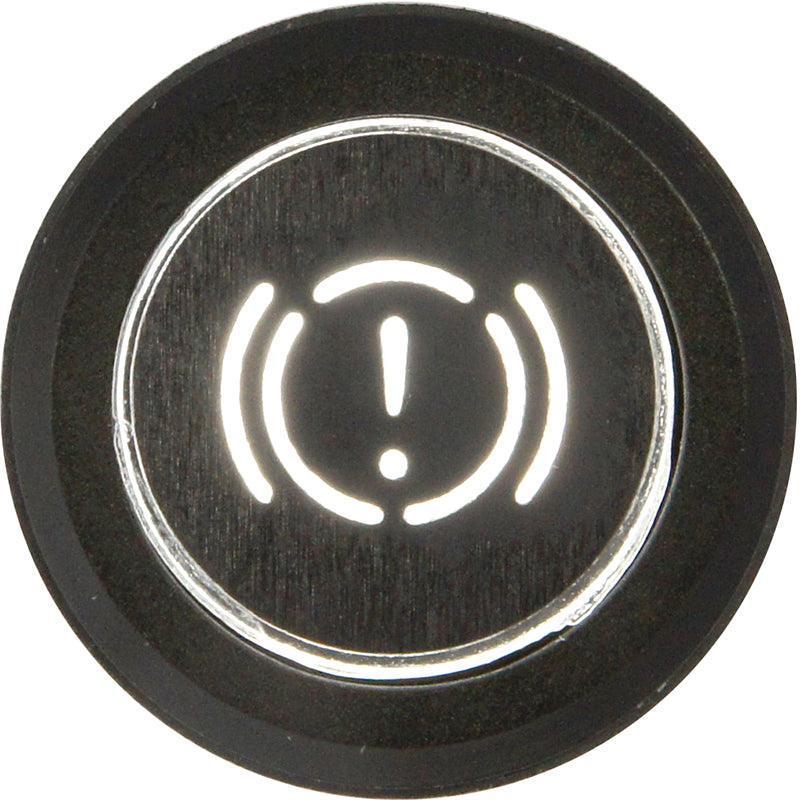

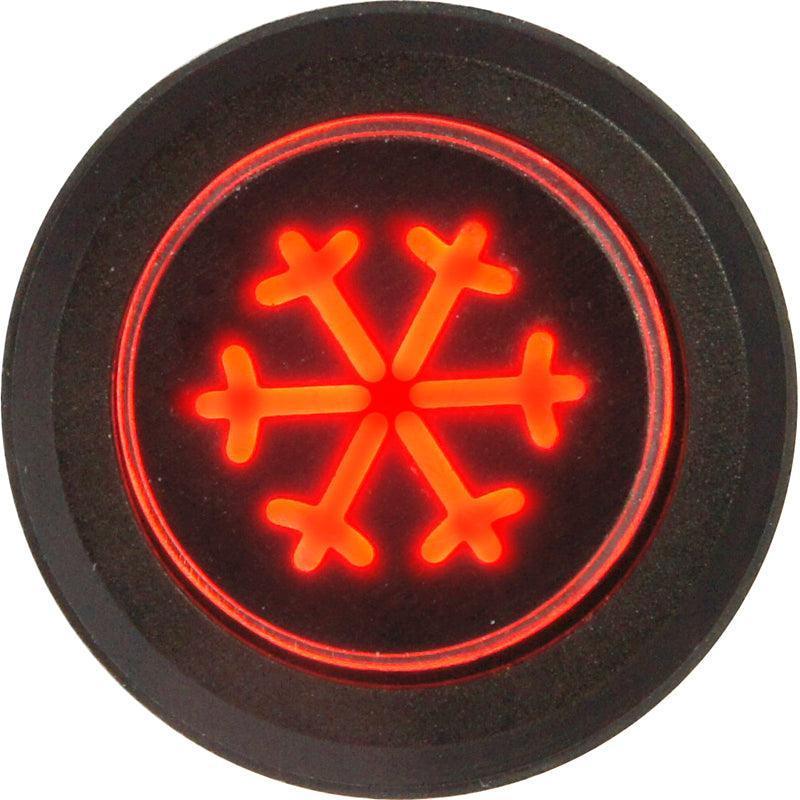

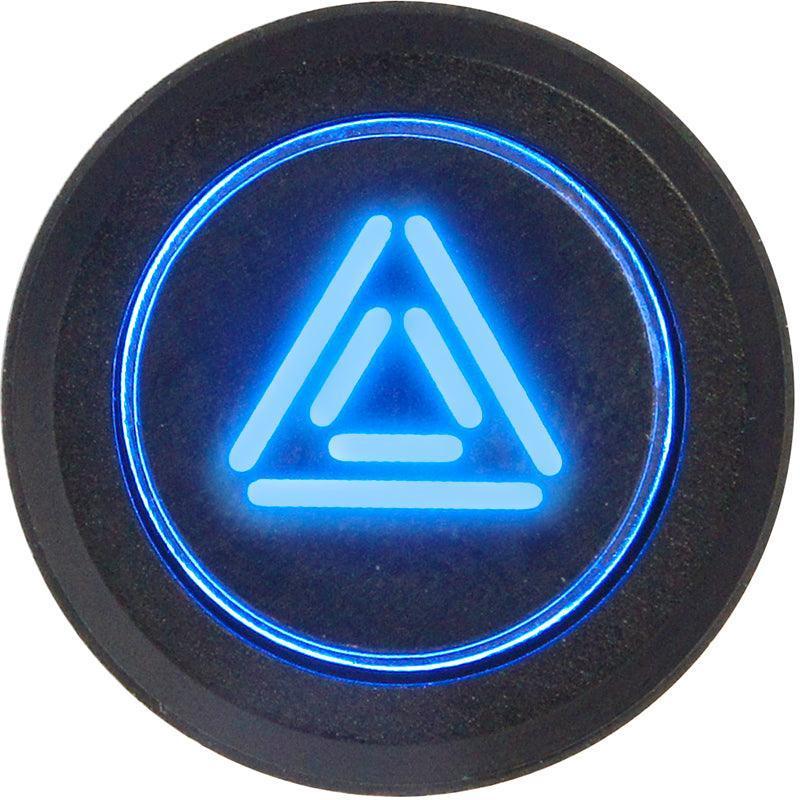

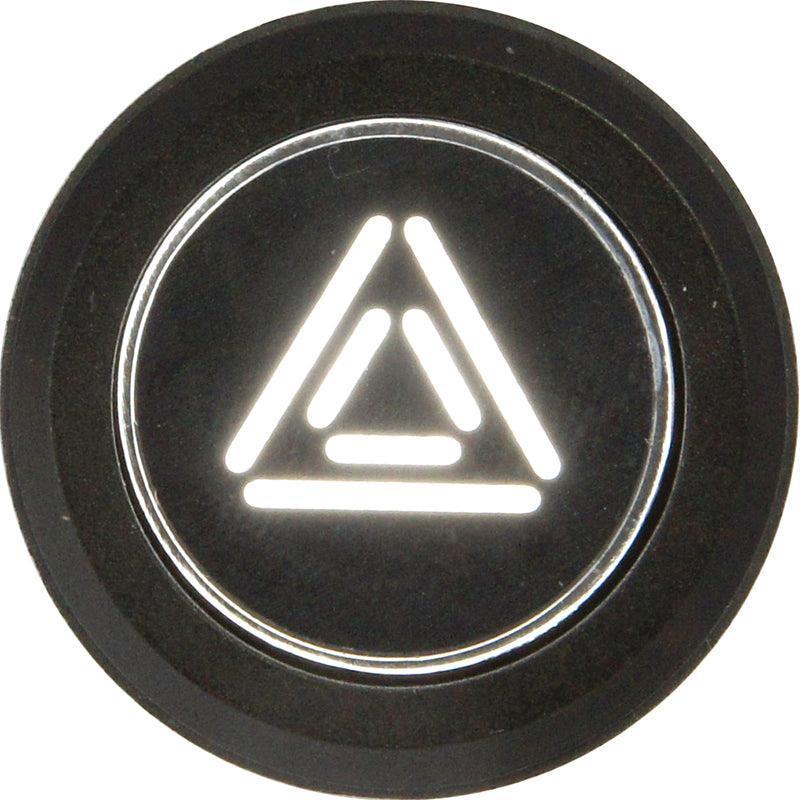

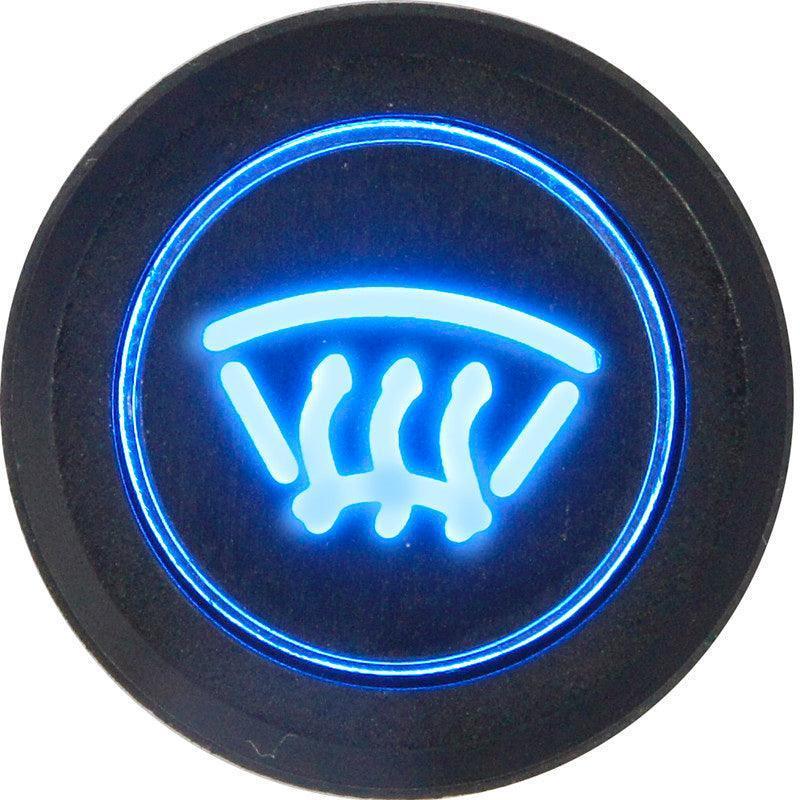

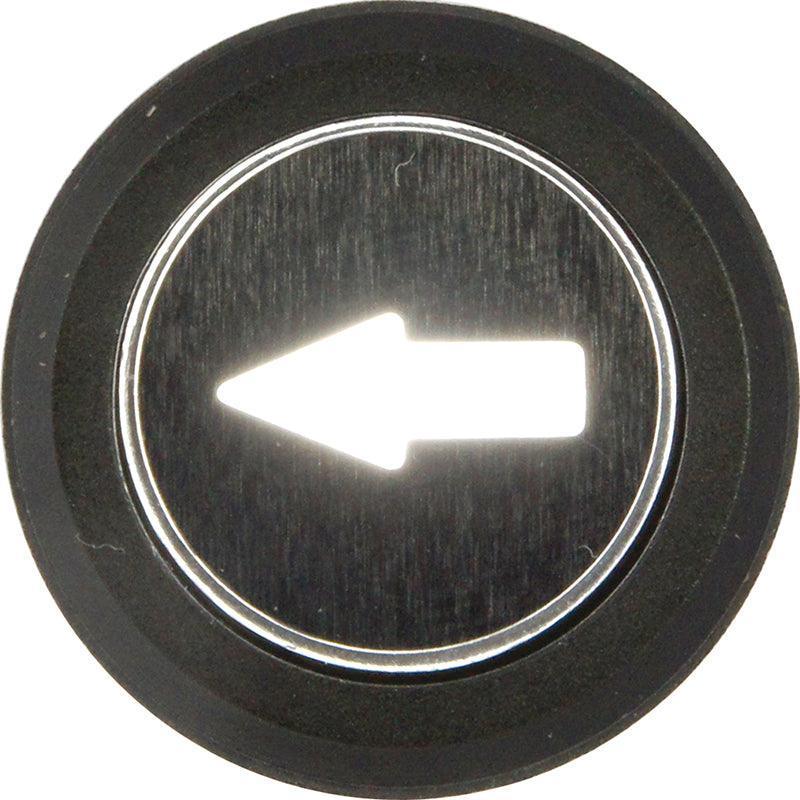

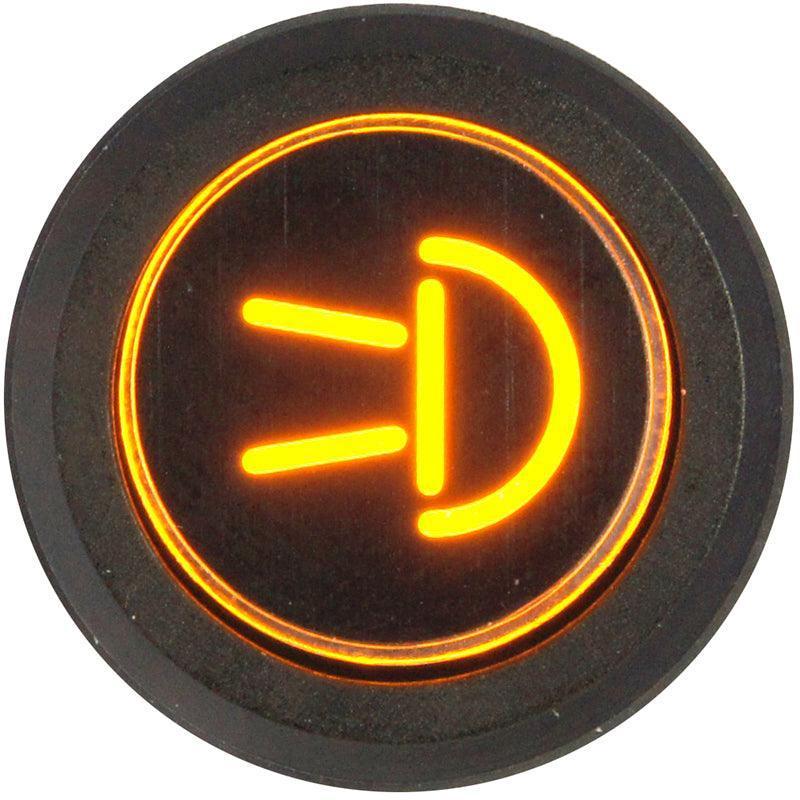

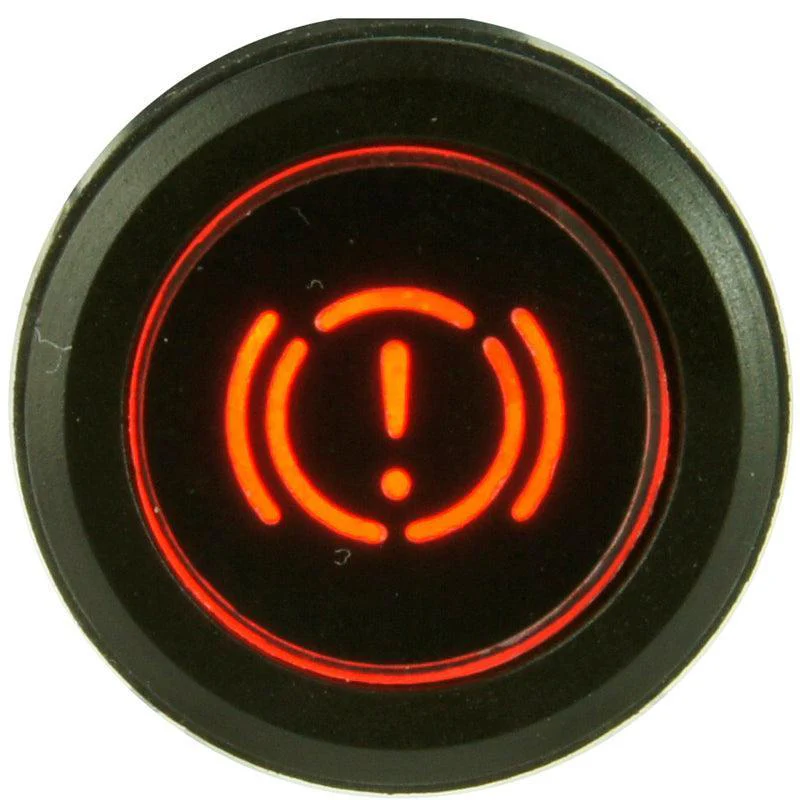

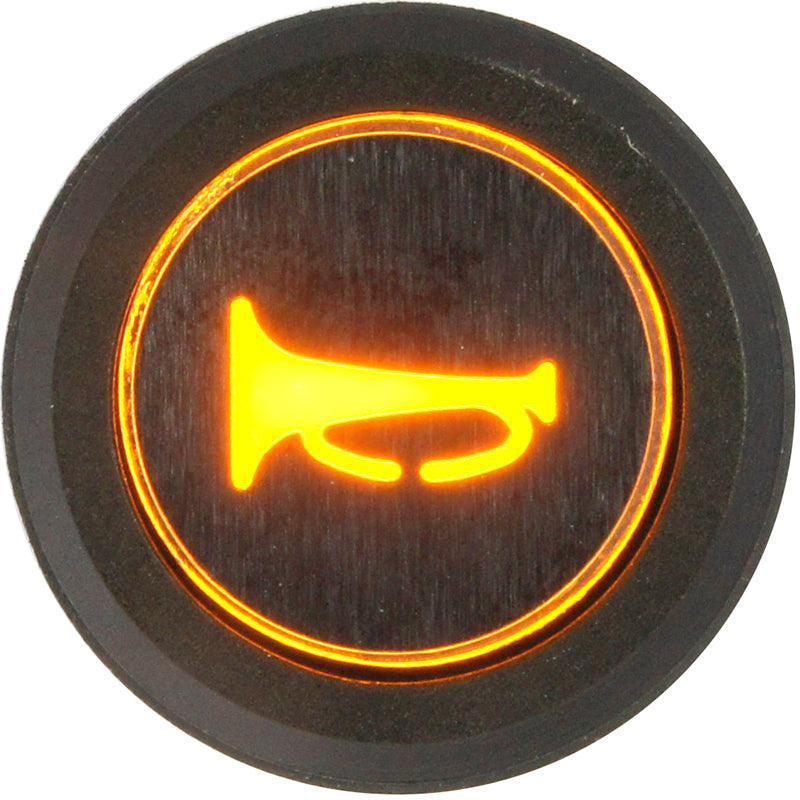

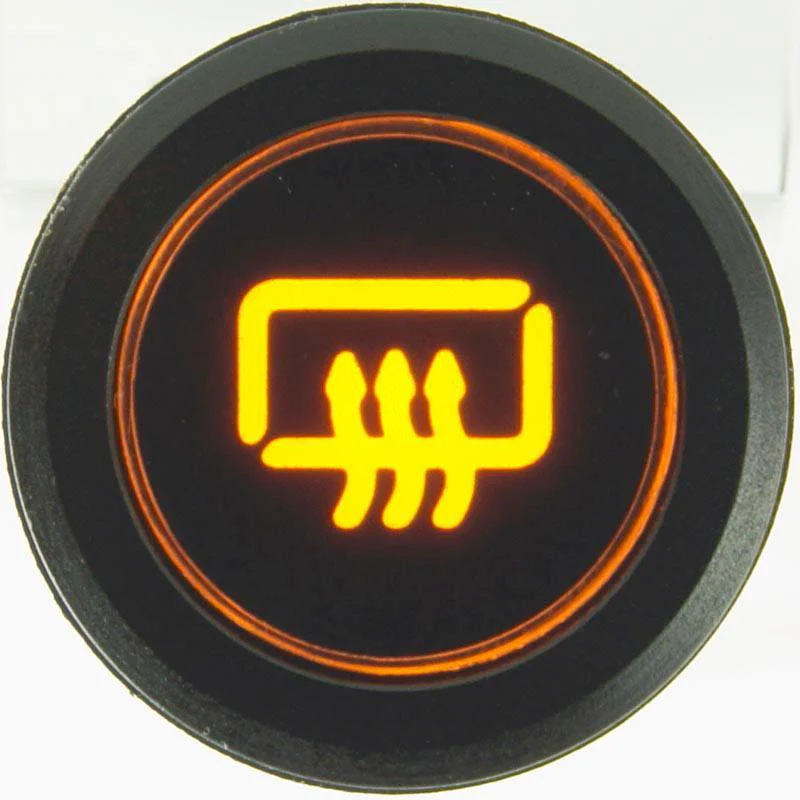

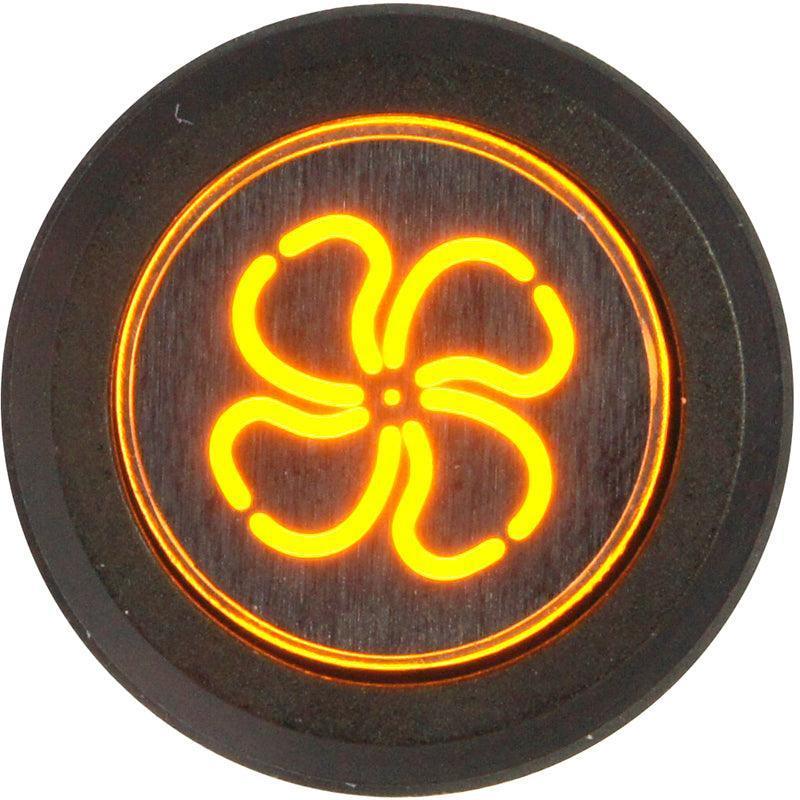

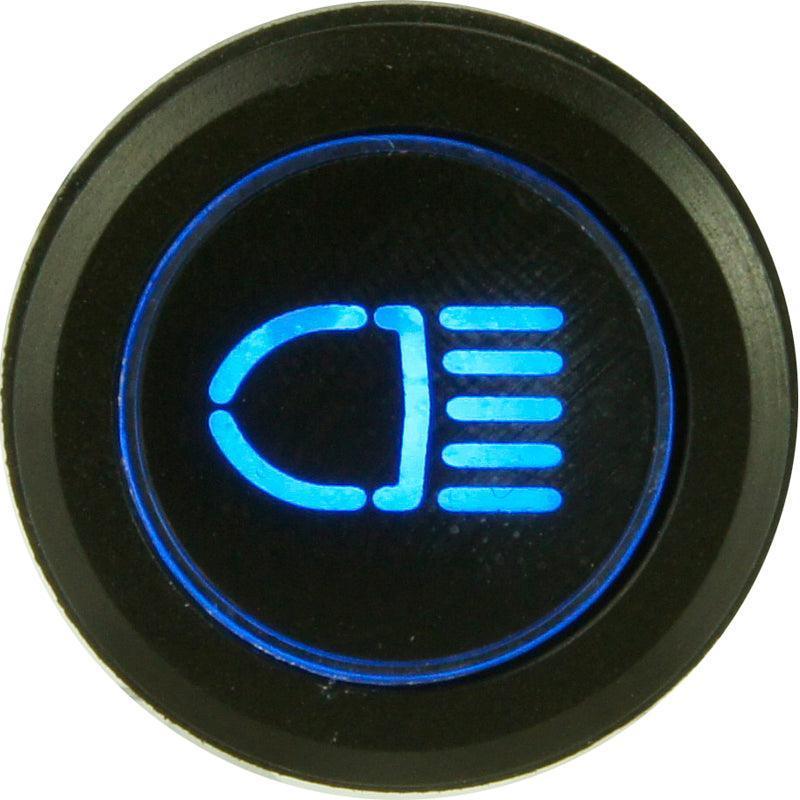

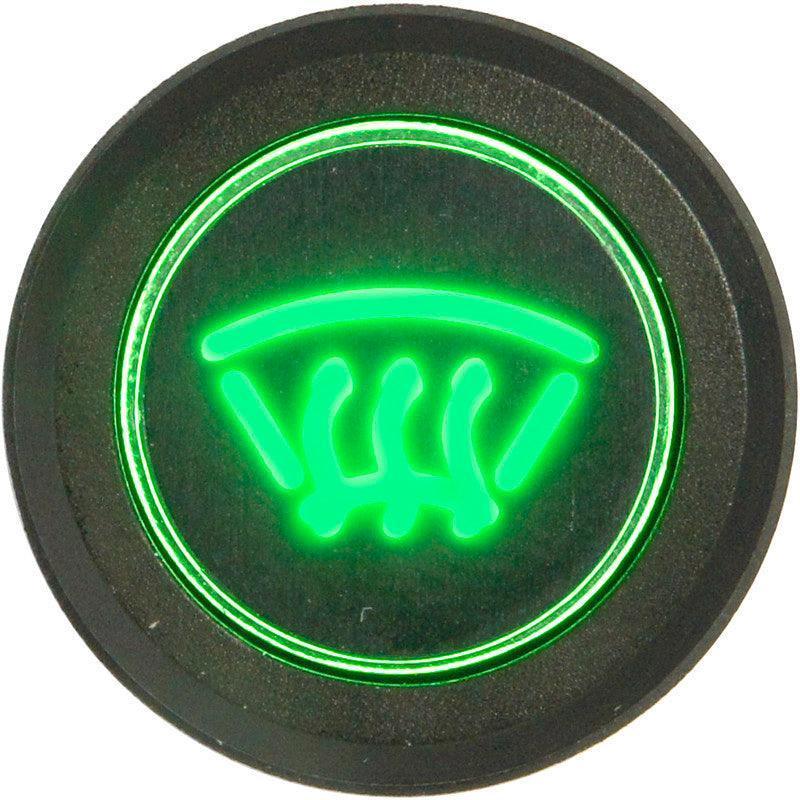

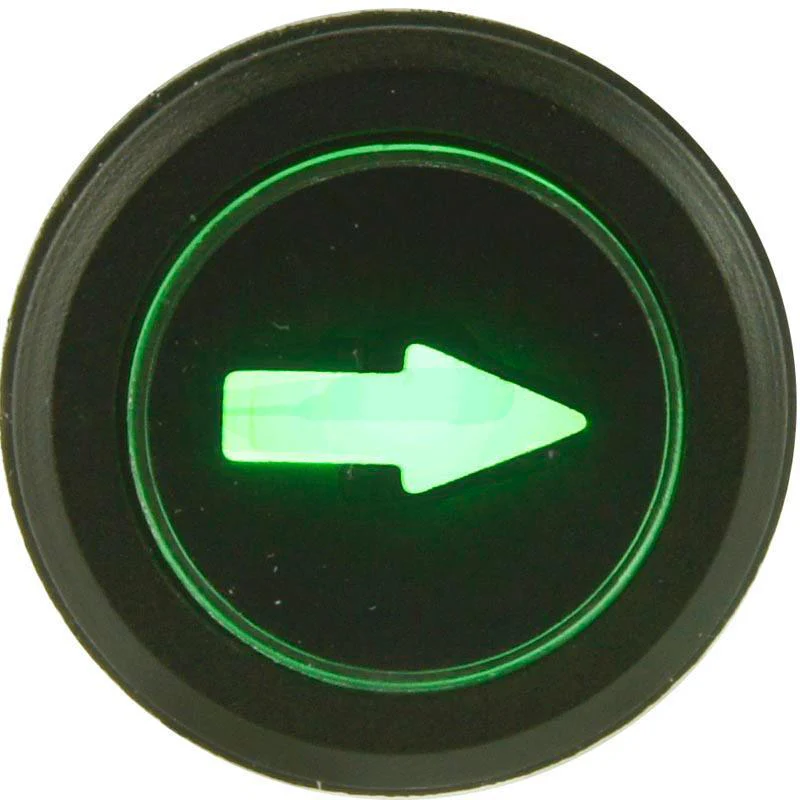

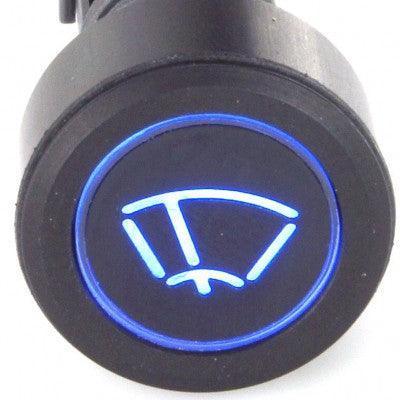

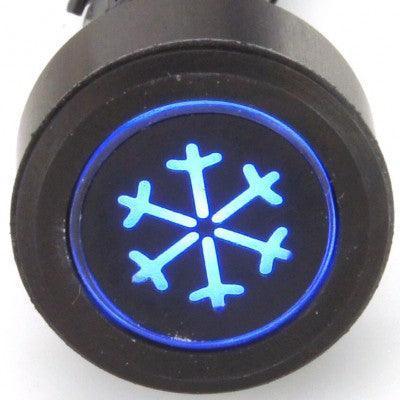

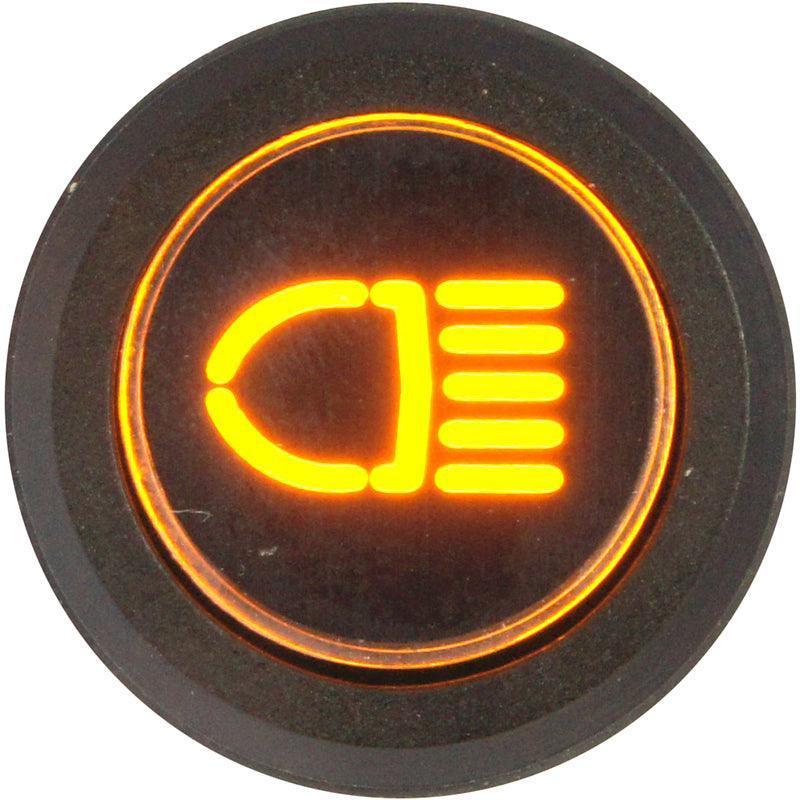

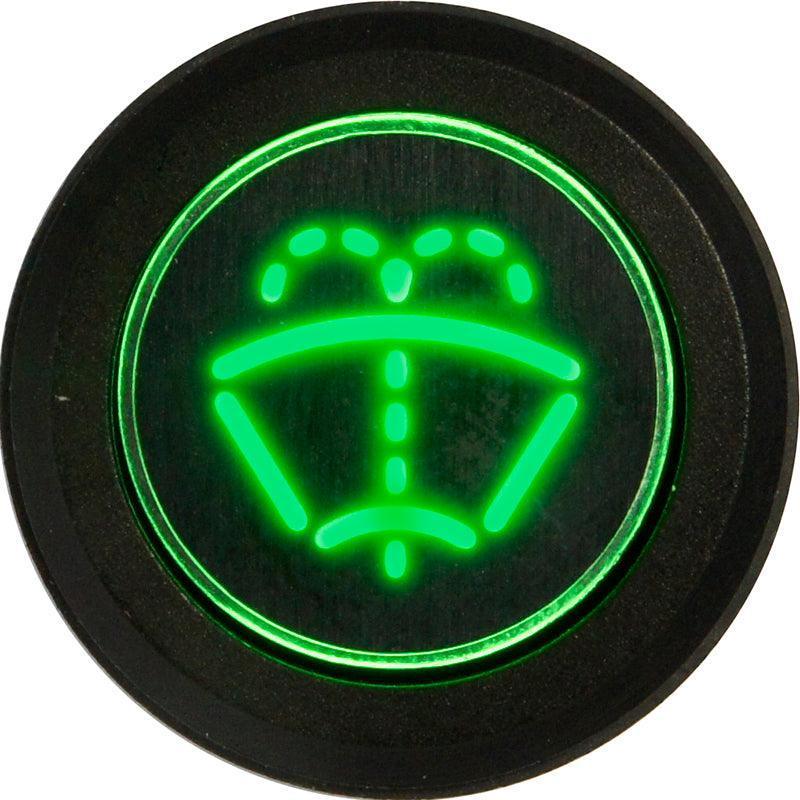

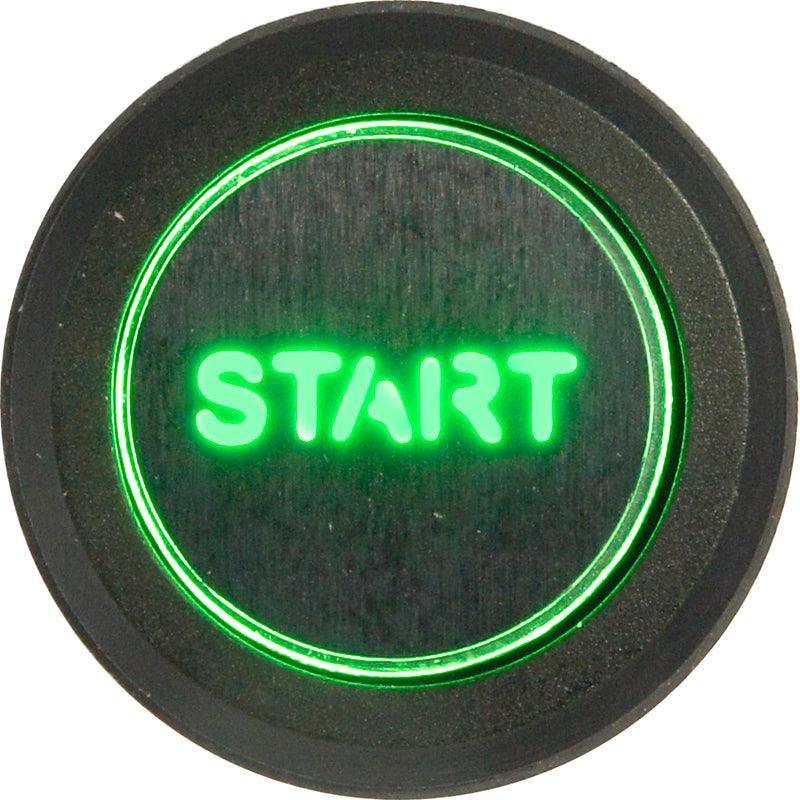

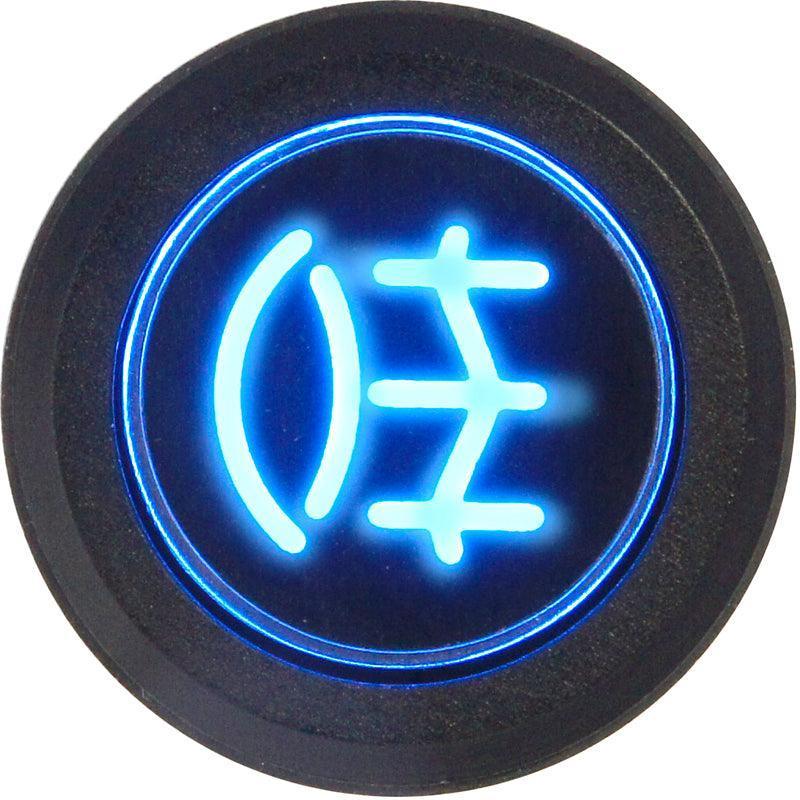

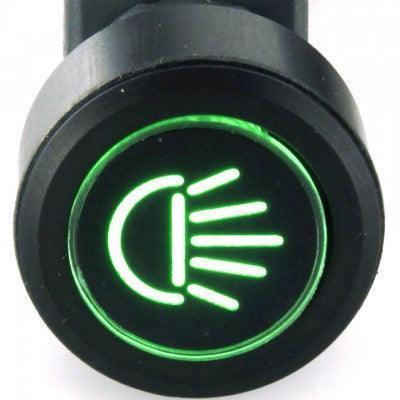

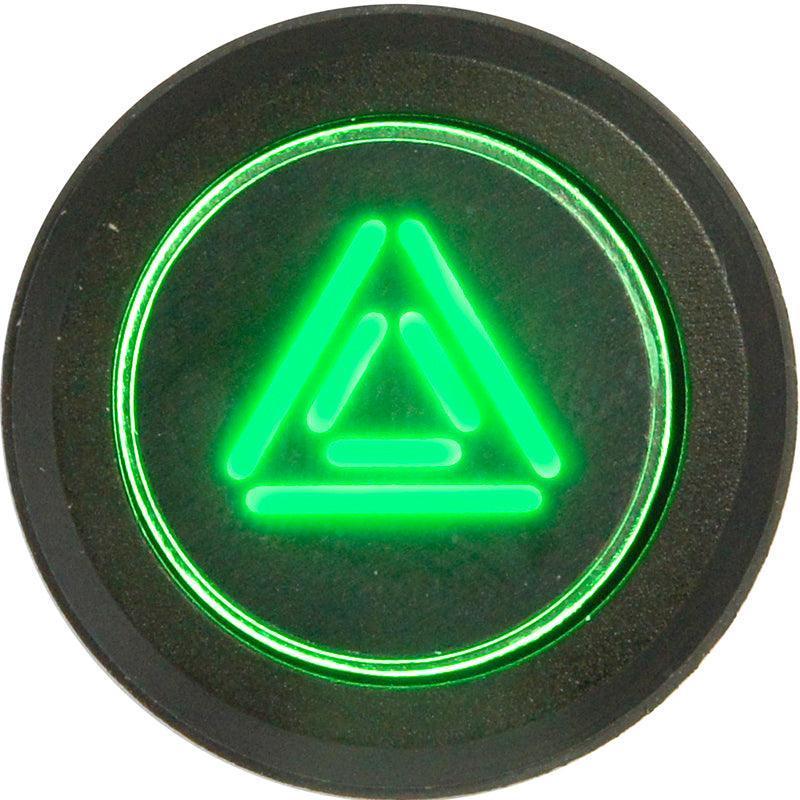

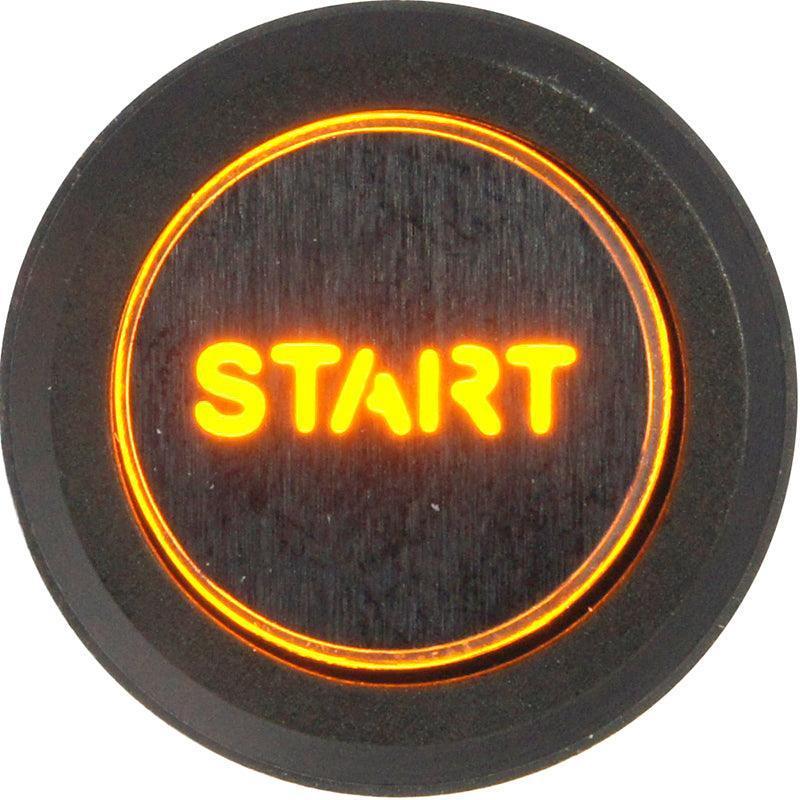

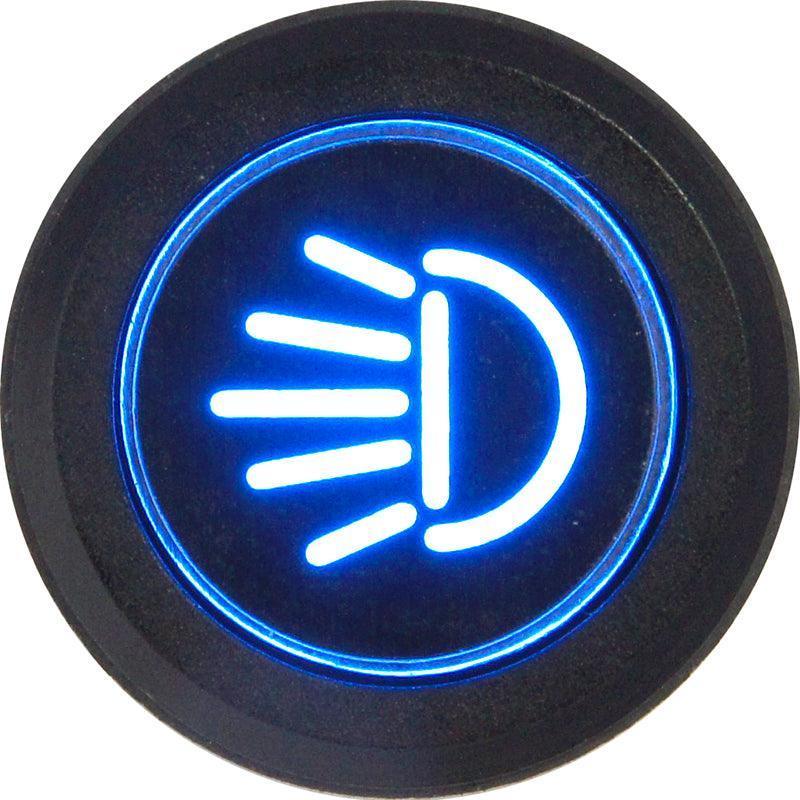

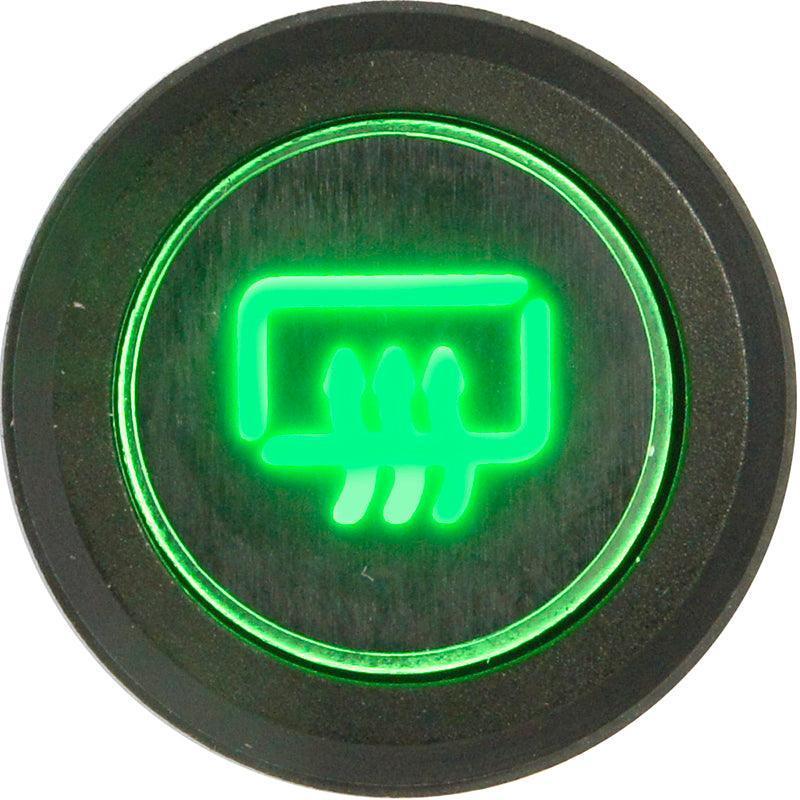

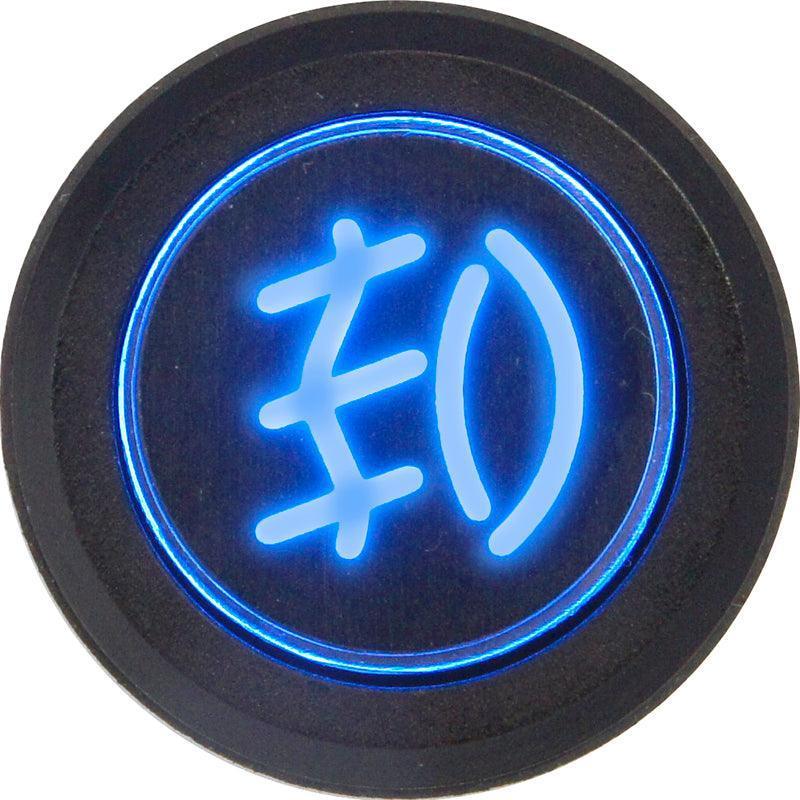

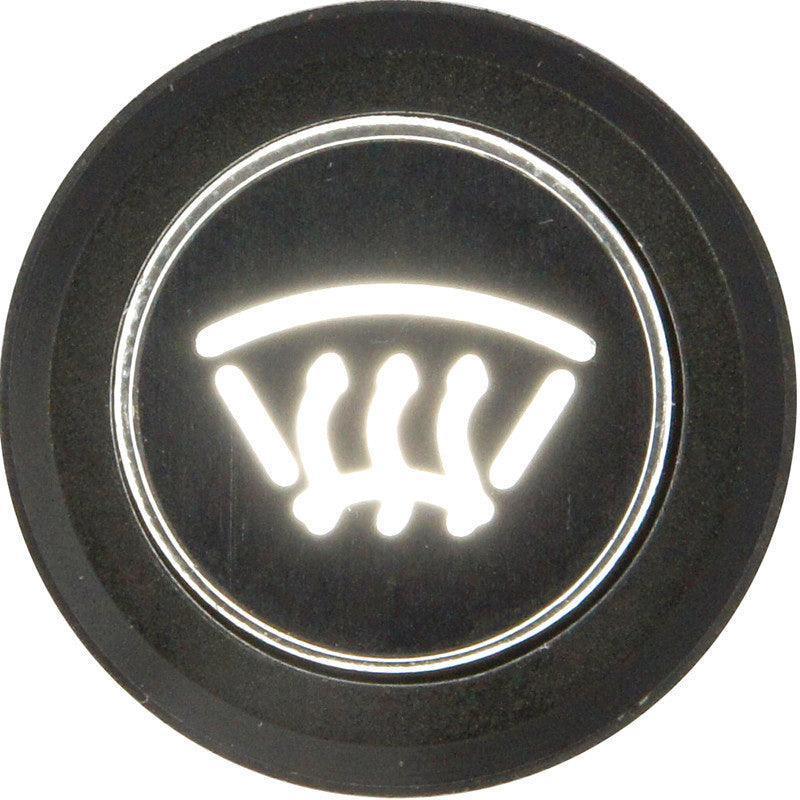

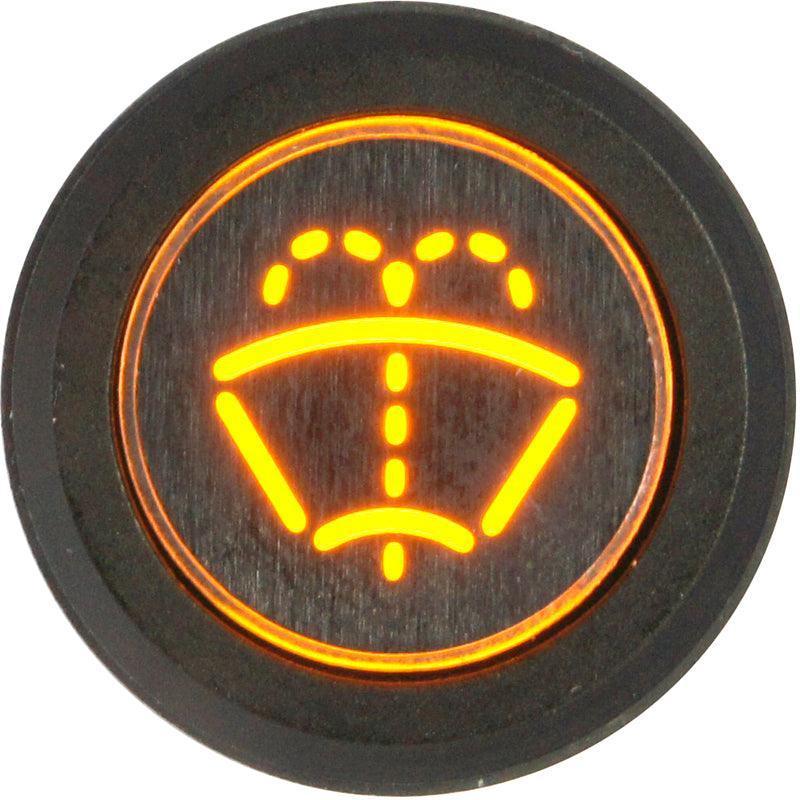

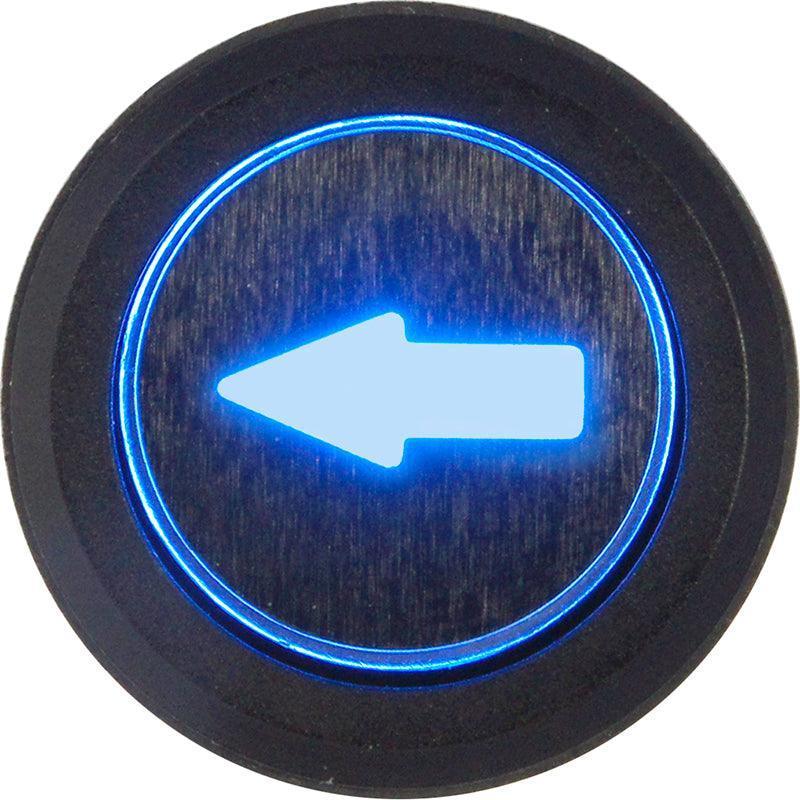

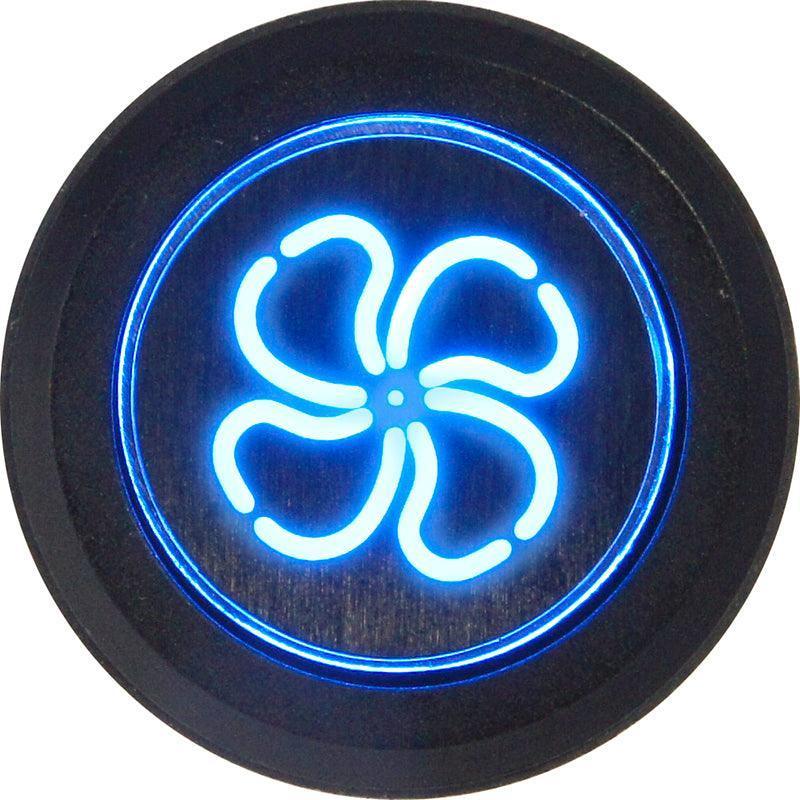

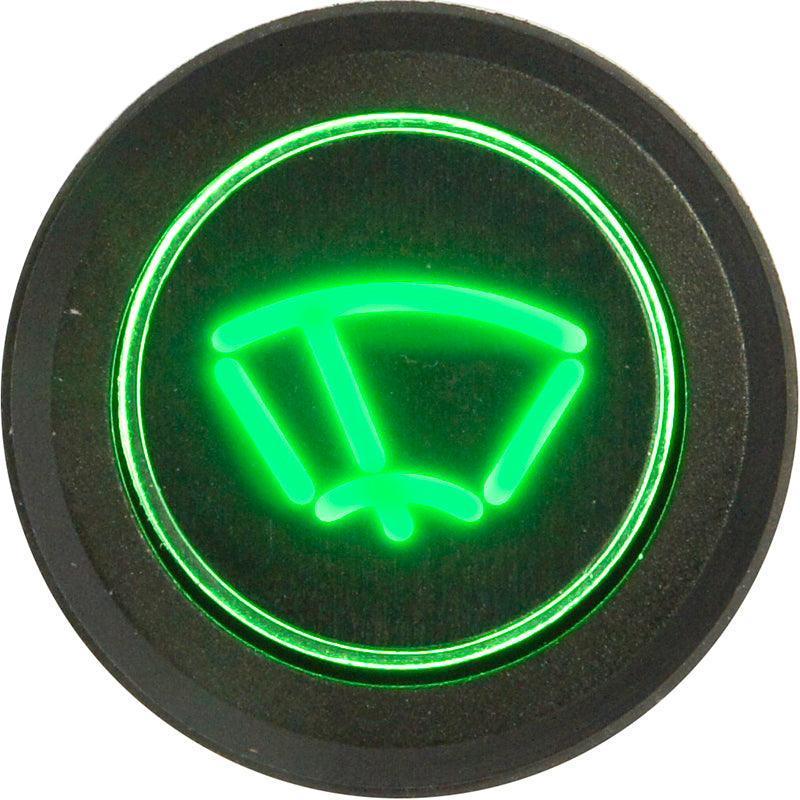

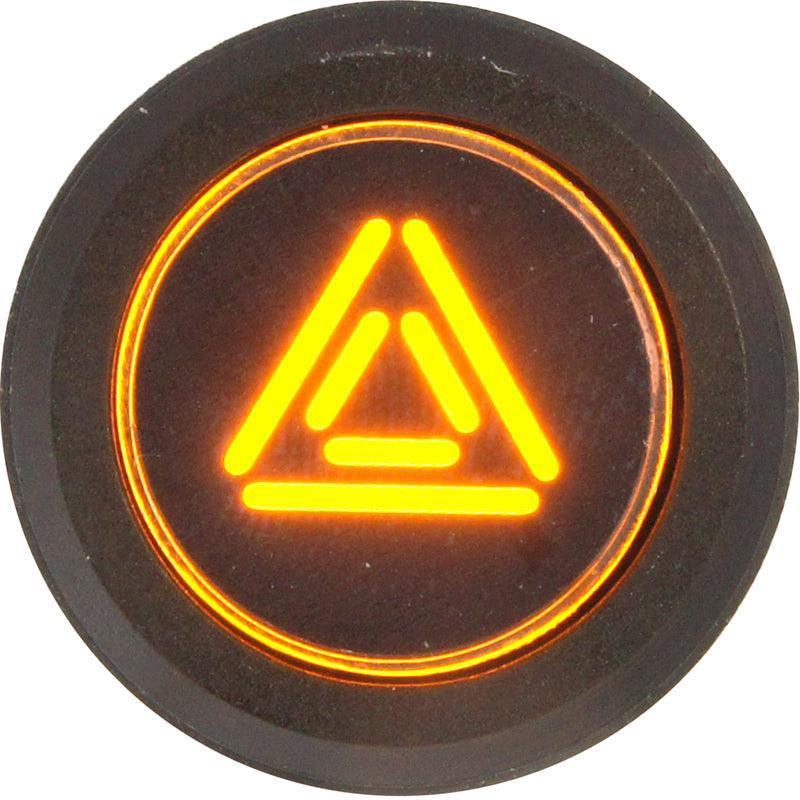

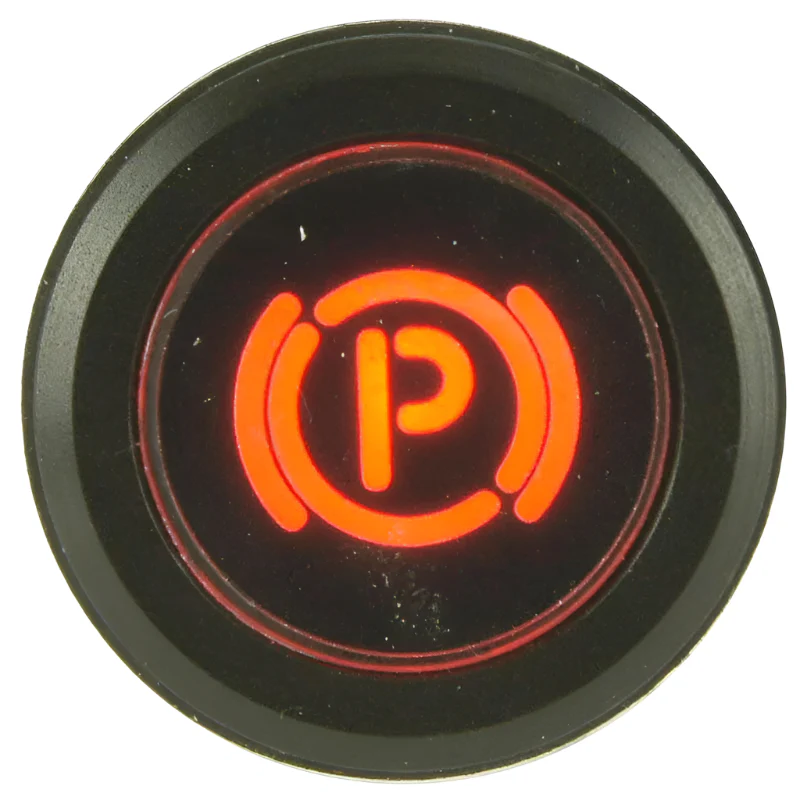

These superb CNC alloy switches (commonly know as Savage) are finished in satin black with a removable 10mm wide alloy collar which allows for flush mounting and IVA compliance. The face of the switch has a CNC engraved legend with full LED illumination.

All switches have a single illumination as standard, this is a stand alone circuit so can be wired to either illuminate with sidelights or to illuminate with the switch itself in the 'ON' position.  However a 'Dim/Bright' kit (BSWDIM) is available to provide a dim illumination when your sidelights are on and then a bright illumination when the switch is activated.

This latching version stays in the on position when pressed and requires pressing again to turn off.

Black Billet Aluminium Switch

• LED Illumination
• Latching   ( Push On - Push Again Off)

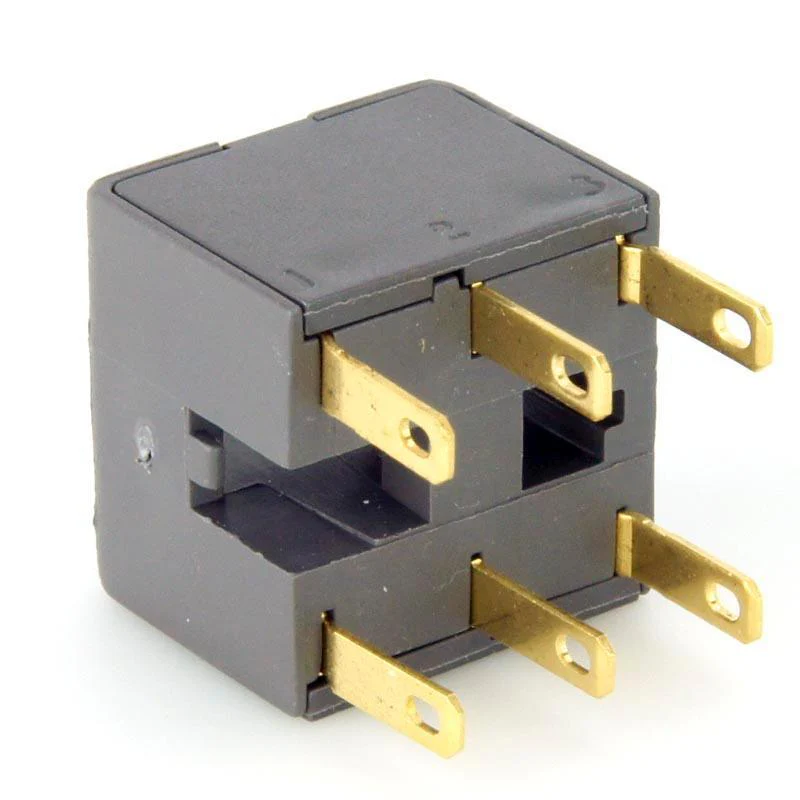

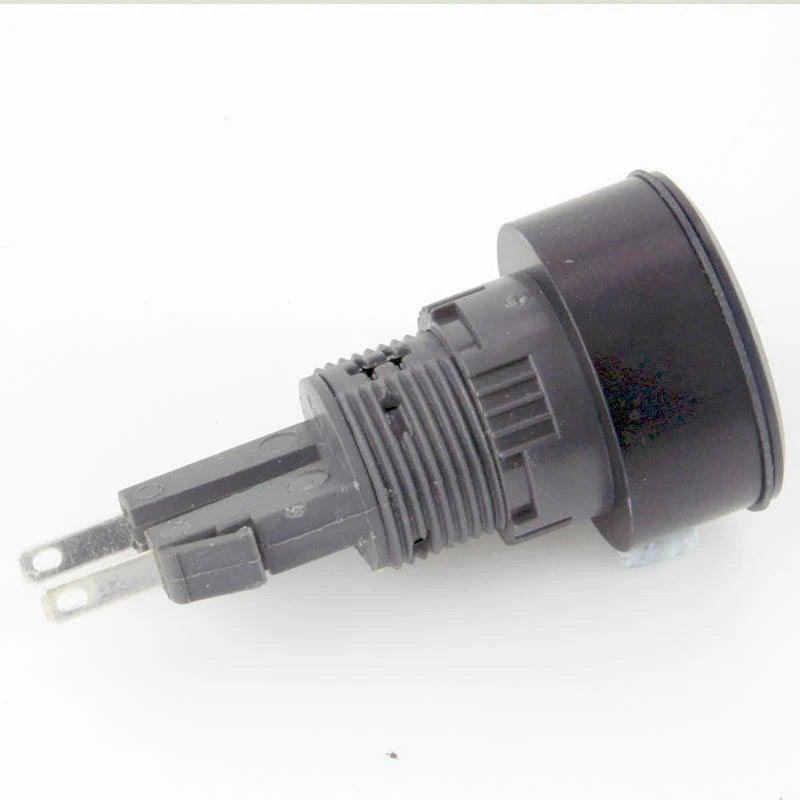

• ¹⁄₈" Male spade terminals

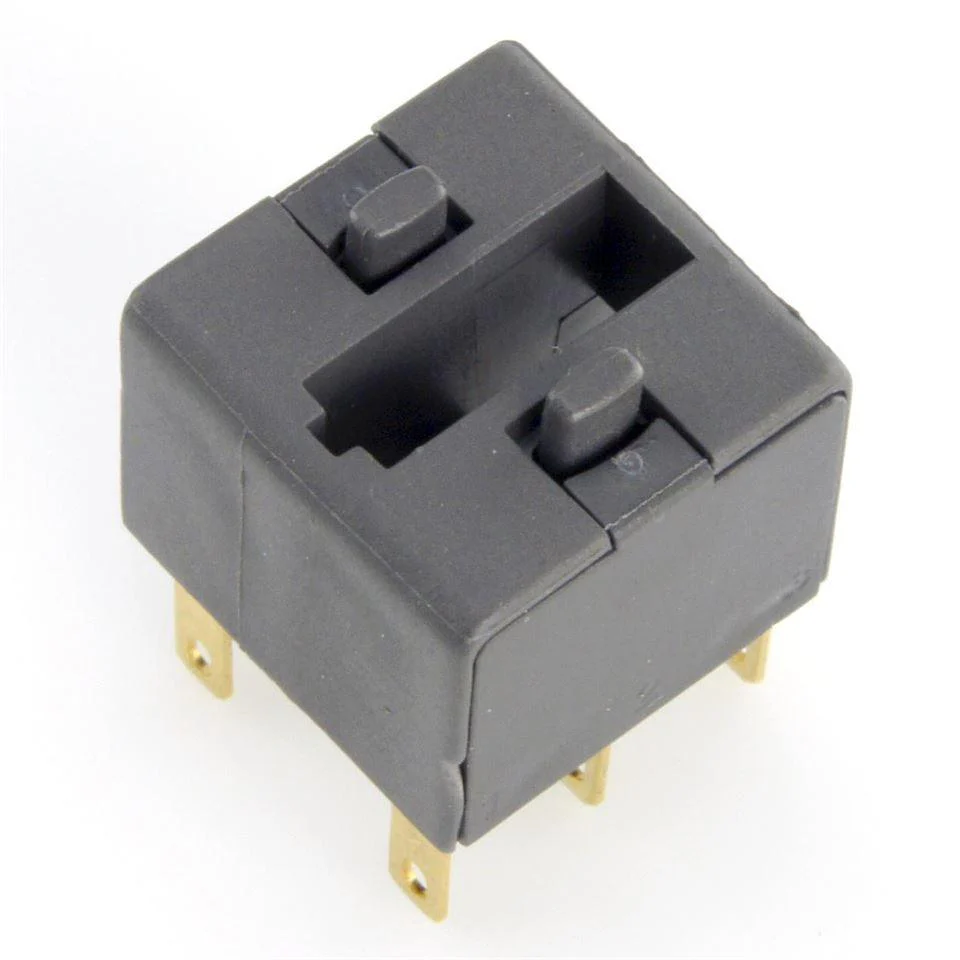

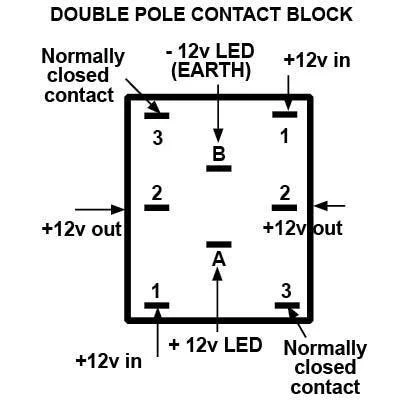

• Single or Double Pole Options

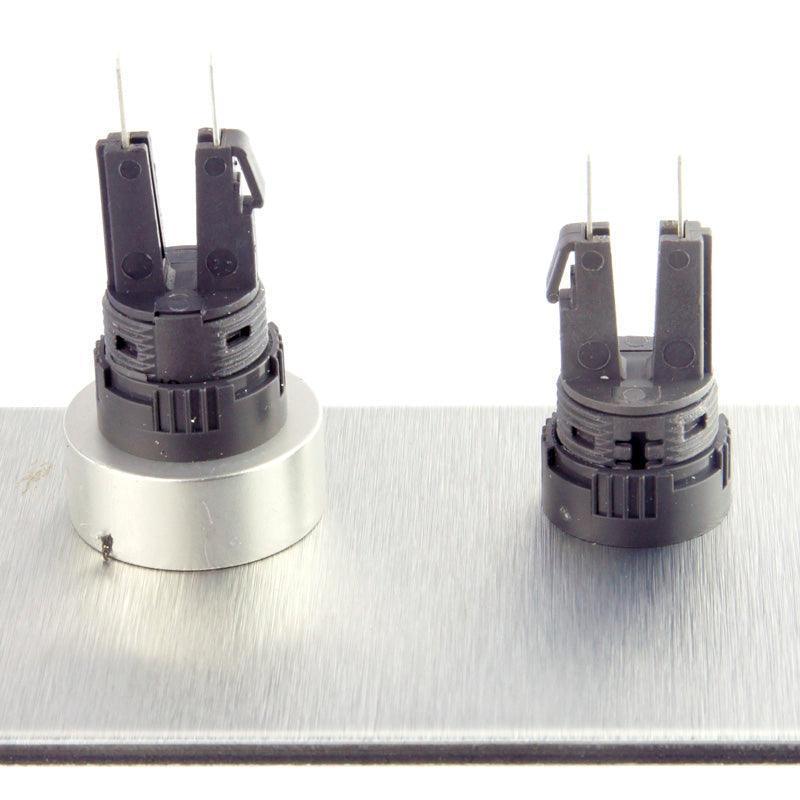

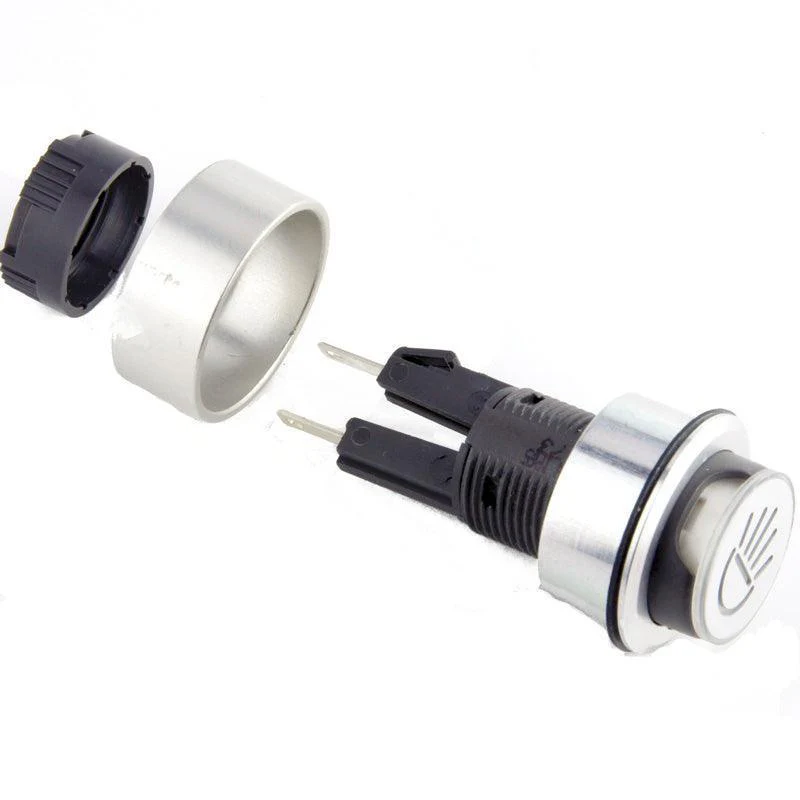

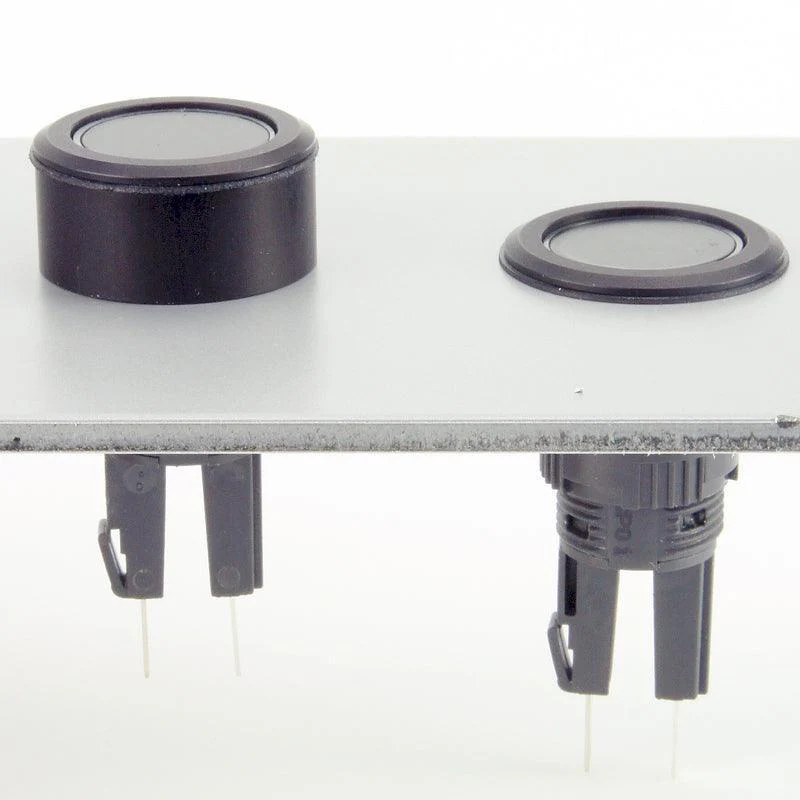

With Alloy Collar..

• Dash Projection 12mm
• Rear Projection 40mm
• Fitting hole size 15mm

Without Alloy Collar..

• Dash Projection 1.5mm
• Rear Projection 51mm
• Fitting hole size 23mm

Overall Dimensions..

• Collar Width 25mm
• Body Width 15mm
• Overall Length 52mm
