Original: $24.37
-65%$24.37
$8.53The Story
‘E9’ marked.
12 or 24 volt.
These lights will turn on automatically when the ignition is turned on.
When the headlamps are turned on they will automatically switch off.
A two metre long wiring harness with fuse holder, control module and waterproof connectors is included.
Each lamp measures 203mm long x 23mm high x 30mm front to back, including the bracket.

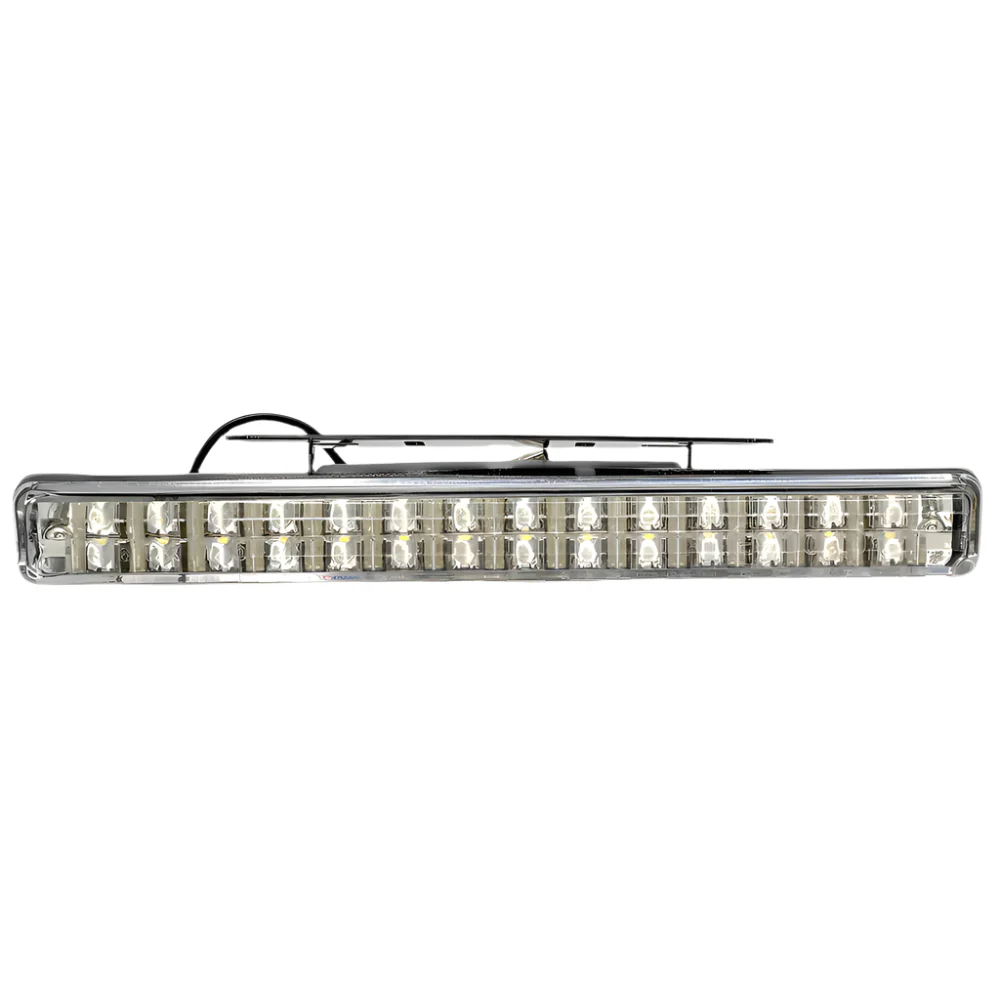

Each has 28 bright white LEDs.
Total 3 Amp current drain.

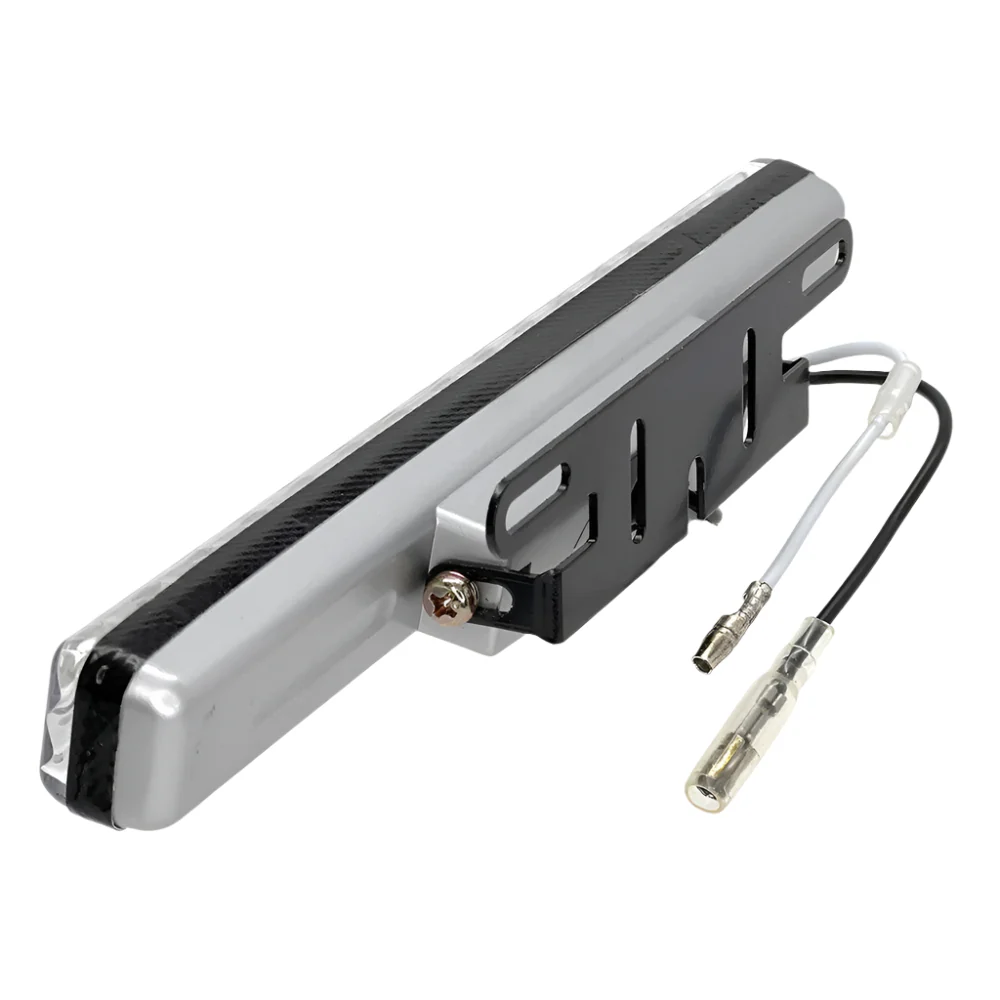

The lamps have multi-position mounting brackets and fixing screws.
Weight 425 gms.Â

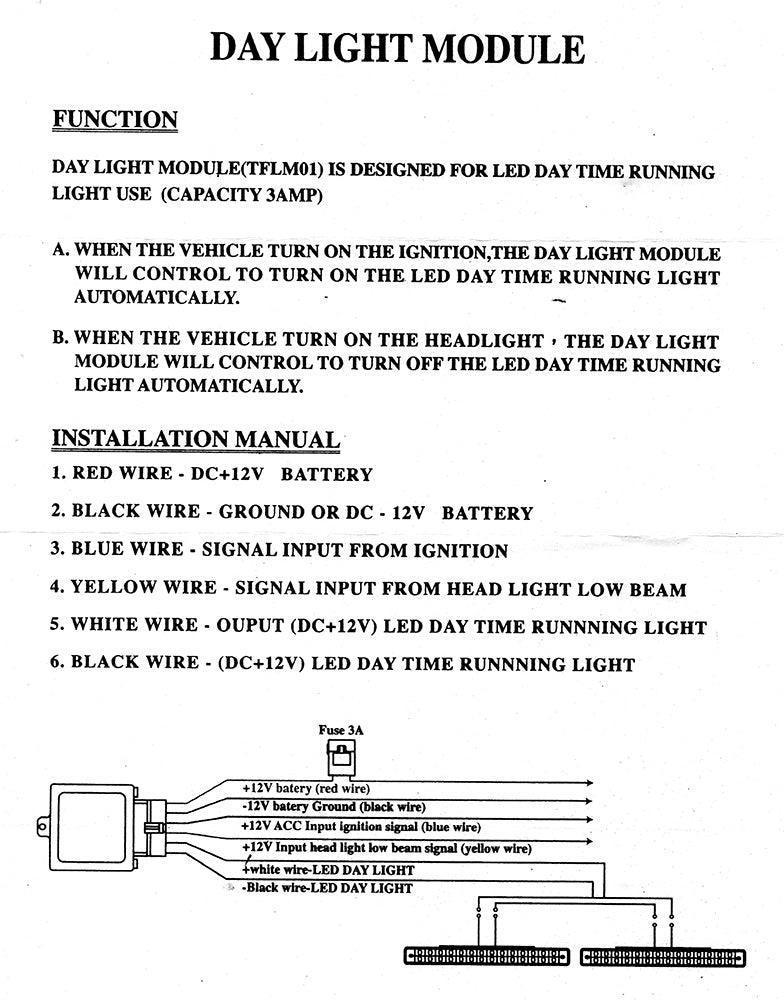

WIRING:
RED - Live feed in + 12v
BLACK -Â Earth - 12v
BLUE - Switched ignition feed in
YELLOW - Input from headlamps low beam
WHITE - +ve output to DRL
BLACK - -ve output to DRL
Note: IVA rules state that Daytime Running Lights must come on with the ignition and turn off when the headlamps are turned on.
AUTO SWITCHING LED DAYTIME RUNNING LIGHTS KIT pair #DRL1
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
‘E9’ marked.
12 or 24 volt.
These lights will turn on automatically when the ignition is turned on.
When the headlamps are turned on they will automatically switch off.
A two metre long wiring harness with fuse holder, control module and waterproof connectors is included.
Each lamp measures 203mm long x 23mm high x 30mm front to back, including the bracket.
Each has 28 bright white LEDs.
Total 3 Amp current drain.
The lamps have multi-position mounting brackets and fixing screws.
Weight 425 gms.Â
WIRING:
RED - Live feed in + 12v
BLACK -Â Earth - 12v
BLUE - Switched ignition feed in
YELLOW - Input from headlamps low beam
WHITE - +ve output to DRL
BLACK - -ve output to DRL
Note: IVA rules state that Daytime Running Lights must come on with the ignition and turn off when the headlamps are turned on.
AUTO SWITCHING LED DAYTIME RUNNING LIGHTS KIT pair #DRL1
