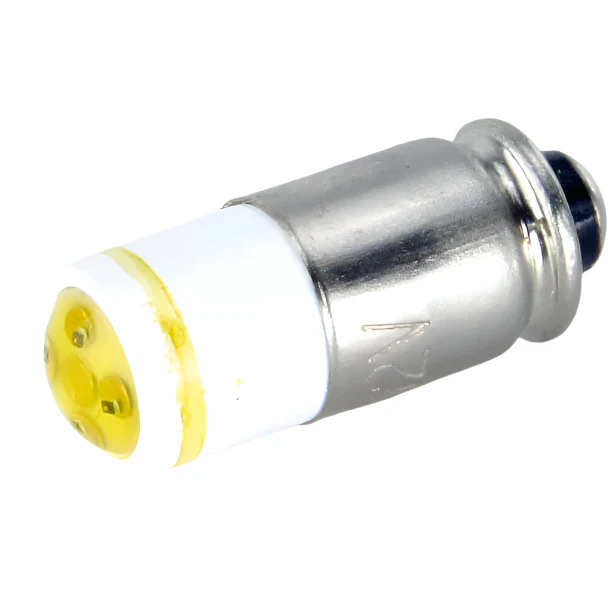

AMBER Bulb For Billet Alloy Switches and Lights

THIS ITEM IS A SINGLE AMBER BULB ONLY

We are often asked for switches and warning lights of all one colour so,

for everyone who is not concerned with IVA you can now.....

CHOOSE THE BODY (latching or Momentary or just a Warning light)

CHOOSE THE SWITCH BLOCK (Single Pole or Double Pole or none if just a warning light)

CHOOSE THE BULB COLOUR (Red, Amber, Blue or Green)

CHOOSE THE LEGEND (from 20 available legends)

ASSEMBLY INSTRUCTIONS

1. BULB. Drop the bulb, base first, down into the body recess locating it over the bulb contacts. Move it roughly in-line with your fingertip and press until it snaps into the contacts. To remove the bulb grip the lens gently with a small pair of needle-nose pliers and pull it out like a tooth.

2. LEGEND. Drop the legend housing down into the body, over the bulb and rotate it gently with your fingertips until the small slot in the legend housing locates over it's mating projection inside the body. You'll feel it when it does. A gentle push with one finger will snap the legend into place. To remove the legend, back off the threaded ring until the aluminium bezels drop below the surface of the legend. You can now grip it with your fingertips and pull it out.

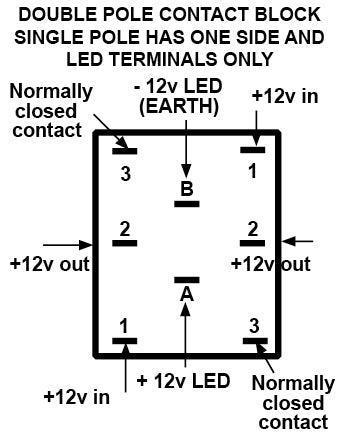

3. CONTACT BLOCK Just push the contact block onto the switch body until it clicks into place. It can only go one way round.

SINGLE AMBER LED BULB ONLY #BBA
