Aluminium Radiator 360mm x 460mm

A beautifully made, all aluminium, radiator with 32mm inlet and outlet.

Width - 360mm (14"), height (including cap and bottom mounts - 460mm (18"), thickness (not including inlet and outlet or mounts) 55mm (2 1/8").

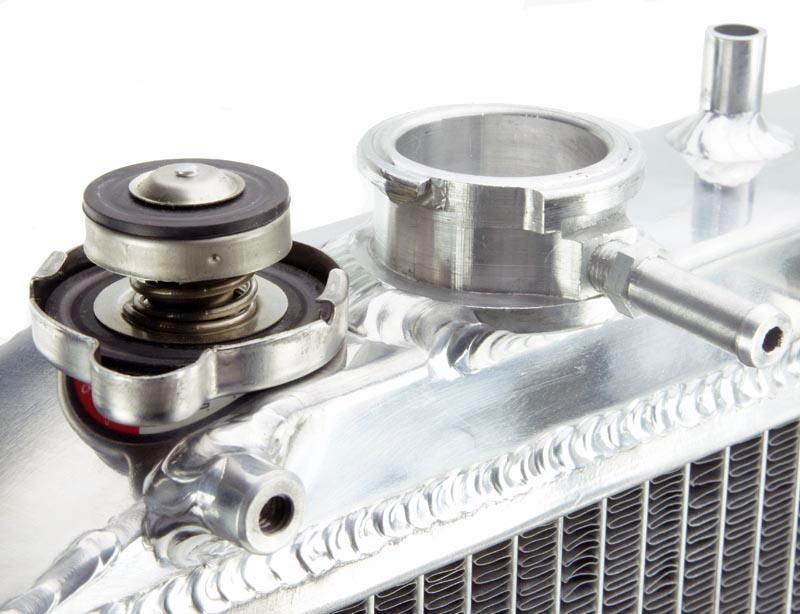

Mini pressure cap supplied 1.1 bar (15 psi).

Four, M6 threaded, aluminium mounting pillars welded on rear of the top and bottom tanks.

Two 11mm diameter locating posts on the bottom and one on the top.

Nylon threaded drain tap.

8mm overflow on rad neck.

Will easily accept one of our 12" (or smaller) fans.

Weight 2.4 Kg.

Capacity 1.5 litres.

Suitable for vehicles up to 175 BHP.

Top outlet centre is 155mm from the right hand side.  Bottom one is 53mm from RHS

Drain plug 1/2" UNF

ALUMINIUM RADIATOR 360 x 460 #AR1
