The Story
Low pressure side, overflow tank.
Tig welded construction with 70mm diameter, screw-on, knurled cap.
Tank diameter 90mm.
Overall height, including unions 215mm.
Two, welded-on M8 threaded mounting bosses with stainless cap head bolts.
Two 7/16" UNF threaded, 10mm, hosetail unions with 'O' rings screw into welded threaded bosses in the bottom of the tank.
One has a welded, 130mm long, internal aluminium tube (see pics).
Capacity 800ml.
Supplied with 2 x 10mm hosetail fittings.
Weight 520 gm.
ROUND ALUMINIUM EXPANSION TANK #AEXPAN4
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Low pressure side, overflow tank.
Tig welded construction with 70mm diameter, screw-on, knurled cap.
Tank diameter 90mm.
Overall height, including unions 215mm.
Two, welded-on M8 threaded mounting bosses with stainless cap head bolts.
Two 7/16" UNF threaded, 10mm, hosetail unions with 'O' rings screw into welded threaded bosses in the bottom of the tank.

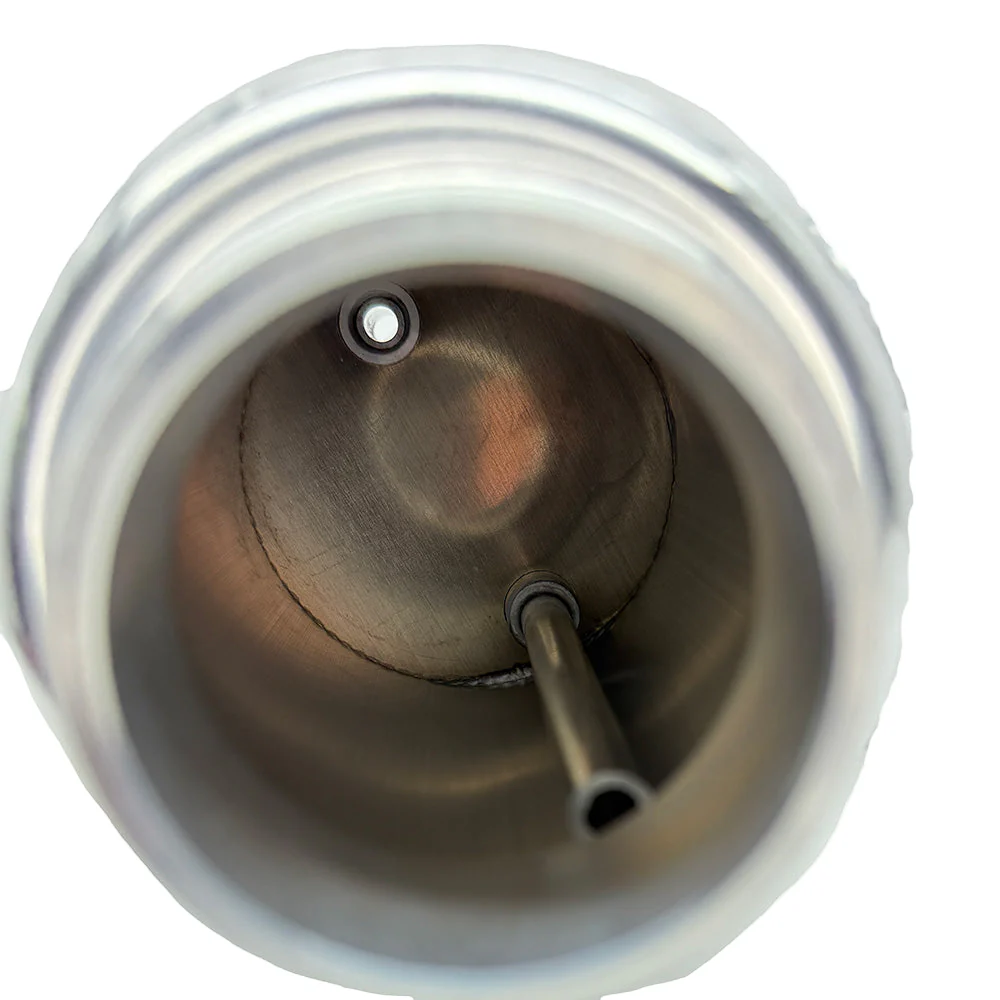

One has a welded, 130mm long, internal aluminium tube (see pics).
Capacity 800ml.
Supplied with 2 x 10mm hosetail fittings.
Weight 520 gm.
ROUND ALUMINIUM EXPANSION TANK #AEXPAN4
