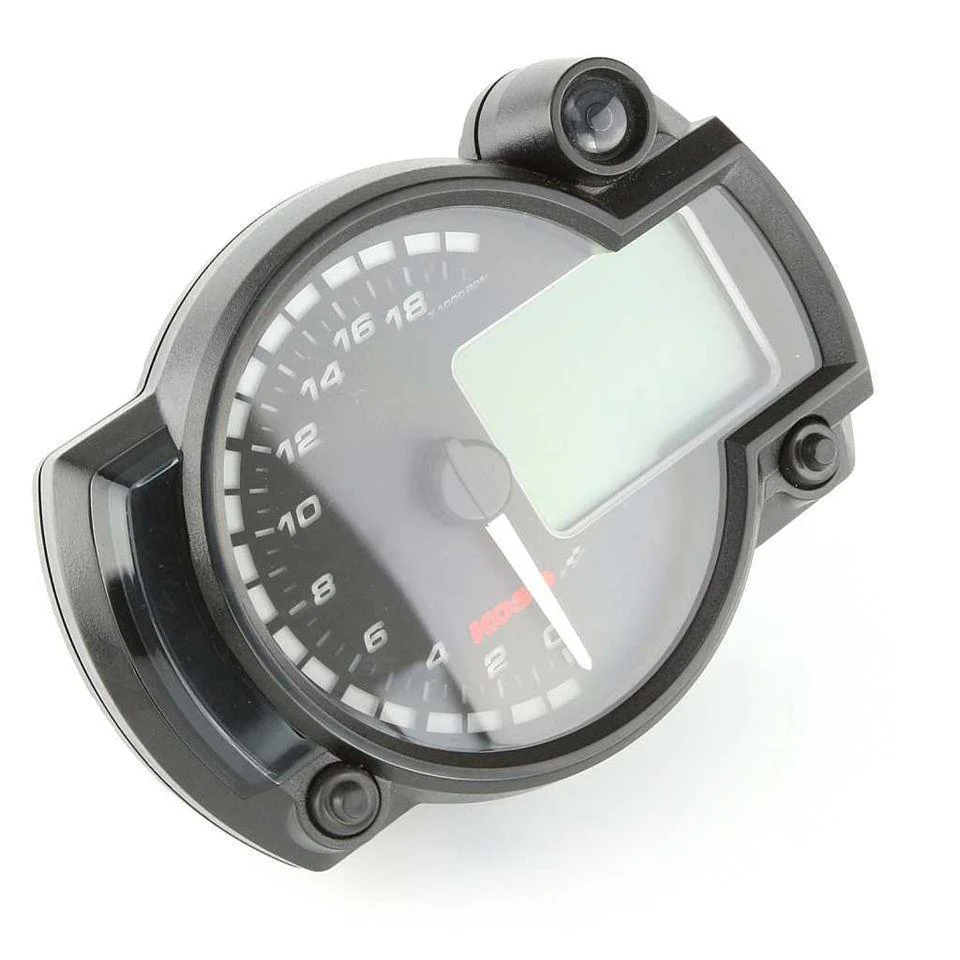

All In One Digital Dash 20K

ALL IN ONE DIGITAL INSTRUMENT Can be mounted in your dash or with bracket mount supplied. Installation and set-up instructions included.

SPEEDOMETER:
0 - 360 km/h (0 - 225 mph) Switchable display. Programmable for tyre circumference.

ODOMETER:
0 - 99999.9 km (miles) switchable

TRIP METER:
0 - 999.9 km )miles) switchable

SPEED WARNING LIGHT:
Setting range 30 - 360 km/h (20 - 225 mph)

TOP SPEED RECORDING:
0 - 360 km/h (0 - 225 mph)

TACHOMETER:
Range 0 - 20,000 (#DM4)

SHIFT LIGHT:
Range 5,000 - 20,000 (#DM4)

PRE-SHIFT LIGHT:
Setting range 500 to 3,000 R.P.M. before the shift light. Setting unit 100 R.P.M.

MAX RPM RECORD:
Range 0 - 20,000 (#DM4)

RPM INPUT PULSE:
0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6

THERMOMETER:
Display °C or °F

DIGITAL THERMOMETER:
(Water & Oil) 0 - 250°C (32 to 482°F)

LEVEL THERMOMETER:
(Water & Oil) Ten, 10 degree steps 20 - 120°C (68 - 248°F)

OVERHEAT WARNING LIGHT:
(Water & Oil) Range 60 - 250°C (140 - 482°F) in 1 degree steps.

TOP TEMPERATURE RECORD:
0 - 250°C (32 - 482°F)

FUEL METER:
Display range ten levels. Each level represents 10%. Sender resistance range 100

LOW FUEL WARNING:

Range 10 - 50% in units of 10%

CLOCK:

24 hour

PERPETUAL CALENDAR:

2000 to 2099 A.D.

TARGET SPEED TIMER:

Range 30 - 360 km/h (20 - 225 mph) Units 5 mph

TARGET DISTANCE TIMER:

Range 50 - 1000 mtrs (1/32 - 20/32 mile)

TOP SPEED TIMER

1. SPEED 0 - 360 KM/H (0 - 225 MPH)

2. DISTANCE 0 - 999 MTRS (0 - 3280 FT)

3. R.P.M. 0 - 20,000

4. Timer 0 - 9min 59.9 secs

VOLTAGE:

DC 12v

AMBIENT WORKING TEMP:

-10 - +60°C

METER STANDARD:

JIS 0203 S2

METER SIZE:

135.7mm x 100mm x 52mm. Main dial diameter 80mm.

METER WEIGHT:

Approx 240g

WARNING LIGHTS:

Neutral - Green, High Beam - Blue, Turn signal - Green, Engine management - Amber. Oil - Red, Speeding - Red, RPM shift light - Yellow/Red
