OFF-ON-ON-ON
Fits in a 12mm hole in panels up to 9mm thick.
Push-on knob diameter 23mm.
Switch body 30mm x 30mm.
Front projection 25mm.
Rear projection 36mm.
1/4" male spade terminals. 15 amp contacts.

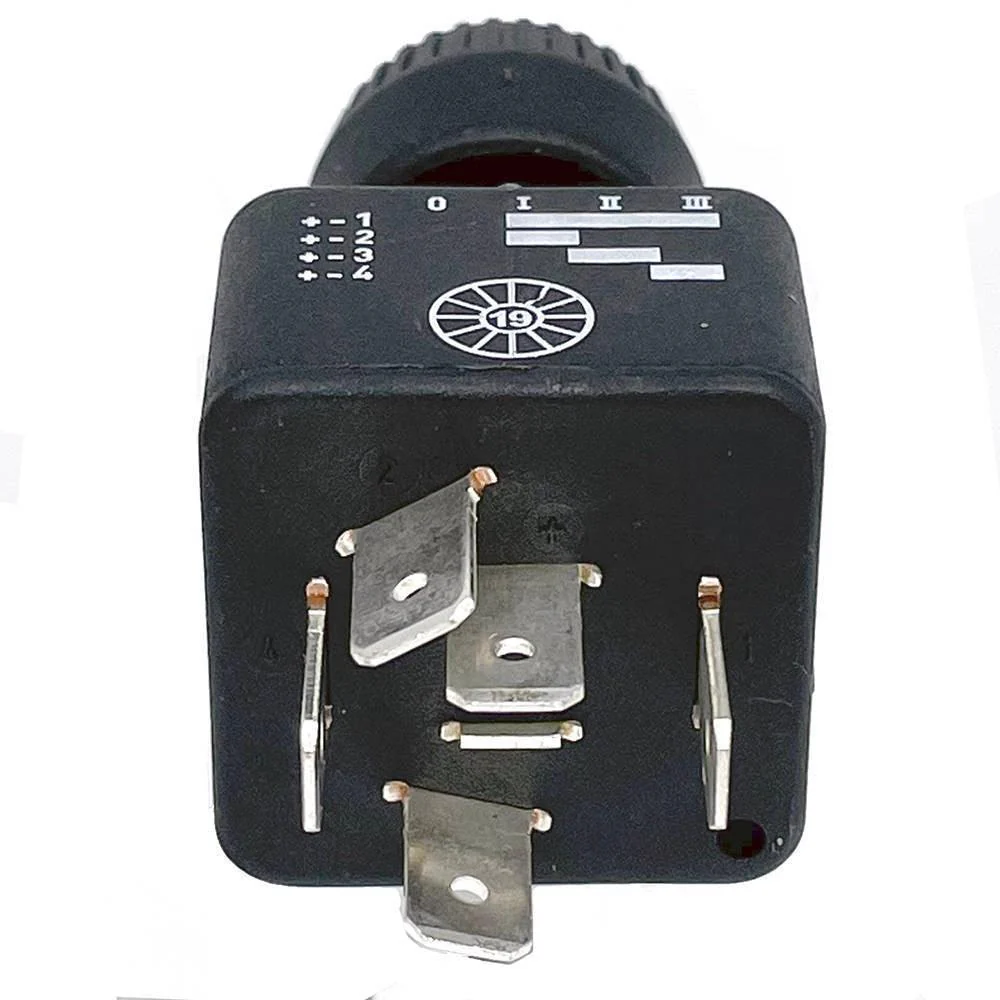

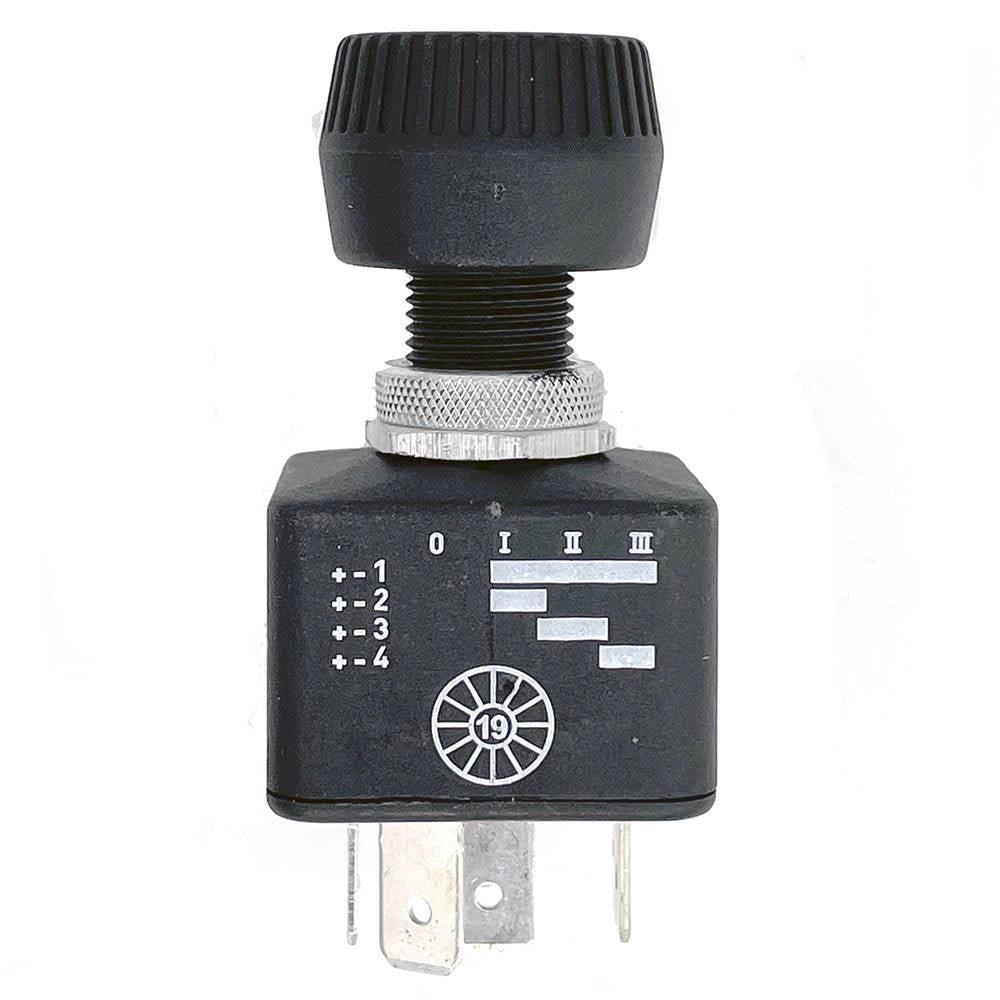

WIRING:
+12v into Terminal +
POSITION 1 - OFF
POSITION 2 - Terminals 1 and 2 go live
POSITION 3 - Terminals 1 and 3 go live
POSITION 4 - Terminals 1 and 4 go live

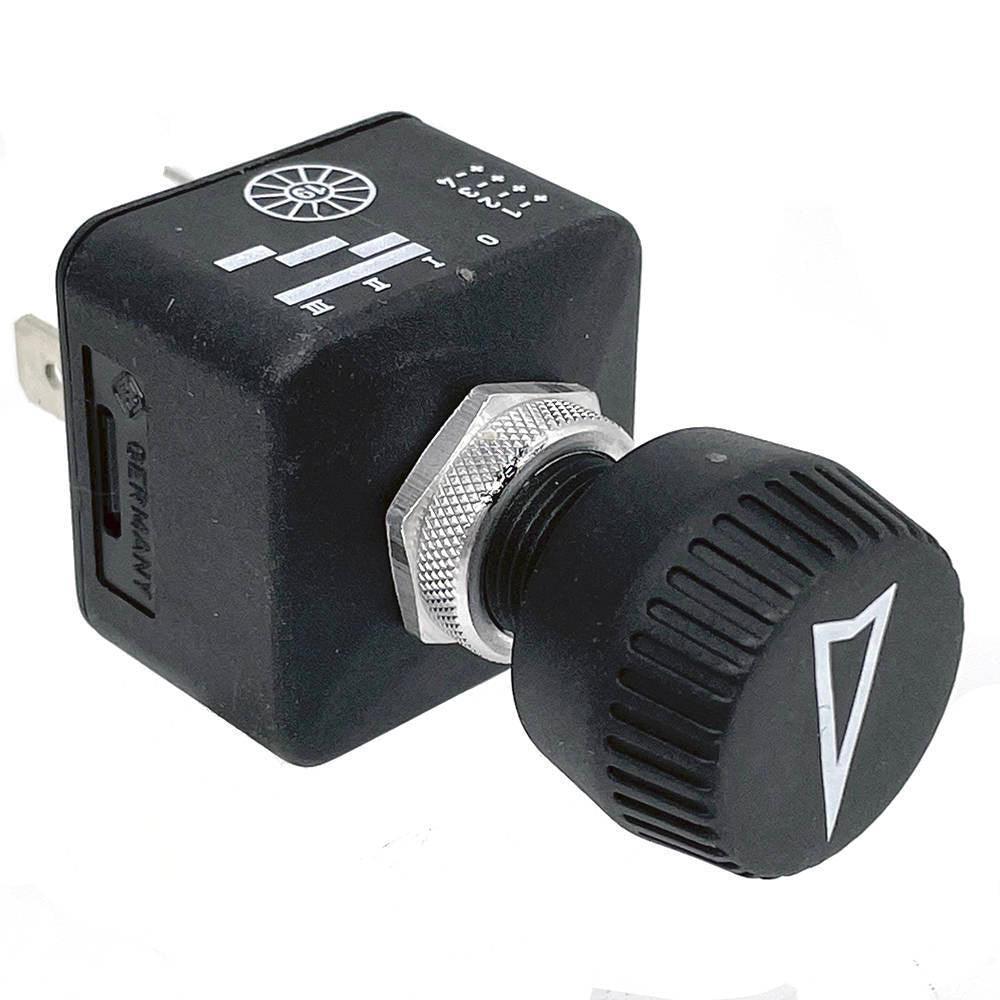

4 POSITION ROTARY SWITCHÂ Â #ROSW4
