$9.48The Story
Can be used as an Accessory / Ignition switch (no start position).
Fits in a 19mm hole in a panel up to 12mm thick.
Bezel diameter 30mm.
Body diameter 32mm.
Maximum rear projection 41mm.
Three screw terminals on rear.
Two keys suppliedÂ
Weight 95gms.
20 Amps @ 12v.

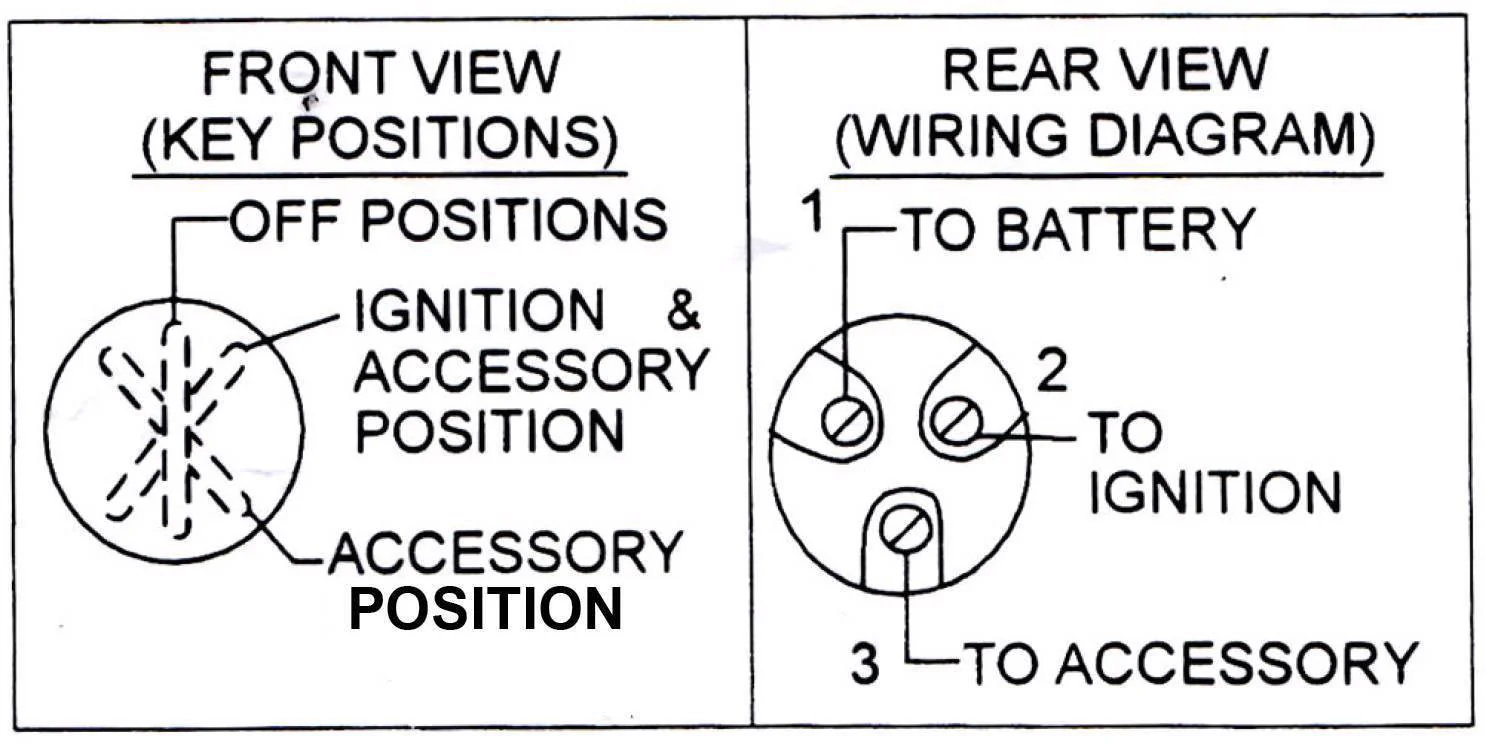

NOTE:
Centre - OFF.
Left - Accessory terminal only connected.
Right - Accessory and Ignition terminals connected.
TERMINALS ARE NOT NUMBERED SO CHECK
THE SWITCHING FUNCTIONS WITH A MULTIMETERÂ BEFORE CONNECTING
THREE POSITION KEY SWITCHÂ #KEYSW3
