142mm LED Round Five Function Rear Lamp

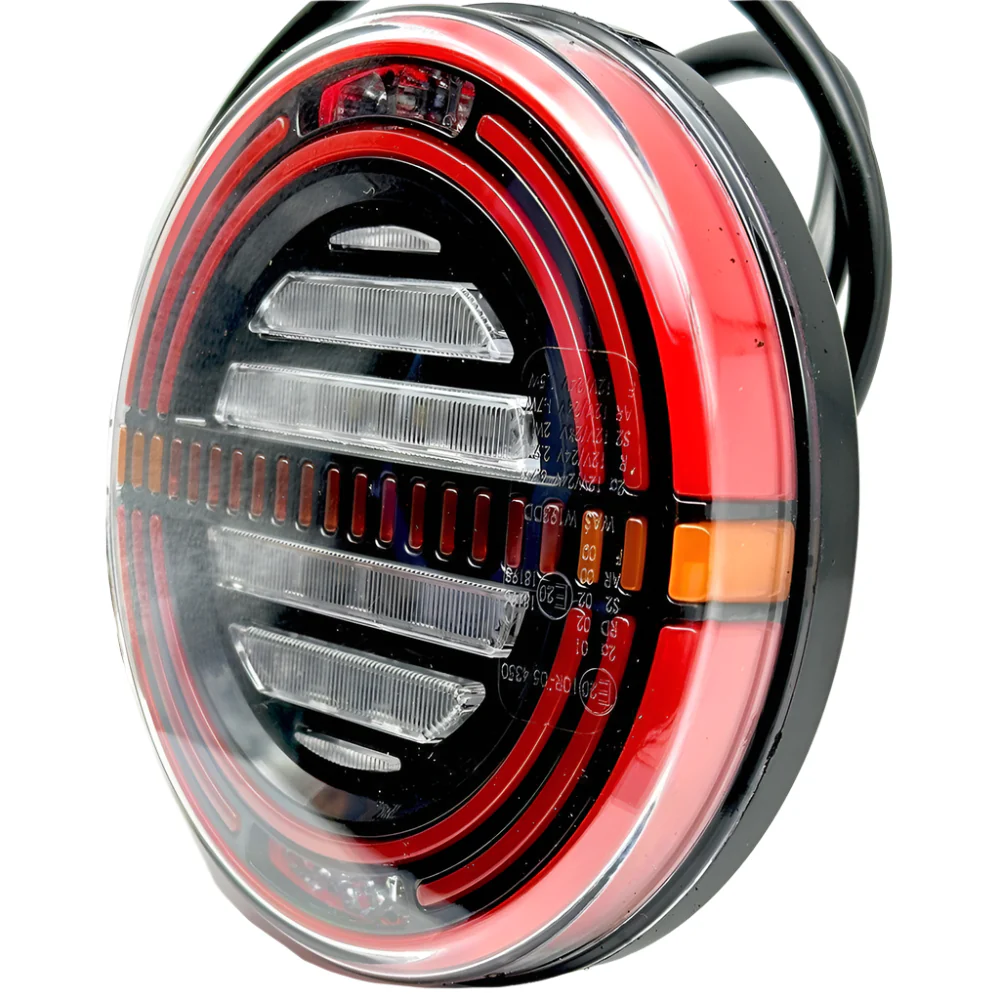

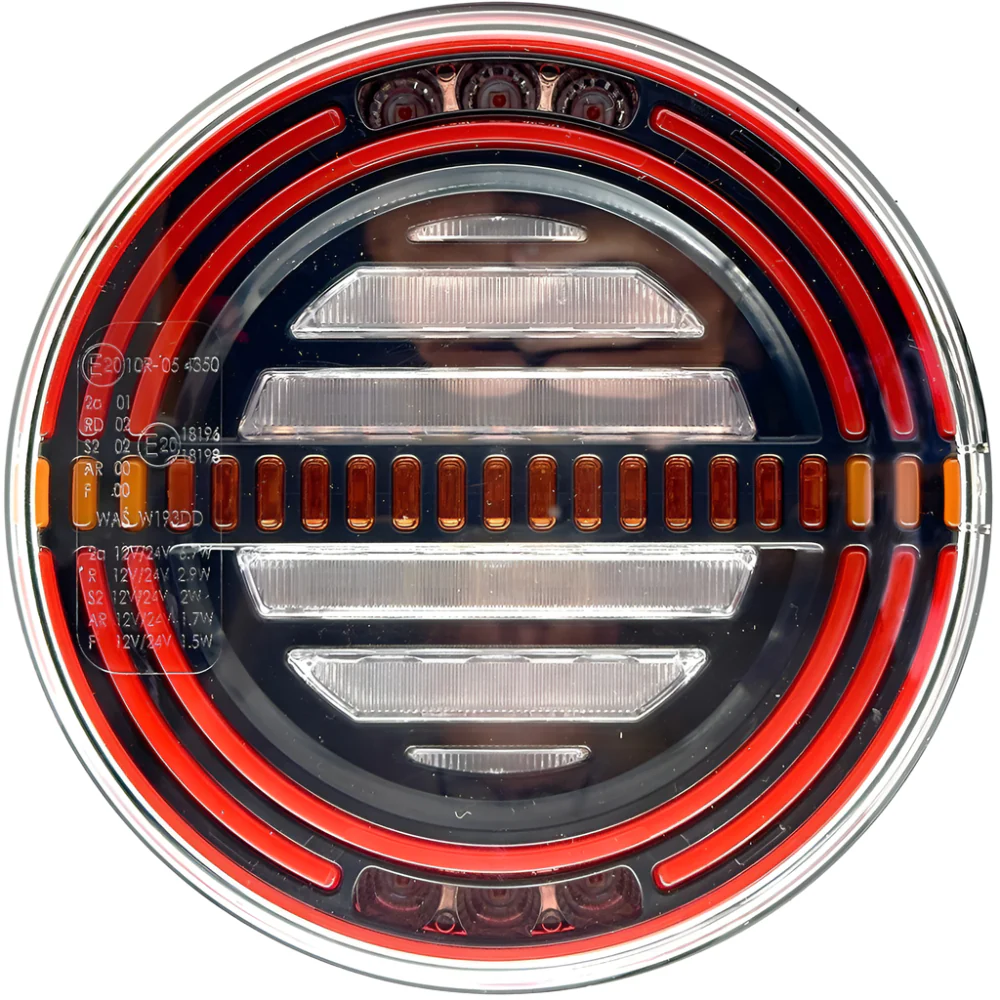

142mm maximum diameter x 32mm deep, this amazing lamp has a three concentric rings, neon-like tail lamp, and a sequencing amber LED strip across the centre.

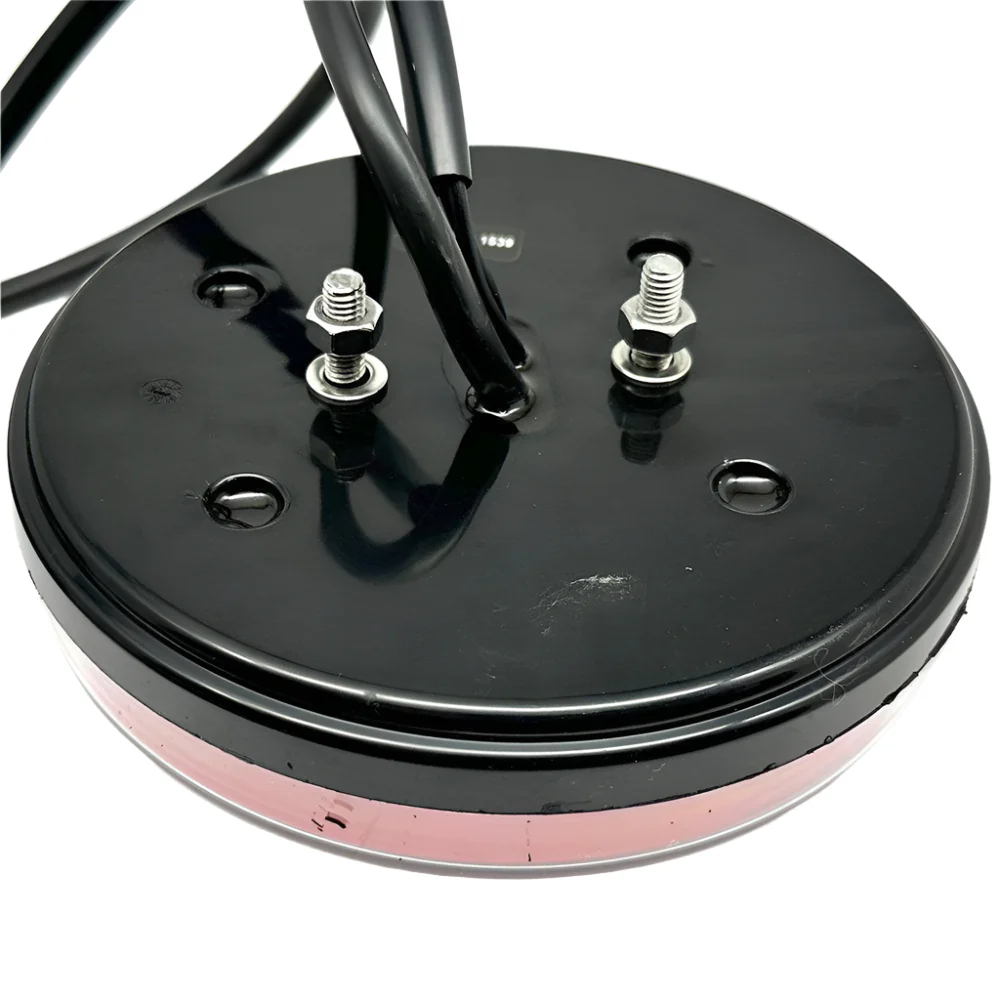

It mounts on a flat surface with two M6 studs at 45mm centres.

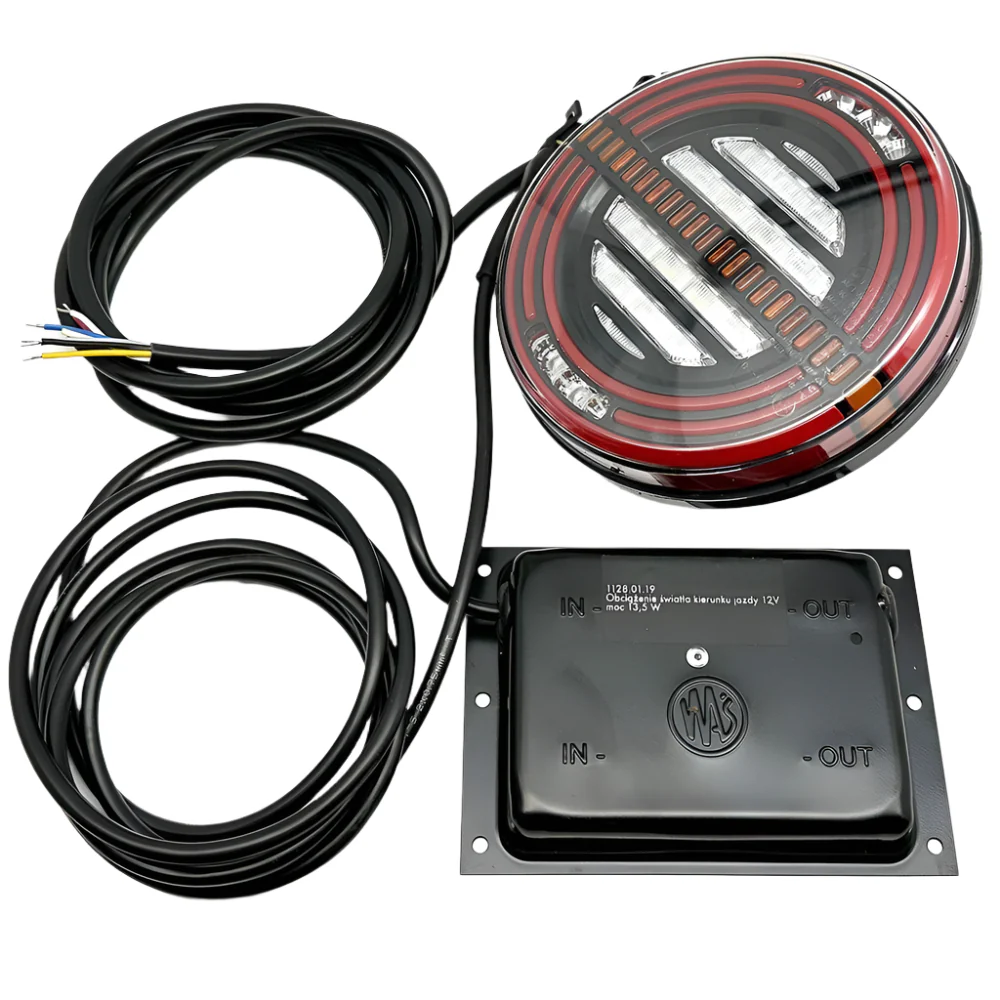

Each lamp has its own power pack with a waterproof connector to the lamp and two metres of cable.

WIRING:

WHITE - neg.12 volt

RED - Stop

BLACK - Tail

YELLOW - Indicator

BLUE - Fog

GREY - Reverse

POWER CONSUMPTION:

IND - 6.5W

TAIL - 2.8W

STOP - 1.8W

FOG - 1.4W

REVERSE - 1.6W

Weight 475gms each.

For handed installation just invert one lamp.

NOTE: The internal sequencing electronics of the indicator in this lamp needs no additional relay.

Your existing indicator relay is all you need.

SEE OUR ONLINE VIDEO OF THE INDICATOR SEQUENCING.

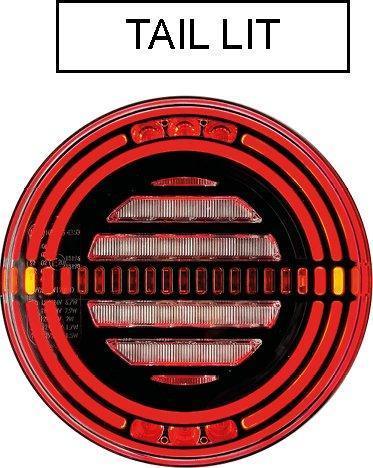

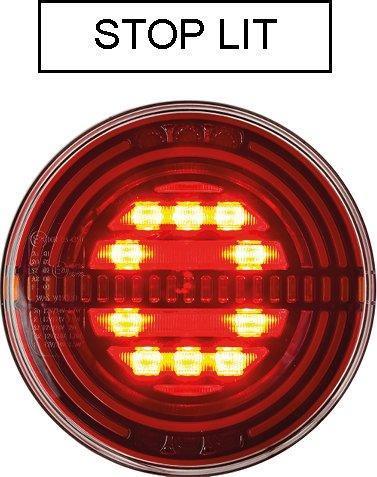

The last three pictures show lit lamps - Stop, Tail and Indicator.

142mm LED FIVE FUNCTION REAR LAMP WITH SEQUENCING INDICATOR #RL156
